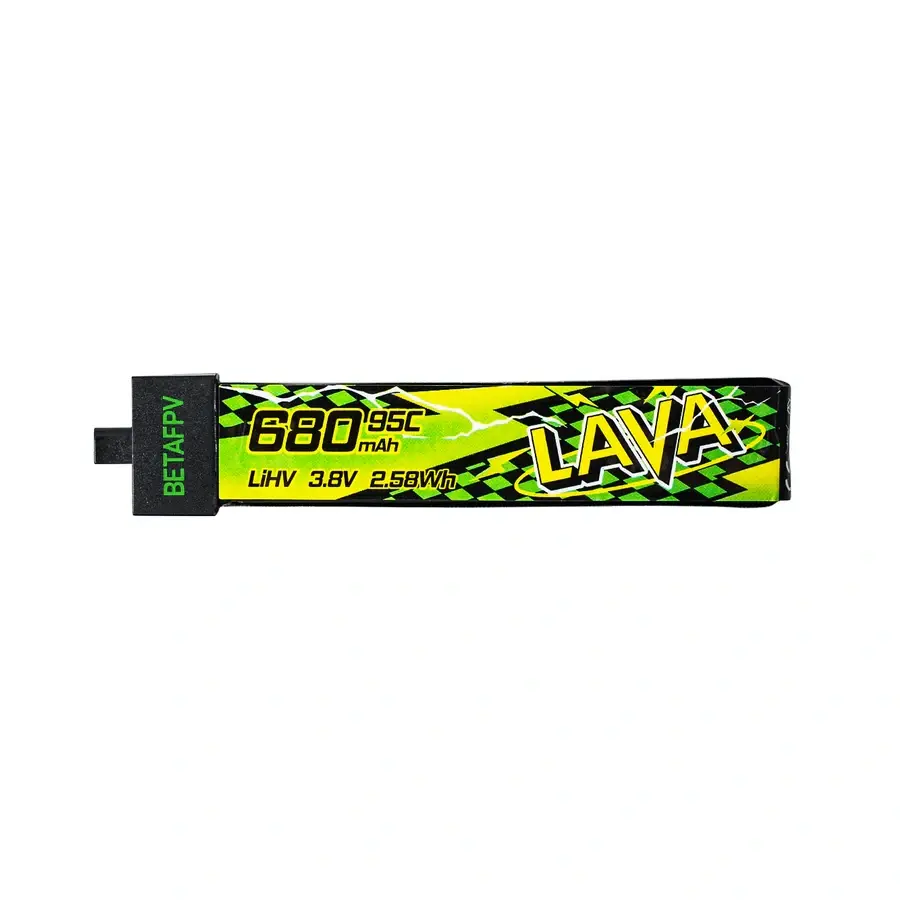

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery

https://www.bzbuas.com/web/image/product.template/3296/image_1920?unique=380f805

The BetaFPV LAVA II 680mAh 1S 95C LiHV Battery is designed for micro FPV drones that need extended flight time. With its high 680mAh capacity and 95C discharge rate, it delivers stable voltage and strong throttle response, allowing for much longer flights. This battery is fully compatible with the Air75 II frame, ensuring reliable performance for your micro FPV setup.

26.01 zł 26.01 PLN VAT Excluded
26.01 zł VAT Excluded
  • Quantity

This combination does not exist.

Contact Us

Terms and Conditions

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery — High Endurance and Uncompromised Performance

The BetaFPV LAVA II 680mAh 1S 95C LiHV Battery is a 1S LiHV pack with a capacity of 680mAh, a 95C discharge rate and 2.58Wh of energy. It charges up to 4.35V, has a nominal voltage of 3.8V and a storage voltage of 3.85V. It weighs 16.2g, measures 80x15x6.5mm and has a BT2.0 connector. It is the largest capacity in the LAVA II 1S range. The Z-Folding cell process gives it low internal resistance and a higher, more stable voltage under load, for a strong punch and consistent throttle response. BetaFPV recommends it for the Air75 and Meteor75 Pro whoops. Available as a single pack or a pack of 4.

BetaFPV LAVA II 1S batteries in five capacities from 280mAh to 680mAh

LAVA 1S Battery vs. LAVA II 1S Battery

Through a core material upgrade, the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery unlocks a 95C discharge rate, a 26.7% increase over the previous 75C, delivering a big boost in available power. This translates into a 0.1V higher and noticeably more stable discharge voltage, for consistent performance during aggressive flight manoeuvres.

Discharge of the LAVA II 1S 680mAh 95C at 39A (manufacturer data):

Discharge curve at 39A of the LAVA II 1S 680mAh 95C battery

Z-Folding Process

Thanks to the Z-Folding process, the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery achieves a 5% higher energy density than traditional wound cells. Low internal resistance allows efficient high-current discharge and a 0.2V higher voltage under load, while the precise layer folding also significantly extends the cycle life of the battery.

Z-Folding cell structure of the LAVA II 1S battery with anode, cathode and separator

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Key Features

  • More Power - The 95C rating gives 26.7% more discharge rate than the previous 75C, so the battery keeps up with sudden throttle punches and keeps the flight stable.
  • The Largest LAVA II 1S - 680mAh is the largest capacity in the LAVA II 1S range, which BetaFPV offers from 280mAh to 680mAh, for the longest flights.
  • BT2.0 Connector - The BT2.0 plug fits the BetaFPV whoops the battery is made for, such as the Air75 and Meteor75 Pro.
  • Z-Folding Technology - 5% higher energy density and a significantly longer cycle life than traditional wound cells, so the pack serves you longer.
  • Iconic Design - The new green and yellow livery makes LAVA II packs easy to recognise among your batteries.

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Suitable Applications

BetaFPV recommends this battery for the following whoops:

Recommended Parts

  • Before use, the battery must be fully charged.
  • Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
  • When charging, always keep the battery away from flammable and explosive materials.
  • Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
  • Never discharge the battery below 3V per cell under load.
  • Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
  • Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
  • Do not use batteries that are deformed or swollen.

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Dimensions

BetaFPV LAVA II 680mAh 1S battery dimensions 80x15x6.5mm

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Specification

Capacity

680mAh

Energy

2.58Wh

C-rate

95C

Nominal Voltage

3.8V

Max Voltage

4.35V

Storage Voltage

3.85V

Battery Type

LiHV 1S

Connector

BT2.0

Weight

16.2g

Dimensions

80x15x6.5mm

Compatible Whoops

Air75, Meteor75 Pro

BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Package Includes

1 pcs.

  • 1x BetaFPV LAVA II 680mAh 1S 95C LiHV Battery

Package of 4 pcs.

  • 4x BetaFPV LAVA II 680mAh 1S 95C LiHV Battery
