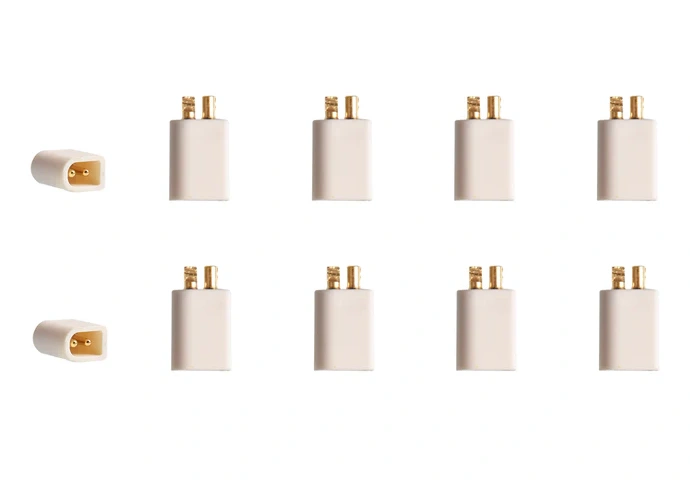

BT2.0 Connector (10PCS)
The BT2.0 Connector (10PCS) is a simple way to give your 1S whoop all the power its battery can deliver. Less voltage sag means more punch at full throttle and flights that are not cut short by a low-voltage warning. Swap your old PH2.0 plugs yourself and enjoy a solid, reliable connection on every flight. Ten connectors in one pack are enough to convert several batteries and drones in one go.
BT2.0 connector — the biggest revolution in Whoop 1S drones
The new BT2.0 is an improved battery connector with lower resistance than the PH2.0. It is designed to reduce voltage drop and keep the voltage at a more stable level during flight. A smaller voltage drop can also give you a bit more flight time. The BT2.0 connector has a similar design to its larger counterparts, the XT30 and XT60, making the connection very solid, and the rounded shape prevents reverse polarity.
BETAFPV replaced the crimped pins with 1.0mm banana pins, so the BT2.0 handles 9A continuous and 15A burst current, while the PH2.0 handles 4.5A continuous. The pack contains 10 connectors, all male or all female, depending on the version you choose. A male connector measures 6.0x4.2x10.5mm and weighs 0.34g, a female one 6.0x4.2x8.3mm and 0.24g.
Is It Worth Switching to BT2.0?
Watch Joshua Bardwell's video, a test showing that the BT2.0 connector performs better than the PH2.0.
BT2.0 Connector (10PCS) Key Features
- The BT2.0 connector effectively reduces internal resistance by replacing crimped pins with banana pins and increasing their cross-sectional area.
- It supports 9A continuous and 15A burst current, while the PH2.0 connector supports 4.5A continuous.
- By solving the voltage sag problem, a 300mAh 1S BT2.0 LiPo discharges more efficiently. You get more flight time without interruptions from the low-voltage warning.
- Compared with crimped PH2.0 pins, the BT2.0 connector is more durable and can deliver higher current from the same capacity, giving far more power. With a BETAFPV BT2.0 300mAh 1S battery you get about 2 minutes of full-throttle flight on the Meteor65.
BT2.0 Connector Compared with PH2.0
BT2.0 is a connector designed by BETAFPV that lets more current through, giving more power and longer flight time on 1S brushless drones. The chart below compares the BT2.0 connector with the PH2.0 connector (solid pins version) on a BETAFPV 1S 300mAh battery at a 9A discharge current. With the BT2.0 connector the discharge time is about twice as long (about 2 minutes).
BT2.0 Accessories and Compatible Gear
Have an older 1S battery with a PH2.0 connector? These accessories help you convert it to BT2.0.
- 1S Whoop Cable Pigtail (BT2.0 6PCS)
- BT2.0-PH2.0 adapter cable
Products with BT2.0 connectors or ports that we recommend:
- BetaFPV BT2.0 450mAh 1S 30C LiHV Battery 2022 Version
- BetaFPV BT2.0 300mAh 1S 30C LiHV Battery 2022 Version
- Tattu 300mAh 3.8V 75C 1S1P BT2.0 LiHV Battery
- BetaFPV BT2.0 Battery Charger and Voltage Tester V2
- VIFLY WhoopStor 3 Charger
- BT2.0 series quadcopters
- 6-port 1S battery charger and adapter
BT2.0 Connector (10PCS) Polarity Marking
Note The connector housing marks the positive and negative poles. Solder the wires according to this marking.
BT2.0 Connector (10PCS) Dimensions
BT2.0 Connector (10PCS) Specification
Manufacturer | BETAFPV |
Connector Type | BT2.0 |
Pins | 1.0mm banana pins |
Dimensions (male) | 6.0x4.2x10.5mm |
Dimensions (female) | 6.0x4.2x8.3mm |
Weight (male) | 0.34g/pc |
Weight (female) | 0.24g/pc |
Continuous Current | 9A |
Burst Current | 15A |
Quantity | 10pcs |
BT2.0 Connector (10PCS) Package Includes
Male
- 10x BT2.0 Male Connector
Female
- 10x BT2.0 Female Connector
