RFD900X Multi Cable 30 cm
The RFD900X Multi Cable 30 cm connects an RFD900x or RFD868x modem to a Pixhawk TELEM port. It also supports SBUS/PPM input and external 5 V power, allowing full modem performance in compact UAV setups.
RFD900X Multi Cable 30cm - Full Connectivity with TELEM, SBUS/PPM & 5V Power Support

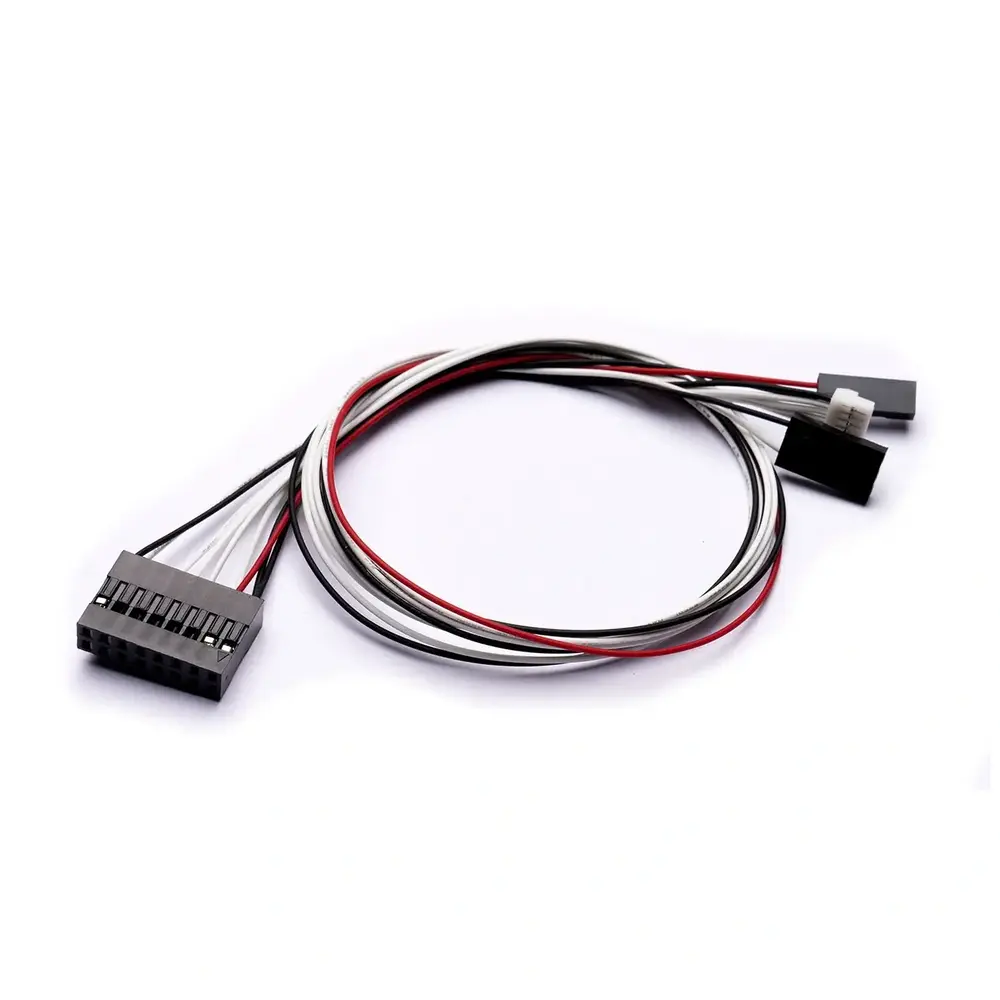

This cable allows an RFD900x or RFD868x modem to be connected to the TELEM port on a PixHawk Carrier board, an external SBUS / PPM connection and External 5V Power Supply.
The 5V supply is provided from a separate header, not connected to the carrier board which is required for full transmit power (30dBm) use.
The SBUS/PPM I/O cable is 3.3v tolerant and is able to be a source or sink of PPM or SBUS, while also mixing formats on either end.
The orientation of the cable is such that the black triangle is towards the PIN 1 label on the 16w header on the RFD900x PCB. The red wire is on pin 4 of the modem. Inserting the cable the incorrect way, can cause damage to the modem.
RFD900X Multi Cable 30cm Specification
Length | 300mm |
Weight | 4g |
