DJI Zenmuse H30 + DJI Care 1 year - Unrivaled visibility at day and night
DJI Zenmuse H30 + DJI Care 1 year
The multisensor flagship Zenmuse H30 all-weather series integrates five main modules: a wide-angle camera, a zoom camera, a laser rangefinder, and NIR auxiliary light. Using state-of-the-art intelligent algorithms, it revolutionizes perception and imaging standards, pushing beyond the limits of day and night visibility. As a result, it is effortlessly suited for various operations, including public safety, energy inspections, water protection, and forestry.
Advanced zoom for exceptional detail
The 40 MP zoom camera enables 34x optical zoom and 400x digital zoom. Compared to previous models, it provides the ability to observe from greater distances while capturing the finest details, resulting in better object identification and more precise analysis.
Stable image even at high zoom levels
Thanks to the DJI stabilization algorithm, the camera effectively minimizes vibrations when using the telephoto lens. This allows for stable and clear recordings, which is crucial during technical inspections such as power line inspections.
Precise laser rangefinder measurements
The built-in laser rangefinder enables precise distance measurements within a range of 3 m to 3000 m, representing a 2.5x increase in capability compared to the previous generation. The system accurately determines not only the distance to the object, but also its GPS coordinates and altitude, significantly facilitating navigation and field analysis.
High-quality night vision
Both the wide-angle and zoom cameras can switch to Night Scene mode, significantly improving visibility in low-light conditions. This technology ensures better live transmission and nighttime recording quality, enabling uninterrupted operations regardless of the time of day.
DJI Zenmuse H30 + DJI Care 1 year - Advanced night vision features and NIR illumination
In night mode, the camera supports IR Light technology, which enhances image contrast by removing the infrared filter. This increases the visibility of details, making it especially useful for search and rescue operations. Additional NIR illumination supports observation in complete darkness, facilitating the monitoring of concealed objects.
Intelligent image processing in Smart Capture mode
Smart Capture algorithms automatically adjust exposure settings to environmental conditions, ensuring an optimal balance of light and shadow. As a result, recordings and photos feature natural colors and high detail, even in challenging lighting conditions.
Improved image quality through noise reduction
In challenging weather conditions such as fog or high humidity, the Electronic Dehazing function significantly improves image quality. The ability to choose from different noise reduction levels allows for optimal adjustment of settings to current conditions.
Pre-recording for complete documentation
The Zenmuse H30 series cameras offer pre-recording with a buffer of 10, 15, or 30 seconds before recording starts. This feature allows capturing key moments that might be missed in standard recording mode, increasing the effectiveness of material analysis.
DJI Zenmuse H30 + DJI Care 1 year - Specification
| Product name | Zenmuse H30 |
| Dimensions | 170×145×165 mm (L×W×H) |
| Weight | 920±5 g |
| Power | H30: 26 WH30T: 28 W |
| Protection rating | IP54 |
| Supported drones | Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK, Matrice 400 |
Gimball
| Stabilization system | 3-axis |
| Angular vibration range | Hover: ±0.002°Flight: ±0.004° |
| Mounting | Detachable DJI SKYPORT |
| Mechanical range | Tilt: -132.5° to +73°Roll: ±60°Yaw: ±328° (structural limitation, non-controllable range) |
| Controllable range | Tilt: -120° to +60°Yaw: ±320° |
| Operating modes | Follow / Free / Re-center |
Zoom camera
| Sensor | 1/1.8-inch CMOS, effective pixels: 40 MP |
| Lens | Actual focal length: 7.1–172 mm (35mm equivalent: 33.4–809.3 mm)Aperture: f/1.6–f/5.2DFOV: 66.7°–2.9° |
| Focus mode | MF, AFC, AFS |
| Exposure mode | Manual, Auto |
| Exposure compensation | ±3.0 (1/3 increments) |
| Metering mode | Spot metering, average metering |
| AE lock | Supported |
| Electronic shutter speed | 1/8000–2 s |
| ISO range | Single shot: 100–25600Night scene: 100–819200 |
| Video resolution | Single shot: 3840×2160 at 30 fps, 1920×1080 at 30 fpsNight scene: 1920×1080@25 fps, 1920×1080@15 fps, 1920×1080@5 fps |
| Video format | MP4 |
| Video subtitles | Supported |
| Video codec & bitrate strategy | H.264, H.265CBR, VBR |
| Maximum photo size | 7328×5496, 3664×2748 |
| Photo format | JPG |
Wide angle camera
| Sensor | 1/1.3-inch CMOS, effective pixels: 48 MP |
| Lens | Actual focal length: 6.72 mm (35mm equivalent: 24 mm)Aperture: f/1.7DFOV: 82.1° |
| Focus mode | MF, AFC, AFS |
| Exposure mode | Manual, Auto |
| Exposure compensation | ±3.0 (1/3 increments) |
| Metering mode | Spot metering, average metering |
| AE lock | Supported |
| Electronic shutter speed | 1/8000–2 s |
| ISO range | Single shot: 100–25600Night scene: 100–409600 |
| Video resolution | Single shot: 3840×2160 at 30 fps, 1920×1080 at 30 fpsNight scene: 1920×1080@25 fps, 1920×1080@15 fps, 1920×1080@5 fps |
| Video format | MP4 |
| Video subtitles | Supported |
| Video codec & bitrate strategy | H.264, H.265CBR, VBR |
| Maximum photo size | 8064×6048, 4032×3024 |
| Photo format | JPG |
Rangefinder
| Wavelength | 905 nm |
| Measurement range | 3–3000 m |
| Range for typical objects | Vegetation: 2000 mForest: 1900 mRoad surface: 1700 m* |
| Laser spot size | ≤ 500 m: ±(0.2 m + distance × 0.15%)> 500 m: ±1.0 m |
| Laser spot size | @100 m: approx. 50×450 mm@1000 m: approx. 450×4500 mm |
| Safety level | Class 1 |
| Accessible Emission Limit (AEL) | 260 nJ |
| Reference aperture | 18 mm |
| Maximum laser pulse emission power (5 ns) | 52 W |

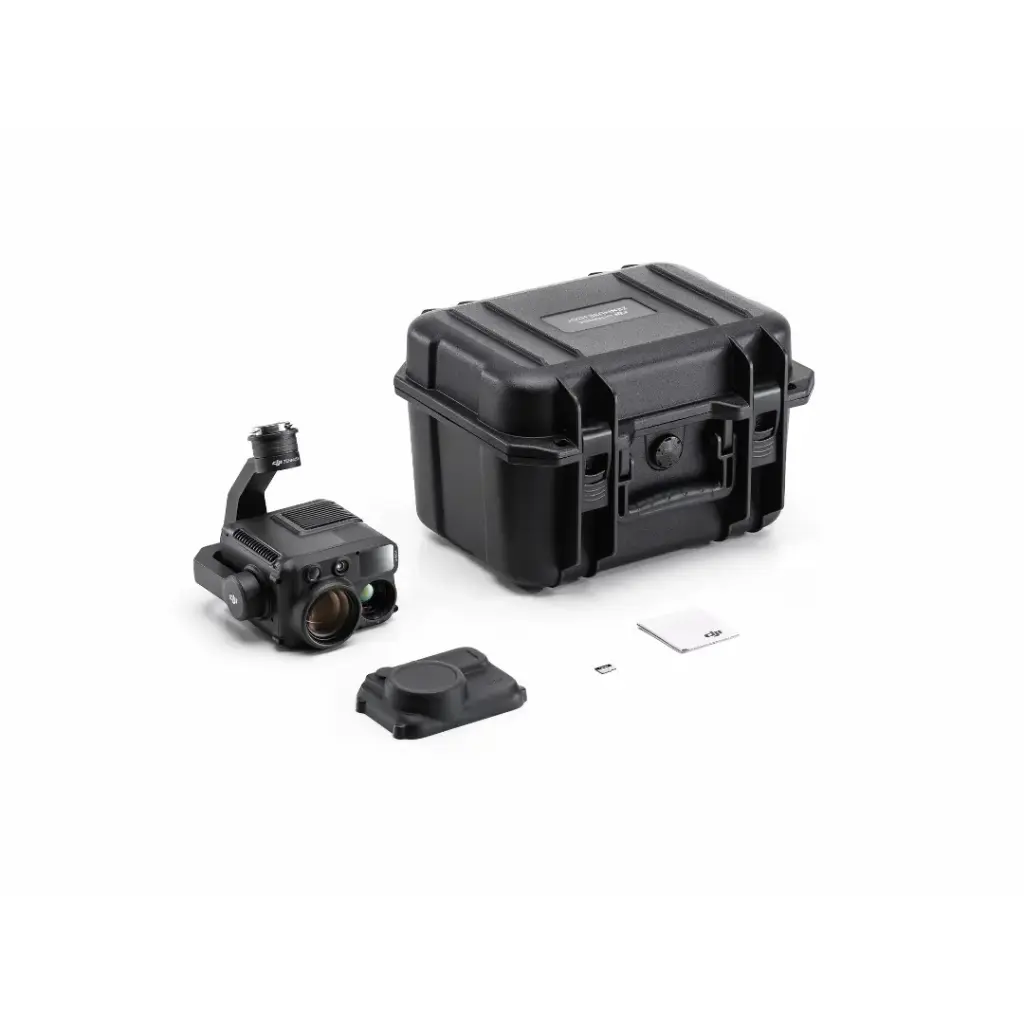

DJI Zenmuse H30 + DJI Care 1 year - Package includes
- 1x DJI Zenmuse H30
- 1x 1 year DJI Care Enterprise Plus
- 1x Transport case
