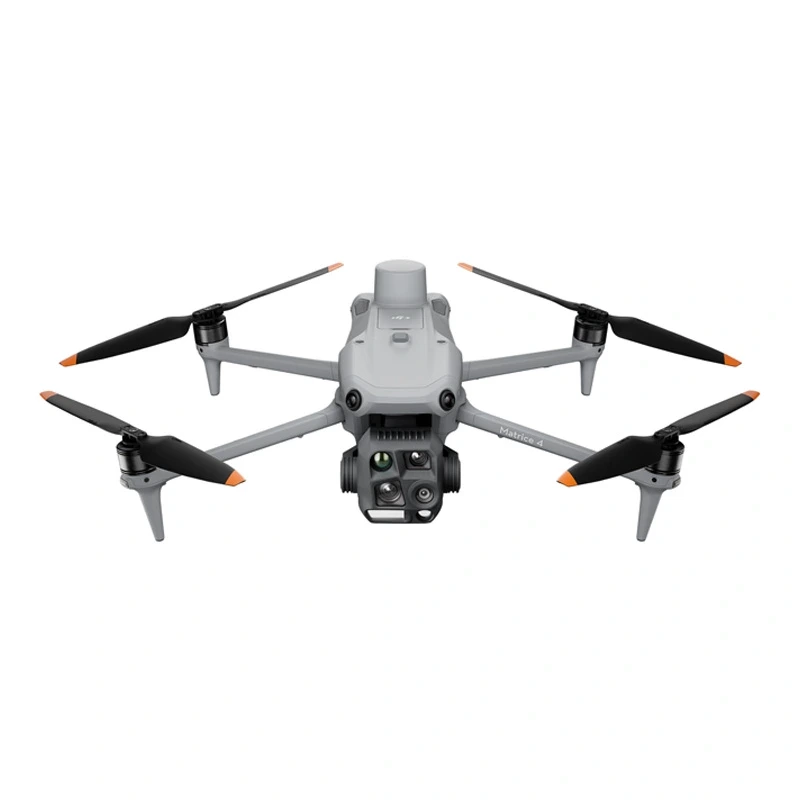

DJI Matrice 4T + DJI Care Plus 1 year

https://www.bzbuas.com/web/image/product.template/1116/image_1920?unique=176b949

The DJI Matrice 4T (Matrice 4 Thermal) is a high-performance thermal imaging drone from the Enterprise series, designed for industrial applications in energy, public safety, search and rescue, and forestry. Equipped with advanced imaging and AI-powered capabilities, this professional thermal drone delivers unparalleled efficiency and precision in aerial inspections and monitoring.

24,604.88 zł 24604.88 PLN VAT Excluded
24,604.88 zł VAT Excluded
Price on request

    This combination does not exist.

    Dron-DJI-Matrice-4T+DJI-Care-Plus-1-rok

    Two Models, Countless Applications

    Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder.

    Intelligent Operations - Smarter Operations

    The built-in model can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.




    Laser Range Finder, Precise Measurement

    The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.



    Observation Range Recording

    DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.


    Efficient Flight, Intelligent Operations

    • Cruise: Activate cruise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights easier.
    • FlyTo: In emergencies or disasters, the drone can automatically adjust its flight path and speed based on the surrounding environment, allowing it to reach a designated location without manual adjustments.
    • Smart Track: Smart Track allows for precise subject positioning and automatic zoom adjustments, allowing you to switch between subjects easily. It can automatically reacquire a subject even if obscured briefly.
    • POI: POI enables continuous observation and 3D modeling of buildings while flying around a designated area, greatly enhancing the efficiency of fixed-point observation and modeling tasks.

    Night Scene Mode

    The Matrice 4 series has received a significant night mode upgrade. Its Full-Color night vision now supports three modes and includes two levels of enhanced noise reduction. Equipped with an IR Cut Filter and NIR auxiliary light, it effortlessly overcomes the challenges of darkness, ensuring search and rescue subjects clearly visible.

    Smart Low-Light Photo

    The Matrice 4 series cameras feature larger apertures and intelligent low-light capabilities, significantly enhancing performance and improving operations during dusk and nighttime.

    NIR Auxiliary Light

    The Matrice 4T features new NIR illumination hardware, enabling lighting distances of up to 100 meters. This ensures clear visibility of objects in dark environments, making it ideal for applications like wildlife protection.

    Thermal Imaging

    The Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements.

    Low-Light Fisheye Omnidirectional Sensing

    The Matrice 4 series has six high-definition low-light fisheye vision sensors, significantly enhancing visual low-light positioning and obstacle avoidance capabilities. This allows for automatic obstacle avoidance, intelligent rerouting, and safe return in urban low-light environments.

    Enhanced Medium Telephoto

    The Matrice 4 series is equipped with a medium tele camera, expanding its capabilities for medium-range inspection tasks. During power line or bridge inspections, it can detect screws and cracks from a distance of 10 meters and clearly read instrument data at substations.

    Super Resolution Telephoto

    The tele camera of the Matrice 4 series has significantly improved clarity, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away.  Additionally, the Matrice 4T is equipped with an IR-Cut Filter, ensuring 24/7 operations.

    Foreground Stabilization for Telephoto Imagery

    The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.

    Electronic Dehazing, Clear as Ever

    In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.

    Rapid 0.5-Second Interval Shooting

    The Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, enabling high-speed aerial surveying from multiple angles. Additionally, the mapping flight speed can reach up to 21 meters per second, significantly enhancing work efficiency.

    5-Directional Oblique Capture

    The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, significantly enhancing the efficiency of small drone oblique photography.

    3-Directional Ortho Capture

    Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.

    Smart 3D Capture

    DJI Matrice 4E supports Smart 3D Capture, which allows you to capture and create a rough model on the remote controller.


    Fusion Positioning, Safe Return-to-Home

    The Matrice 4 series comes with an integrated DJI RTK module which supports the extended L5 frequency band and features GNSS+Vision Fusion Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds. Even without GNSS signals, it can complete the return-to-home process, effectively overcoming signal obstructions and interference commonly found in urban environments.

    Intelligent Guidance

    When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations.

    Achieve New Heights in Video Transmission

    The system improves image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series.

    Gimbal-Following Spotlight

    The DJI AL1 SpotLight can illuminate subjects up to 100 meters away, and festures two modes, Always-On and Strobe. It can connect with the gimbal, enabling it to follow the camera's movements to ensure the illuminated area aligns with the camera's view.

    Real-Time Voice Speaker

    The DJI AS1 Speaker offers impresive sound power and extensive range.  It has a broadcast range of up to 300 meters and can produce a volume of up to 114 decibels at a distance of 1 meter. It supports recorded messages, media imports, and text-to-speech conversion. Additionally, it features real-time broadcasting and echo supression, enchancing the efficiency and flexibility of emergency search-and-rescue operations.

    High-Precision D-RTK 3 Multifunctional Station

    The D-RTK 3 Multifunctional Station can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones in relay station mode.


    Aircraft Specs

    Takeoff Weight (with propellers)

    1219 g

    Max Takeoff Weight

    1420 g

    Dimensions

    Folded: 260.6×113.7×138.4 mm (L×W×H)
    Unfolded: 307.0×387.5×149.5 mm (L×W×H)

    *Maximum dimensions excluding propellers.

    Max payload

    200 g

    Propeller size

    10.8 in

    Diagonal Wheelbase

    438.8 mm

    Max Ascent Speed

    10 m/s

    Maximum Ascent Speed With Accessories

    6 m/s

    Max Descent Speed

    8 m/s

    Max Descent Speed With Accessories

    6 m/s

    Max Horizontal Speed

    21 m/s

    Max Altitude

    6000 m

    Max Flight Time

    49 min (standard propellerrs)
    46 min (low-noise propellers)

    Max Hower Time

    42 min (standard propellers)
    39 min (low-noise propellers)

    Max Flight Dinstance

    35 km (standard propellers)
    32 (low-noise propellers)

    Max Wind Speed Resistance

    12 m/s

    Max Pitch Angle

    35 °

    Operating Temperature

    -10 °C to 40 °C

    GNSS

    GPS + GALILEO + BeiDou + GLONASS

    RTK GNSS Accuracy

    ±0.1m (with Vision System); ±0.5m (with GNSS);  ±0.1m (with RTK)

    RTK GNSS Accuracy

    RTK FIX: 1 cm + 1ppm (horizontal), 1.5 cm + 1ppm (vertical)

    Internal Storage

    N/A

    Ports

    E-Port interface x1 : Supports official accessories and third-party PSDK devices
    E-Port Life interface x1 : Supports USB connection to DJI tuning software and some third-party PSDK devices

    Proppeler Model

    1157F (standar propeller)
    1154F (low-noise propeller)

    Camera Specs

    Image sensor

    Wide: 1/1.3-inch CMOS, Effective Pixels: 48MP
    Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48MP
    Telephoto: 1/1.3-inch CMOS, Effective Pixels: 48MP

    Lens

    FOV: 82 °
    Equivalent Focal Length: 24mm
    Aperture: f/1.7
    Focus: 1 m to  ∞

    ISO Range

    Normal Mode: ISO 100 to ISO 25600

    Night Scene Mode:
    Wide Camera: ISO 100 to ISO 409600
    Medium Tele Camera: ISO 100 to ISO 409600
    Tele Camera: ISO 100 to ISO 819200

    Shutter Speed

    2-1/8000s

    Max Photo Size

    Wide: 8064x6048
    Medium Telephoto: 8064 x 6048
    Telephoto: 8192 x 6144

    Minimum Photo Interval

    0.7 s

    Still Photography Modes

    Wide:
    Single: 12 MP/48 MP
    Interval: 12 MP/48 MP
    JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Shooting:12MP
    Panorama: 12 MP (raw image);100 MP (stitched image)

    Medium Tele Camera:
    Single: 12 MP and 48 MP
    Interval: 12 MP/48 MP
    JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Shooting: 12MP

    Telephoto:
    Single: 12 MP and 48 MP
    Interval: 12 MP/48 MP
    JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Shooting:12MP

    Video Codec and Resolution

    Video Coding Format: H.264/H.265
    Coding Strategy: CBR, VBR
    Resolution:
    4K: 3840 × 2160@30fps
    FHD: 1920 × 1080@30fps

    Max Video Bitrate

    H.264: 60Mbps
    H.265: 40Mbps

    Supported File System

    exFAT

    Photo Format

    JPEG

    Video Format

    MP4 (MPEG-4 AVC/H.264)

    Digital Zoom

    Telephoto: 16x (112x hybrid zoom)

    NIR Auxiliary Light Specs

    Infrared Illumination​

    FOV: 5.7°±0.3°

    Laser Module Specs

    Laser Rangefinding

    Measurement Range: 1800 m (1 Hz) @20% reflectivity target
    Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
    Blind Zone: 1 m
    Distance Measurement Accuracy:
    1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ
    Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)

    Infrared Thermal Camera Specs

    Thermal Imager

    uncooled vanadium oxide (VOx)

    Resolution

    640 x 512

    Pixel Pitch

    12 μm

    Frame Rate

    30 Hz

    Lens

    DFOV: 45°±0.3°
    Equivalent Focal Length: 53 mm
    Aperture: f/1.0
    Focus: 5 m to ∞

    Sensitivity

    ≤50mk@F1.0

    Temperature Measurement Method

    Spot Meter, Area Measurement

    Temperature Measurement Range

    High Gain Mode: -20 °C to 150 °C
    Low Gain Mode: 0 °C to 500 °C

    Palette

    White Hot / Black Hot / Tint / Iron Red / Hot Iron / Arctic / Medical / Fulgurite / Rainbow 1 / Rainbow 2

    Photo Format

    JPEG (8bit)
    R-JPEG (16bit)

    Video Resolution

    1280 x 1024 @ 30fps (Super Resolution enabled, Night Mode not activated)
    Other conditions: 640 x 512 @ 30fps

    Video Format

    MP4

    Video Bitrate

    6.5Mbps (H.264 640 × 512@30fps)
    5Mbps (H.265 640 × 512@30fps)
    12Mbps (H.264 1280 × 1024@30fps)
    8Mbps (H.265 1280 × 1024@30fps)

    Still Photography Modes

    Single: 1280 x 1024/640 x 512
    Interval: 1280 × 1024/640 × 512
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s

    Photo Resolution

    1280 x 1024 (Super Resolution on)
    640 x 512 (Super Resolution off)

    Digital Zoom

    28x

    Infrared Wavelength

    8um to 14um

    Infrared Temperature Measurement Accuracy

    High Gain: ±2℃ or ±2%, whichever is greater
    Low Gain: ±5℃ or ±3%, whichever is greater

    Gimbal Specs

    Stabilization System

    3-axis (tilt, roll, pan)

    Mechanical Range

    Gimbal Mechanical Limits:
    Tilt: -140° to 113°
    Roll: -52° to 52°
    Pan: -65° to 65°

    Soft Limits:
    Tilt: -90° to 35°
    Roll: -47° to 47°
    Pan: -60° to 60°

    Controllable Rotation Range

    Tilt: ±-90° to 35°
    Pan: Not controllable

    Max Control Speed (tilt)

    100°/s

    Angular Vibration Range

    ±0.007°

    Yaw Axis

    Manual operation is uncontrollable
    The MDSK interface program is controllable

    Ingress Protection Rating

    No Standard Protection Level

    Operating Temperature

    -10°C to 40°C

    Sensing Specs

    Sensing Type

    Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft

    Forward

    Binocular Measurement Range: 0.4-22.5 m
    Measurement Range: 0.4-200 m
    Obstacle Avoidance Speed: Flight Speed ≤21 m/s
    FOV: 90° (horizontal), 135° (vertical)

    Backward

    Measurement Range: 0.4-22.5 m
    Measurement Range: 0.4-200 m
    Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)

    Lateral

    Measurement Range: 0.5-32 m
    Measurement Range: 0.5-200 m
    Obstacle Avoidance Speed: Flight Speed ≤21 m/s
    FOV: 90° (horizontal), 90° (vertical)

    Downward

    Measurement Range: 0.3-18.8 m
    Obstacle Avoidance Speed: Flight Speed ≤10 m/s
    The FOV to the front and rear is 160° and 160° to the right and left.

    Operating Environment

    Forward, Backward, Left, Right and Upward
    Delicate texture on the surface, adequate light

    Downward:
    The ground has rich textures and sufficient lighting conditions, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people etc.).

    Video Transmission Specs

    Video Transmission System

    O4 Enterprise

    Live View Quality

    Remote Controller: 1080p/30fps

    Operating Frequency

    2.400-2.4835 GHz
    5.725-5.850 GHz
    5.150-5.250 GHz (CE)

    Transmitter Power (EIRP)

    2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)
    5.15-5.25: < 23 dBm (FCC/CE)

    Max Transmission Distance (unobstructed, free of interference)

    25 km (FCC)
    12 km (CE)
    12 km (SRRC)
    12 km (MIC)

    Max Transmission Distance (with interference)

    Strong Interference - City Centers (approx. 1.5-5 km)
    Medium Interference - Suburban Areas (approx. 5-15 km)
    Micro Interference - Suburbs/Seasides (approx 15-25 km)

    Max Download Speed

    20 MB/s

    Latency (depending on environmental conditions and mobile device)

    130 ms

    Antenna

    8 antennas, 2T4R

    Others

    Cellular Dongle Compartment

    Memory Card Specs

    Supported SD Cards

    U3/Class10/V30 ora above is required, or use a memory card from the recommended list

    Recommended microSD Cards

    Lexar 1066x 64GB U3 A2 V30 microSDXC
    Lexar 1066x 128GB U3 A2 V30 microSDXC
    Lexar 1066x 256GB U3 A2 V30 microSDXC
    Lexar 1066x 512GB U3 A2 V30 microSDXC
    Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC
    Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC
    Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
    Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

    Intelligent Flight Battery Specs

    Capacity

    6741 mAh

    Standard Voltage

    14.76 V

    Max Charging Voltage

    17.0 V

    Cell Type

    Li-ion 4S

    Energy

    99.5 Wh

    Weight

    401 g

    Recharging Temperature

    5°C to 40°C

    Discharge Rate

    4C

    Max Charging Power

    1.8C

    Supports low-temperature charging

    Not supported

    Cycle Count

    200

    Power Adapter (100W) Specs

    Input

    100-240 V (AC), 50-60 Hz, 2.5A

    Output

    Max. 100 W (total)

    Rated Power

    100 W

    Charging Hub Specs

    Input

    USB-C: 2-50 V, max 5 A

    Output

    Battery Interface: 11.2 V to 17 V

    Rated Power

    100 W

    Recharging Type

    4 batteries charging in sequence
    Support Standard Mode (100% SOC) and Standby Mode (90% SOC)

    Compatible Battery

    DJI Matrice 4E/T Series Intelligent Flight Battery

    Charging Temperature

    5°C to 40°C

    DJI RC Plus 2 Enterprise Specs

    Video Transmission System

    04 Enterprise

    Max Transmission Distance (unobstructed, free of interference)

    25 km (FCC)
    12 km (CE)
    12 km (SRRC)
    12 km (MIC)

    Operating Band of Image Transmission

    2.400 - 2.4835 GHz
    5.725 - 5.850 GHz
    5.1 GHz (receive only)

    Antenna

    2T4R, built-in multi-beam high-gain antenna

    Video Transmission Transmitter Power (EIRP)

    2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.1 GHz: <23 dBm (CE)
    5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

    4G Transmission

    DJI Cellular Dongle 2

    Wi-Fi Protocol

    Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax
    Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)

    Wi-Fi Operating Band

    2.400 - 2.4835 GHz
    5.150 - 5.250 GHz
    5.725 - 5.850 GHz

    Wi-Fi Transmitter Power (EIRP)

    2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/ MIC)
    5.1 GHz: <23 dBm (FCC)
    5.8 GHz <23 dBm (FCC/SRRC), <14 dBm (CE)

    Bluetooth Protocol

    Bluetooth 5.2

    Bluetooth Operating Frequency

    2.400 - 2.4835 GHz

    Bluetooth Transmitter Power (EIRP)

    <10 dBm

    Screen Resolution

    1920 x 1200

    Screen Size

    7.02 inches

    Screen Frame Rate

    60 fps

    Brightness

    1400 nits

    Touchscreen Control

    10 Points Multi-touch

    Built-in Battery

    2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh

    External Battery

    Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh

    Recharging Type

    Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger

    Storage Capacity

    ROM 128 GB + expendable storage via microSD card

    Charging Time

    2 hrs for internal battery or internal and external battery

    Internat Battery Runtime

    3.8 hrs

    External Battery Runtime

    3.2 hrs

    Output Port

    HDMI 1.4

    Indicators

    Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness

    Speaker

    Supports buzzer

    Audio

    Array MIC

    Operating Temperature

    -20° to 50° C

    Storage Temperature

    Within one month: -30° to 45° C
    One to three months: -30° to 35° C
    Three months to one year: -30° to 30° C

    Recharging Temperature

    5° to 40° C

    Supported Aircraft Models

    Support for Matrice 4T/4E

    GNSS

    GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh

    Dimensions

    268 x 163 x 94.5 mm (LxWxH)

    Weight

    1.15 kg (without external battery)

    Model

    TKPL 2

    System Version

    Android 11

    External Interfaces

    HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface

    Accessory

    Optional strap/waist support

    AL1 Spotlight Specs

    Weight

    99 g (including bracket)
    Approx. 91 g (excluding bracket)

    Dimensions

    95 x 164 x 30 mm (LxWxH, including bracket)
    79 x 164 x 28 mm (LxWxH, excluding bracket)

    Max. Power

    32 W

    Illuminance

    4.3 ± 0.2 lux @ 100 meters, 17 ± 0.2 lux @ 50 meters

    Effective Illumination Angle

    23 ° (10% relative illumination)

    Effective Illumination Area

    1,300 square meters @ 100 meters (10% relative illumination, Normal Mode)
    2,200 square meters @ 100 meters (10% central illuminance, Wide fov Mode)

    Operating Mode

    Supports always-on and strobe modes

    Gimbal Structural Design Range

    Tilt: -140 ° to 50 °

    Controllable Range

    Tilt: -90 ° to 35 °

    Max Control Speed (tilt)

    120 °/s

    Gimbal Alignment Accuracy

    ±0.1°

    Operating Temperature

    -20°C to 50°C (-4°F to 122°F)

    Mounting

    Quick-release hand-tightened screws

    AS1 Speaker Specs

    Weight

    92.5 g (including bracket)
    Approx. 90 g (excluding bracket)

    Dimensions

    73 x 70 x 52 mm (LxWxH, including bracket)
    73 x 70 x 47 mm (LxWxH, without bracket)

    Max. Power

    15 W

    Max. Volume

    At 1 meter, it can reach 114 decibels (114dB@1m)

    Effective Broadcast Distance

    300 m

    Broadcast Mode

    Real-time broadcasting (supports echo suppression), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech

    Operating Temperature

    -20°C to 50°C (-4°F to 122°F)

    Mounting

    Quick-release hand-tightened screws


    In the Box Dron DJI Matrice 4T

    • 1x DJI Matrice 4T
    • 1x DJI Care Enterprise Plus for 1 year
    • 1x DJI Terra  Electricity for 3 months
    • 1x DJI Matrice 4 Series Battery
    • 1x DJI RC Plus 2 Enterprise
    • 1x DJI Matrice 4 Series Charging Hub
    • 1x DJI 100W USB-C Power Adapter
    • 3x DJI Matrice 4 Series Propellers
    • 1x microSD Card
    • 1x DJI Matrice 4 Series Storage Case
