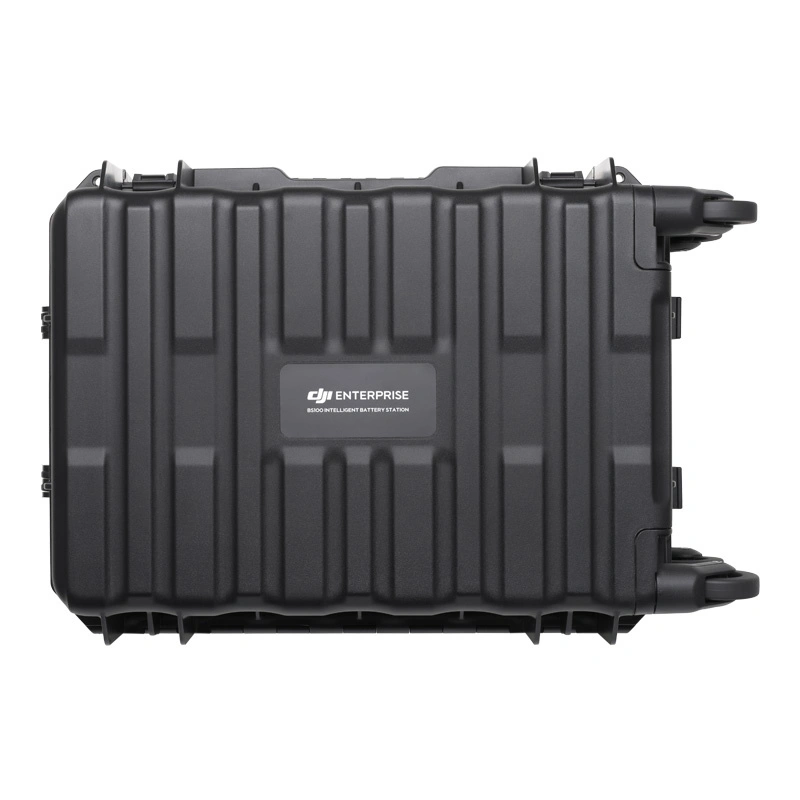

Intelligent Battery Station DJI BS100 for Matrice 400
The BS100 is an intelligent and multifunctional charging station designed specifically for the DJI Matrice 400. It can charge up to three TB100 batteries and two WB37 batteries, ensuring efficient readiness for flight operations. In Fast Charging Mode, a TB100 battery can be fully charged in just about 45 minutes (when using a 220 V power supply), while in Silent Mode, it takes approximately 110 minutes. he station is also highly durable and convenient to carry, making it perfect for field operations! It is compatible with TB100, TB100C, and WB37 batteries.
Optimal Performance When Time is Critical
In Fast Charging Mode, the TB100 battery can be fully charged from 0 to 100% in approximately 45 minutes (using a 220 V power supply). Additionally, there is a Ready-to-Fly mode that charges the batteries to 90%. The DJI BS100 is specifically designed for teams working in fast-paced environments—where any downtime is unacceptable.
Silent Operation in All Conditions
In Silent Mode, the noise level drops to around 36 dB. This enables battery charging without interfering with operations—whether during nighttime missions in urban settings or within indoor work environments.
Designed for Challenging Terrain

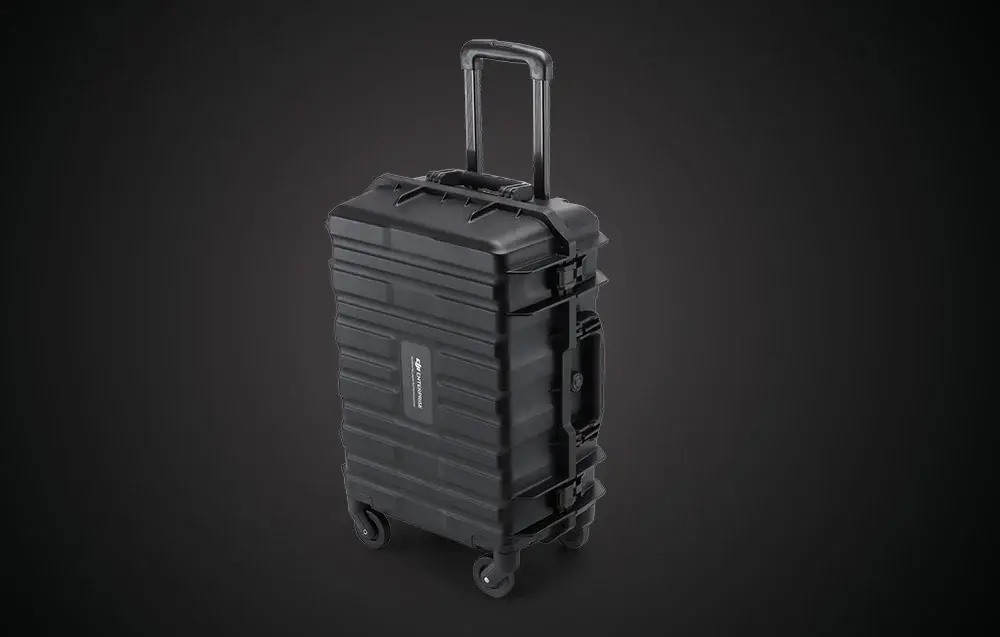

With a sturdy and durable design weighing 11.8 kg and dimensions of 605×410×250 mm, the BS100 ensures both stability and mobility in the field. It operates reliably in temperatures from -20°C to 40°C, making it suitable for use in both freezing and hot conditions. It is built to withstand tough environments!
Intelligent Battery Station DJI BS100 Specification
Model | BS100 |
Net Weight | 11.8 kg |
Dimensions | 605×410×250 mm (L×W×H) |
Supported Batteries | TB100 Intelligent Flight Battery, TB100C Tethered Battery, WB37 Battery |
Operating Temperature | -20° to 40° C (-4° to 104° F) |
Input | 100-240 V (AC), 50-60 Hz, 10 A |
Output | USB-C： TB100 Battery Interface: 100-110 V: Approx. 1185 W 110-180 V: Approx.1474 W 180-240 V: Approx. 2184 W WB37 Battery Interface: 100-240 V: Approx. 52 W USB-C: 5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A |
Number of Charging Channels | Three TB100 and two WB37 batteries |
Charging Mode | Ready-to-Fly Mode 90%; Standard Mode 100% Supports Fast Charging Mode and Silent Mode |
Charging Time | TB100/TB100C Battery From 0% to 100%: 220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode) 110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode) *Charging time is measured in a test environment with a temperature of 25° C. |

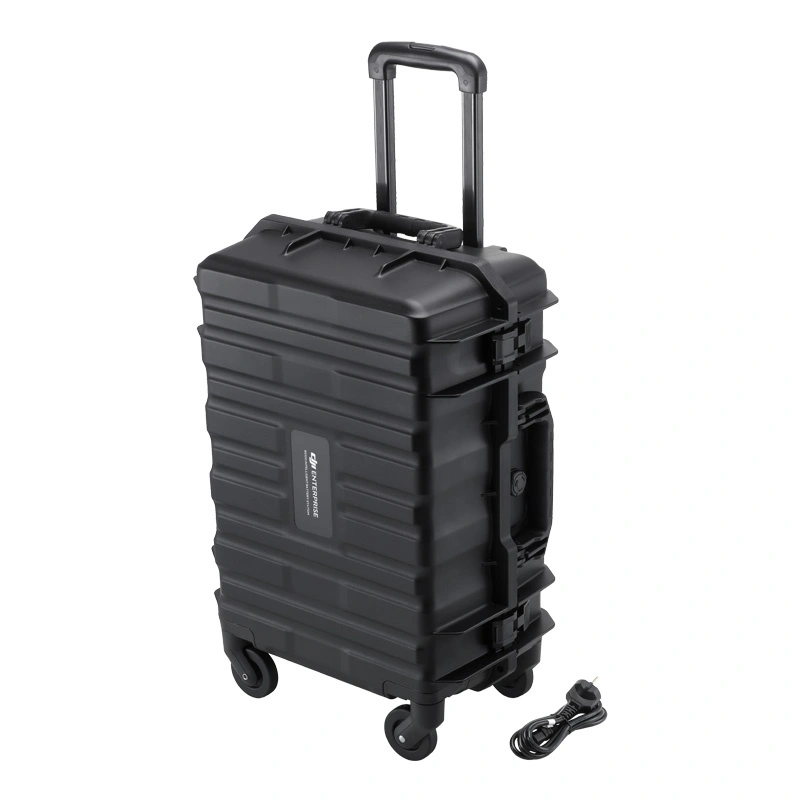

In The Box
- BS100 Intelligent Battery Station × 1
- AC Cable (Universal) × 6
- AC Cable (Korea) × 1
- AC Cable (China) × 1
