200W Charging hub for DJI Matrice 4

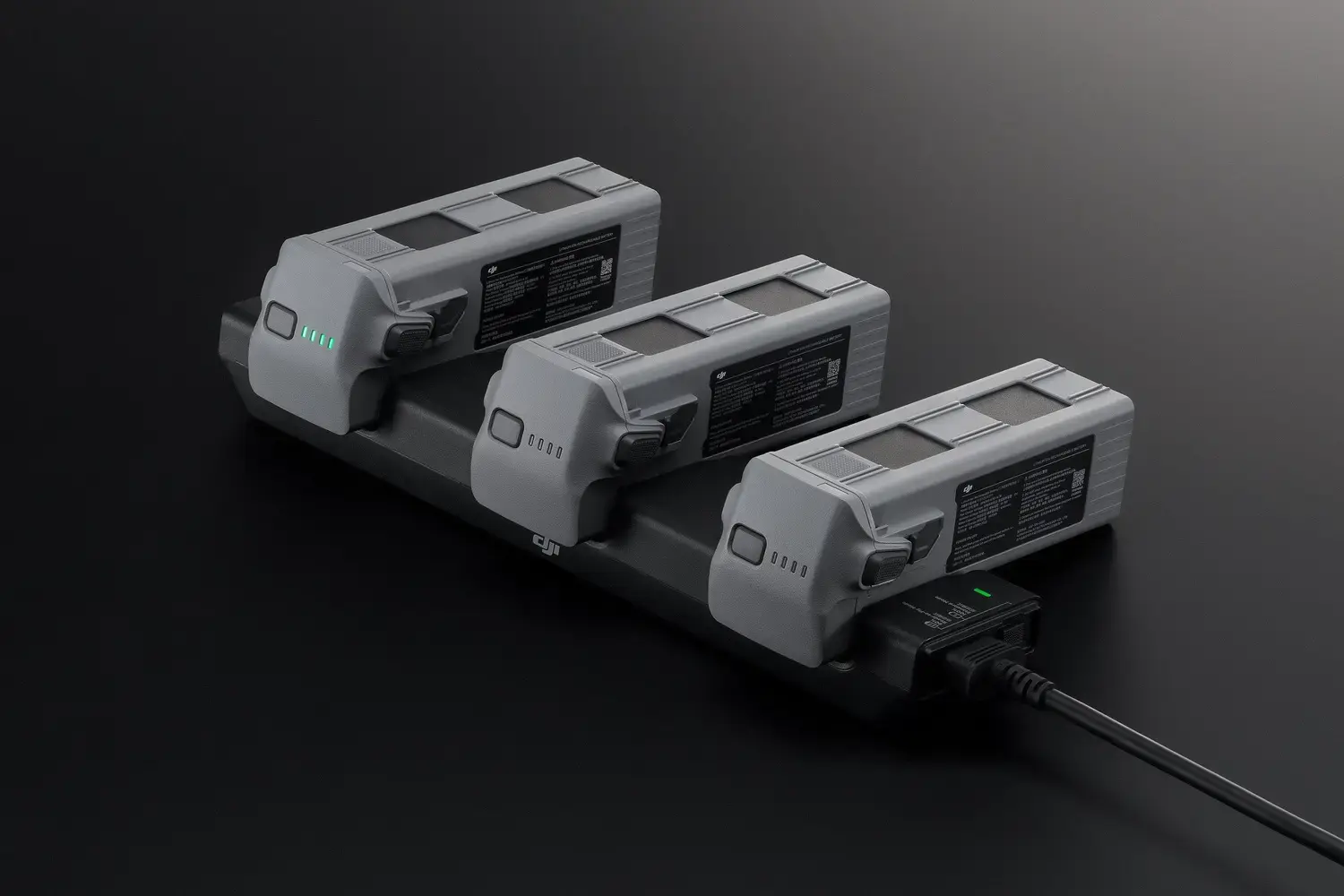

The 200W charging hub is designed for use with DJI Matrice 4E (Enterprise) / DJI Matrice 4T (Thermal) quadcopter batteries. It can charge up to three batteries sequentially from the highest to the lowest charge level. It supports both Standard mode and Ready-to-Fly mode. Standard mode charges each battery in sequence to 100%. Ready-to-Fly mode charges each battery sequentially to 90% and maintains that level for quick deployment.
200W Charging hub for DJI Matrice 4
The 200W charging hub is designed for use with DJI Matrice 4E (Enterprise) / DJI Matrice 4T (Thermal) quadcopter batteries. It can charge up to three batteries sequentially from the highest to the lowest charge level.
It supports both Standard mode and Ready-to-Fly mode. Standard mode charges each battery in sequence to 100%. Ready-to-Fly mode charges each battery sequentially to 90% and maintains that level for quick deployment.
200W Charging hub for DJI Matrice 4 - Specification
Model | CHX345-200 |
Input power | 11.2-17 V, max 12.1 A |
Rated power | 200 W |
Charging type | Sequential charging of 3 batteries Supports Standard mode (100% SOC) and Ready-to-Fly mode (90% SOC) |
Compatible batteries | BPX345-6741-14.76 battery DJI Matrice 4 Series drones |
Compatible power adapter | DJI 240W Power Adapter |
Charging temperature | 5° to 40° C |
200W Charging hub for DJI Matrice 4 - Package includes
- 1x 200W Charging hub for DJI Matrice 4
