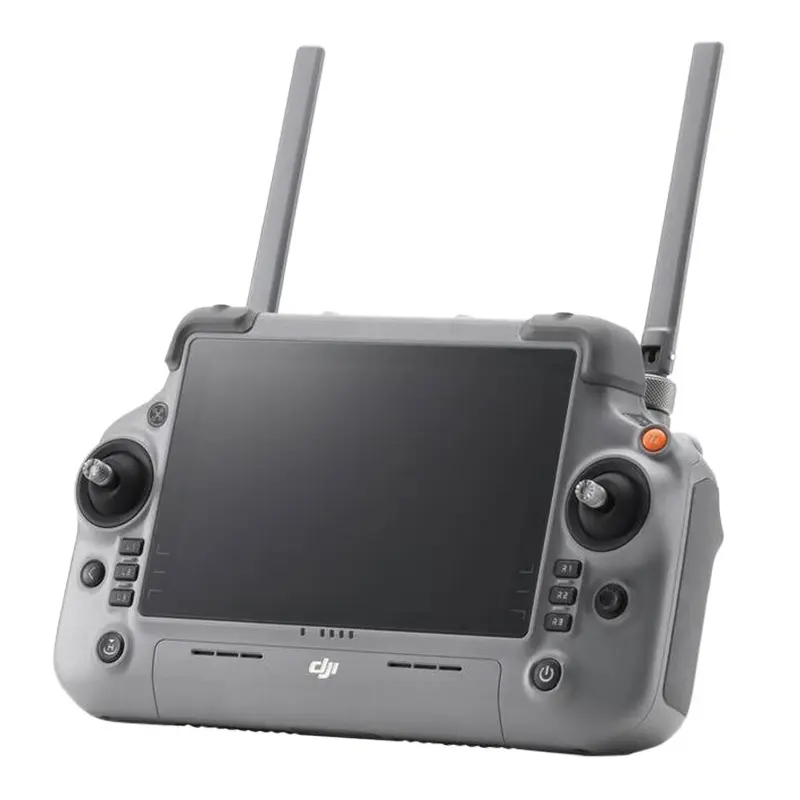

DJI RC Plus 2 Enterprise Enhanced
DJI RC Plus 2 Enterprise Enhanced - Unmatched Control for Enterprise Missions
DJI RC Plus 2 Enterprise is equipped with a new high-brightness display, ensuring good visibility even in strong sunlight. The controller has an IP54 protection rating and operates in temperatures from -20°C to 50°C. With the efficient O4 Enterprise video transmission, a built-in high-gain antenna array, and support for hybrid SDR and 4G transmission, it provides a stable and smooth video feed in both urban and mountainous environments.
A robust, high-performance controller built for clarity and reliability in demanding conditions.
High-Bright Display: Ensures clear visibility, even under strong sunlight, for uninterrupted operations.
Durable Build: Rated IP54 for dust and water resistance, with an operational temperature range of -20°C to 50°C (-4°F to 122°F).
Advanced Video Transmission: Features O4 Enterprise transmission with a built-in high-gain antenna array for stable feeds over long distances.
Hybrid Connectivity: Supports SDR and 4G hybrid transmission for seamless video in urban and remote environments.
Enterprise-Ready Design: Engineered to meet the demands of professional drone operations in diverse and challenging scenarios. This controller is compatible with the DJI Matrice 400, DJI Matrice 4 Series, and DJI Matrice 4D Series.
DJI RC Plus 2 Enterprise Enhanced - Specification
| Video transmission system | O4 Enterprise |
| Maximum transmission distance (unobstructed, interference-free) | 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC) Measured in an interference-free environment. Data shows maximum one-way communication range without return flight for each standard. During flight, pay attention to RTH prompts in DJI Pilot 2 app. |
| Image transmission operating frequency | 2.4000–2.4835 GHz; 5.725–5.850 GHz; 5.1 GHz (receive only). Frequency availability varies by country and region. Refer to local regulations. |
| Antenna | 2T4R, built-in high-gain multi-beam antenna |
| Video transmission power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (CE); 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) |
| 4G transmission | Optional DJI Cellular Dongle 2 |
| Wi-Fi protocol | Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax; 2×2 MIMO, Dual Band Simultaneous (DBS) dual MAC, up to 1774.5 Mb/s (2×2 + 2×2 11ax DBS) |
| Wi-Fi operating frequency | 5.150–5.250 GHz; 5.725–5.850 GHz |
| Wi-Fi transmission power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (FCC); 5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE) |
| Bluetooth protocol | Bluetooth 5.2 |
| Bluetooth operating frequency | 2.400–2.4835 GHz |
| Bluetooth transmission power (EIRP) | <10 dBm |
| Screen resolution | 1920 × 1200 |
| Screen size | 7.02 inches |
| Refresh rate | 60 fps |
| Brightness | 1400 nits |
| Touch control | 10-point multi-touch |
| Built-in battery | Lithium-ion 2S2P high-energy density 18650 (6500 mAh @ 7.2 V), 46.8 Wh |
| External battery | Optional WB37 (4920 mAh @ 7.6 V), 37 Wh |
| Charging method | Supports PD fast charging, max USB-C charger 20 V / 3.25 A |
| Storage capacity | 128 GB ROM + microSD expansion |
| Charging time | 2 hours for built-in battery or built-in + external battery (with DJI standard charger, controller powered off) |
| Built-in battery life | 3.8 h |
| External battery life | 3.2 h |
| Output port | HDMI 1.4 |
| Indicators | Status, power and permission indicators, tricolor light with adjustable brightness |
| Speaker | Built-in buzzer |
| Audio | MIC system |
| Operating temperature | -20°C to 50°C |
| Storage temperature | Within 1 month: -30°C to 45°C; 1–3 months: -30°C to 35°C; 3 months–1 year: -30°C to 30°C |
| Charging temperature | 5°C to 40°C |
| Supported drone models | Matrice 4T/4E, Matrice 4D/4TD, Matrice 400 |
| GNSS | Triple-mode GPS, Galileo, BeiDou; supports dynamic home point update |
| Dimensions | 268×163×94.5 mm (L×W×H) |
| Model | TKPL 2 |
| System version | Android 11 |
| External interfaces | HDMI 1.4, SD3.0, USB-C (OTG + PD charging up to 65W), USB-A (USB 2.0) |
DJI RC Plus 2 Enterprise Enhanced - Package includes
- 1x DJI RC Plus 2 Enterprise Enhanced
