Regulator ESC SEQURE E160 G2 12S AM32 4IN1

Regulator ESC SEQURE E160 G2 12S AM32 4IN1

Push your 12S FPV build to the limit with the SEQURE E160 G2 4IN1 ESC—an ultra-high-performance power system engineered for pilots who demand relentless power, flawless throttle response, and race-winning reliability. Delivering an incredible 160A continuous current per channel with a massive 280A peak burst capability, it handles the most aggressive punch-outs and high-load maneuvers with ease. Combined with responsive AM32 firmware and a standard 30.5 x 30.5 mm mounting pattern, the E160 G2 is built for uncompromising performance. If you're chasing maximum power and confidence in the air, this is the ESC your next rig deserves.

418.70 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Unmatched High-Voltage Performance for Professional Drones with SEQURE E160 G2 12S AM32 4IN1 ESC

SEQURE E160 G2 12S AM32 4IN1 ESC is engineered for propulsion systems requiring exceptionally high current capacity. Low-resistance MOSFETs reduce power losses, while the multilayer PCB, ultra-thick copper layers, and integrated copper busbars improve current handling. Dual power pads simplify heavy-gauge wire soldering and support parallel battery connections when required by the aircraft’s power system.

Key Features of SEQURE E160 G2 12S AM32 4IN1 ESC

160 A continuous current per channel: supports propulsion systems operating under extremely high loads.
280 A peak current: provides short-term capacity for rapid throttle changes and transient current spikes.
4–12S LiPo/LiHV support: enables use in large, high-energy FPV aircraft.
AM32 firmware: supports settings such as motor timing, direction, throttle calibration, current detection, and telemetry.
STM32G071 processor: provides fast signal processing and precise ESC control.
Low-resistance MOSFETs: reduce power loss and improve conversion efficiency.
Ultra-thick PCB copper layers: increase current capacity and assist heat distribution.
Integrated copper busbars: support the safe transfer of very high currents.
Heat sink: improves thermal management during high-load operation.
Dual power pads: simplify heavy-wire soldering and parallel battery arrangements.
Real-time telemetry: reports motor speed, temperature, current, and other operating data.
DShot, PWM, OneShot, and MultiShot support: provides compatibility with several control protocols.
Built-in current sensor: enables propulsion-system power monitoring.
16 V / 2 A BEC: supplies compatible peripheral equipment.
30.5 × 30.5 mm mounting pattern: fits compatible frames and mounting plates.

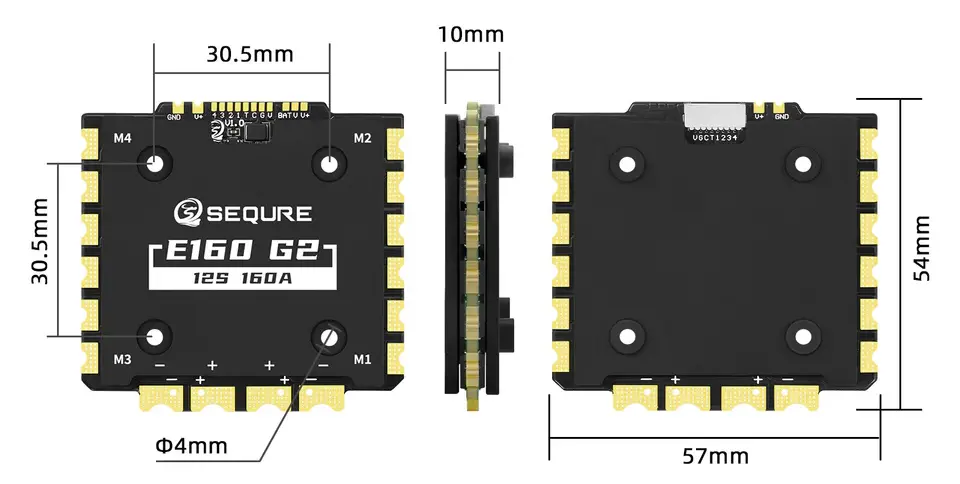

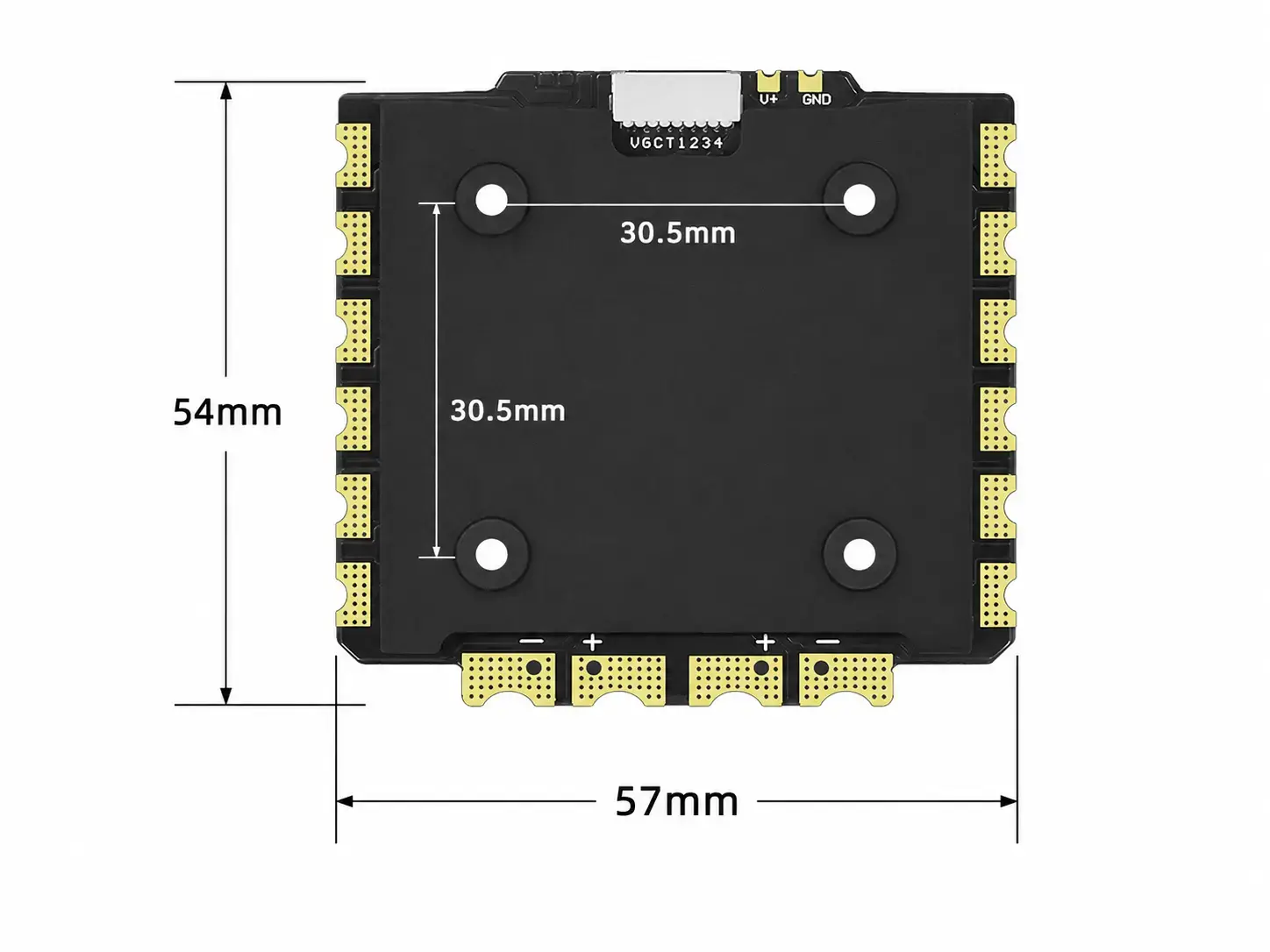

SEQURE E160 G2 12S AM32 4IN1 ESC Dimensions

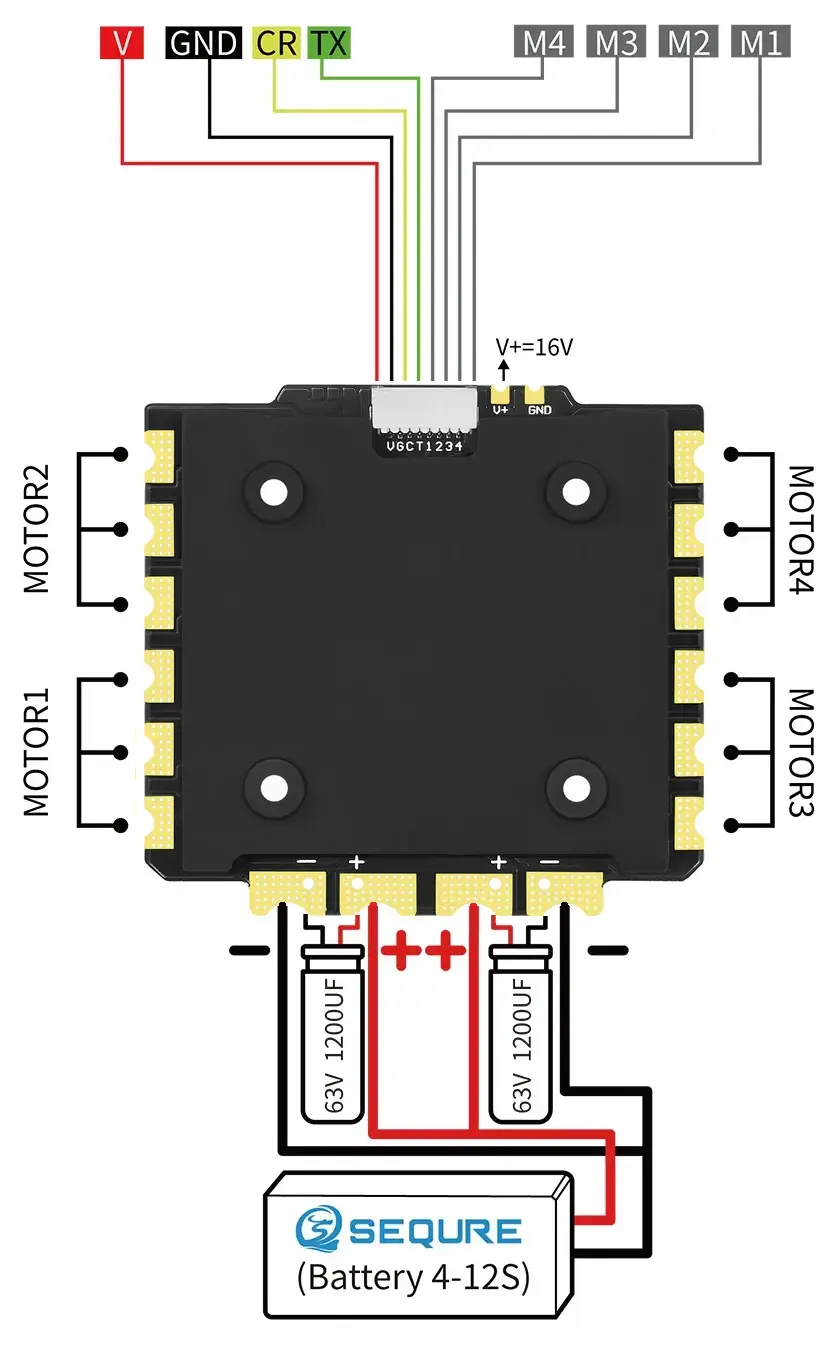

SEQURE E160 G2 12S AM32 4IN1 ESC Pinout

WARNING

SEQURE E160 G2 12S AM32 4IN1 ESC is a high-current electronic component intended for self-installation and soldering. Power wires, connectors, batteries, and motors must be selected according to the actual current demand. Before powering the system, verify polarity, inspect every solder joint, and provide effective cooling. The manufacturer’s no-overheating claim for continuous high-current operation does not replace temperature testing in the completed build.

SEQURE E160 G2 12S AM32 4IN1 ESC Specifications

Model	E160 G2
Processor	STM32G071
Working Voltage	4-12S (14-53V) Lipo / LiHV
Continuous Current	160A
Peak Current	280A
Firmware Version	AM32
Support Protocol	Dshot (All), PWM, Oneshot, Multishot, etc.
Telemetry Return	Yes
Galvanometer	Yes
BEC	16V 2A
Mounting Hole Spacing	30.5mm x 30.5mm / M3
Product Size	54mm x 57mm x 10mm
Product Weight	66g

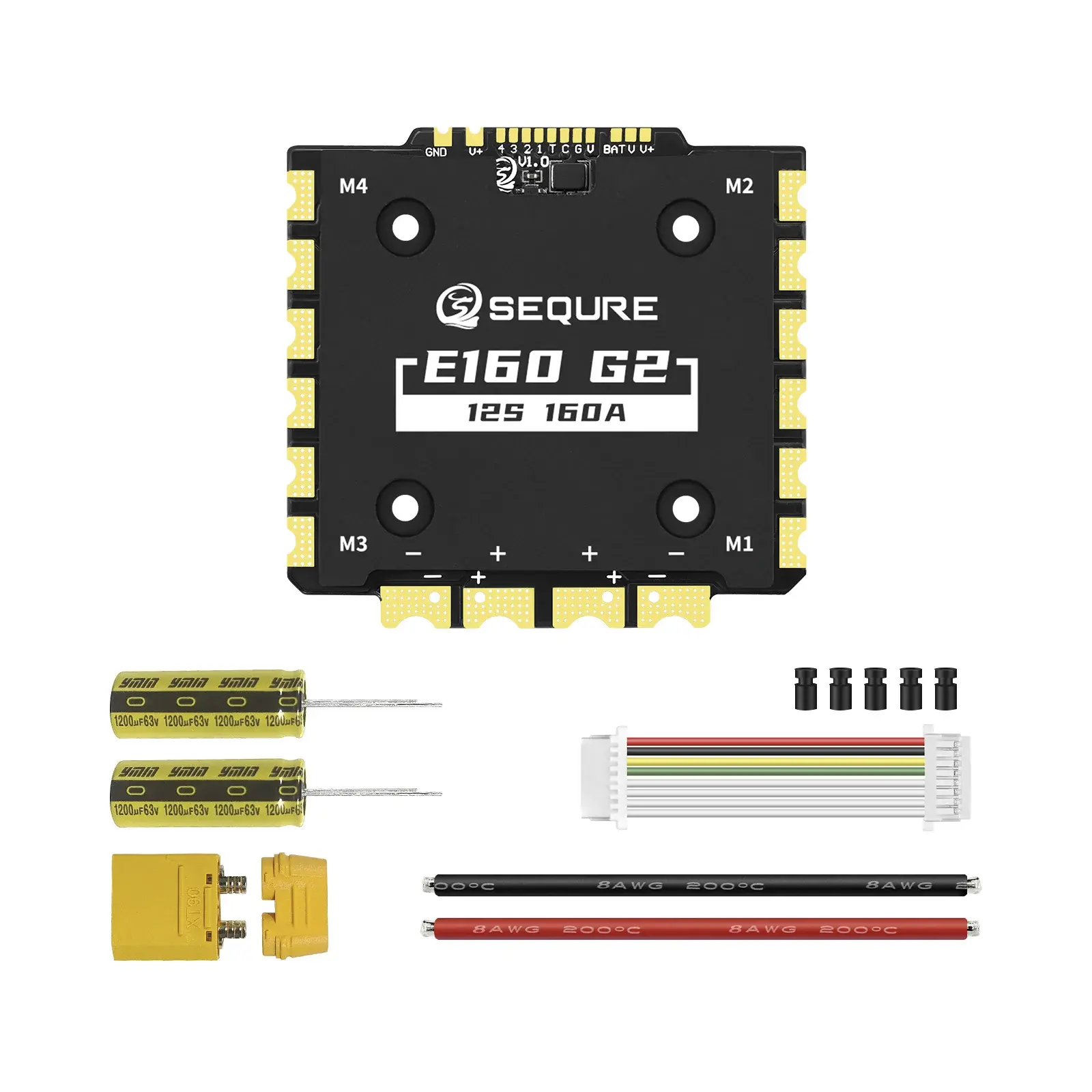

SEQURE E160 G2 12S AM32 4IN1 ESC Package Includes

1x SEQURE E160 G2 12S AM32 4IN1 ESC
2x 63V 1200μF Electrolytic Capacitor
1x XT90H-M Male Connector
5x M3*10mm Shock Absorbing Washer (black)
1x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
2x 8AWG 150mm Power Cable (black/red)
