Caddx Eclipse 005SL FT004-V3R Thermovision Camera

The Caddx Eclipse 005SL FT004-V3R Thermovision Camera brings next-level thermal vision to your FPV drone, combining an AI processing unit with a high-resolution VOx 576×432 thermal camera connected via coaxial cable. With a crisp “white hot” palette and optional pseudo-color modes, it reveals heat signatures with stunning clarity even in the most challenging conditions. It also supports simultaneous analog FPV output and digital UVC (USB) streaming. Built for professionals who can’t afford to miss a detail, it gives you the power to see what others can’t—perfect for search and rescue, security, and critical inspections where every second and every pixel matters.

1,861.79 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Gain a Tactical Advantage Thanks to Next-Generation Technology with Caddx Eclipse 005SL FT004-V3R Thermovision Camera

The Caddx Eclipse 005SL FT004-V3R Thermovision Camera sets new standards in professional thermal imaging for drones. At the heart of the device is Pixelpump-Gen3 technology, which drastically increases detail clarity and thermal contrast compared to standard cameras. A unique feature is the ability to simultaneously transmit a PAL analog signal and a UVC digital stream, allowing for live viewing and simultaneous data recording. A wide input voltage range and minimal power consumption guarantee trouble-free integration with any drone.

Key Features of Caddx Eclipse 005SL FT004-V3R Thermovision Camera

Pixelpump-Gen3 Technology: Guarantees a clearer image and perfect highlighting of heat sources in all conditions.
Dual video interface: The Caddx Eclipse 005SL FT004-V3R Thermovision Camera supports simultaneous PAL output and UVC digital output.
50Hz image smoothness: Provides a dynamic, lag-free live view in real-time.
Stepless digital zoom: The Caddx Eclipse 005SL FT004-V3R Thermovision Camera offers a smooth 1.0-4.0x zoom controlled via the UVC protocol.

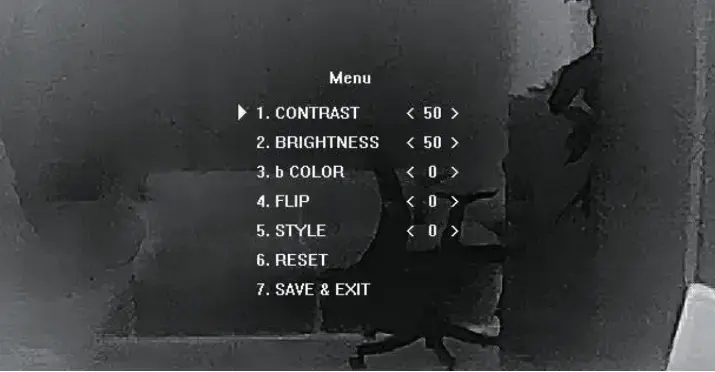

OSD customization and ADKEY menu: Allows full configuration of display parameters directly on the screen.

eclipse-005sl-kamera-termowizyjna-caddx-eclipse-005sl-ft004-v3r

Third Generation of Sharpness – Pixelpump-Gen3 Technology

The innovative Caddx Eclipse 005SL FT004-V3R Thermovision Camera introduces a new quality of observation thanks to the advanced Pixelpump-Gen3 algorithm. This breakthrough technology significantly increases thermal resolution and sharpens object edges, making heat sources instantly visible and highly exposed. What's more, the intelligent processor equipped in the Caddx Eclipse 005SL FT004-V3R Thermovision Camera eliminates minor image blur in real-time, caused by drone vibrations during dynamic flight. You gain flawless video stability and uncompromising detail precision, allowing you to see much further and clearer in all operational conditions.

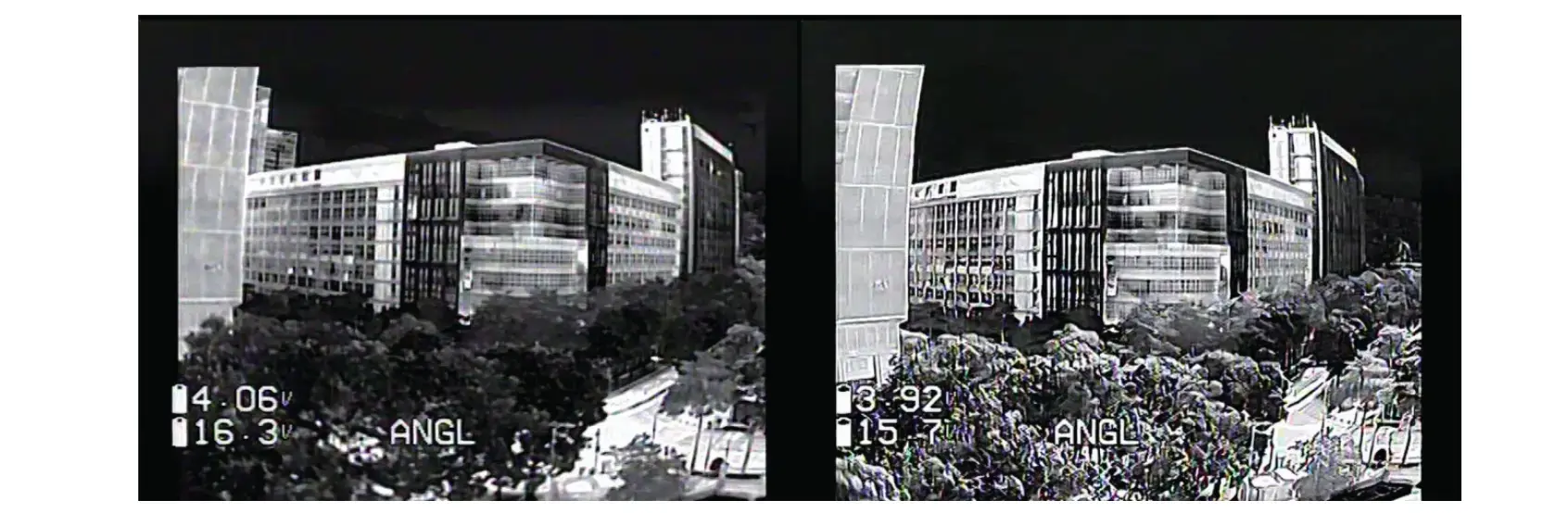

Without Pixelpump-Gen3

With Pixelpump-Gen3

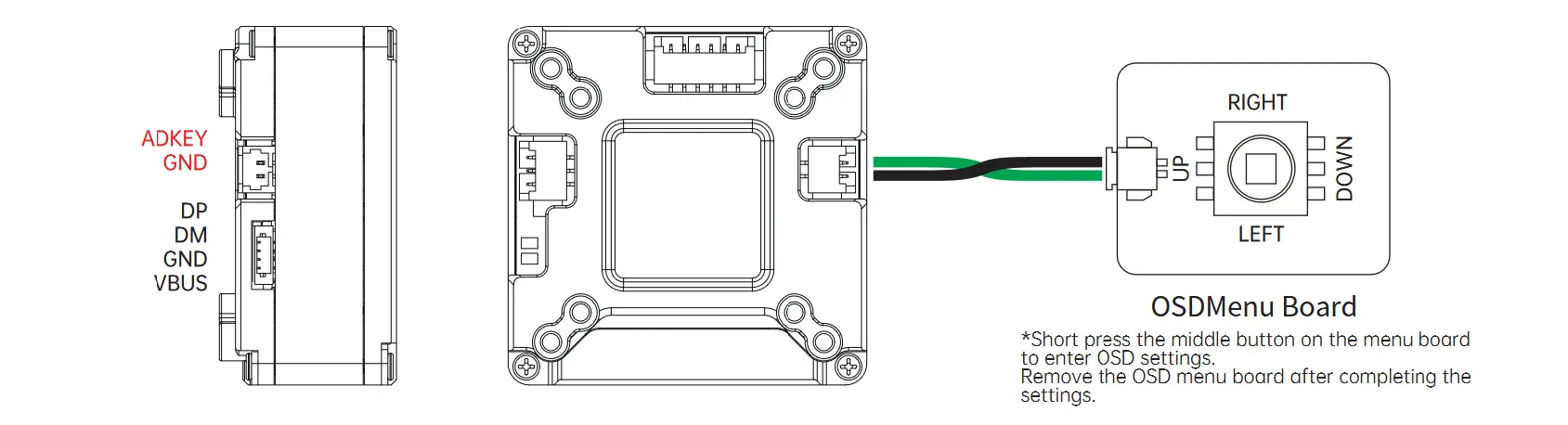

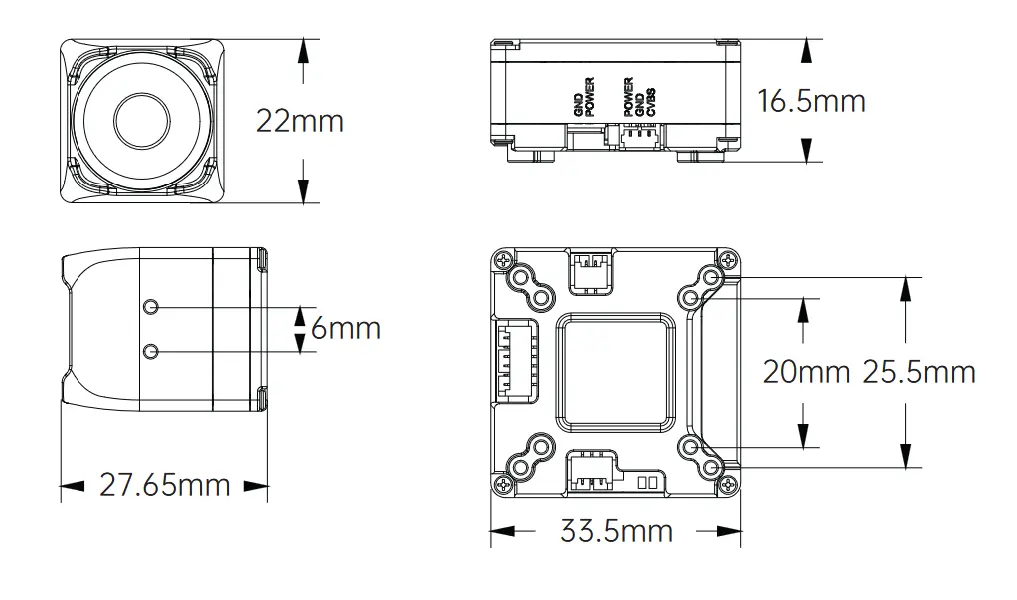

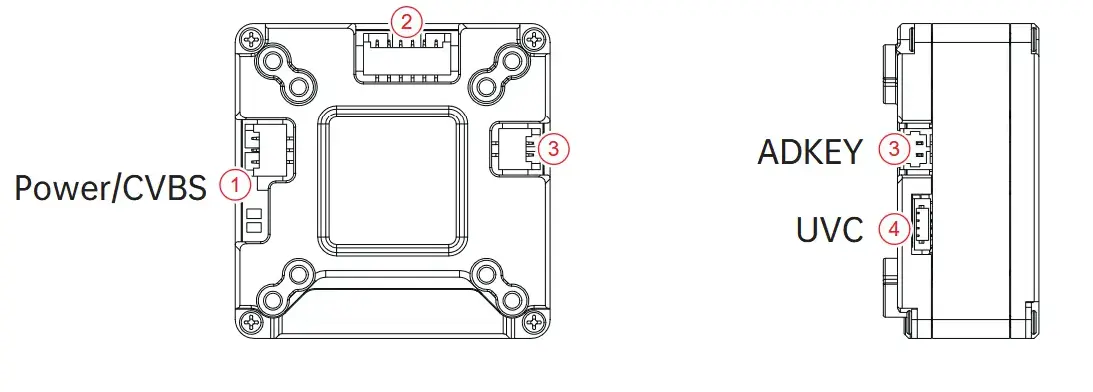

Dimension and Interface of Caddx Eclipse 005SL FT004-V3R Thermovision Camera

eclipse-005sl-kamera-termowizyjna-caddx-eclipse-005sl-ft004-v3r

Caddx Eclipse 005SL FT004-V3R Thermovision Camera Specifications

Model	Eclipse 005SL
Resolution	576x432（Pixelpump）
Frame Rate	50Hz
Video Interface	PAL + UVC (simultaneous analog and digital output)
Supply Voltage	4.5V~20V
Typical Power Consumption	<1.5W
Focal Length	5.1mm
F.NO	F1.0
FOV	56° (H) *41°(V)
Adjustment Method	UVC/ ADKEY
Luminance / Contrast	0-100 (optional)
Color Palette	0-4 (optional)
Digital Zoom	1.0–4.0× Stepless Zoom (controllable via UVC)
Image Flip	Horizontal / Vertical / Diagonal
Operating Temperature	-20℃~50℃

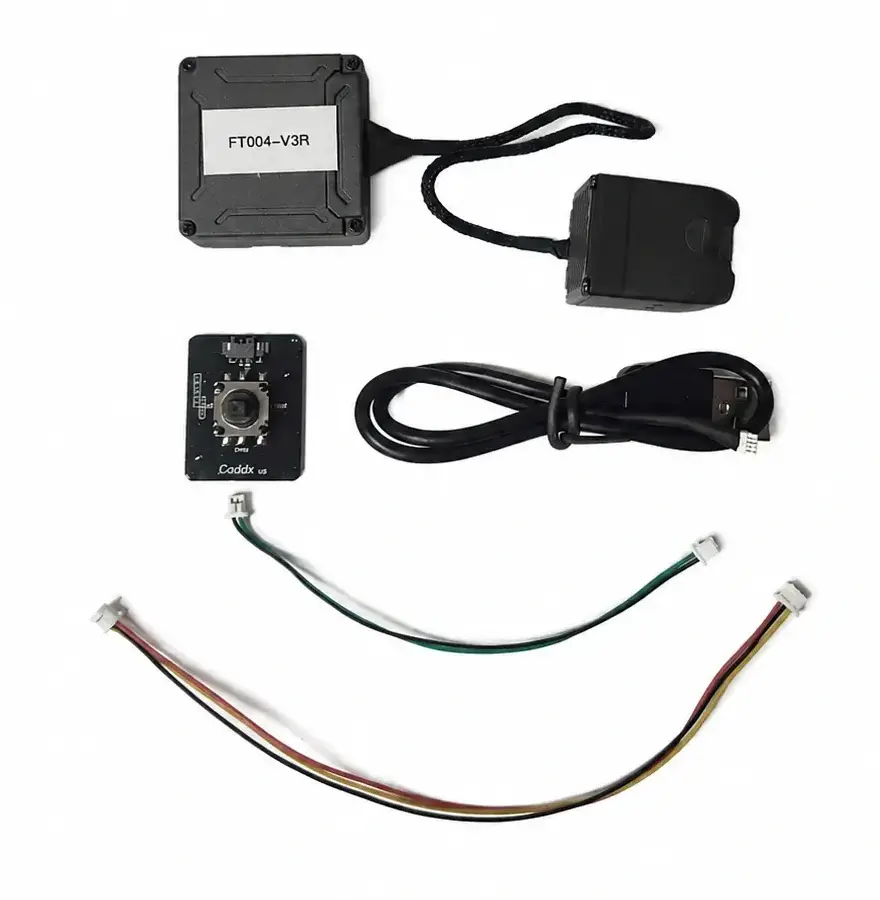

Caddx Eclipse 005SL FT004-V3R Thermovision Camera Package Includes

1x Caddx Eclipse 005SL FT004-V3R Thermovision Camera
1x OSD Menu Board
1x 2pin 1.25mm 10cm Silicone Cable
1x 3pin Silicon Cable
1x USB Cable
