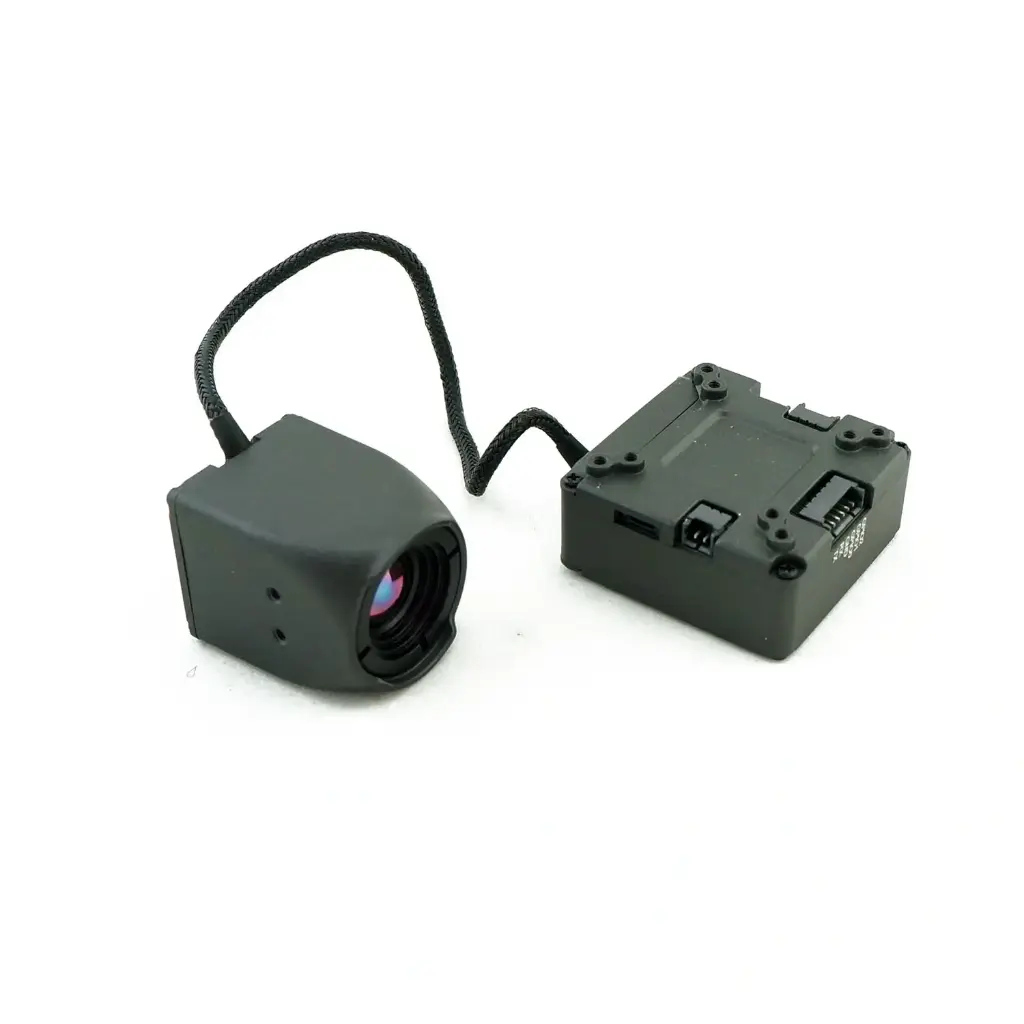

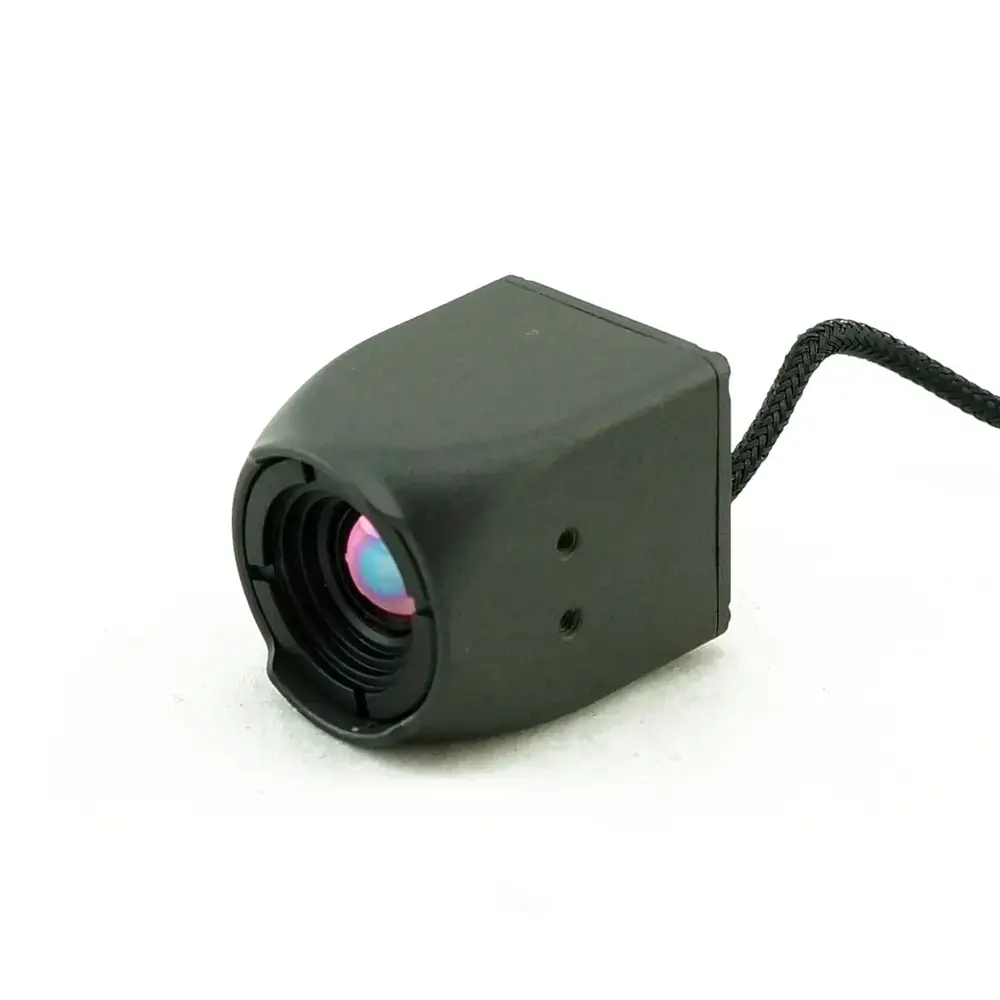

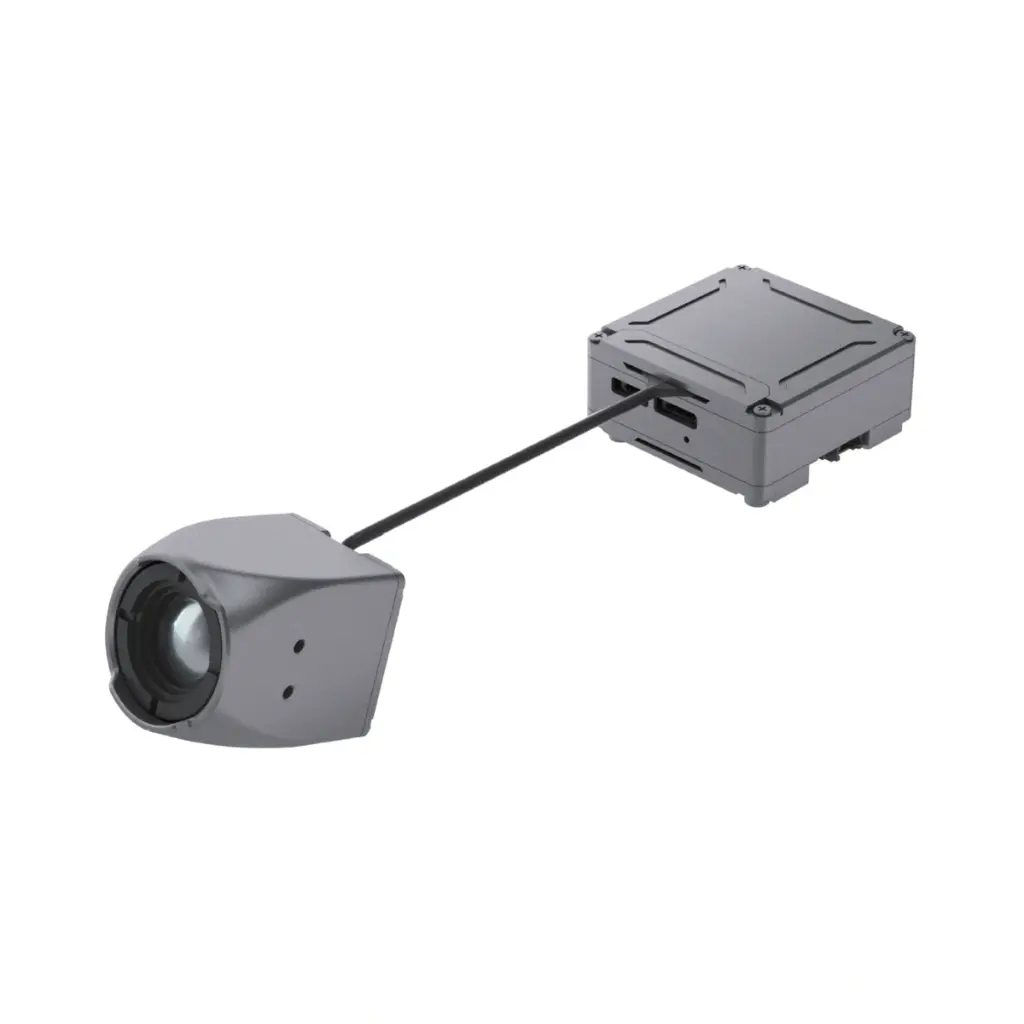

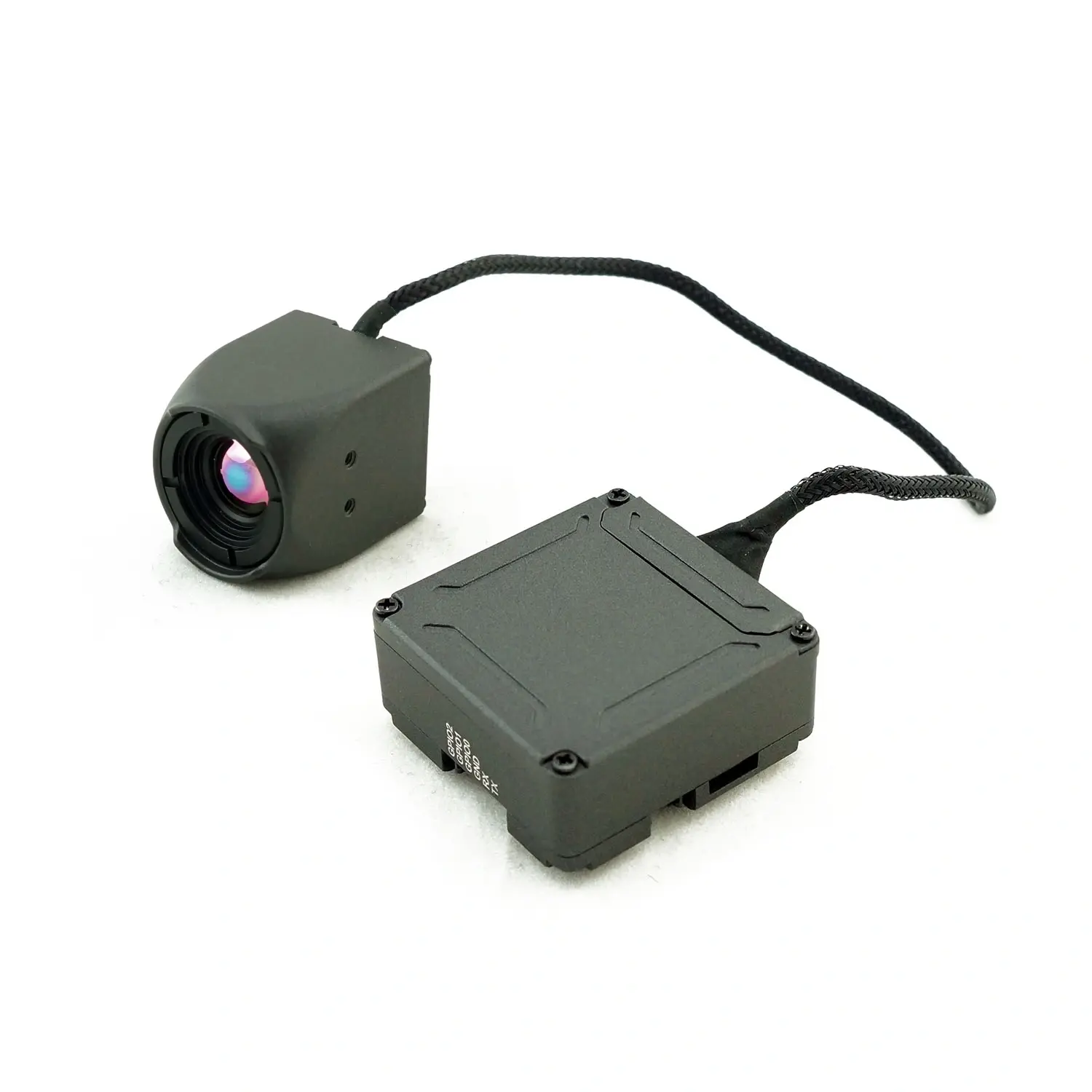

Caddx Eclipse 009SL FT006-V3G Thermovision Camera
Caddx Eclipse 009SL FT006-V3G Thermovision Camera – Top-Tier Thermal Imaging for Professional Use
The Caddx Eclipse 009SL FT006‑V3G Thermovision Camera represents a top‑tier thermal imaging solution engineered for professionals who demand reliable performance in critical conditions. Utilizing advanced uncooled vanadium oxide (VOx) thermal sensor technology, this thermal camera delivers detailed heat‑signature imaging that excels where conventional optical systems fail — including complete darkness, smoke, and low‑visibility environments.
Real-Time Clarity for Mission-Critical Operations
Designed with real‑time response in mind, the Eclipse 009SL captures smooth thermal video with high frame rates and minimal latency, enabling fast decision‑making during dynamic operations such as search & rescue, industrial inspection, night navigation, and tactical reconnaissance. The combination of robust thermal detection and efficient power usage makes the FT006‑V3G model ideal for integration into FPV UAV platforms, mobile surveillance rigs, and other professional systems where weight, reliability, and clarity are paramount.
Advanced Imaging and Seamless System Integration
Featuring a broad infrared wavelength sensitivity and enhanced image processing capability, the Eclipse 009SL ensures clear differentiation of temperature contrasts across varied distance ranges and challenging terrain. With adaptable video output options and seamless compatibility with analog FPV systems, this thermovision camera delivers unmatched situational awareness and performance for expert users across aerospace, security, and field operations.
Caddx Eclipse 009SL FT006-V3G Thermovision Camera Features
- 960×768 uncooled vanadium oxide (VOx) sensor with Pixelpump Gen3 technology
- Black & white image with optional pseudo-color palettes for enhanced thermal contrast
- Designed to operate in pitch-black conditions, as well as through fog, smoke, and dense vegetation
- Simultaneous analog (PAL) and digital (UVC) video output
- OSD menu for easy image configuration and pseudo-color adjustment
- Smooth digital zoom (1×–4×) without significant loss of detail
- Built-in motion compensation / image stabilization for clearer footage during movement
- Wide input voltage range (4.5–20V) with low power consumption (<1.5W)
- High frame rate (50Hz) for smooth real-time imaging
Versatile Thermal Imaging for Monitoring and Analysis

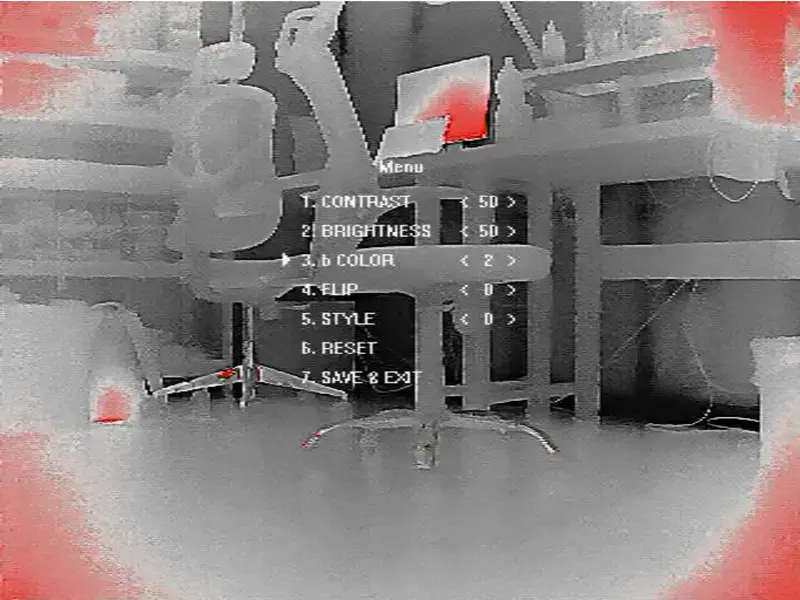

The Caddx Eclipse 009SL FT006-V3G Thermovision Camera produces an image in a classic black-and-white scale, ensuring high readability and strong contrast of the thermal scene, where temperature differences are represented as tonal transitions from light to dark shades. Additionally, the device offers optional pseudo-color palettes that map temperature values to different colors, making it easier to highlight subtle thermal variations and quickly identify key areas within the image. This allows users to adapt the image presentation to specific applications—from simple monitoring to precise analysis of temperature distribution.

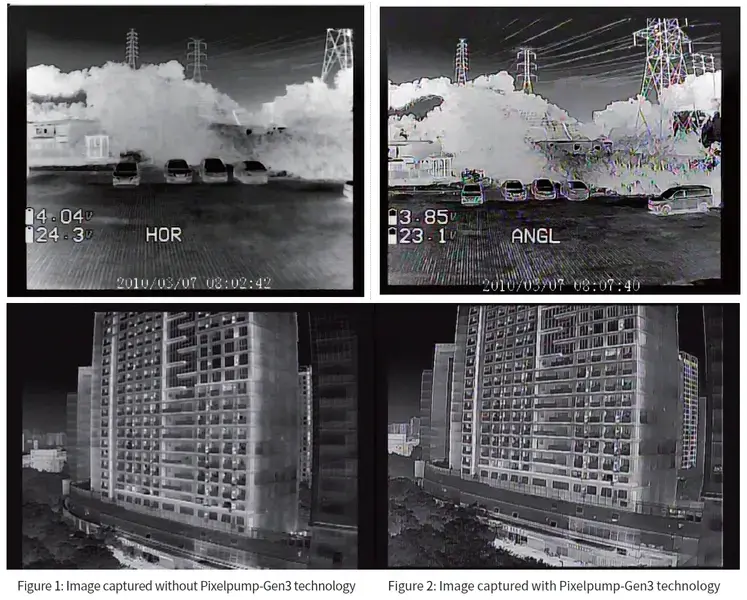

Sharper Vision, Smoother Flight with Pixelpump Technology
The Eclipse 009SL features third-generation Pixelpump technology, designed to significantly enhance image resolution and deliver exceptional visual clarity. By leveraging advanced image processing algorithms, the system brings out fine details with impressive sharpness, making it easier to observe distant objects even in demanding conditions. Pixelpump Gen3 also improves long-range visibility, allowing users to see farther with greater precision. Additionally, the technology effectively reduces minor motion blur caused by drone vibrations, ensuring smooth, stable HD footage—even during high-speed flights or in less stable operating conditions.

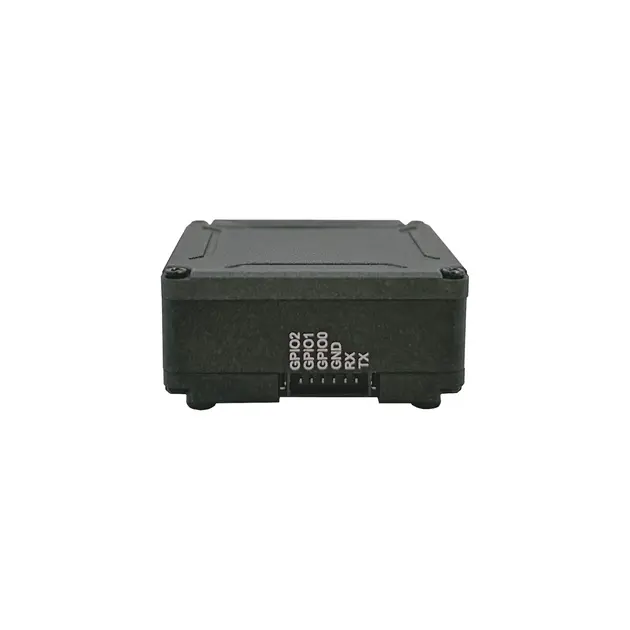

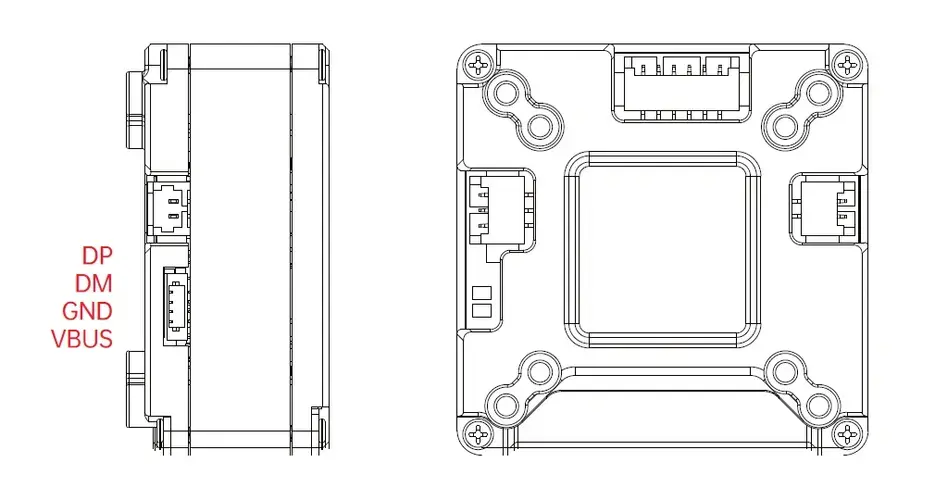

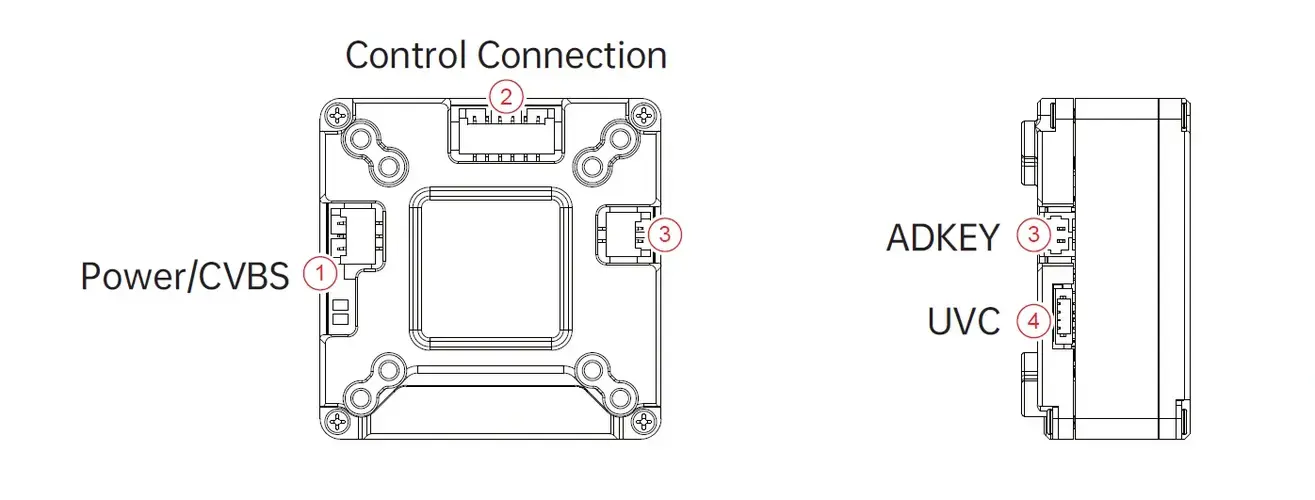

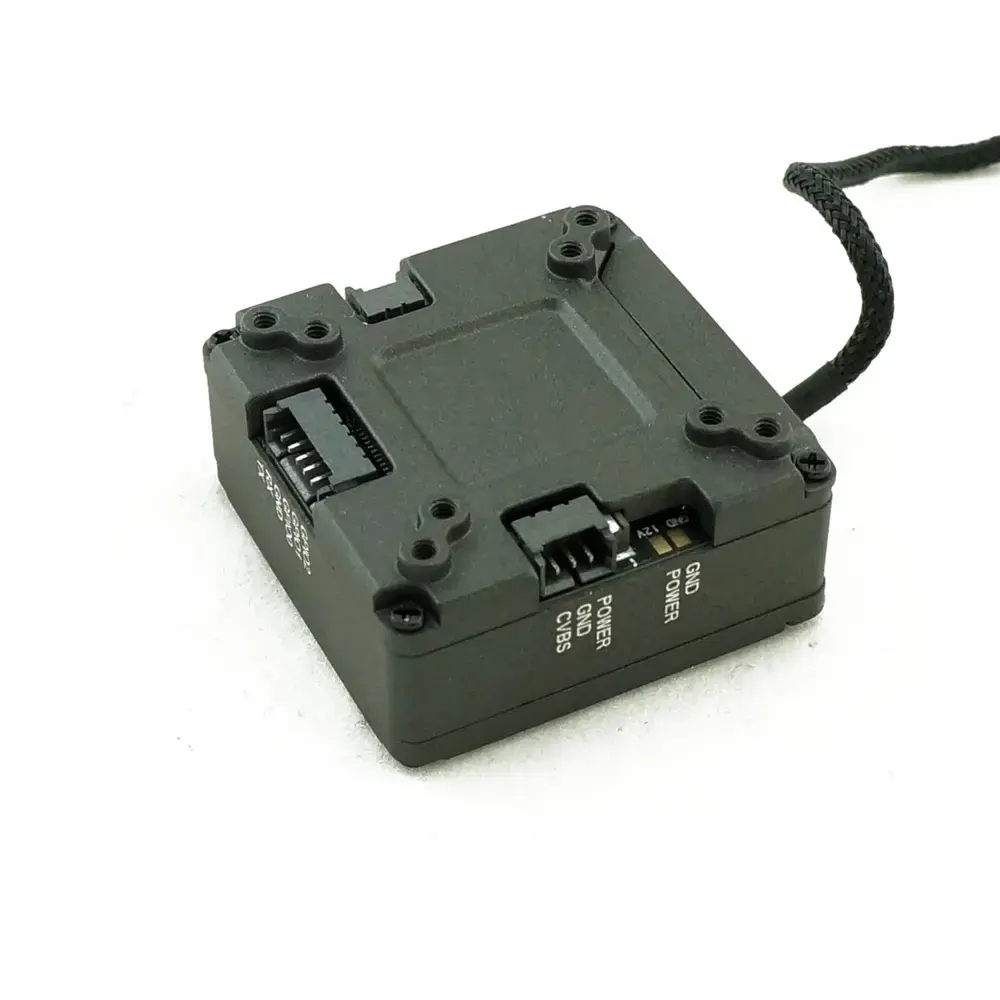

Caddx Eclipse 009SL FT006-V3G Thermovision Camera Interface Definition
UVC Function
By connecting a UVC (USB Video Class) cable, UVC data output is supported in MJPEG format with a resolution of 640×512.

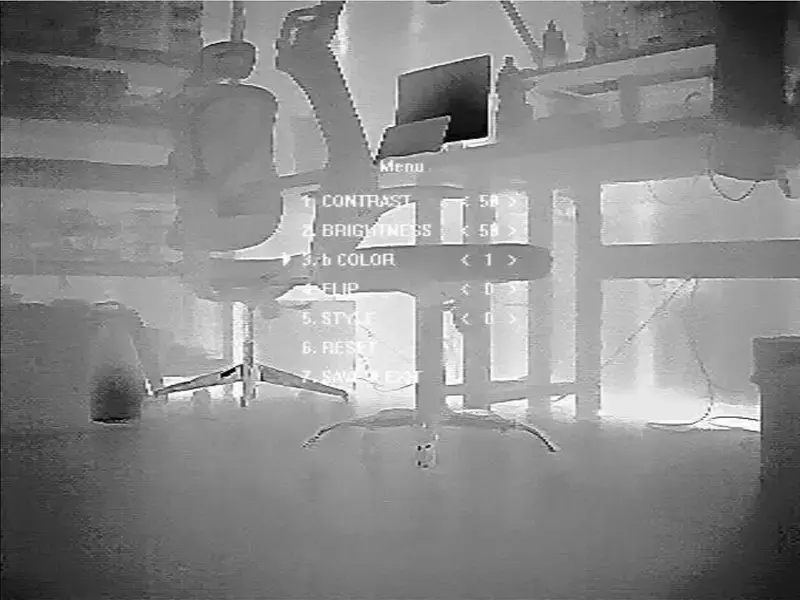

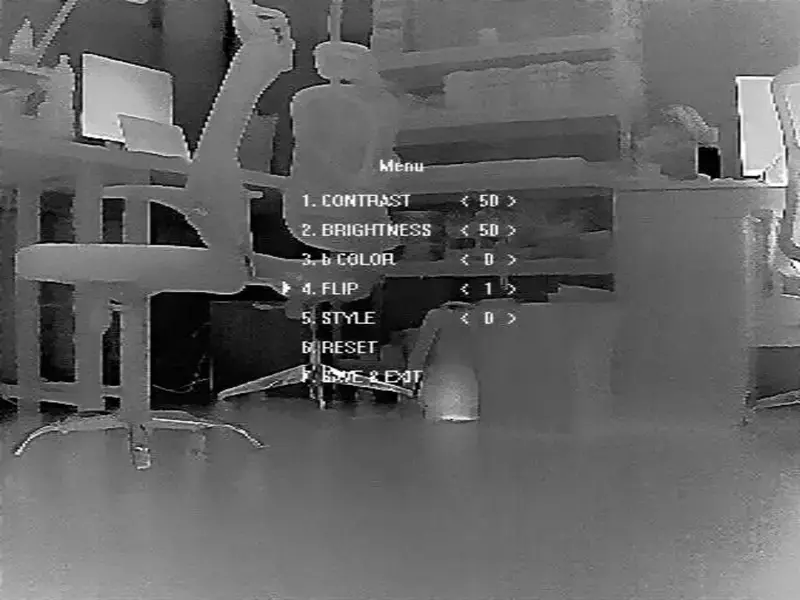

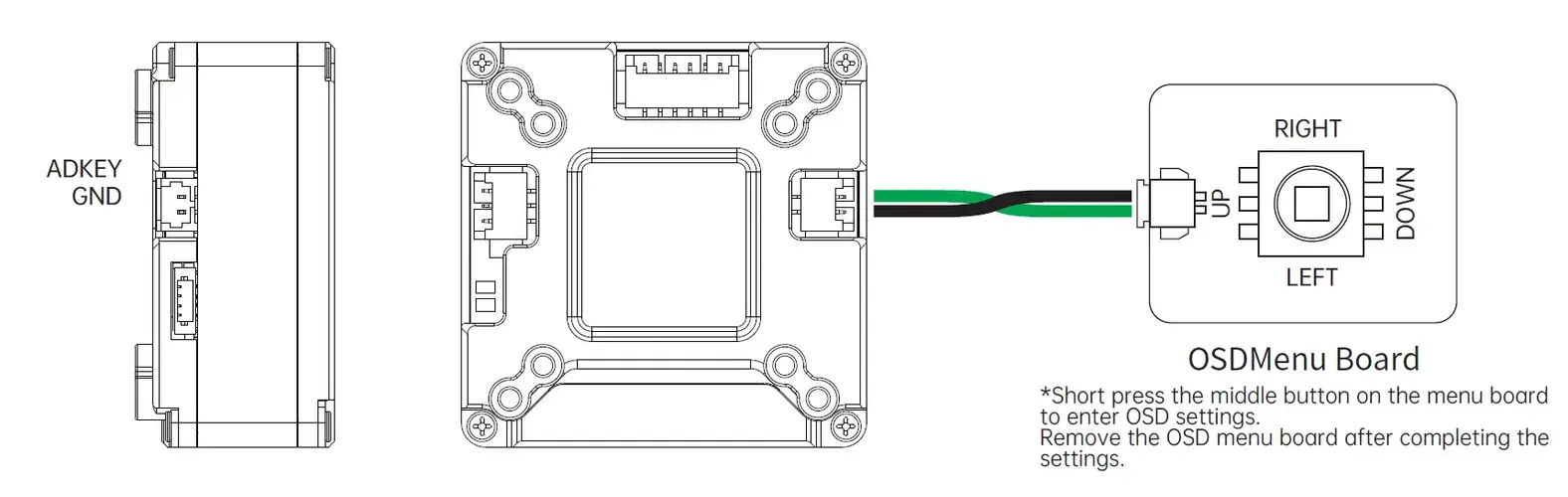

OSD Menu Board Functions

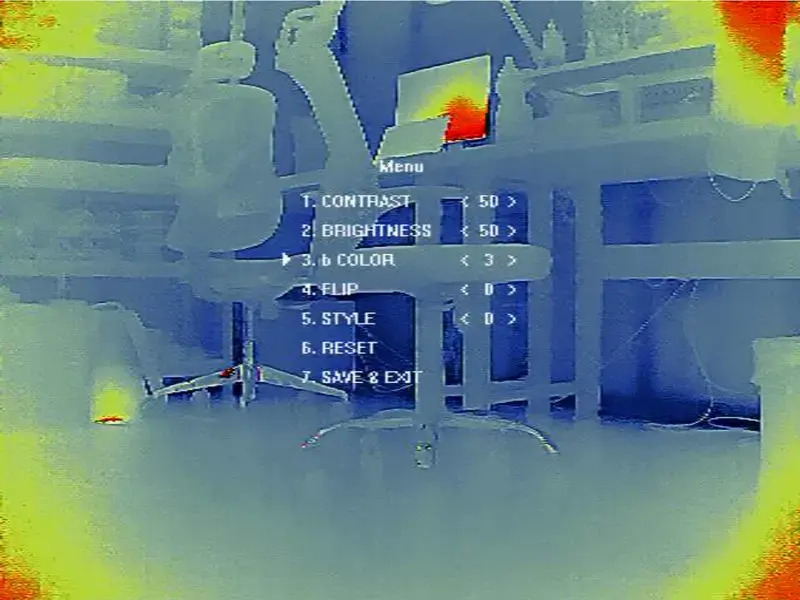

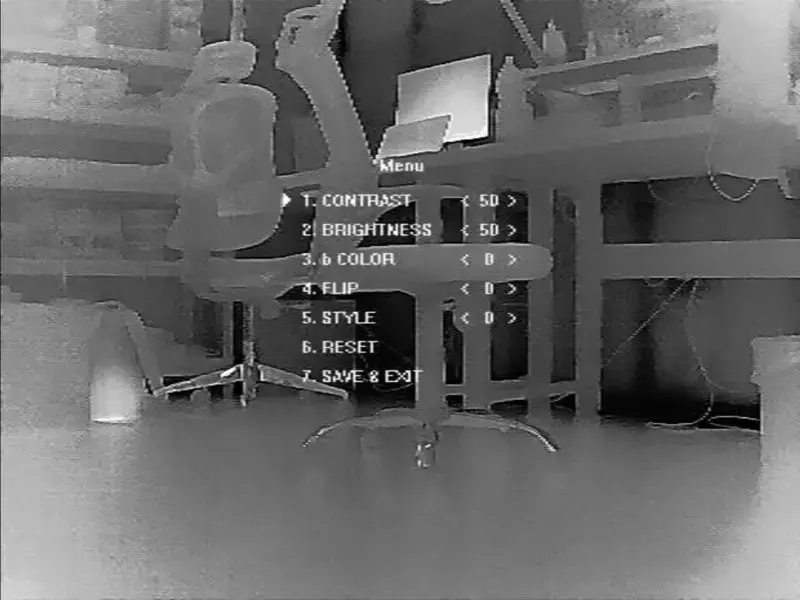

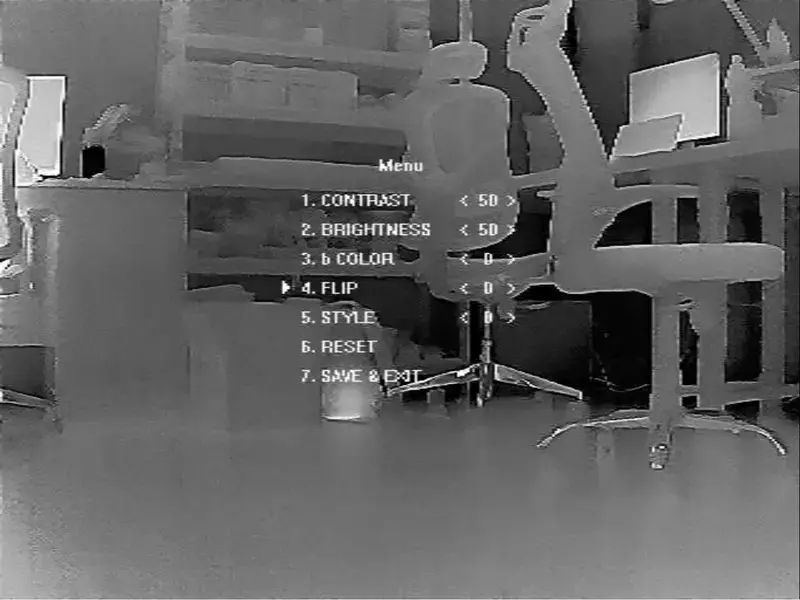

The menu board provides an intuitive user experience via the ADKEY interface: a short press enters the menu, the up/down keys select functions, and the left/right keys adjust parameter values. Adjustable parameters include contrast, brightness, pseudo color, image rotation, and image style, among other display settings.
Caddx Eclipse 009SL FT006-V3G Thermovision Camera Specification
Sensor | Uncooled Vanadium Oxide detector |
Resolution | 960x768px (Pixelpump Gen3) |
Lens | F1.0/9.1mm |
FOV | 48.3° (H)*38.6°(V)*66°(D) |
Refresh Rate | 50Hz |
Power Consumption | <1.5W |
Input Voltage | 4.5V~20V |
Output | PAL + UVC (simultaneous analog and digital output) |
Average Latency | 20ms |
Working Temperature | -20°C~50°C |
| Adjustment Method | UVC/ ADKEY |
Luminance / Contrast | 0-100 (optional) |
Color Palette | 0-4 (optional) |
Camera Dimensions | 22*22*28.43mm |
AI Box Dimensions | 33.5*33.5*16.5mm |
Weight | 47g |
Note. The cameras are intended for direct installation and are delivered in simple technical packaging, not in retail boxes.

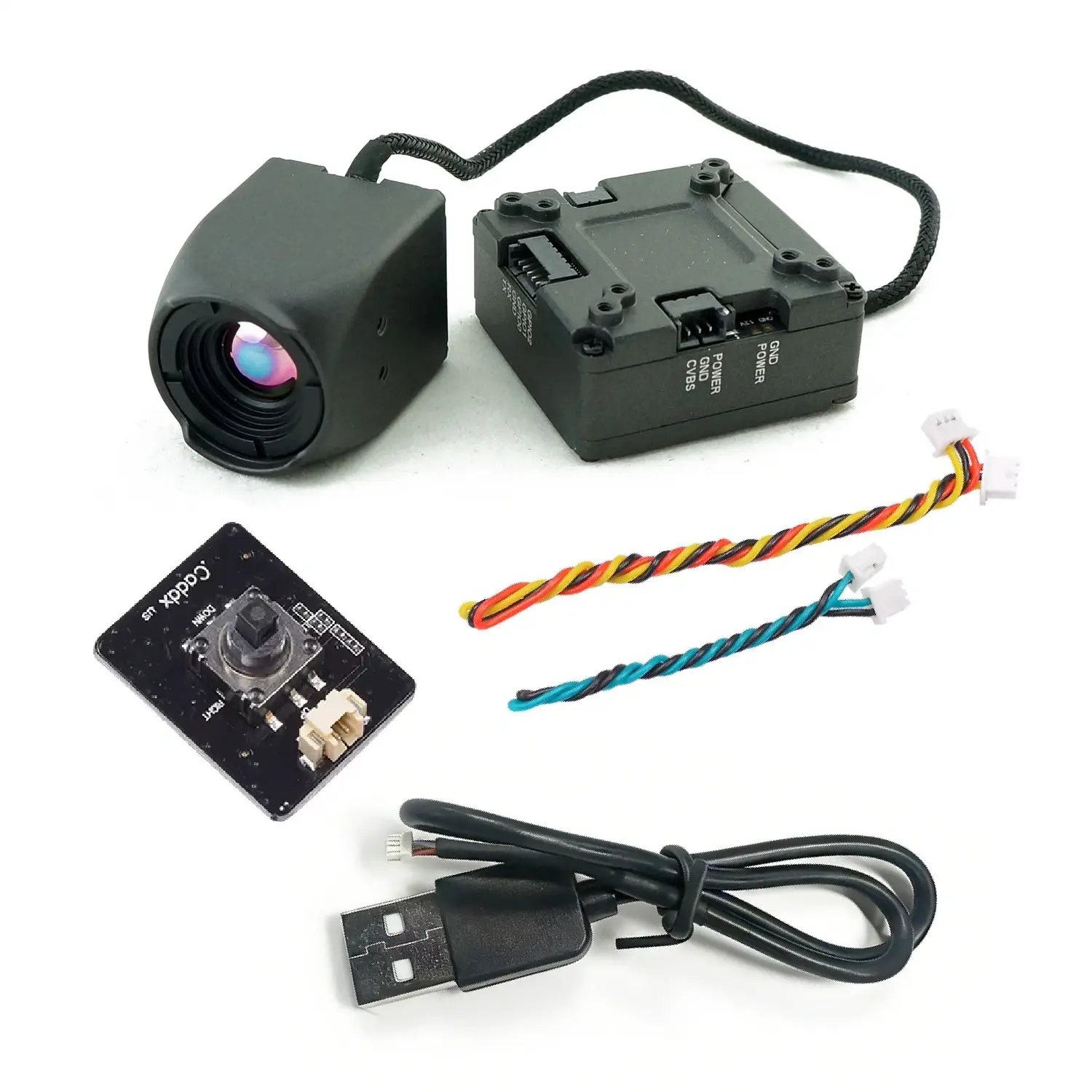

Caddx Eclipse 009SL FT006-V3G Thermovision Camera Package Includes
- 1x Caddx Eclipse 009SL FT006-V3G Thermovision Camera
- 1x OSD Menu Board
- 1x 2pin 1.25mm 10cm Silicone Cable
- 1x 3pin Silicon Cable
- 1x USB Cable
