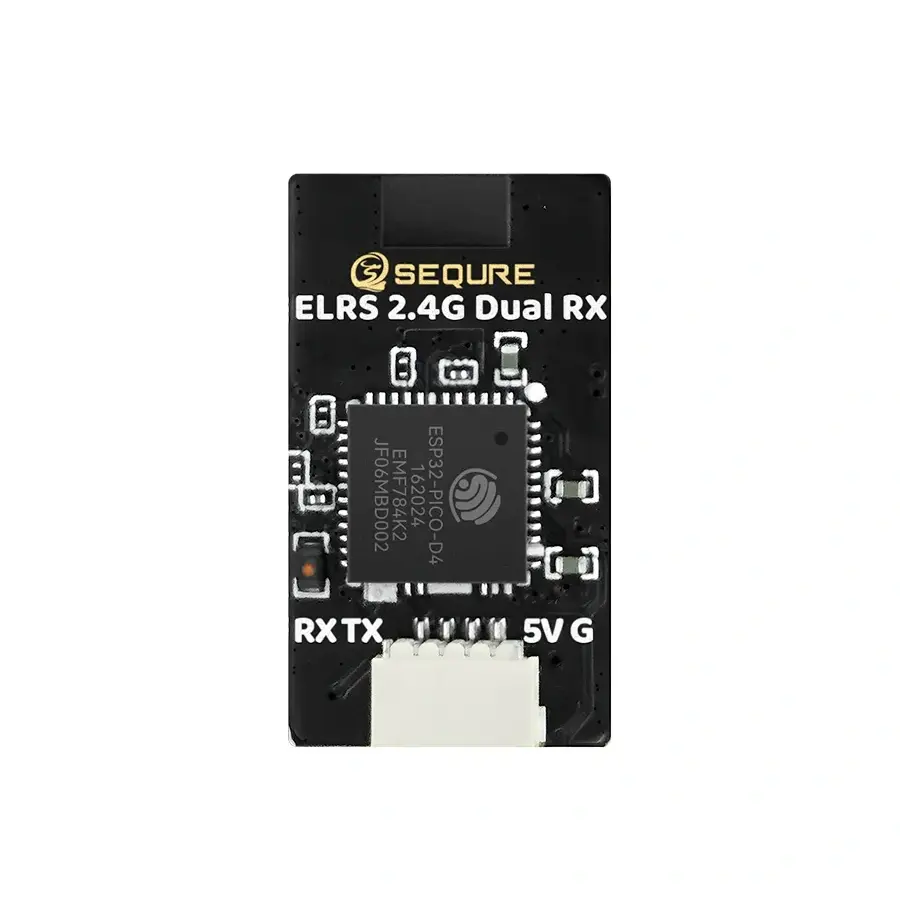

SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2
Unmatched range and absolute stability for your drone -SEQURE ELRS 2.4GHz Dual RX 80MM*2 RC Receiver
The SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2 is a top-class radio device designed for uncompromising FPV pilots. Utilizing advanced True Diversity technology with two independent antennas, it ensures incredible connection stability even in environments full of interference. The equipment transmits data instantly with a refresh rate of up to F1000Hz, offering ultra-low latency crucial during races. Its compact design means the SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2 easily fits into the tightest drone frames, making it an excellent, professional choice.
Advantage of SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2
High-performance Master Control
Integrated PA+LA
TCXO Oscillator
Omni Directional
Signal Reception
Start Your Journey with SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2
Temperature compensated crystal oscillator (TCXO)
Using high-performance
ESP32-PICO-D4 master control
Dual-Channel high-power PA+LNA and 100mW (20dBm)*2 return
High-frequency anti interference
2.4GHz
Strong Signal
Strong anti
interference
Two connection methods to meet various scenarios
Indicator Status in SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2
| Color griadient | Orange double flash | Orange single flash | Still on | Yellow and green alternating |
Power-on self-test | Binding mode | Waiting for remote control connection | Connected | WIFI mode |
Diagram of SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2
SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2 Specifications
Model | SEQURE ELRS 2.4GHz Dual RX |
Factory Firmware | SEQURE 2.4GHz Dual RX_3.4.0 |
MCU | ESP32-PICO-D4 |
RF Chip | SX1281 |
Crystal Oscillator Type | Temperature Compensated Crystal Oscillato (TCXO） |
PA Power (Telemetry Power) | 100mW（20dBm）x 2 |
LNA | YES |
Indicator Light | Colorful RGB Light |
Frequency Band | 2.4GHz ISM |
Protocol | CRSF |
RF Mode | Dual /True Diversity/True diversity dual antenna |
Antenna Interface | Ipex1 |
Receiver Interface | SH1.0-4P connector, 2.54-4P pad |
Working voltage | 5V |
Weight | 1.5g |
Size | 23 x 12.8 x 5mm |
SEQURE ELRS 2.4GHz Dual RX Receiver 80MM*2 Package Includes
- 1x SEQURE ELRS 2.4GHz Dual RX Receiver
- 2x Antenna 2.4G (80mm)
- 1x 30AWG 100mm single-end SH1.0-4P cable
- 1x Heat Shrink Tube (12x30mm)
