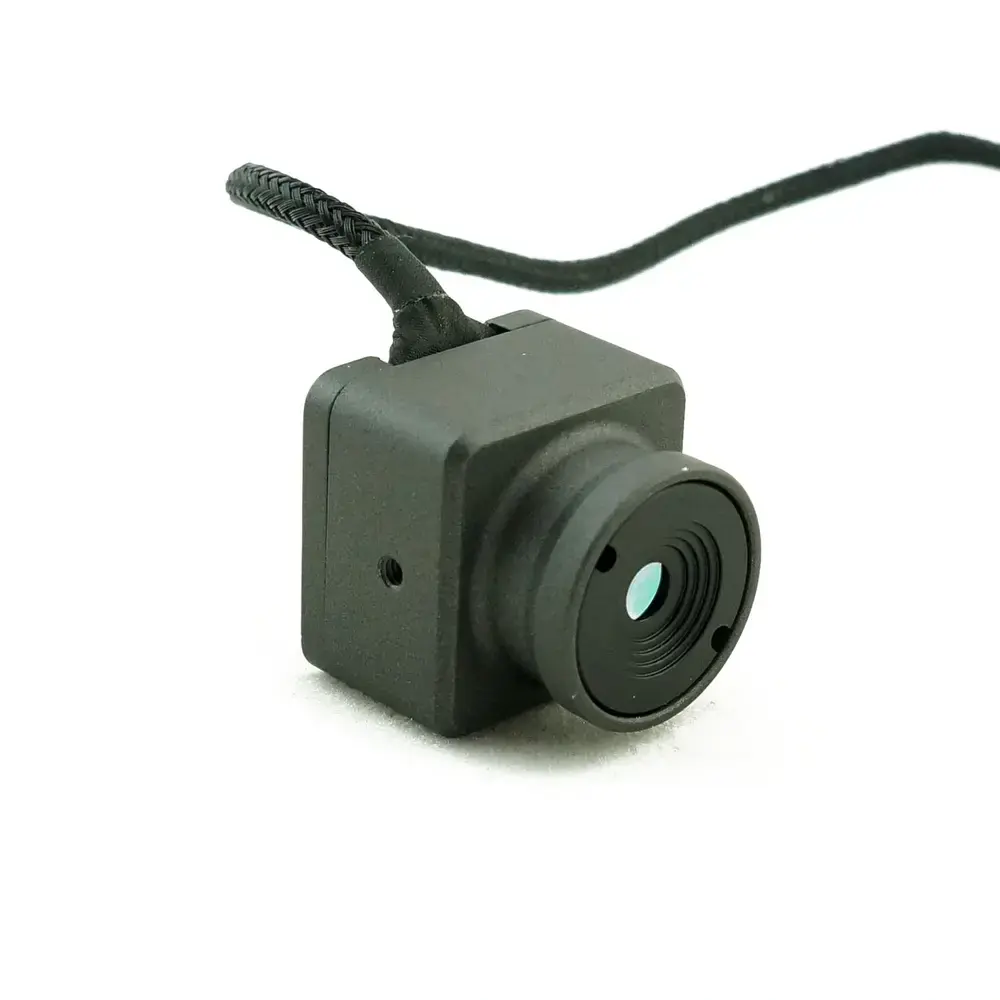

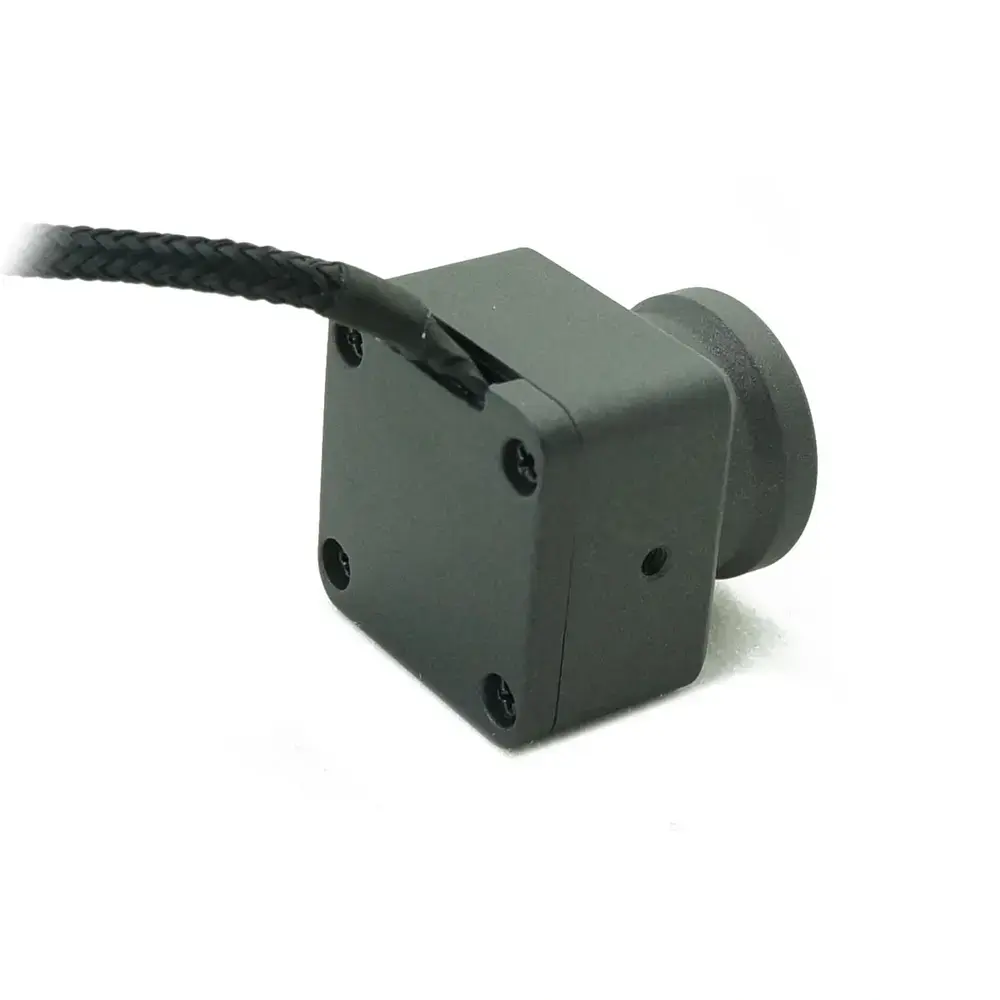

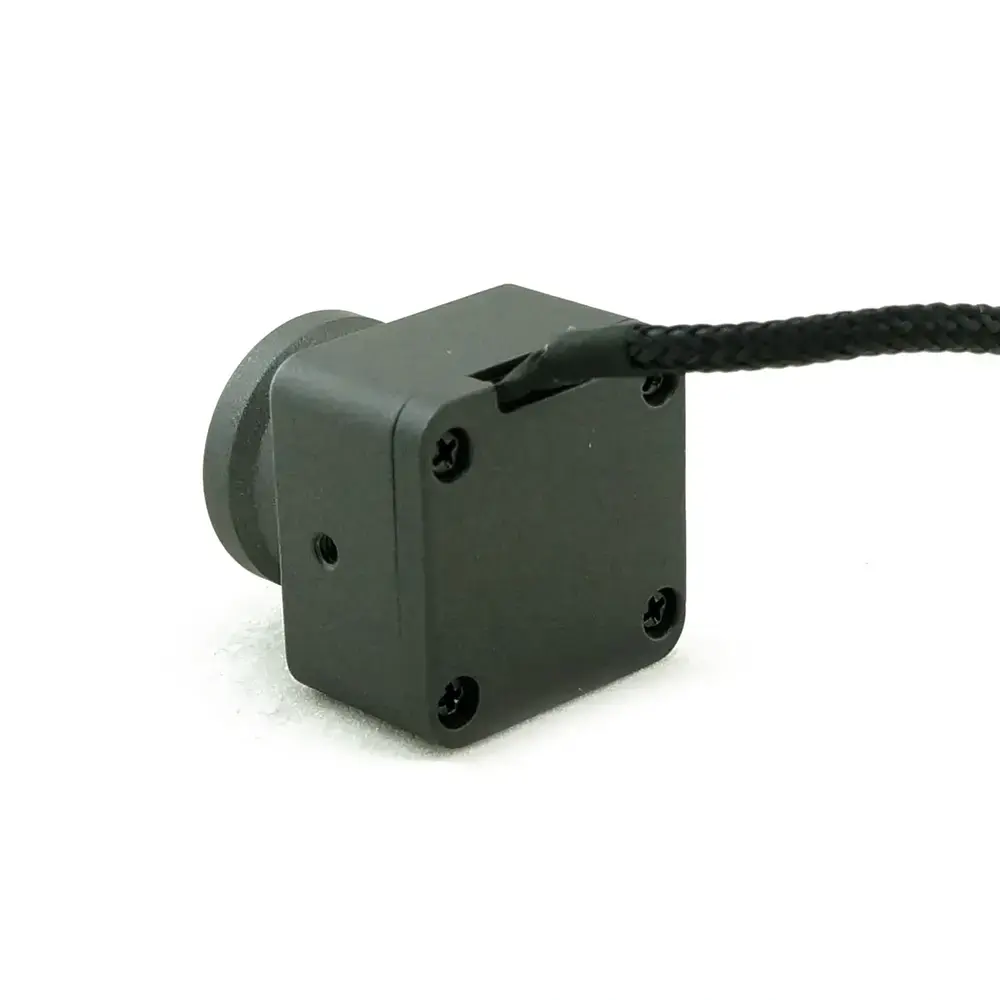

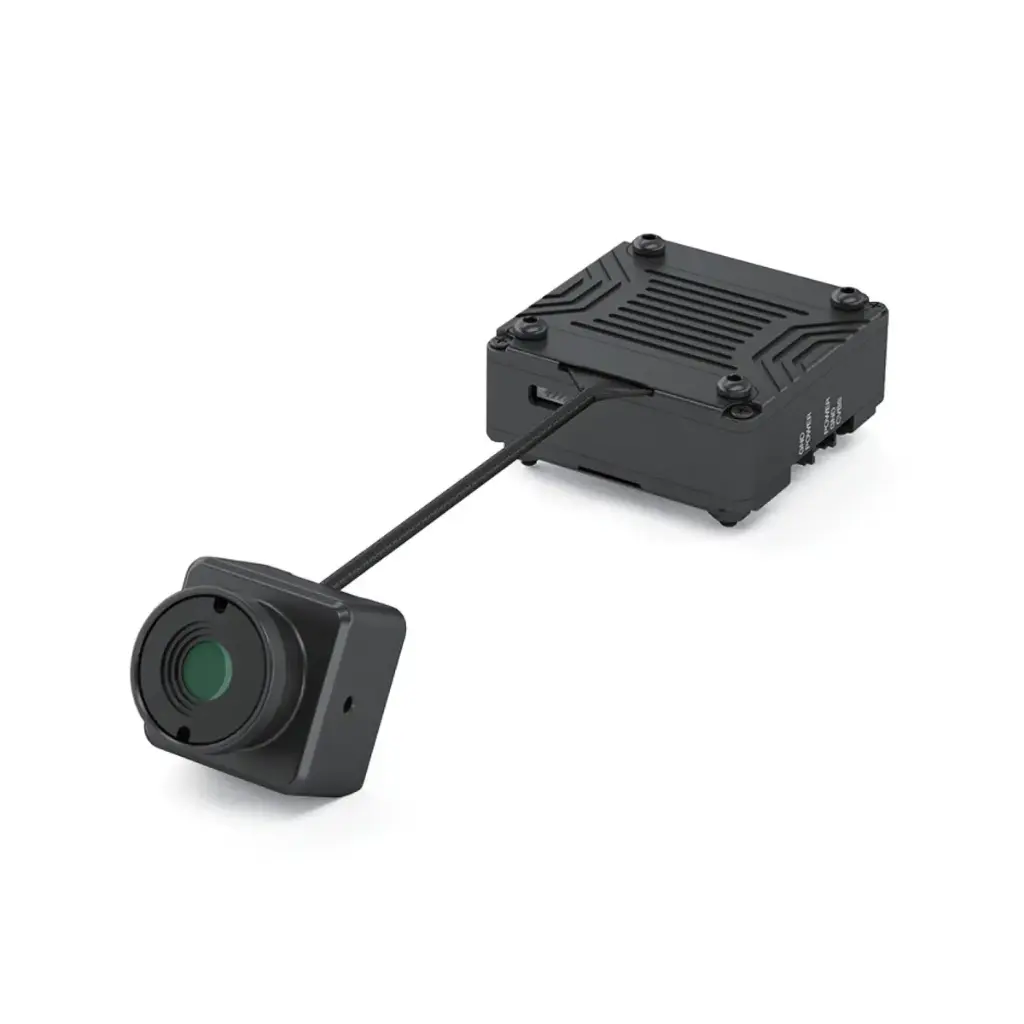

Caddx Eclipse 002SL FN-FT652 Thermovision Camera

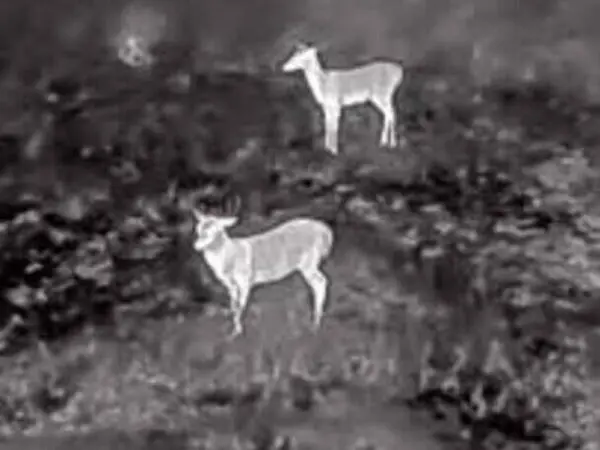

Caddx Eclipse 002SL FN-FT652 Thermovision Camera features an uncooled vanadium oxide sensor with a resolution of 256 × 192 pixels, paired with a 4 mm focal length lens that provides a diagonal field of view of 62.3°. The camera uses the "white hot" thermal palette, in which warmer areas appear white. Unlike standard cameras, it does not rely on visible light, allowing it to operate effectively in pitch-black conditions, fog, and smoke. Compact and cost-effective, it’s ideal for FPV drones and other demanding applications.
Caddx Eclipse 002SL FN-FT652 Thermovision Camera – High-Performance Thermal Imaging at a Budget-Friendly Price

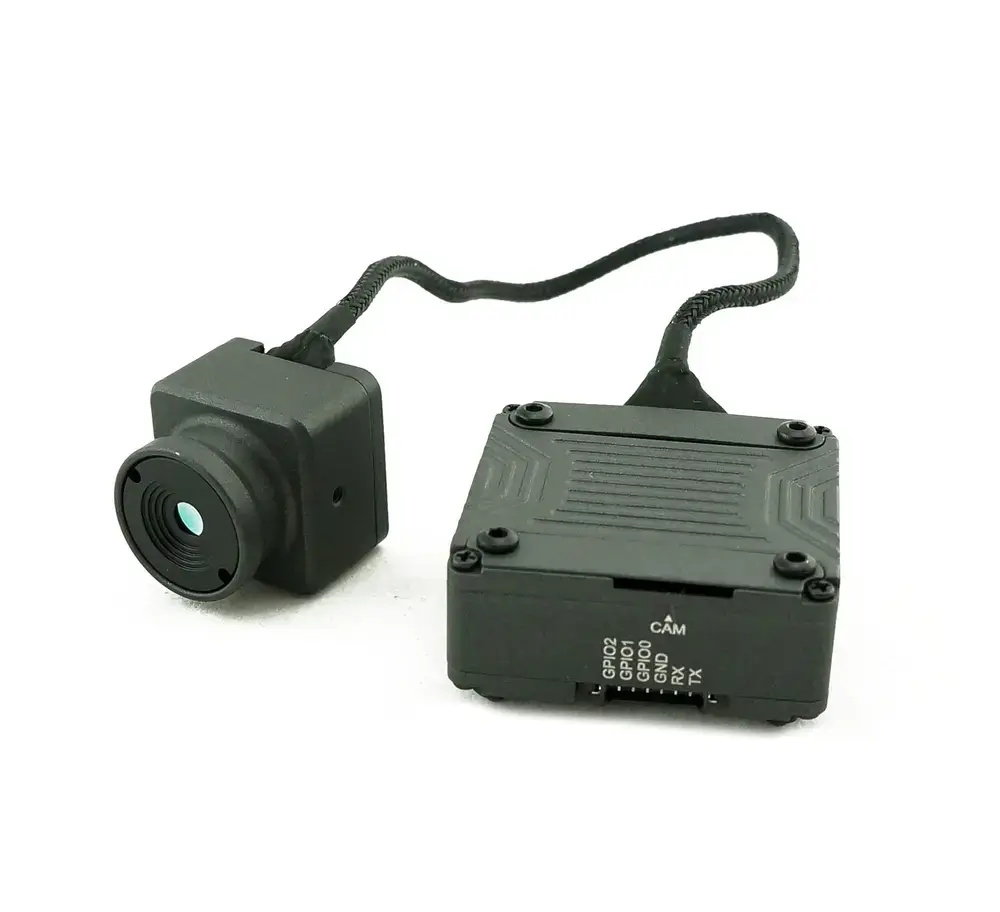

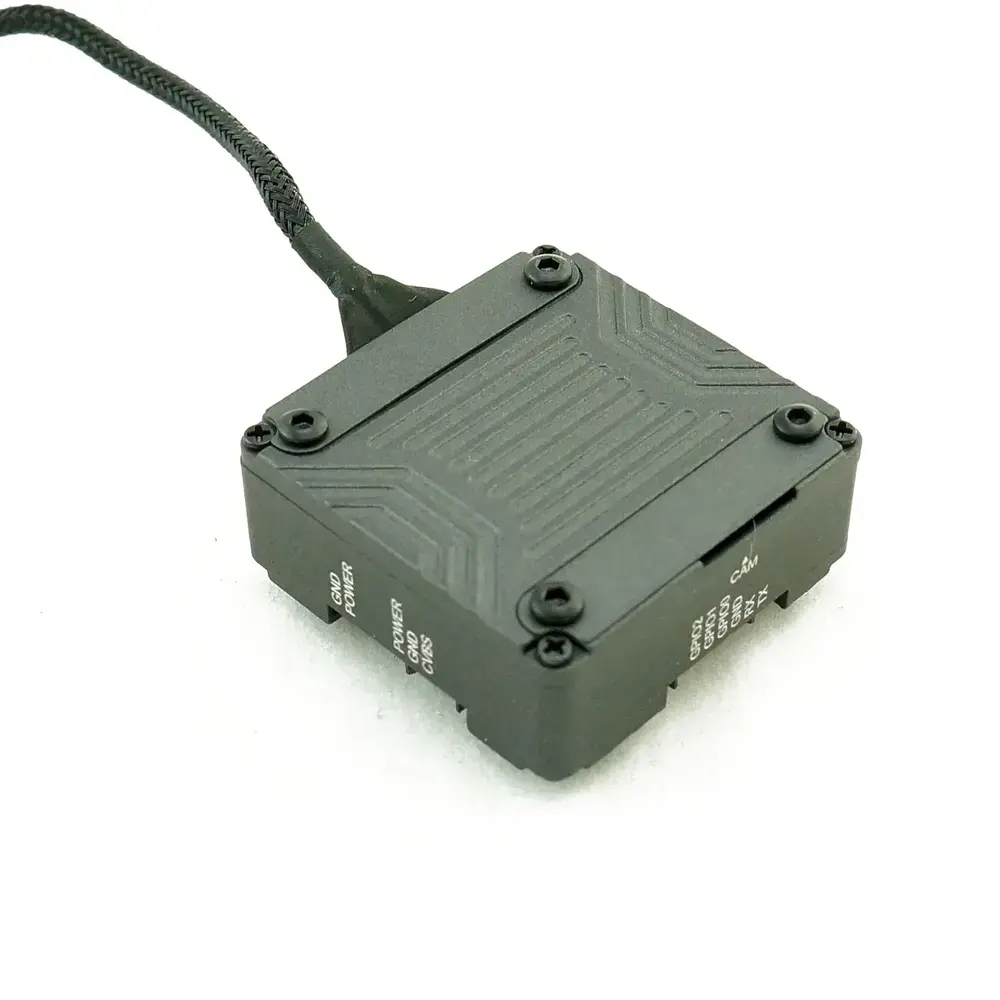

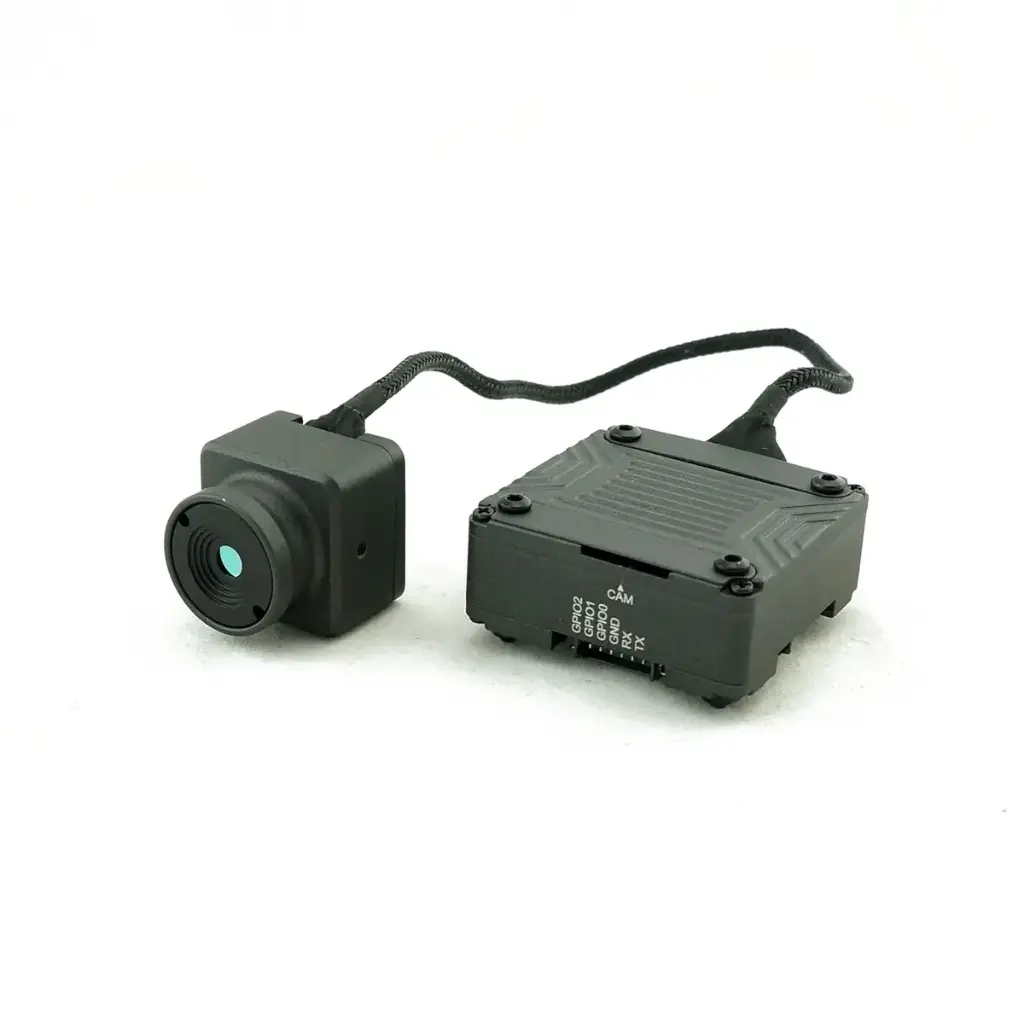

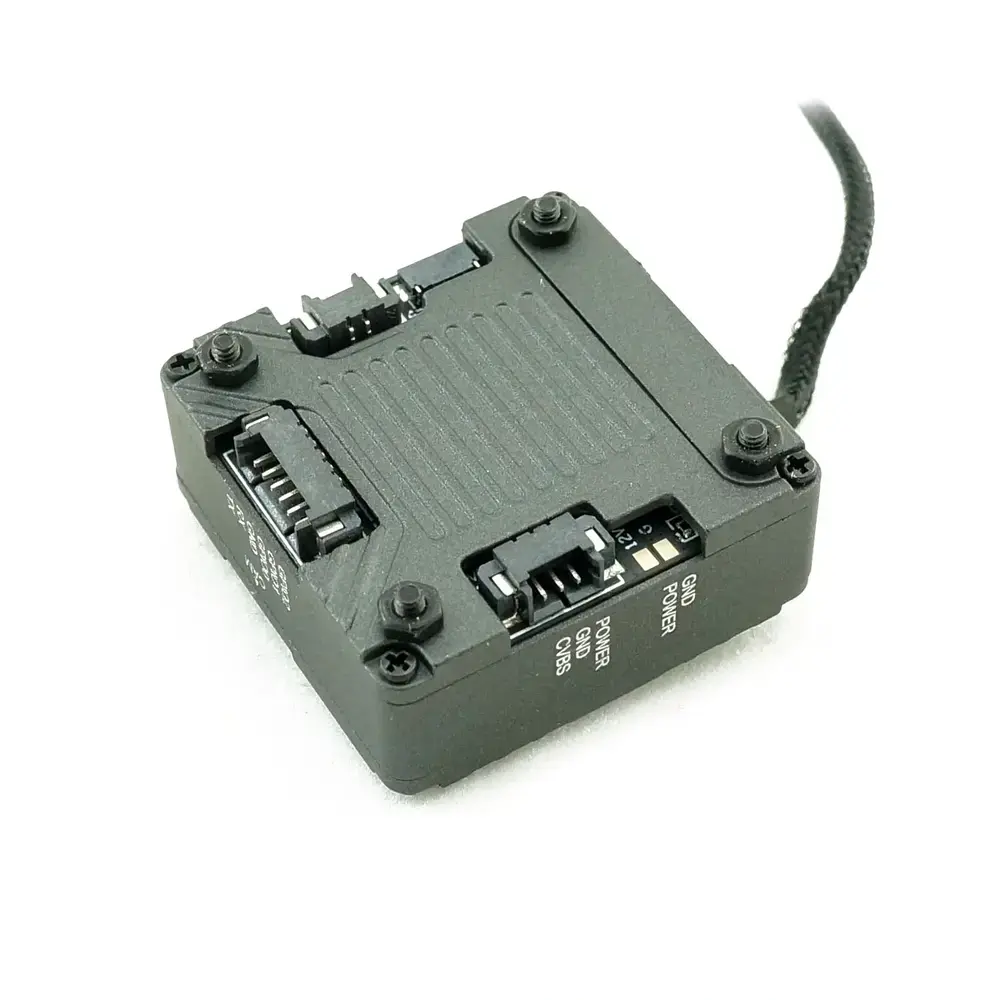

Eclipse 002SL FN-FT652 Thermovision Camera provides a standard analog CVBS (PAL) video output, enabling direct connection to an analog video transmitter, and operates within a supply voltage range of 9–24 V. It supports control and configuration via a UART interface, allowing adjustment of parameters such as brightness, contrast, pseudo-color palettes, shutter mode, and enabling the Hot Tracking function, with a defined command protocol available for advanced integration (see manual). With a width of 19.5 mm and M2 side mounting threads, the camera is compatible with Micro-size analog camera mounts and connects to the AI box via a MIPI cable.

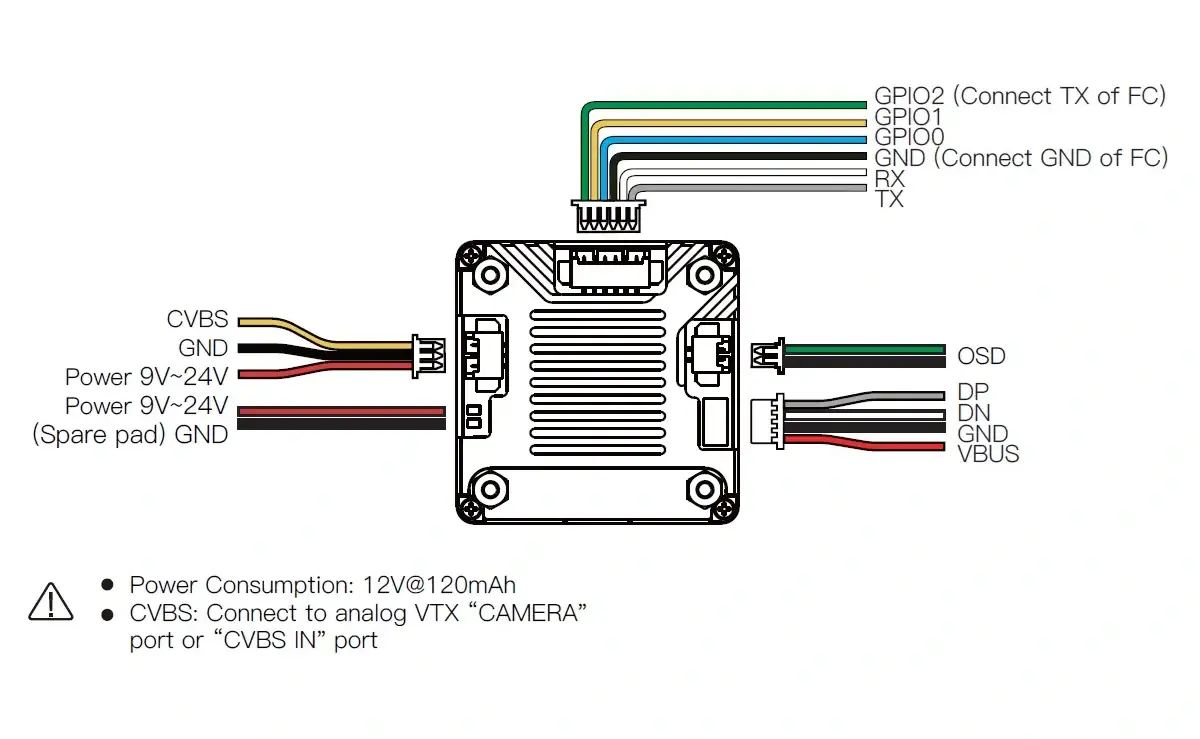

Caddx Eclipse 002SL FN-FT652 Thermovision Camera Wiring Diagram
Caddx Eclipse 002SL FN-FT652 Thermovision Camera Specification
Sensor | Uncooled Vanadium Oxide detector |
Resolution | 256x192px |
Lens | F1.0/4mm |
FOV | 50°(H)*37.2°(V)*62.3°(D) |
IFOV | 3.43 |
Refresh rate | 50fps |
Power Consumption | <1.5W |
Output | PAL |
Input voltage | 9-24V |
Working Temperature | -20°C~60°C |
Interface | Analog CVBS |
Average Latency | 20ms |
Image Quality | Allmage Enhancement |

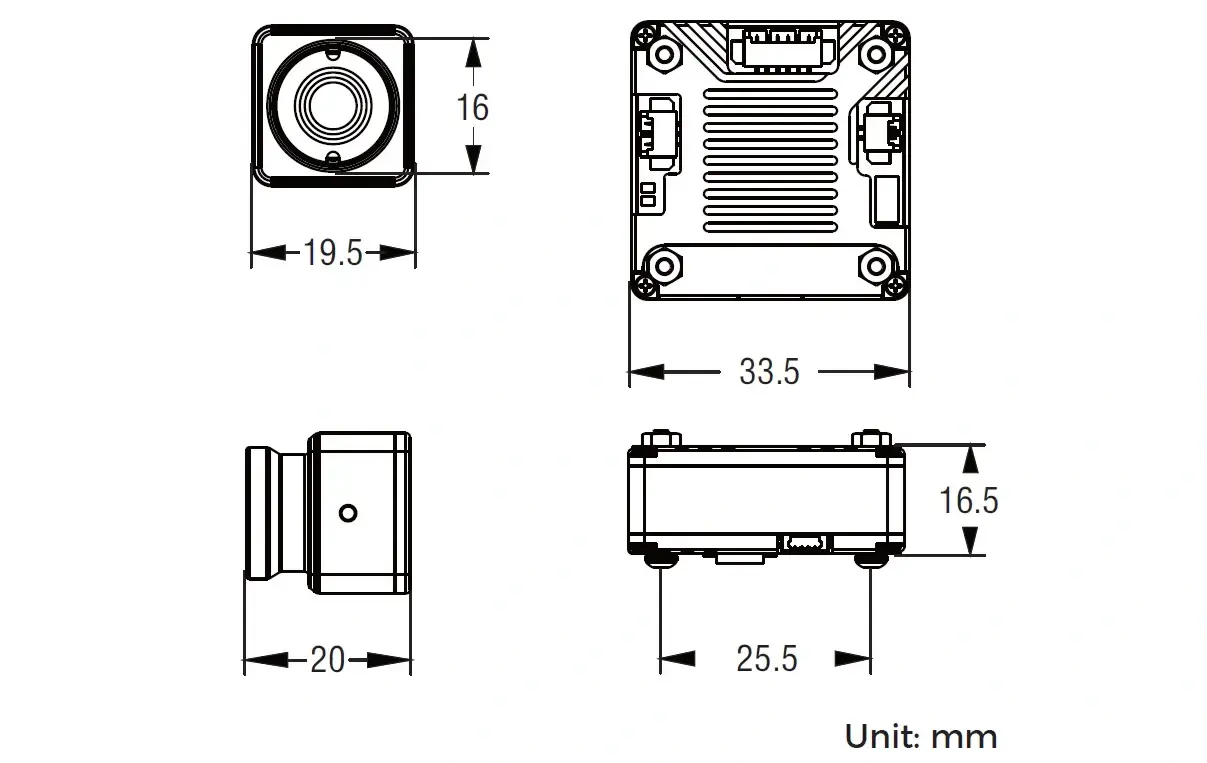

Camera size | 19.5x19.5x20mm |
AI box size | 33.5x33.5x16.5mm |
Weight | 37g |
Note. The cameras are intended for direct installation and are delivered in simple technical packaging, not in retail boxes.
Caddx Eclipse 002SL FN-FT652 Thermovision Camera Package Includes
- 1x Caddx Eclipse 002SL FN-FT652 Thermovision Camera
- 1x JST1.25 3Pin Cable
