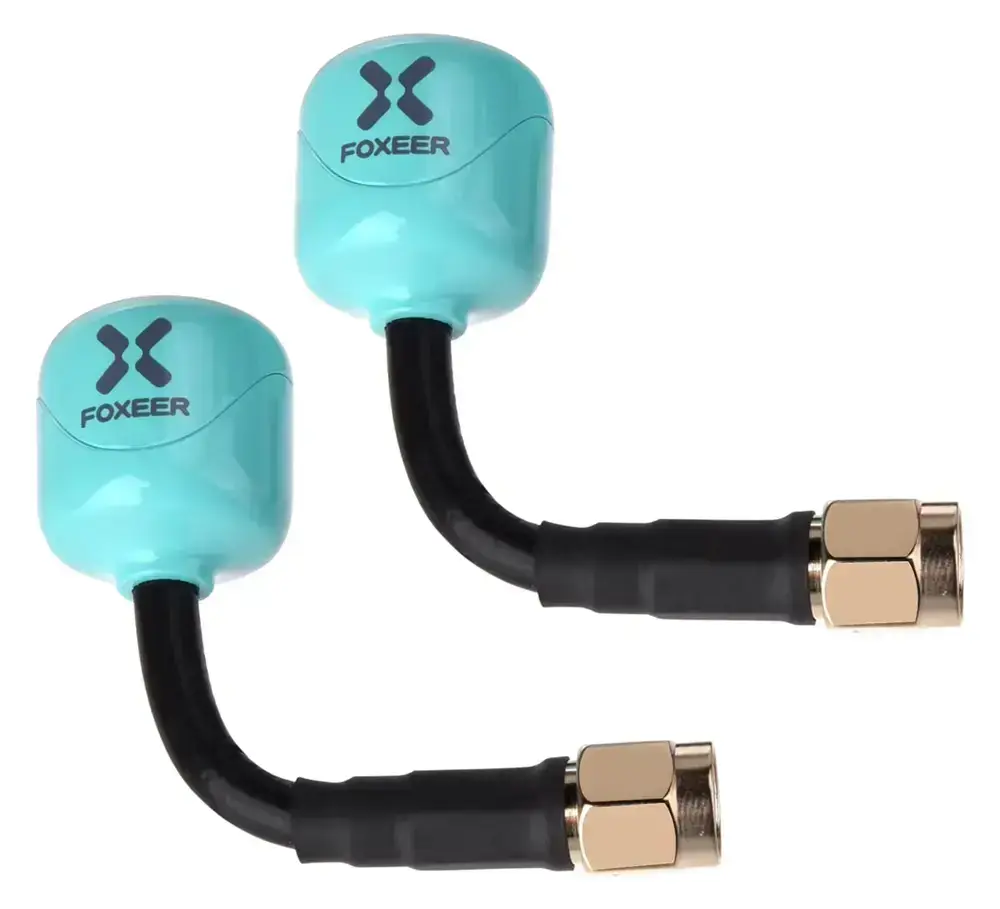

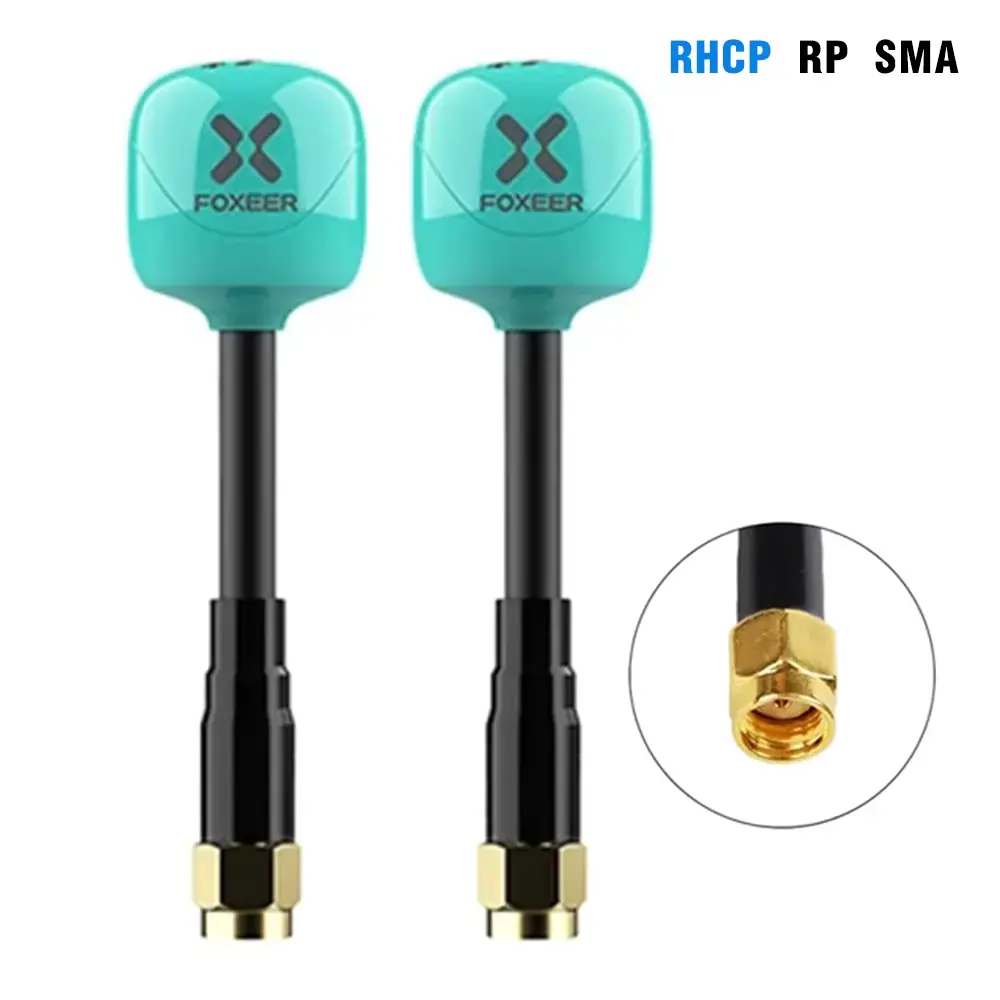

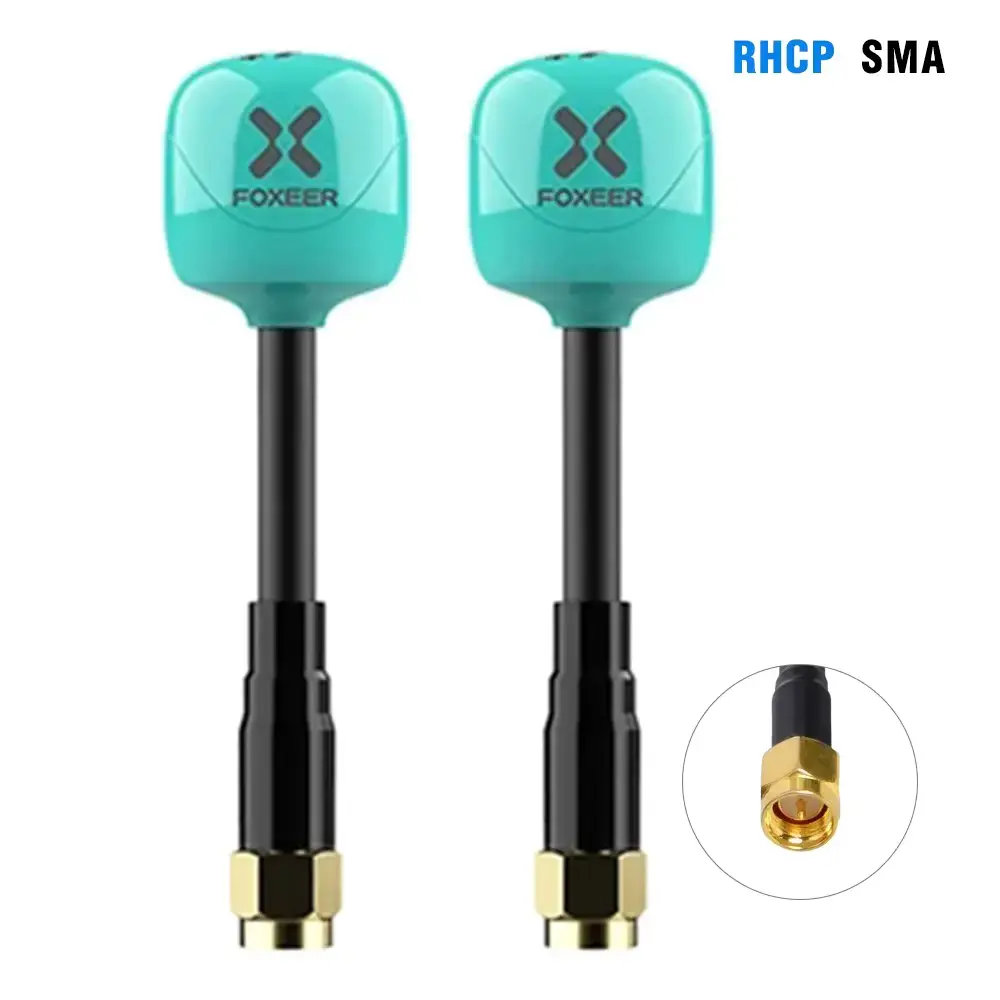

Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs

https://www.bzbuas.com/web/image/product.template/3444/image_1920?unique=9074462

Foxeer Lollipop 4 Plus 5.8G 2.6dBi FPV Omni LDS Antenna (2pcs) is a high-impact FPV upgrade delivering a stronger, cleaner, and more stable video signal from the very first flight. The “Plus” version takes the Lollipop 4 series further with refined design and optimized RF performance for pilots who demand more consistency and control. Built with LDS (Laser Direct Structuring) technology, it ensures precise signal radiation, while the durable yet lightweight PC+ABS housing is ready for crashes and hard freestyle use. If you want fewer dropouts and a noticeably sharper FPV feed immediately, this is the upgrade you feel right away.
79.68 zł 79.68 PLN VAT Excluded
79.68 zł VAT Excluded
  • VERSION

This combination does not exist.

Gain a crystal-clear image and forget about interference with the Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs

The Foxeer Lollipop 4 Plus 5.8G 2.6dBi Antenna 2 pcs. is the latest generation of iconic FPV drone antennas, designed for maximum performance and video signal reliability. Thanks to advanced LDS technology and a 2.6dBi energy gain, this omnidirectional antenna guarantees a stable connection even in difficult terrain full of obstacles. Whether you fly as a hobbyist or participate in professional flights, the Foxeer Lollipop 4 Plus 5.8G 2.6dBi Antenna 2 pcs. will deliver a clean image without unexpected drops. The availability of three different lengths with an SMA connector allows for a perfect fit for any frame.

Choose the perfect variant for your drone

Customizing your equipment to the frame is the key to success in FPV. The Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs offers full flexibility thanks to versions with lengths of 5 cm, 10 cm, and 15 cm. The short version is ideal for compact and lightweight racing quads, minimizing air resistance. The longer variants are great for extending the signal above the frame in Long Range or freestyle drones. By choosing the Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs, you get double the confidence of a stable SMA video link tailored directly to your unique hardware needs.

antena-foxeer-lollipop-4-plus-5-8g-2-6dbi-2-szt

Key features of Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs

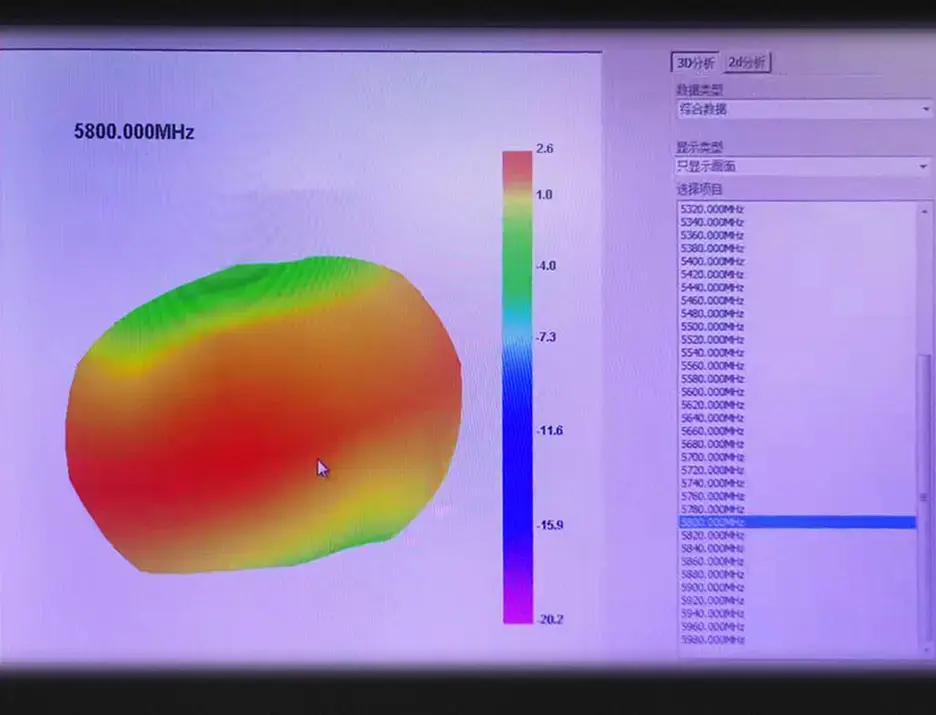

  • Omnidirectional LDS design: Ensures perfectly even 360-degree signal coverage around the drone.
  • High damage resistance: The durable housing protects internal elements from the effects of hard landings and crashes.
  • Three length variants to choose from: Available in 5 cm, 10 cm, and 15 cm versions, allowing you to optimize the antenna position.
  • Universal SMA connector: A solid connector compatible with most popular VTX transmitters.
antena-foxeer-lollipop-4-plus-5-8g-2-6dbi-2-szt
antena-foxeer-lollipop-4-plus-5-8g-2-6dbi-2-szt

Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs Specifications

Center Frequency

5.75GHz

Gain

2.6dBi

Axial Ratio

Close to 1

Band Width

5.5G~6GHz

Radiation Efficiency

98%

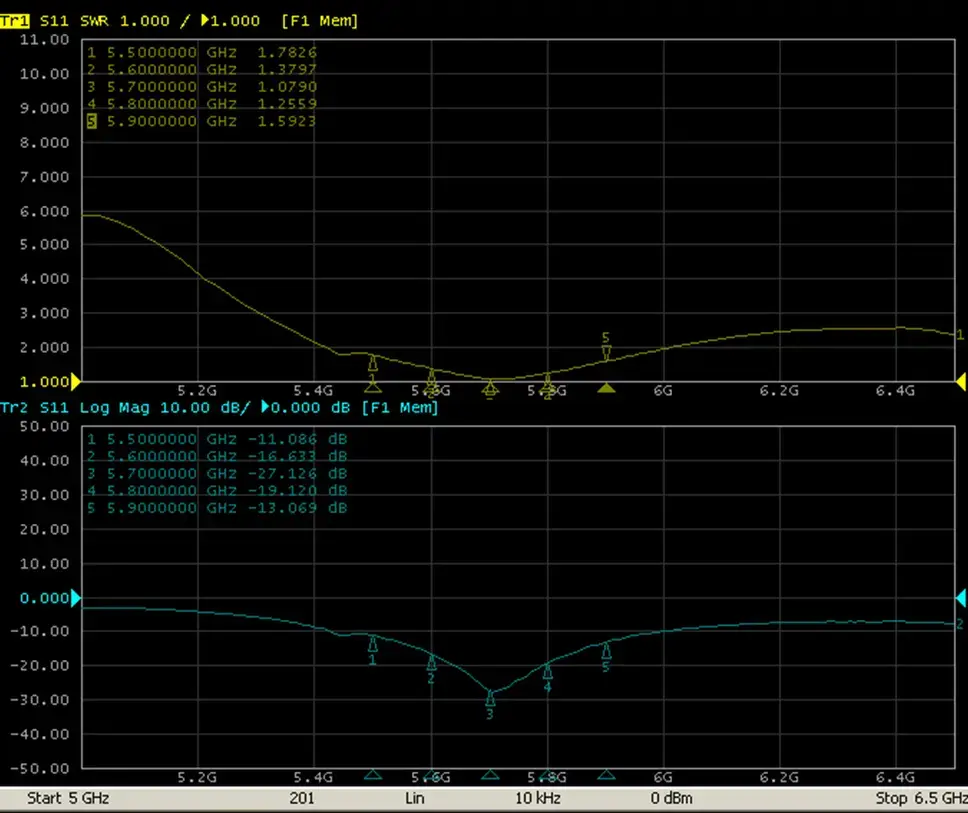

SWR

1.07 at Center Frequency

Polarization

Omnidireccional RHCP

Case Material

PC+ABS

Weight

5CM: 7.8g
10CM: 9.7g
15CM: 12.5g

Diameter and Lenght

5CM: ∅17x60mm
10CM: ∅17x100mm
15CM: ∅17x150mm

Connector

SMA

Color

Teal

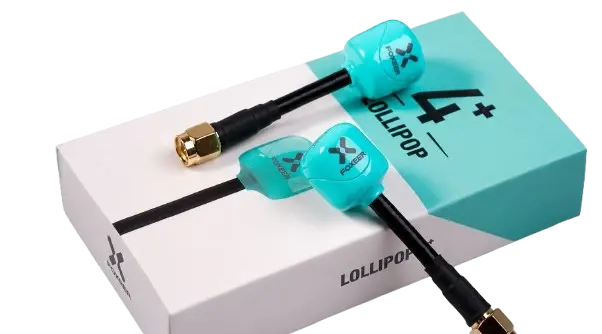

Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna 2pcs Package Includes

  • 2x Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna
    (5 cm, 10 cm or 15 cm depending on your choice)
