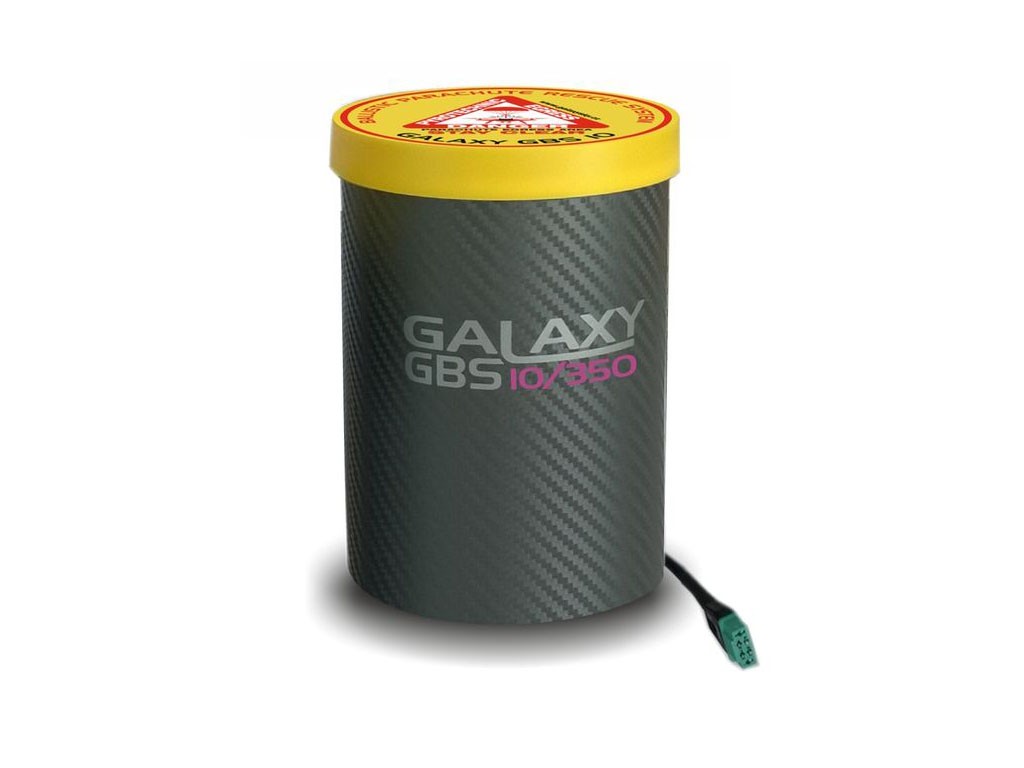

PARACHUTE GBS 10/350 UAV

https://www.bzbuas.com/web/image/product.template/666/image_1920?unique=ef0a779

The GBS 10/350 UAV parachute is a ballistic rescue system for an unmanned aerial vehicle (UAV) manufactured by the world-class company Galaxy GRS. Don't risk it, buy a parachute for your drone today!
0.00 zł 0.0 PLN VAT Excluded
0.00 zł VAT Excluded
Price on request

    This combination does not exist.

    Reliable rescue system


    Ballistic unmanned aerial rescue system (UAV) manufactured by the world-class company Galaxy GRS.


    SPECIFICATION

    Weight

    725 g

    Recommended MTOM UAV

    15-35 kg

    Speed not exceedable (VNE) Slider

    80 km/h

    Canopy opening time (+ 0.5s for full inflation) – for altitudes 0-1500 AMSL

    0,8 s

    Minimum height for starting the system

    8 m

    Descent speed

    3,7-6,1 m/s

    Impact energy

    100-680 J

    Ejection method

    Ballistic device

    Tests

    VUT Brno

    VZLU Praha

    Parachute canopy


    Number of ropes and panels

    14

    Nominal diameter

    3 m

    Central rope

    Yes

    Slider

    Nr

    Ballistic device


    Activator

    Pyrotechnic charge

    Working temperature

    -20°C~40°C

    Dimensions

    ϕ100x190
