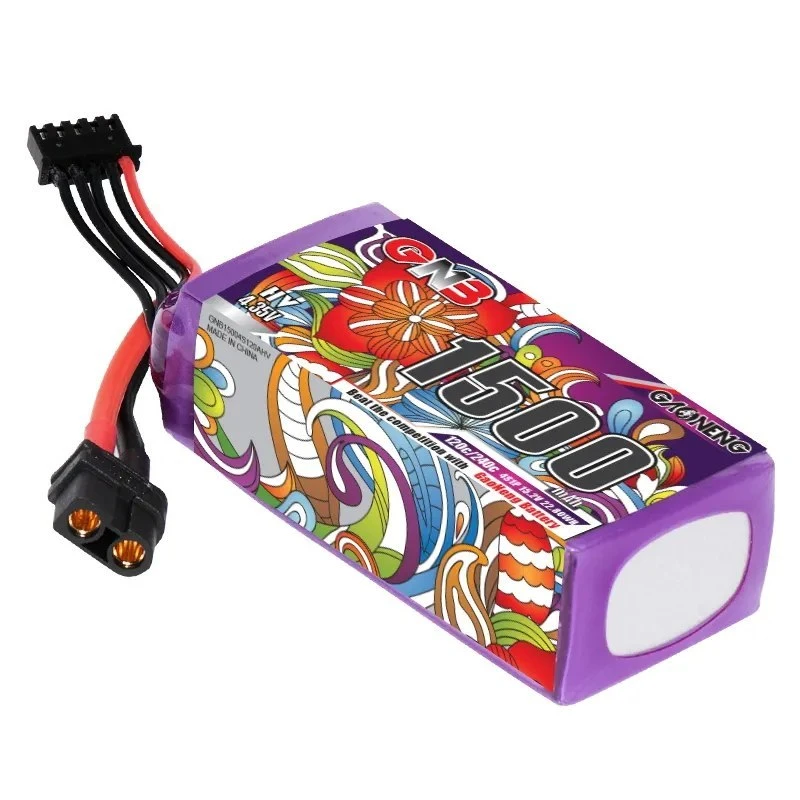

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery
GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery
The GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery is a Graphene-enhanced LiHV pack built for 5 to 6 inch FPV freestyle and racing quads. Charging to a higher per-cell voltage than a standard LiPo pack of the same physical size lets it store more usable energy without adding weight, while a 120C continuous discharge rating and standard XT60 connector keep it ready for aggressive throttle punches on 180-330mm brushless builds.
Key Features of the GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery
Graphene LiHV Chemistry
Charges to a higher per-cell voltage than standard LiPo for more usable energy in the same pack size.
120C Continuous Discharge
Roughly 180A of continuous output for aggressive throttle punches.
XT60 Connector
Direct drop-in compatibility with the XT60 standard used across most FPV platforms.
146g, 5-6 Inch Frame Fit
Sized and weighted for popular 5-6 inch freestyle and racing quads.
GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Suitable Applications
GAONENG lists this pack as compatible with 180-330mm brushless FPV builds and 5 to 6 inch drones, including specific frames such as the GEPRC MARK5 and MARK4, Crocodile5 Baby, DJI FPV, Nazgul5, TITAN XL5, Chimera5, Evoque F5D/F5X and Nazgul Evoque F6X/F6D, as well as general racing, freestyle, aerial photography and DIY FPV builds.
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.

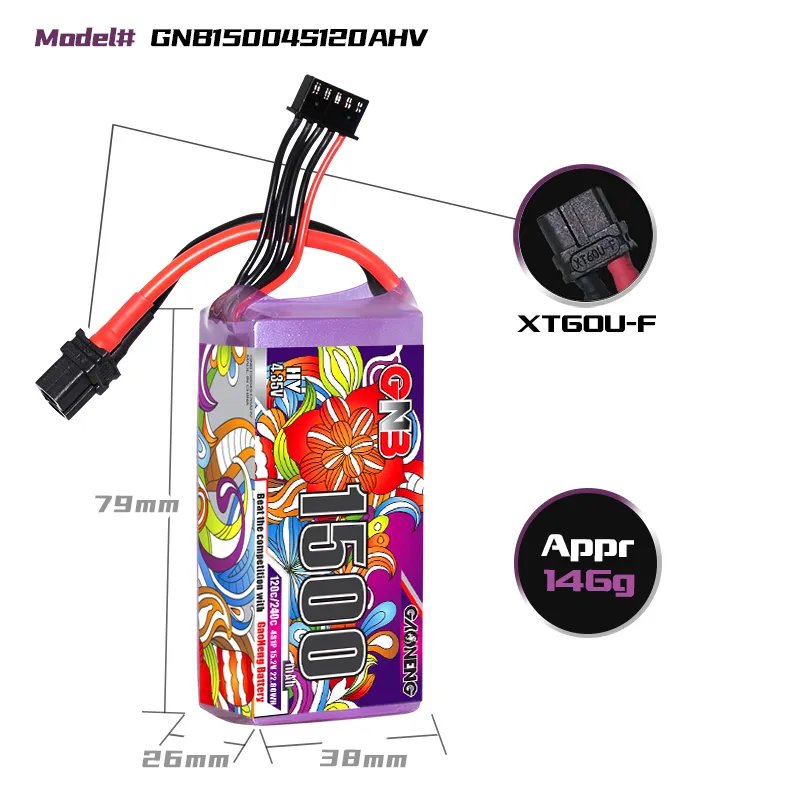

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Dimensions
GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Specification
Model | GNB15004S120AHV |
Chemistry | Graphene LiHV |
Cell Configuration | 4S1P |
Nominal Voltage | 15.2V (17.4V fully charged) |
Capacity | 1500 mAh |
Discharge Rate | 120C continuous (approx. 180A) |
Charge Rate | 1C to 5C |
Discharge Connector | XT60 |
Dimensions | 79 x 38 x 26mm |
Weight | 146g (+/-5g) |

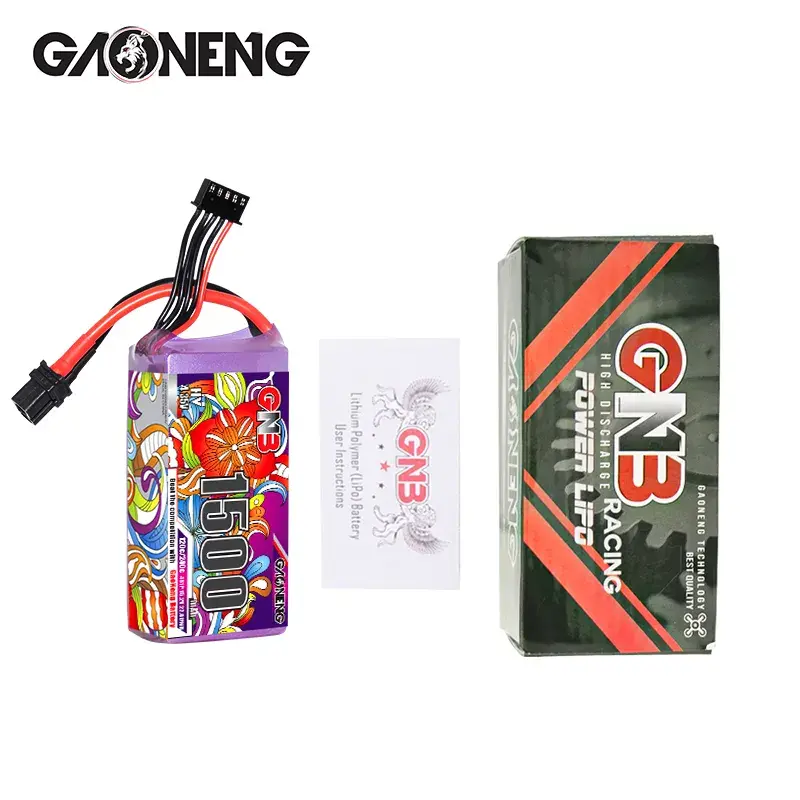

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Kit Contents
- 1x GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery
- 1x User Instructions Card
