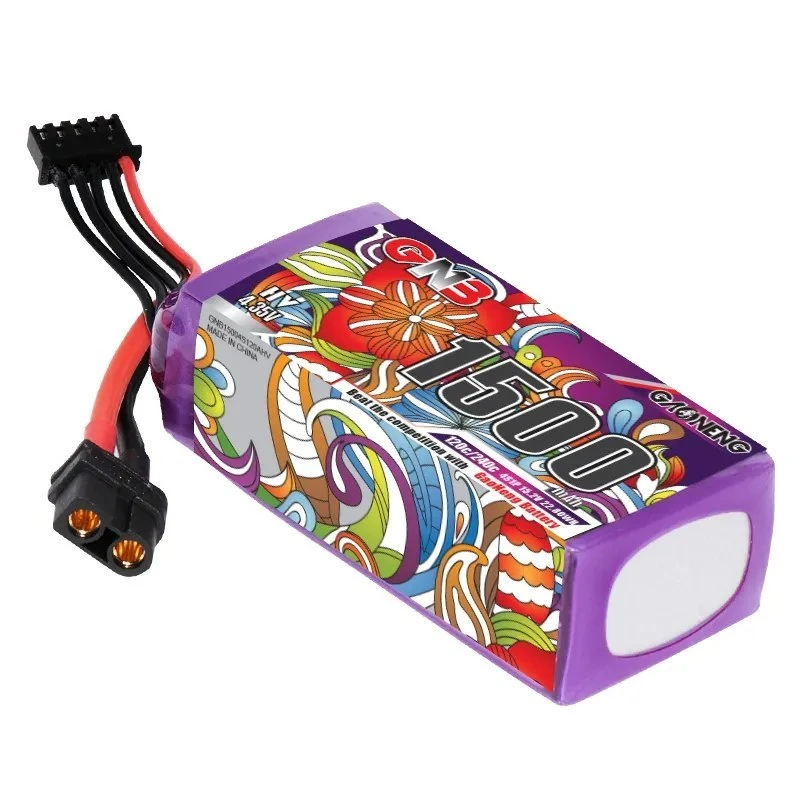

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery

https://www.bzbuas.com/web/image/product.template/3661/image_1920?unique=e9efaf5
GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery is made for pilots who fly their 5-6 inch quads hard – in freestyle, racing and their own DIY builds. LiHV chemistry packs more energy into the same size, 120C of current headroom keeps the punch crisp when you slam the throttle, and the whole pack weighs only 146g. Plug it straight into the XT60 lead, charge at up to 5C and get back in the air sooner.
89.43 zł 89.43 PLN VAT Excluded
89.43 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery — Agile 4S Pack for Freestyle and Racing

The GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery is a Graphene LiHV 4S1P pack built for 5 to 6 inch FPV freestyle and racing quads. It charges to a higher per-cell voltage than a standard LiPo (17.4V fully charged), which stores more energy in the same pack size, and it weighs 146g. A 120C continuous discharge rating (roughly 180A) handles aggressive throttle punches, and the standard XT60 connector fits most FPV platforms. GAONENG lists it as compatible with 180-330mm brushless builds and 5-6 inch frames such as the GEPRC MARK5 and MARK4, Crocodile5 Baby, DJI FPV, Nazgul5, TITAN XL5, Chimera5, Evoque F5D/F5X and Nazgul Evoque F6X/F6D, and it can be charged from 1C up to 5C on a compatible balance charger.

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Key Features

Graphene LiHV Chemistry
Charges to a higher per-cell voltage than standard LiPo for more energy in the same pack size.

120C Continuous Discharge
Roughly 180A of continuous output for aggressive throttle punches.

XT60 Connector
Direct drop-in compatibility with the XT60 standard used across most FPV platforms.

146g, 5-6 Inch Frame Fit
Sized and weighted for popular 5-6 inch freestyle and racing quads.

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Suitable Applications

GAONENG lists the following applications for this pack:

  • FPV racing with 5-6 inch quads
  • FPV freestyle
  • Aerial photography
  • DIY FPV builds from 180 to 330mm



  • Before use, the battery must be fully charged.
  • Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
  • When charging, always keep the battery away from flammable and explosive materials.
  • Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
  • Never discharge the battery below 3V per cell under load.
  • Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
  • Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
  • Do not use batteries that are deformed or swollen.

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Dimensions

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery dimensions, weight and connector

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Specification

Model

GNB15004S120AHV

Chemistry

Graphene LiHV

Cell Configuration

4S1P

Nominal Voltage

15.2V (17.4V fully charged)

Capacity

1500 mAh

Discharge Rate

120C continuous (approx. 180A)

Charge Rate

1C to 5C

Discharge Connector

XT60

Dimensions

79 x 38 x 26mm

Weight

146g (+/-5g)

GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery Package Includes

  • 1x GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery
  • 1x User Instructions Card
GAONENG GNB LiHV 4S 15.2V 1500mAh 120C XT60 LiPo Battery kit contents
