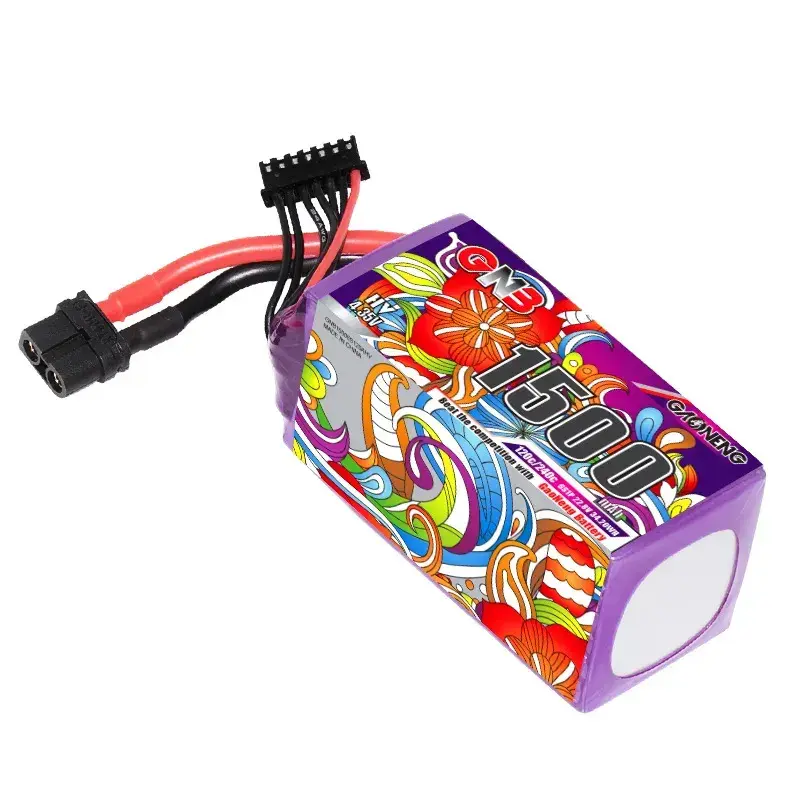

GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery

https://www.bzbuas.com/web/image/product.template/3417/image_1920?unique=bd3e238

GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery is for pilots who want their 5-6 inch quad to answer every stick input. Higher-voltage LiHV cells and plenty of current headroom deliver punchy thrust through flips, rolls and fast straights, while the light, compact pack keeps the quad nimble. Plug in the XT60 and go – no fuss, just flying.
117.89 zł 117.89 PLN VAT Excluded
117.89 zł VAT Excluded
Price on request

    This combination does not exist.

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery — LiHV Punch for 5-6 Inch Quads

    The GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery is a 6S1P high-voltage (LiHV) pack for 5-6 inch FPV drones. Its 1500mAh capacity at 22.8V stores 34.2Wh of energy in a 218g pack measuring 38x38x79mm, while a 120C continuous discharge rating (240C burst, roughly 180A continuous) gives it the current headroom for hard freestyle and racing flights. LiHV cells charge to 4.35V per cell, and the pack can be charged from 1C up to 5C on a compatible balance charger with a LiHV mode. GAONENG lists it as compatible with 180-330mm brushless FPV frames and 5-6 inch drones such as the GEPRC MARK5, MARK4 and Crocodile5 Baby, Nazgul5, TITAN XL5, Chimera5 and Nazgul Evoque F5D/F5X and F6X/F6D, as well as airplanes, helicopters, multicopters, UAVs and DIY FPV builds.

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery Key Features

    120C Continuous Discharge
    240C burst and roughly 180A of continuous current for demanding 6S setups.

    LiHV 4.35V Cells
    Charges to 4.35V per cell (26.1V full) on a charger with a LiHV mode.

    Compact 218g Pack
    38x38x79mm, sized for 5-6 inch freestyle and racing frames.

    1C-5C Charging
    Supports fast charging up to 5C on a compatible balance charger.

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery Suitable Applications

    GAONENG lists the following applications for this pack:

    • 180-330mm brushless FPV frames
    • 5-6 inch freestyle and racing drones
    • GEPRC MARK5, MARK4 and Crocodile5 Baby
    • Nazgul5, TITAN XL5, Chimera5 and Nazgul Evoque F5D/F5X, F6X/F6D
    • DJI FPV
    • Airplanes, helicopters and multicopters
    • UAVs, aerial models and DIY FPV builds
    • Before use, the battery must be fully charged.
    • Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
    • When charging, always keep the battery away from flammable and explosive materials.
    • Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
    • Never discharge the battery below 3V per cell under load.
    • Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
    • Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
    • Do not use batteries that are deformed or swollen.

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery Dimensions

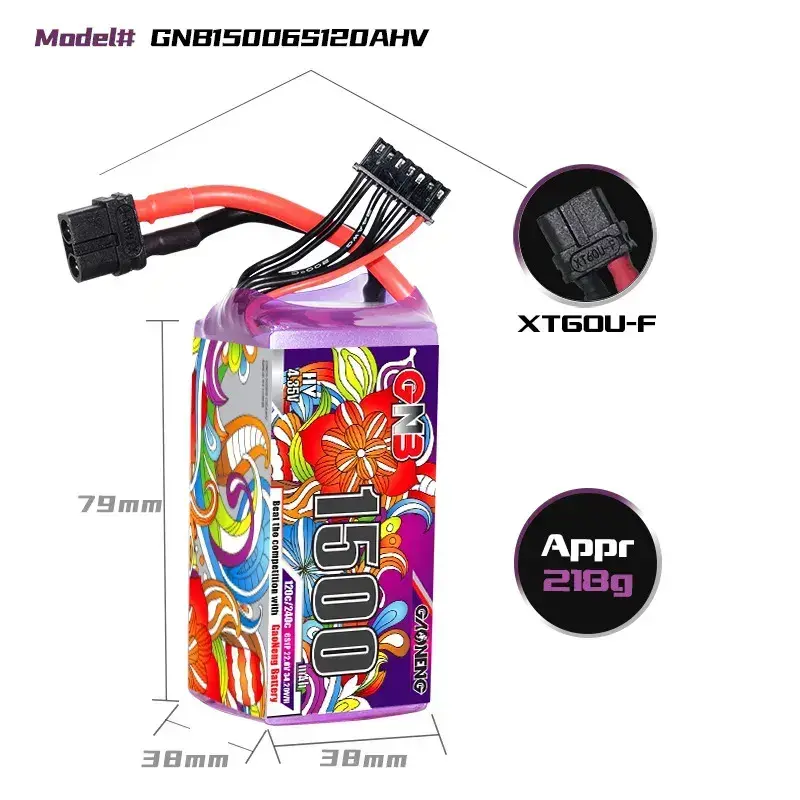

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery dimensions, weight and connector

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery Specification

    Model

    GNB15006S120AHV

    Cell Configuration

    6S1P

    Nominal Voltage

    22.8V LiHV (26.1V fully charged)

    Capacity

    1500mAh

    Energy

    34.2Wh

    Discharge Rate

    120C continuous, 240C burst (approx. 180A)

    Charge Rate

    1C to 5C

    Discharge Connector

    XT60

    Dimensions

    38x38x79mm (HxWxL)

    Weight

    218g (+/-5g)

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery Package Includes

    • 1x GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery
    • 1x User Instructions

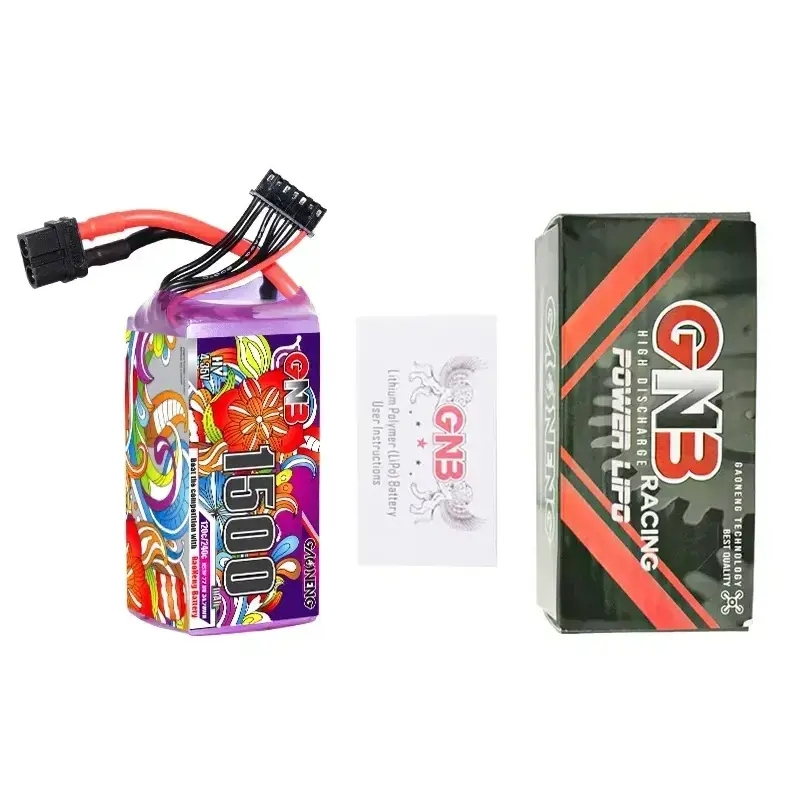

    GAONENG GNB LiHV 6S 22.8V 1500mAh 120C XT60 LiPo Battery kit contents
