GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S
GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S
The GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S is a high-voltage 12S1P pack built for cinelifters, large helicopters and big-scale RC platforms. Its 3000mAh capacity at 44.4V stores 133.2Wh of usable energy in a compact 810g pack, while a 100C continuous discharge rating gives it the power headroom for demanding builds, and an anti-spark XT90S connector keeps connections safer and lower-wear under load.
Key Features of the GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S
100C Continuous Discharge
Roughly 300A of continuous output for demanding, high-voltage builds.
Anti-Spark XT90S Connector
Reduces arcing and connector wear when connecting a charged pack.
1C-5C Charging
Supports fast charging up to 5C on a compatible balance charger.
High-Voltage 12S Platform
44.4V and 133.2Wh of energy in a compact 810g pack.
GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S Suitable Applications
GAONENG lists this pack as compatible with the Taurus X8 Pro cinelifter drone, 600-700 class electric helicopters, RC airplanes, multicopters, 1/8 and 1/5 scale RC vehicles and general RC hobby use. It is built for high-voltage, high-current platforms rather than compact FPV freestyle builds.
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.

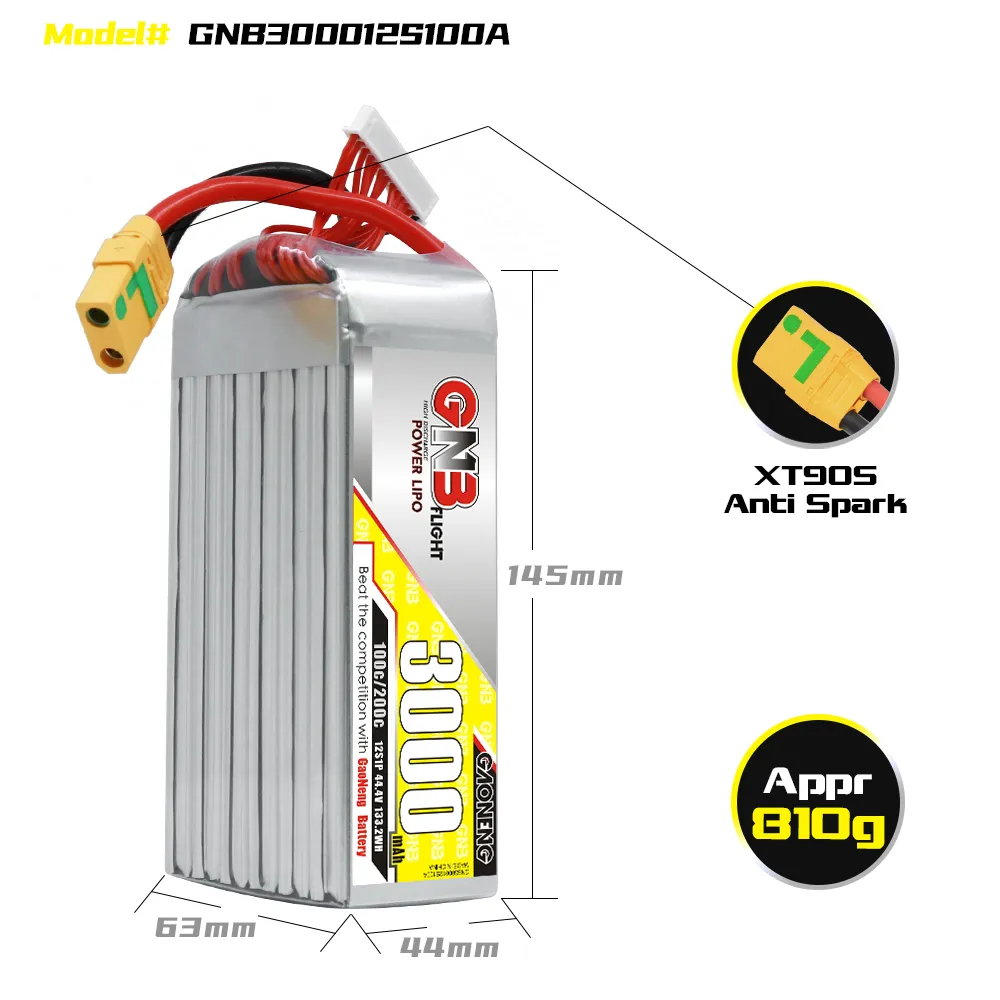

GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S Dimensions
GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S Specification
Model | GNB300012S100A |
Cell Configuration | 12S1P |
Nominal Voltage | 44.4V (50.4V fully charged) |
Capacity | 3000 mAh |
Energy | 133.2Wh |
Discharge Rate | 100C continuous (approx. 300A) |
Charge Rate | 1C to 5C |
Discharge Connector | XT90S (anti-spark) |
Dimensions | 145 x 63 x 44mm |
Weight | 810g (+/-30g) |

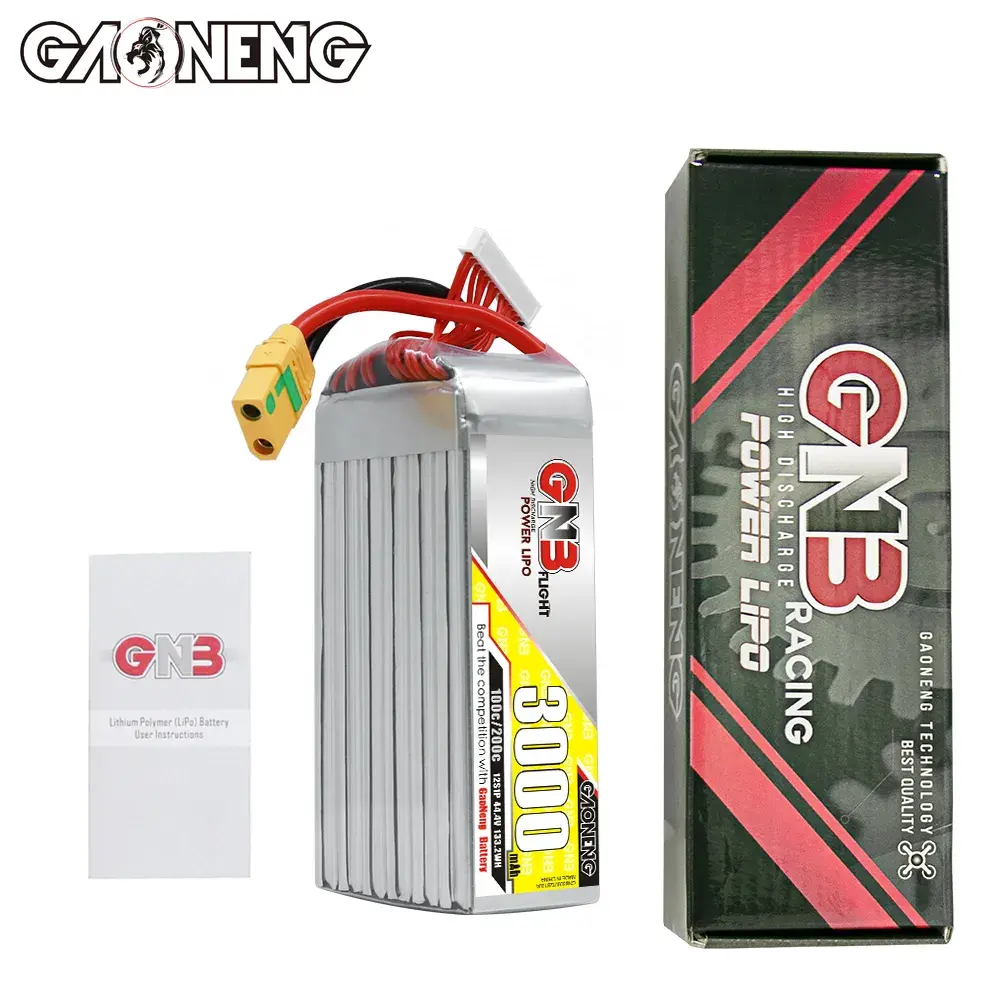

GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S Kit Contents
- 1x GAONENG GNB 12S 44.4V 3000mAh 100C LiPo Battery XT90S
- 1x User Instructions
