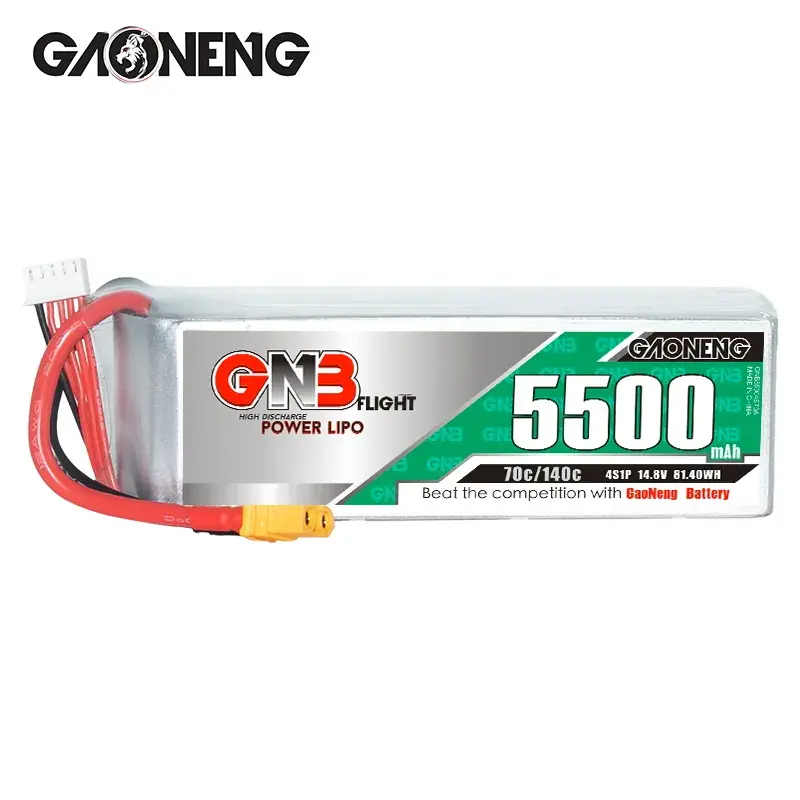

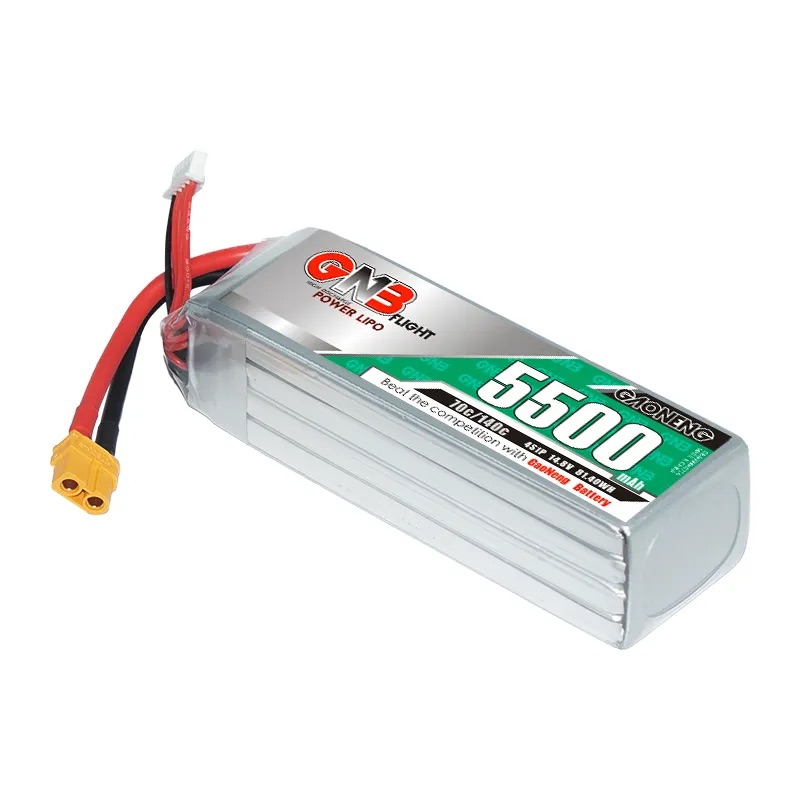

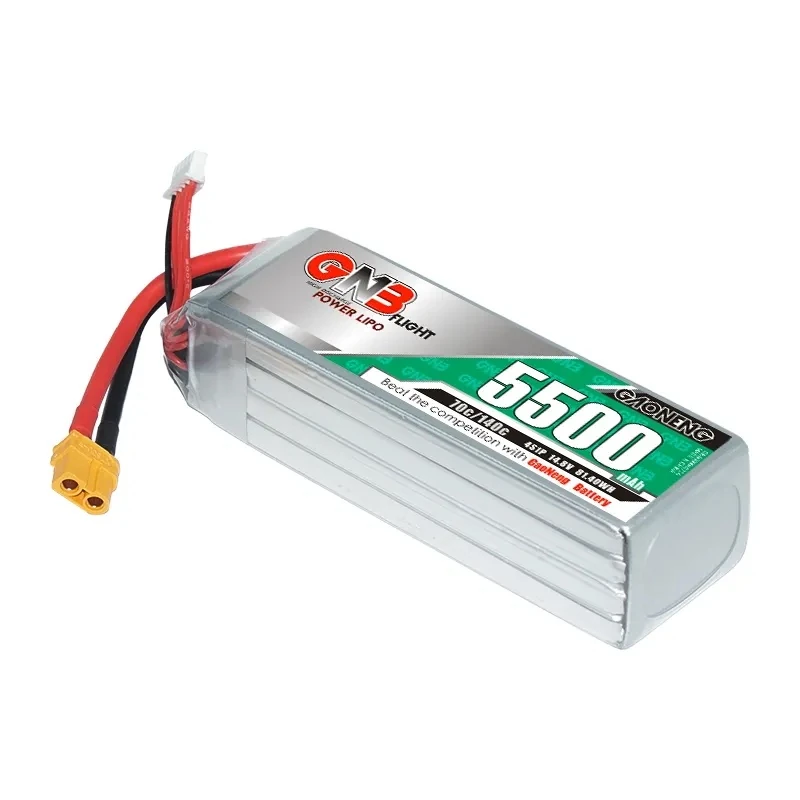

GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery is a big energy reserve for anyone who wants more time out of every pack, whether that is a 7-inch long-range quad, a plane or a 1/10 basher. 5500mAh of capacity stretches every session, the 70C rating keeps the power confident when you push hard, and the XT60 plugs straight into common RC gear. Charge at up to 5C and you spend less time waiting and more time out there.
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery — Strong 4S Power for Longer Sessions
The GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery is a 4S1P pack for 7-inch FPV drones, RC aircraft and 1/10 scale RC cars. Its 5500mAh capacity at 14.8V (16.8V fully charged) stores 81.4Wh of energy in a 445g pack, and the 70C continuous / 140C burst discharge rating printed on its label gives demanding brushless setups plenty of current headroom. It comes with an XT60 discharge connector and a JST-XH balance lead. GAONENG lists it for 300-360mm 7-inch FPV frames, multicopters, airplanes, helicopters, boats, tanks and 1/10 scale cars from Axial, Arrma, Redcat Racing, Traxxas, Team Losi, Team Associated and HPI, and it can be charged from 1C up to 5C on a compatible balance charger.
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery Key Features
Big Capacity
5500mAh at 14.8V stores 81.4Wh of energy. More energy in one pack means longer sessions between charges.
Current Headroom
The label rates it at 70C continuous and 140C burst. That headroom keeps the power steady when you push the throttle hard.
Fast Charging
It can be charged from 1C up to 5C on a compatible balance charger. At higher rates the breaks between sessions get shorter.
Standard Connectors
An XT60 discharge plug and a JST-XH balance lead. XT60 is a widely used RC standard, and the JST-XH lead fits the balance port of common balance chargers.
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery Suitable Applications
GAONENG lists the following applications for this pack:
- 7-inch FPV drones on 300-360mm frames
- Multicopters
- RC airplanes and helicopters
- RC boats and tanks
- 1/10 scale RC cars, including Axial crawlers, Arrma RTR, Redcat Racing monster trucks, Traxxas Rustler, Bandit, Slash and E-Maxx, Team Losi buggies, Team Associated truggies and HPI 4WD monster trucks
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.

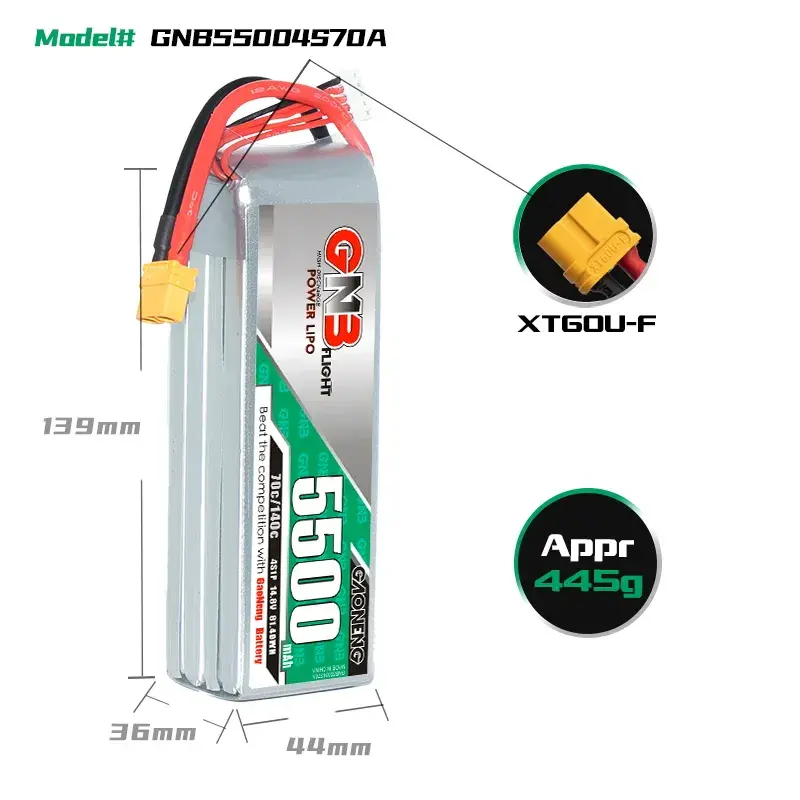

GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery Dimensions
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery Specification
Model | GNB55004S70A |
Cell Configuration | 4S1P |
Nominal Voltage | 14.8V (16.8V fully charged) |
Capacity | 5500mAh |
Energy | 81.4Wh |
Discharge Rate | 70C continuous, 140C burst |
Charge Rate | 1C to 5C |
Discharge Connector | XT60 |
Balance Connector | JST-XH |
Dimensions | 139x44x36mm |
Weight | 445g (+/-14g) |
GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery Package Includes
- 1x GAONENG GNB 4S 14.8V 5500mAh 70C XT60 LiPo Battery
- 1x User Instructions
