GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
The GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 is a heavy-discharge 8S2P pack built for cinelifters, large helicopters and big-scale RC platforms that need real sustained current. Rated for 100C continuous discharge, it stores 177.6Wh of usable energy and pairs it with a high-current XT90 connector, giving it enough headroom for demanding, high-power builds.
Key Features of the GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
100C Continuous Discharge
Roughly 600A of continuous output for demanding, high-power builds.
High-Current XT90 Connector
A heavy-duty XT90 connector rated for the sustained current this pack can deliver.
1C-5C Charging
Supports fast charging up to 5C on a compatible balance charger.
Heavy-Lift Ready
177.6Wh of energy at 1020g, sized for cinelifters, 600-700 class helicopters and large-scale RC vehicles.
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Suitable Applications
GAONENG lists this pack as compatible with the Taurus X8 Pro cinelifter drone, 600-700 class electric helicopters, RC airplanes, multicopters, 1/8 and 1/5 scale RC vehicles and general RC hobby use. It is built for high-current, high-capacity platforms rather than compact FPV freestyle builds.
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.

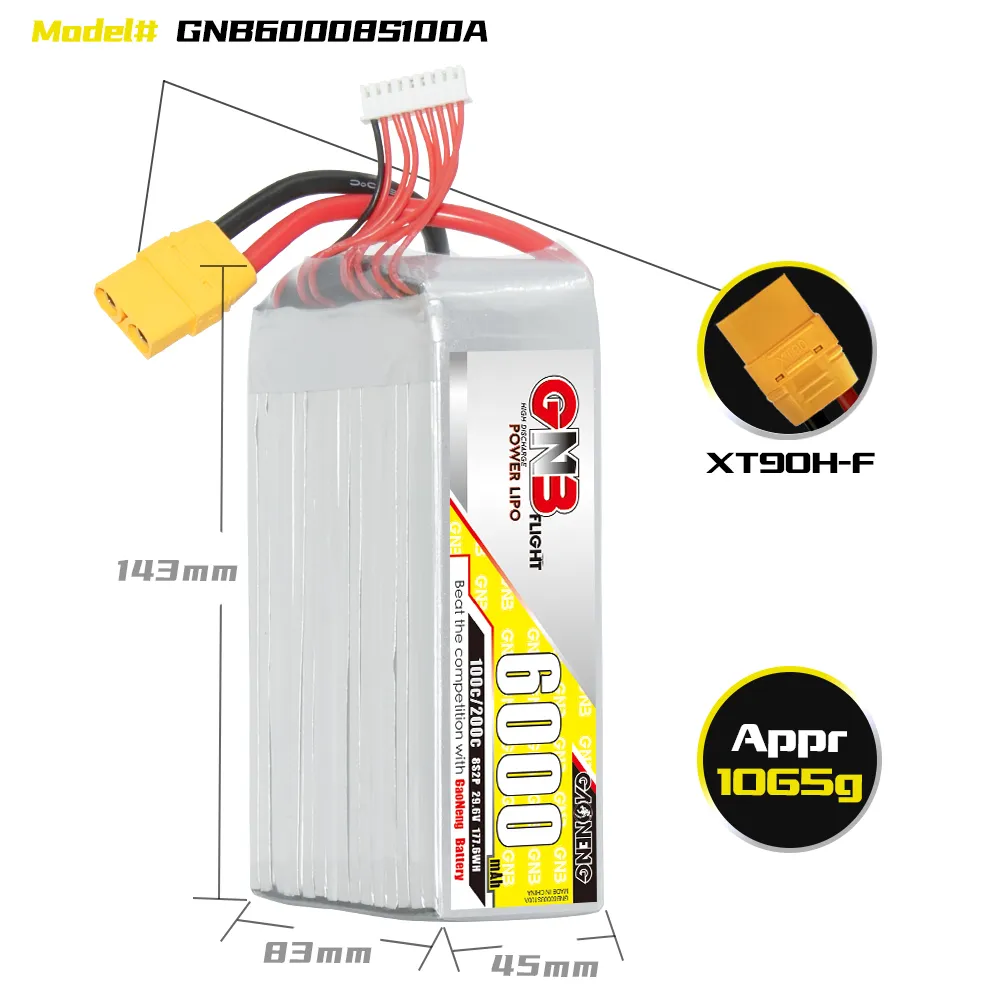

GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Dimensions
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Specification
Model | GNB60008S100A |
Cell Configuration | 8S2P |
Nominal Voltage | 29.6V (33.6V fully charged) |
Capacity | 6000 mAh |
Energy | 177.6Wh |
Discharge Rate | 100C continuous (approx. 600A) |
Charge Rate | 1C to 5C |
Discharge Connector | XT90 |
Dimensions | 143 x 81 x 44mm |
Weight | 1020g (+/-30g) |

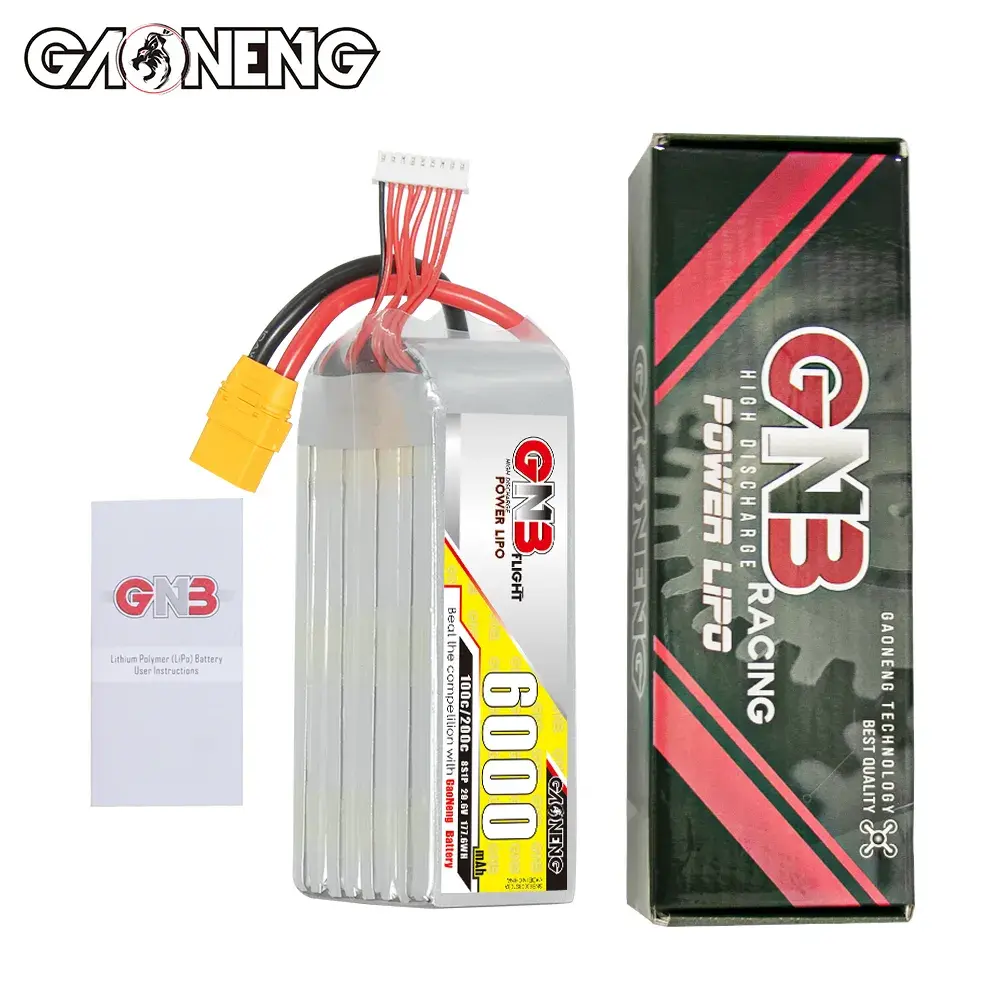

GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Kit Contents
- 1x GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
- 1x User Instructions
