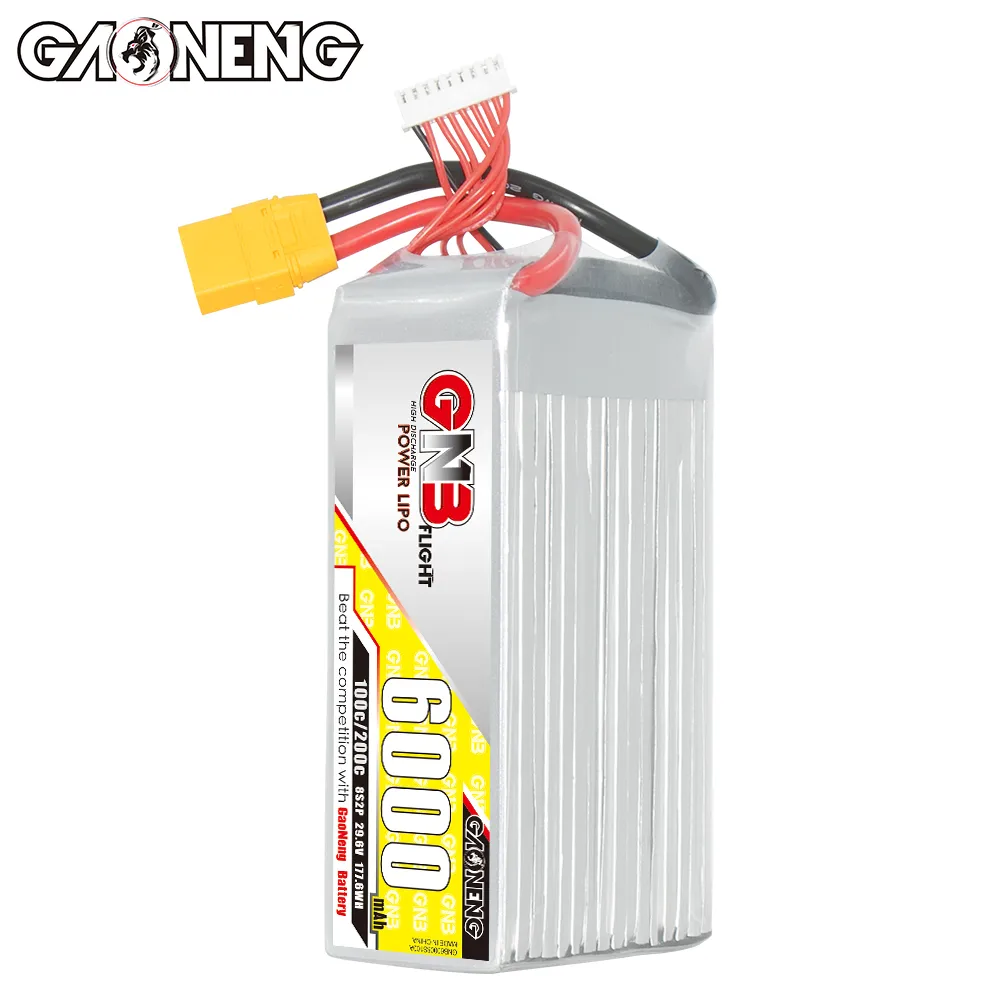

GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 — High-Capacity 8S Power for Heavy Builds
The GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 is a high-capacity 8S2P pack built for cinelifters, large helicopters and big-scale RC platforms. Its 6000mAh capacity at 29.6V (33.6V fully charged) stores 177.6Wh of energy in a 1020g pack, while a 100C continuous discharge rating (roughly 600A) gives it the power headroom for demanding builds, and it comes with a high-current XT90 connector. GAONENG lists it as compatible with the Taurus X8 Pro cinelifter, 600-700 class electric helicopters, RC airplanes, multicopters and 1/8-1/5 scale RC vehicles, and it can be charged from 1C up to 5C on a compatible balance charger.
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Key Features
100C Continuous Discharge
Roughly 600A of continuous output for demanding, high-power builds.
High-Current XT90 Connector
A heavy-duty XT90 connector rated for the sustained current this pack can deliver.
1C-5C Charging
Supports fast charging up to 5C on a compatible balance charger.
Heavy-Lift Ready
177.6Wh of energy at 1020g, sized for cinelifters, 600-700 class helicopters and large-scale RC vehicles.
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Suitable Applications
GAONENG lists the following applications for this pack:
- Taurus X8 Pro cinelifter drone
- 600-700 class electric helicopters
- RC airplanes
- Multicopters
- 1/8 and 1/5 scale RC vehicles
- General RC hobby use
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Dimensions
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Specification
Model | GNB60008S100A |
Cell Configuration | 8S2P |
Nominal Voltage | 29.6V (33.6V fully charged) |
Capacity | 6000 mAh |
Energy | 177.6Wh |
Discharge Rate | 100C continuous (approx. 600A) |
Charge Rate | 1C to 5C |
Discharge Connector | XT90 |
Dimensions | 143 x 81 x 44mm |
Weight | 1020g (+/-30g) |
GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90 Package Includes
- 1x GAONENG GNB 8S 29.6V 6000mAh 100C LiPo Battery XT90
- 1x User Instructions
