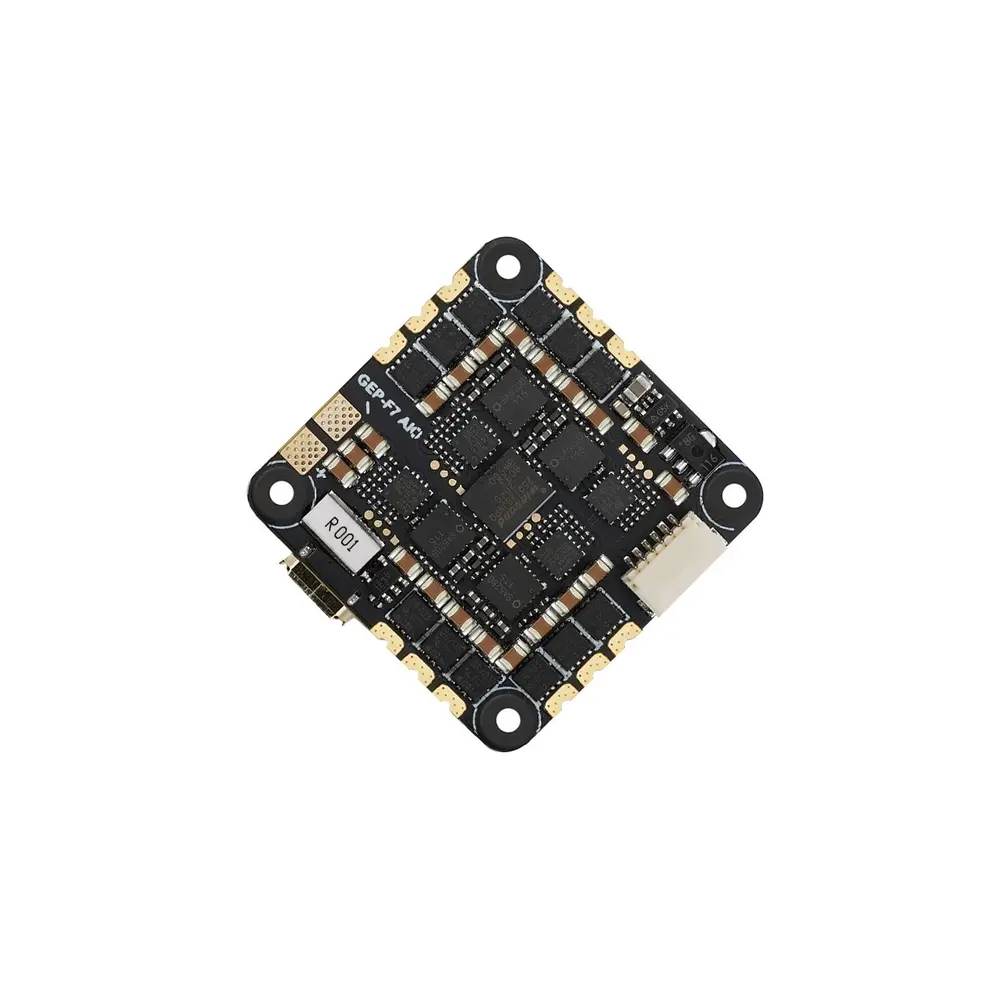

GEPRC GEP-F722-45A AIO
Power and peak performance in one compact design with GEPRC GEP-F722-45A AIO
The GEPRC GEP-F722-45A AIO is a premium solution for FPV pilots who demand uncompromising power and efficiency. Integrating an advanced STM32F722 MCU with a 45A continuous current ESC saves crucial space and weight in modern drone builds. Whether you are assembling a fast toothpick or a steady cinematic cruiser, the GEPRC GEP-F722-45A AIO guarantees ultra-smooth stick responses and sharp handling. Choose the GEPRC GEP-F722-45A AIO to push your flight limits during intense freestyle or racing sessions.
Key features of GEPRC GEP-F722-45A AIO
- Advanced STM32F722 processor – delivers high processing power, fast flight controller performance, and stable tuning.
- Built-in 45A 2–6S ESC – handles high current loads, making it suitable for more powerful FPV builds.
- Compact All-In-One design – combines the flight controller and ESC on one board, saving space and reducing drone weight.
- Onboard 16MB Blackbox memory – records flight data for easier analysis, diagnostics, and precise setup tuning.
GEPRC GEP-F722-45A AIO Dimensions
GEPRC GEP-F722-45A AIO Interface Definition
GEPRC GEP-F722-45A AIO Specifications
Model Name | GEP-F722-45A AIO V2 |
MCU | STM32F722 |
IMU | 42688 gyro/accelerometer(SPI) |
Firmware Target | GEPRC_F722_AIO |
OSD | Betaflight OSD w/ AT7456Ev |
UART Ports | R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5 |
Beeper | Yes |
LED | Yes |
Port | Micro USB |
BEC Output | 5V@1A |
ESC MCU | 8BB21F16G |
Continous Current | 45A |
Max. Current (10s) | 55A |
Input | 2S - 6S |
BlackBox | 16Mb |
Size | 32mm x 32mm Board |
Mounting Hole | 25.5mm x 25.5mm |
Weight | 8.8g |
GEPRC GEP-F722-45A AIO Package Includes
- 1x GEP-F722-45A AIO V2
- 1x XT30-7CM-18AWG Power cables
- 1x 35V220UF capacitor
- 1x SH1.0-6Pin to GH1.25-8Pin cables
- 8x M2*6.5mm Damping rings
