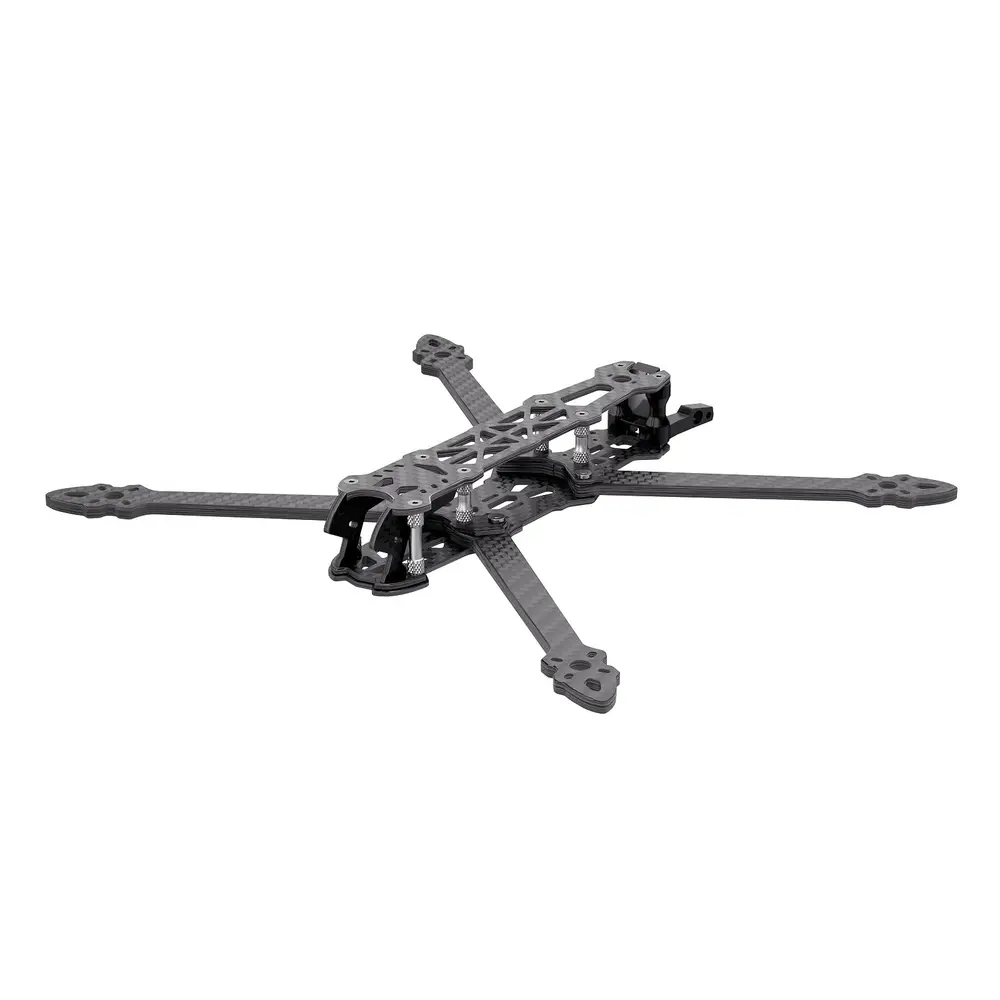

GEPRC GEP-Mark4-7 Frame Kit

https://www.bzbuas.com/web/image/product.template/3401/image_1920?unique=2a1bddd
I want freestyle frame to show more performance in flight,a Super lightweight Freestyle frame,more convenient installation of electronic devices and more balanced center of gravity, so as to achieve better Smooth flight shooting, These ideas build the freestyle frame Mark4.
162.60 zł 162.6 PLN VAT Excluded
162.60 zł VAT Excluded

This combination does not exist.

GEPRC GEP-Mark4-7 Frame Kit is a Solid Foundation for a Professional Long-Range Drone

The GEPRC GEP-Mark4-7 Frame Kit is an advanced structure designed for pilots who expect maximum stability during long-distance flights. The optimally designed H-shaped geometry ensures that the GEPRC GEP-Mark4-7 Frame Kit effectively keeps the propellers out of the lens's field of view, allowing for the recording of clean, cinematic shots. The high-quality carbon fiber construction perfectly dampens vibrations, which facilitates flight controller tuning. The well-thought-out placement of mounting holes ensures that this frame accommodates modern power systems and digital video transmission systems, guaranteeing them proper protection.

Key Features of GEPRC GEP-Mark4-7 Frame Kit

  • Durable 5mm Arms: The carbon fiber arms equipped on the GEPRC GEP-Mark4-7 Frame Kit provide uncompromising resistance to mechanical damage during hard landings.
  • H-Shape Geometry: The special plate layout ensures that the GEPRC GEP-Mark4-7 Frame Kit guarantees a perfectly clean frame without visible drive elements in the camera lens.
  • Universal Electronics Mounting: The GEPRC GEP-Mark4-7 Frame Kit offers mounting holes with a spacing of 20x20 mm and 30.5x30.5 mm, facilitating the installation of any flight controller.
  • Optimized Weight: The low structural weight means that the professional GEPRC GEP-Mark4-7 Frame Kit allows for a significant extension of the drone's flight time on a single battery pack.

GEPRC GEP-Mark4-7 Frame Kit Specifications

Frame type

H type

Frame Material

Carbon fiber

Arm thickness

5mm

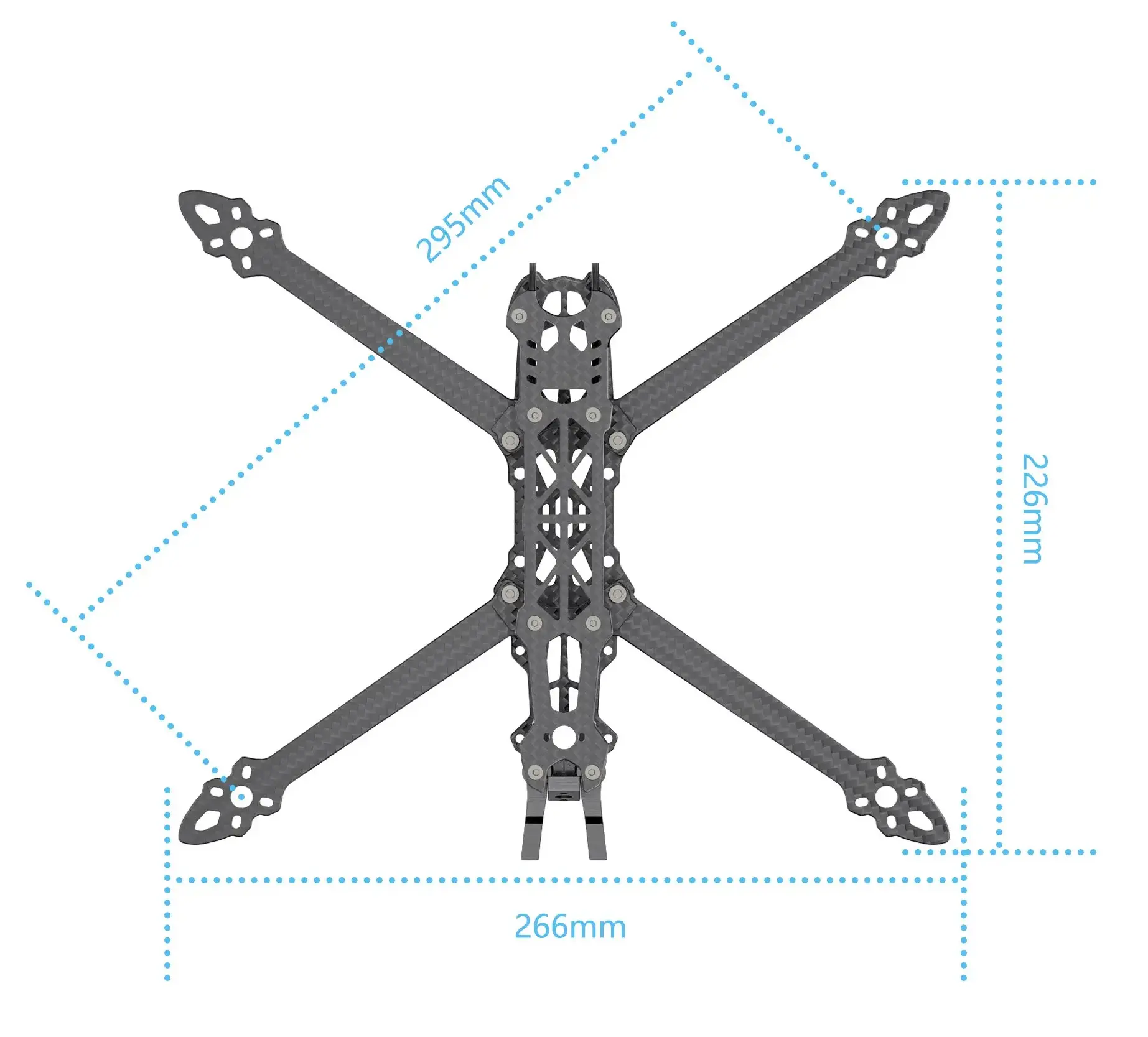

Wheelbase​

295mm

Dimension

226 x 266mm

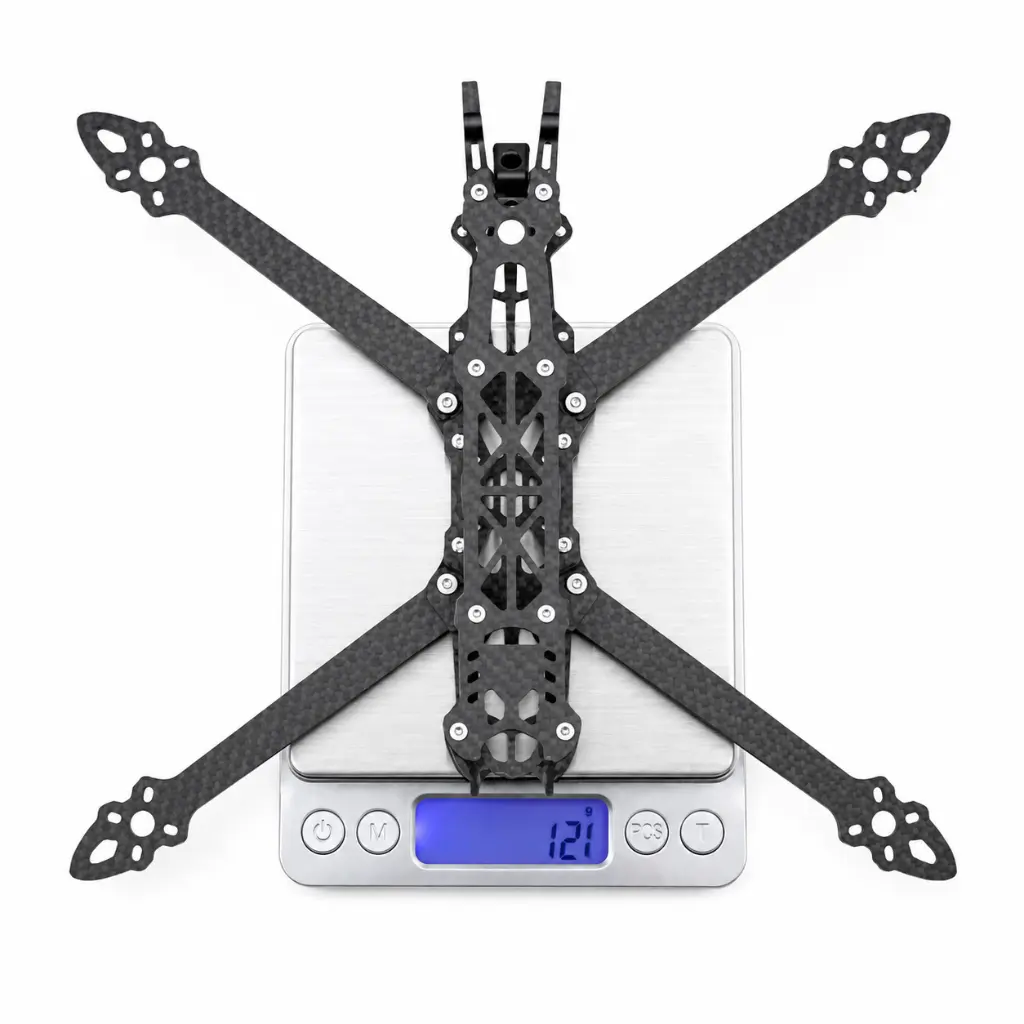

Weight

121g

Bottom plate thickness

3mm

Top plate thickness

3mm

Side panel thickness

2.5mm

Pleat thickness

2mm

Front and rear protective frame plate

2.5mm

Flying tower mounting hole

30.5x30.5/M3
20x20/M2

Image transmission mounting hole

30.5x30.5/M3
25.5x25.5/M2
20x20/M2

Motor mounting hole

16x16/19x19/M3

Camera side panel spacing

19x19mm

Flying tower installation height

25mm

GEPRC GEP-Mark4-7 Frame Kit Package Includes

  • 1x GEPRC GEP-Mark4-7 Frame Kit
  • 1x Set of mounting parts
