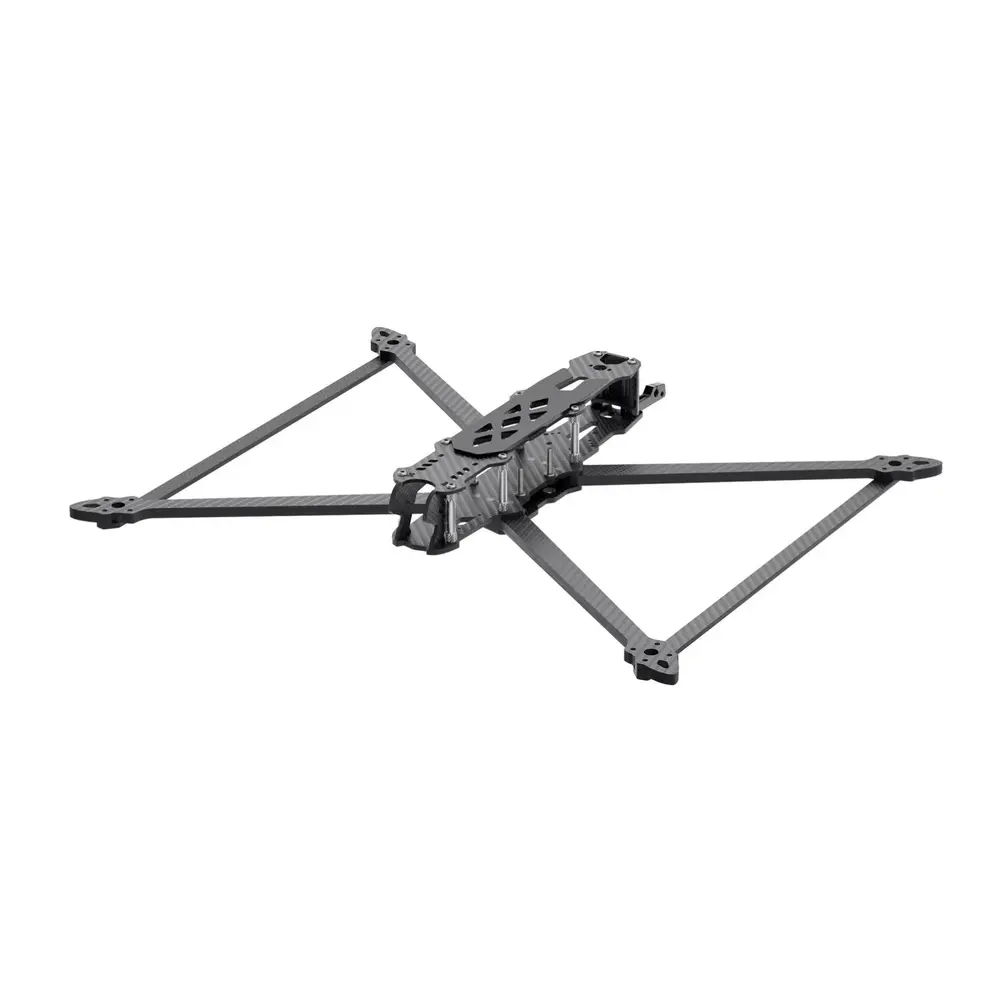

GEPRC GEP-Mark4-10 Frame Kit

GEP-Mark-10 is a frame designed to manage heavy-loads flights. It can carries a maximum payload of 3kg when applied with a 3214 or 3115 900KV motor. The light-design structure enables immediate response even when flying with extra weight. The FC fixing hole size is 30.5×30.5mm(M3), Camera lens fixing hole size is19x19mm(M2), Motor fixing hole size is 19x19mm(M3). Reserved enough space for VTX installation at the end of the frame, and the extended dimension frame can mount up to LiPo 6S 8000mah battery.

223.58 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

GEPRC GEP-Mark4-10 Frame Kit Your Powerful construction for special tasks and long-distance flights

The GEPRC GEP-Mark4-10 Frame Kit has been specifically designed for pilots who demand uncompromising payload capacity and excellent precision from their drone. Thanks to its well-thought-out construction, this hardware easily handles loads of around 3 kg while maintaining the responsiveness necessary for advanced video productions. An innovative profile and stiffened geometry effectively reduce vibrations, allowing you to achieve a smooth image from the cameras. The frame design of the GEPRC GEP-Mark4-10 Frame Kit also guarantees plenty of space for an expanded control system and VTX transmitters.

Key features of 10" FPV Frame GEPRC GEP-Mark4-10 Kit

Vibration Reduction: The use of vertical arm reinforcements significantly stabilizes gyroscope operation.
High Resistance: Extremely thick carbon (7 mm arms) ensures the stiffness and reliability of the entire structure in harsh conditions.
Mounting Versatility: The frame supports up to three mounting hole standards for VTX modules (30.5 mm, 25.5 mm, and 20 mm).
Extended Flight Time: A suitably long central section provides space to mount LiPo 6S batteries with capacities of up to 8000 mAh.

GEPRC GEP-Mark4-10 Frame Kit Specifications

Frame type	H-type
Frame Material	Carbon fiber

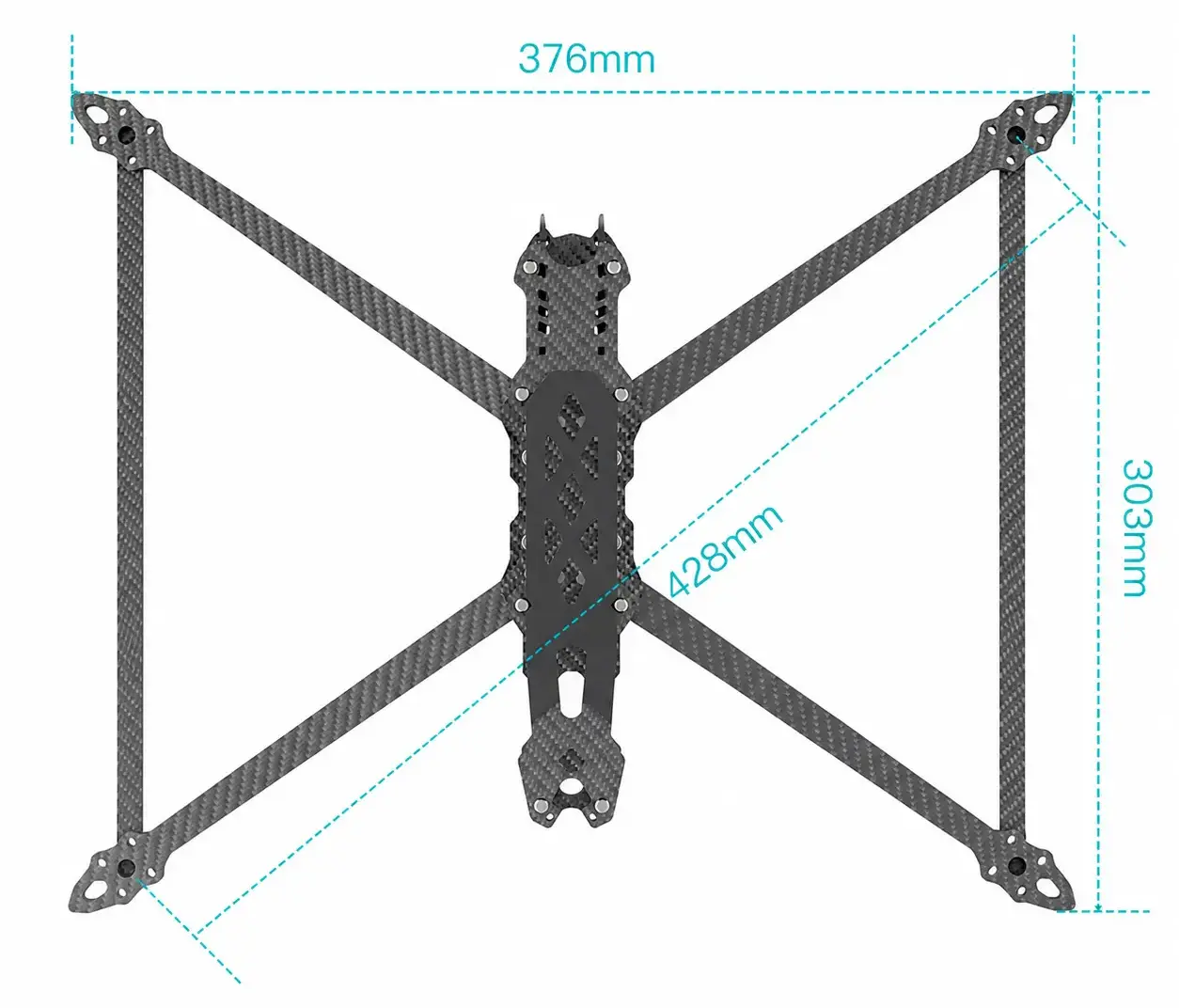

Motor to motor	428mm
Dimension	376mm×303mm
Bottom plate thickness	3mm
Top plate thickness	2mm
Camera side plate	2.5mm
Midplate thickness	3mm
Arm plate thickness	7mm
Arm Reinforce plate thickness	3mm

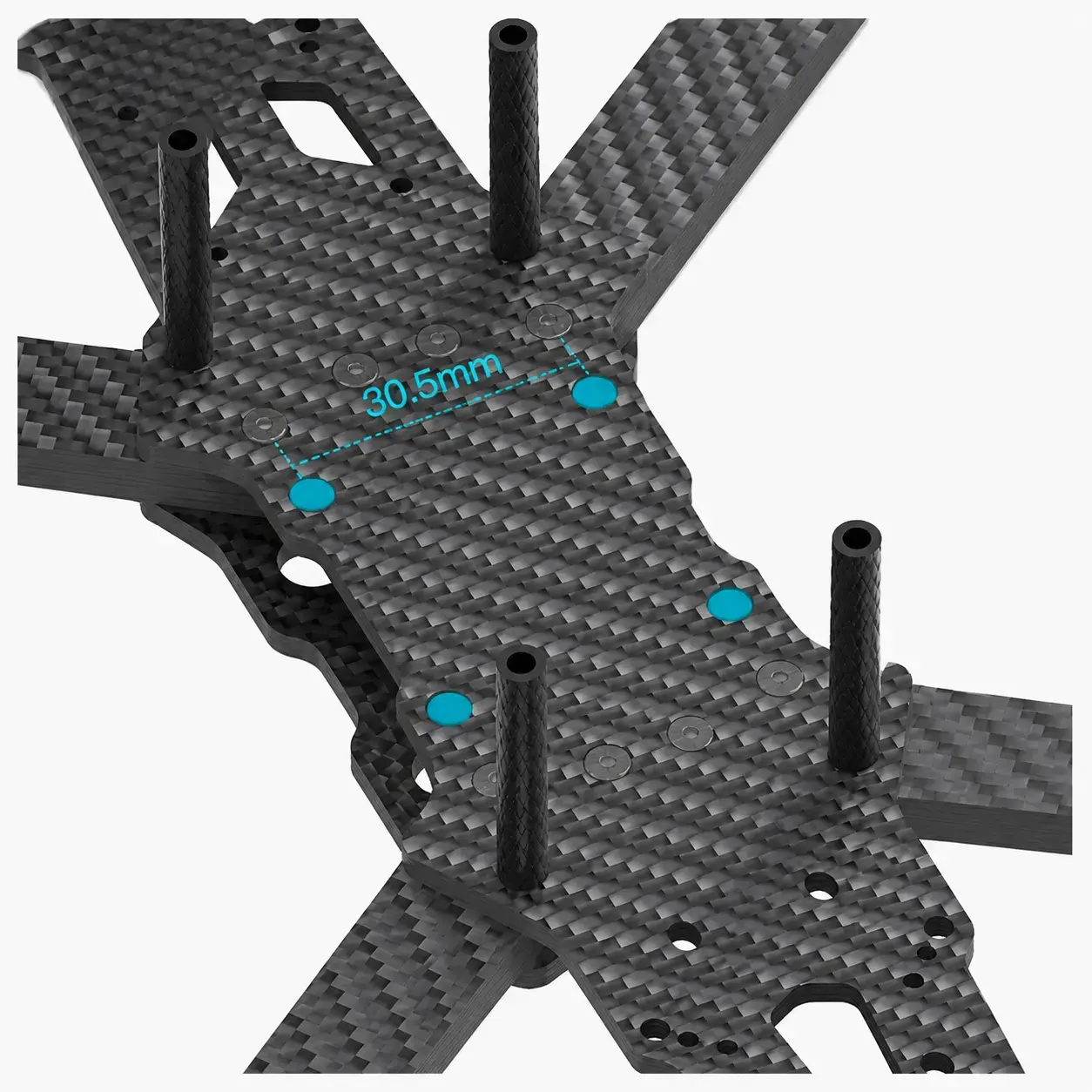

FC fixing hole size	30.5x30.5mm (M3)

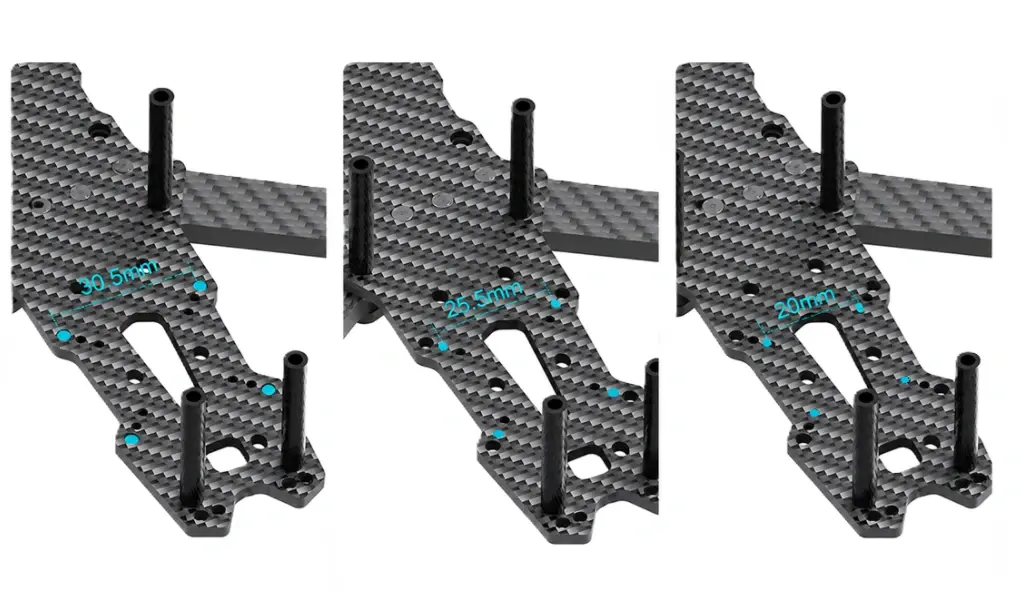

VTX fixing hole size	30.5x30.5mm (M3) 25.5x25.5mm (M2) 20x20mm (M2)

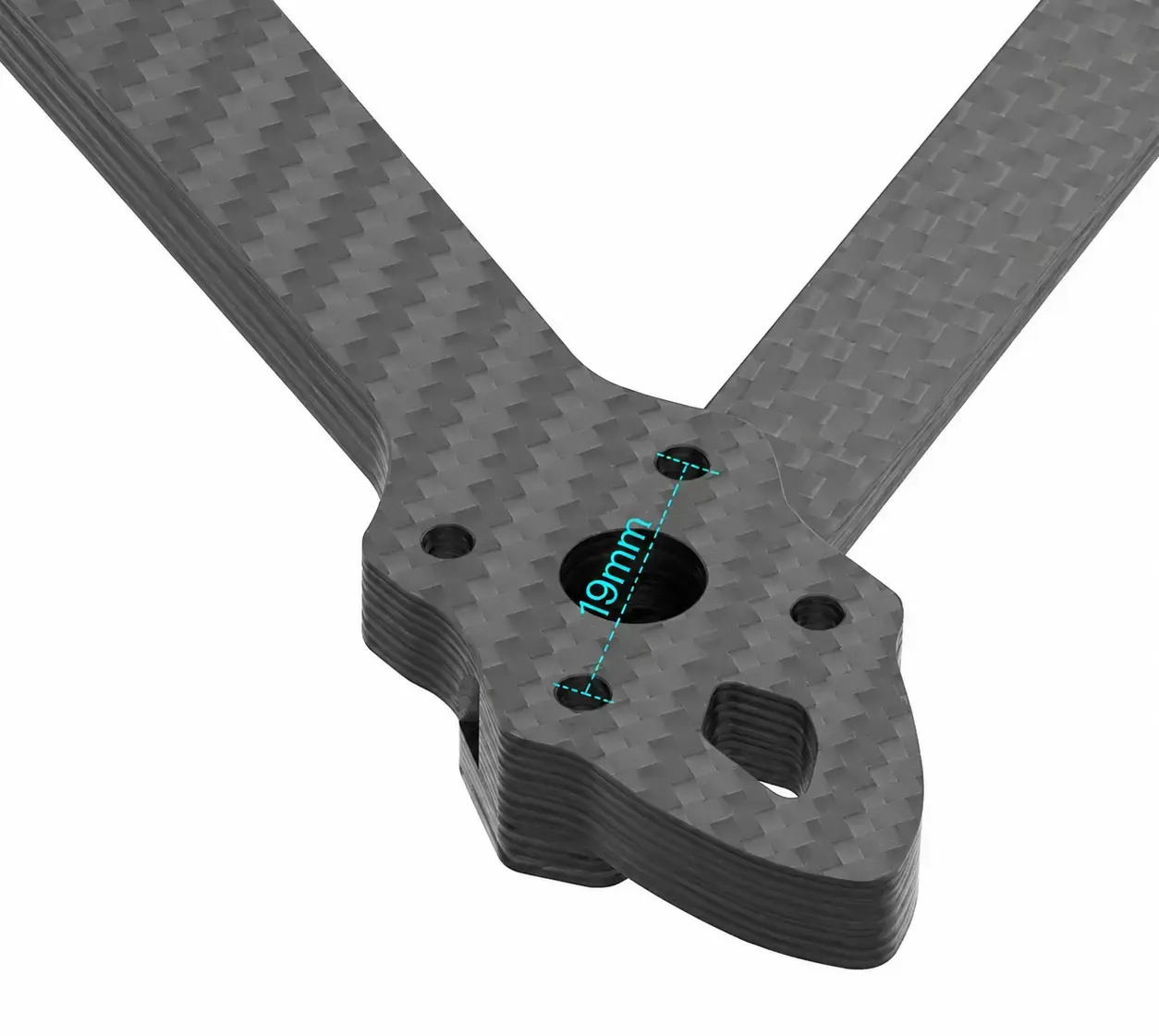

Motor fixing hole size	19x19mm (M3)

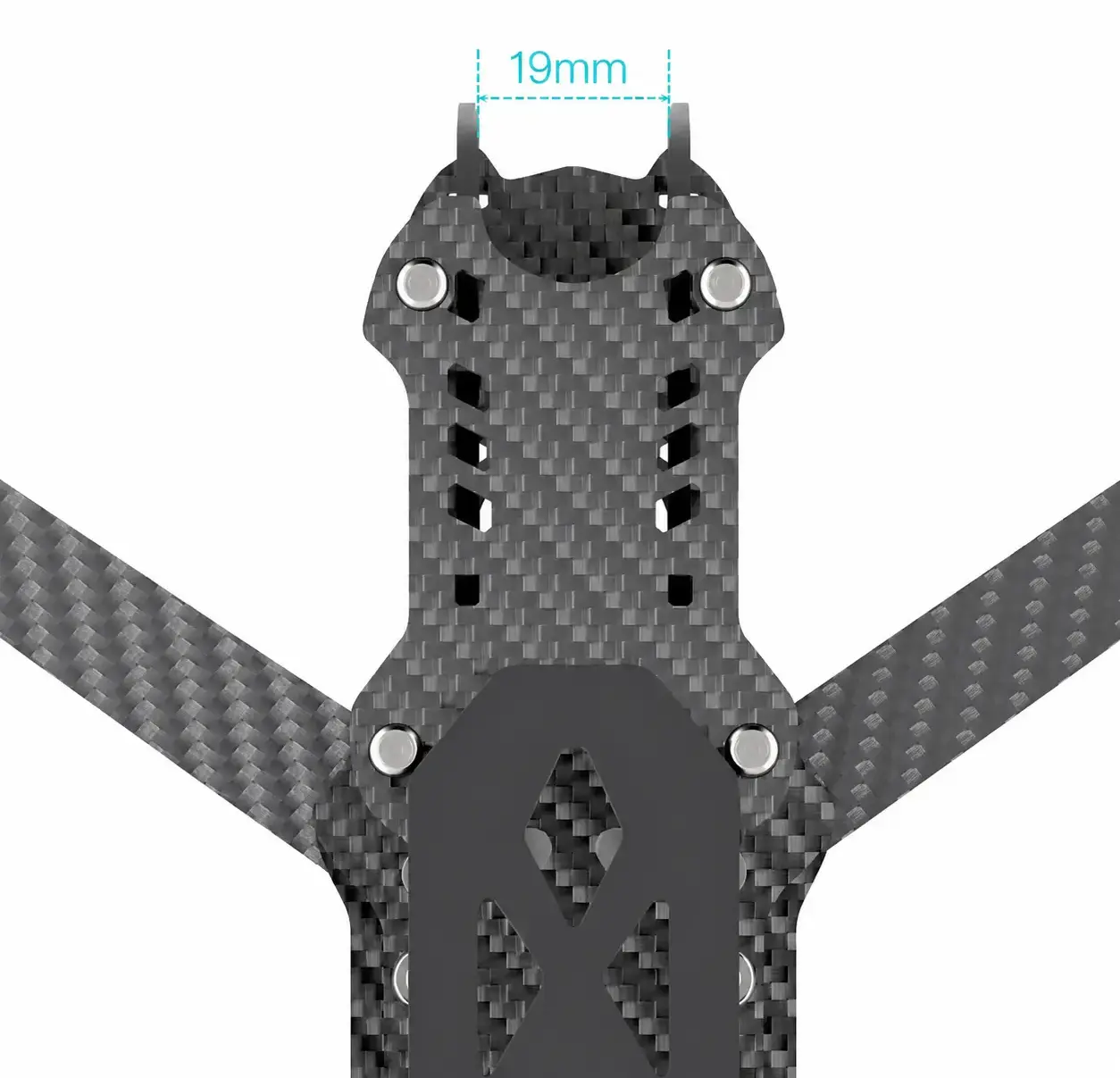

Camera lens mount space	19x19mm (M2)
Internal cabin height of frame	30mm
Frame weight	270.0g

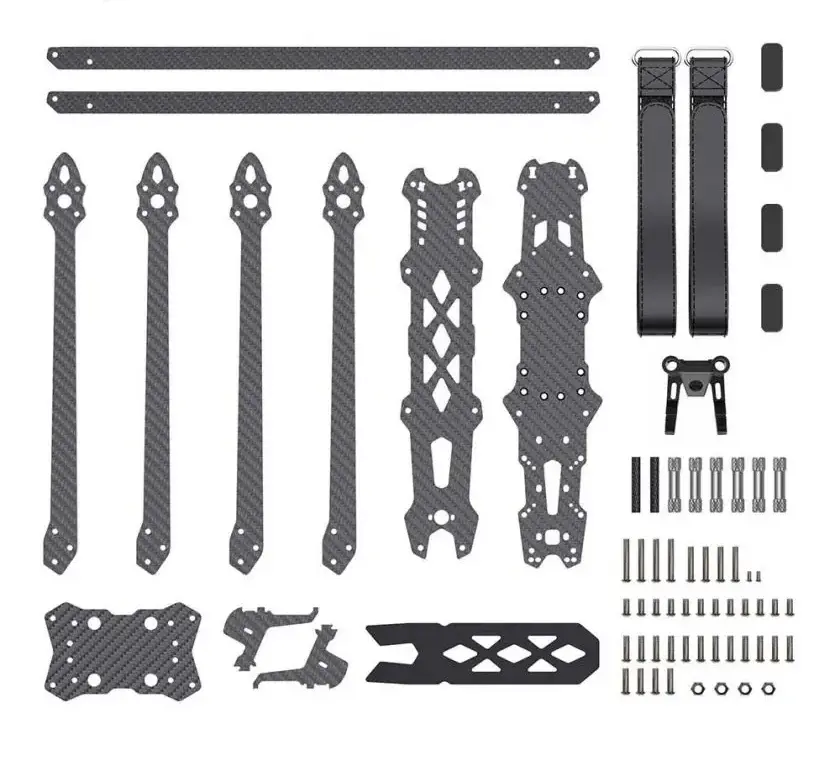

GEPRC GEP-Mark4-10 Frame Kit Package Includes

1x GEPRC GEP-Mark4-10 Frame Kit
1x Set of mounting parts
