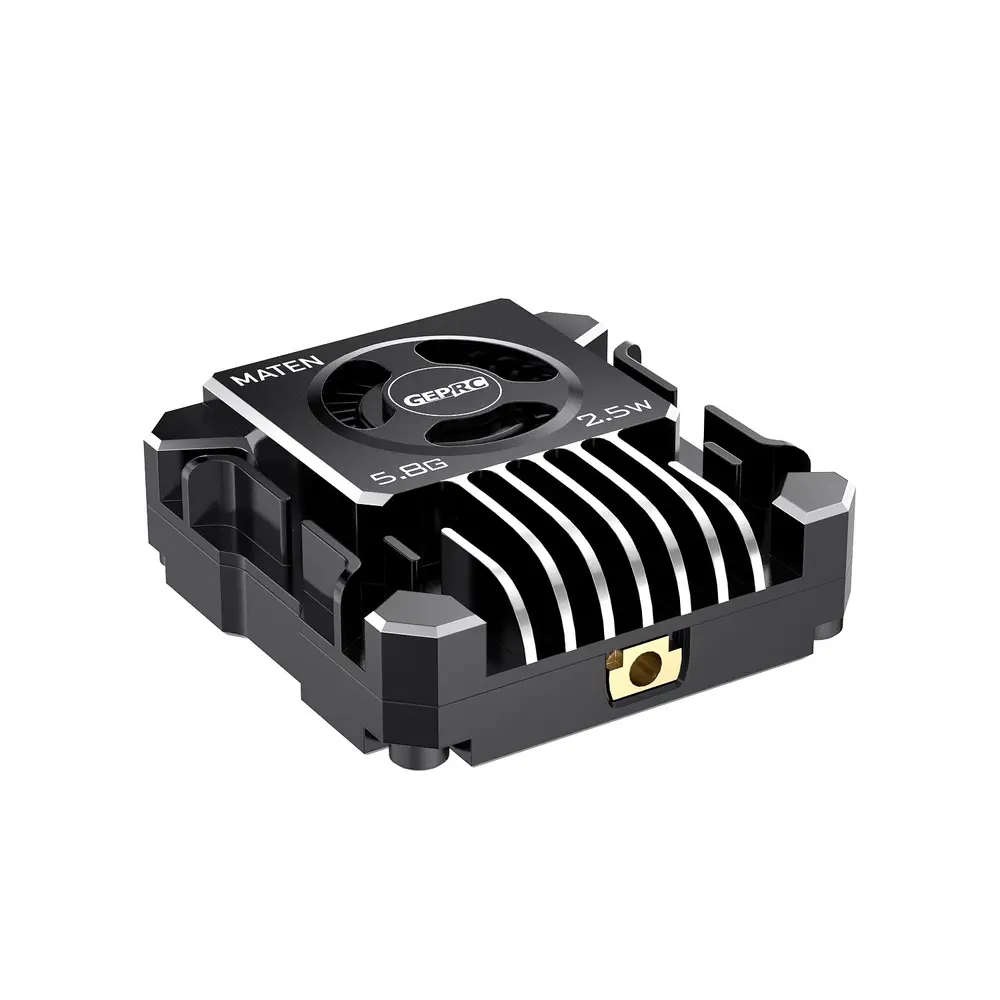

GEPRC MATEN 5.8G 2.5W VTX PRO Silver
Discover Extreme Range and Unmatched FPV Signal Stability with GEPRC MATEN 5.8G 2.5W VTX PRO Silver
The GEPRC MATEN 5.8G 2.5W VTX PRO Silver is an advanced component designed with the most demanding long-range drone pilots in mind. The device breaks down existing distance barriers, offering up to five adjustable power levels, culminating in a powerful 2500 mW. Whether you are bypassing dense terrain obstacles or exploring open spaces, the GEPRC MATEN 5.8G 2.5W VTX PRO Silver ensures perfect, interference-free video transmission. It is the ideal choice for professionals who expect maximum performance and full safety during key FPV missions.
Key Features of GEPRC MATEN 5.8G 2.5W VTX PRO Silver
- Extreme output power up to 2500 mW: The GEPRC MATEN 5.8G 2.5W VTX PRO Silver offers 5 adjustable power levels (including Pit mode), allowing you to perfectly match the signal to any Long Range flight conditions.
- Active Micro Turbofan cooling: An integrated miniature fan and a durable CNC aluminum alloy casing ensure that the GEPRC MATEN 5.8G 2.5W VTX PRO Silver effectively dissipates heat, preventing overheating.
- Wide input voltage range: The VTX works seamlessly with power supplies from 7V to 36V, enabling direct connection to 2S to 8S LiPo packs.
- Up to 80 channels and IRC Tramp protocol: Full freedom of frequency configuration and convenient, remote adjustment of VTX parameters directly from the Betaflight OSD is the standard provided by the GEPRC MATEN 5.8G 2.5W VTX PRO Silver.
- Built-in microphone: The Video Transmitter allows for real-time audio transmission from the drone, giving the pilot even better control over motor performance during flight.
WARNING
To ensure trouble-free operation, the GEPRC MATEN 5.8G 2.5W VTX PRO Silver requires compliance with several key rules.
- Installing antenna before use.
- Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
VTX Table for GEPRC MATEN 5.8G 2.5W VTX PRO Silver | vtxtable bands 8 vtxtable channels 8 vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621 vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5436 5456 vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600 vtxtable powerlevels 5 vtxtable powervalues 25 200 600 1600 2500 vtxtable powerlabels 25 200 600 1W6 MAX save |
If you want to use the H,X band, delete the O band above and then copy the following command into the CLI. | #vtxtable band 8 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933 #vtxtable band 8 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200 |

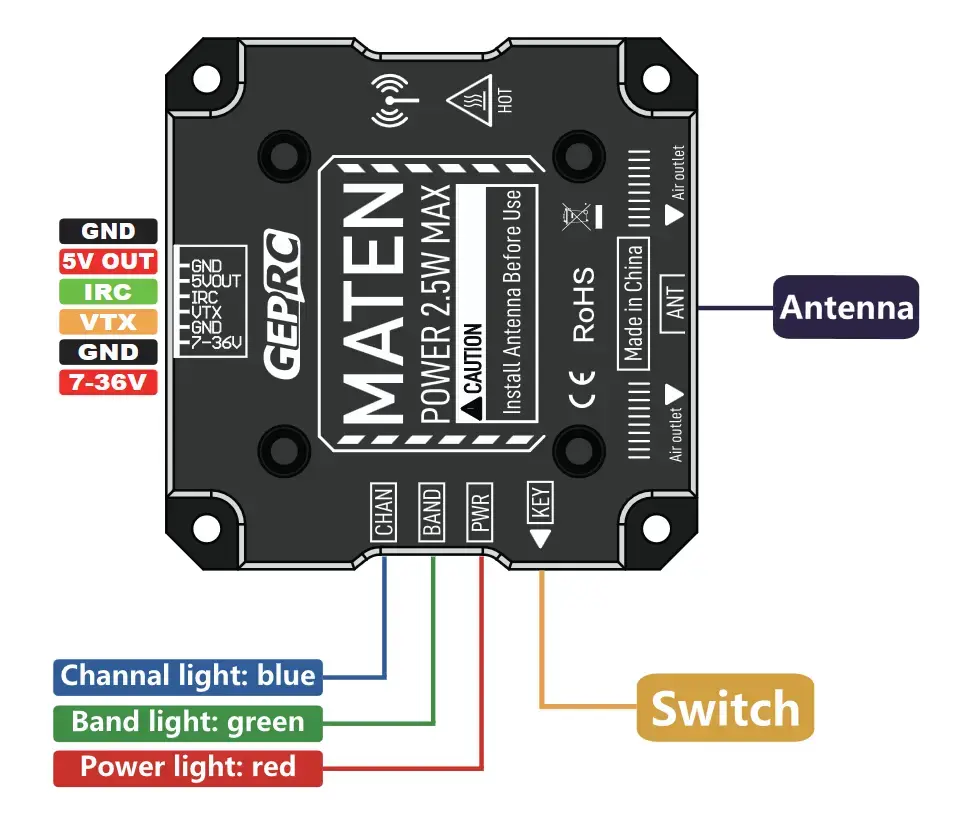

GEPRC MATEN 5.8G 2.5W VTX PRO Silver Pinout
GEPRC MATEN 5.8G 2.5W VTX PRO Silver Specifications
Model | GEPRC MATEN 5.8G 2.5W VTX PRO |
Size | 36.3×36.3×15.1mm |
Mounting hole | 20 x 20mm (M2) |
Output power | 25mW/200mW/600mW/1600mW/2500mW/Pit mode |
Frequency | 4884-6184MHz |
Channel | 80CH |
Input voltage | DC7-36V (2-8S Battery) |
Output voltag | 5V@600mA |
Protocol | IRC Tramp |
Antenna interface | MMCX |
Cable interface | SH1.0 6pin |
Video format | PAL/NTSC |
Microphone | Built in microphone |
Weight | 20g |
Color | Silver |
GEPRC MATEN 5.8G 2.5W VTX PRO Silver Package Includes
- 1x MATEN 5.8G 2.5W VTX PRO
- 1x MMCX Copper tube antenna
- 1x MMCX to SMA connector (75mm)
- 1x Connecting cable (sh1.0 6pin 150mm)
- 6x M2*5 screw
- 6x M2*12 screw
