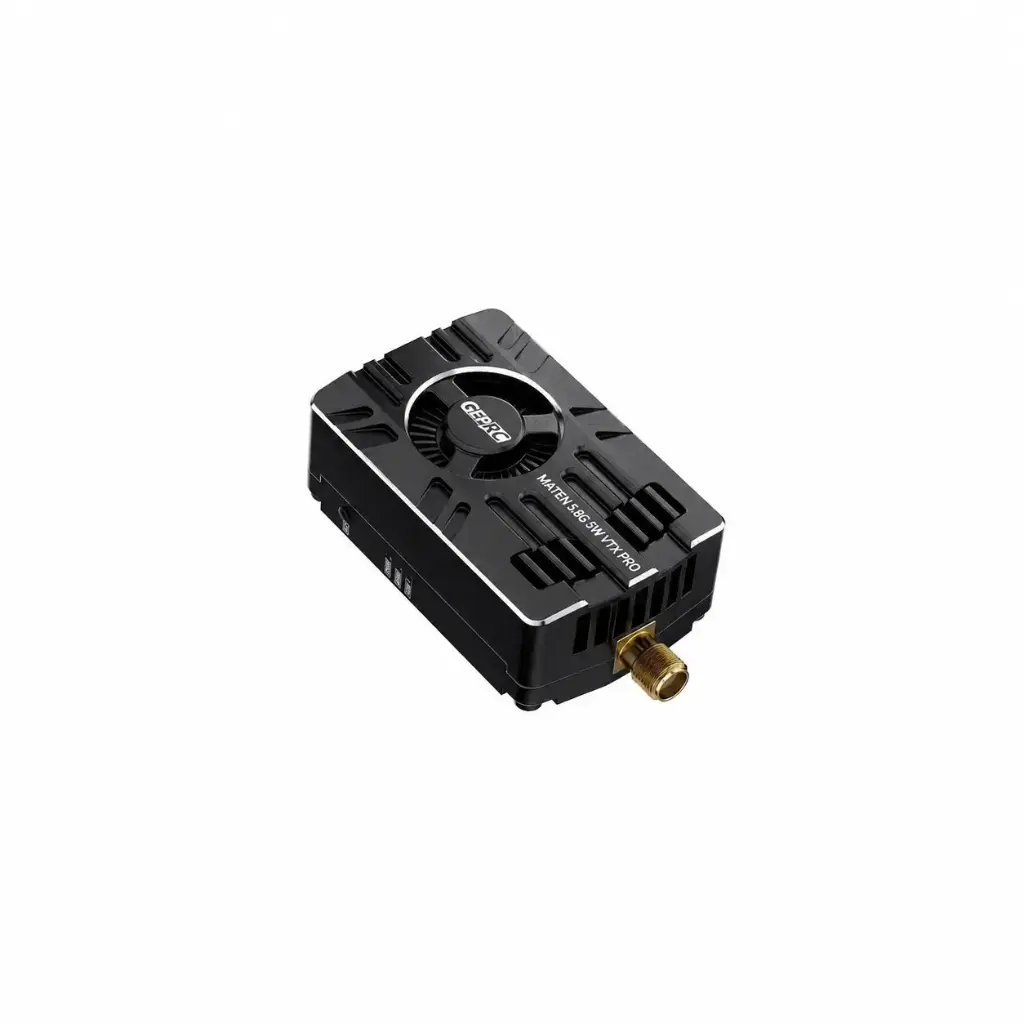

GEPRC MATEN 5.8G 5W VTX PRO

The MATEN 5.8G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 5000mW of power, ensuring stable signal transmission and excellent penetration. Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD. It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 25.5×25.5mm (M2), it’s the perfect VTX for any build.

178.86 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

GEPRC MATEN 5.8G 5W VTX PRO - Built for Maximum FPV Control

Power up to 5000mW

Provides stable video transmission even during longer-distance flights. High output power increases range and connection reliability in demanding FPV conditions.

80 channels 4.9–5.8GHz

Support for 80 channels ensures broad compatibility with various FPV goggles and receivers. The 4.9–5.8GHz range makes it easier to choose a stable band for different flight environments.

CNC aluminum housing

The solid CNC aluminum housing effectively dissipates heat during high-power operation. Its durable construction improves shock resistance and reliability during intensive use.

IRC Tramp control via OSD

IRC Tramp protocol allows convenient VTX setting changes without direct access to the module. Parameters can be controlled through the flight controller OSD, making pre-flight setup faster and easier.

GEPRC MATEN 5.8G 5W VTX PRO Dimension

WARNING

To ensure trouble-free operation, the GEPRC MATEN 5.8G 5W VTX PRO requires compliance with several key rules.

Installing antenna before use.
Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

VTX Table for GEPRC MATEN 5.8G 5W VTX PRO

vtxtable bands 8

vtxtable channels 8

vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725

vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866

vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945

vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880

vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917

vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621

vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456

vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600

vtxtable powerlevels 5

vtxtable powervalues 300 600 1600 3000 5000

vtxtable powerlabels 300 600 1W6 3W 5W

save

If you want to use the H,X band, delete the O band above and then copy the following command into the CLI.

#vtxtable band 8 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933
#vtxtable band 8 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200

GEPRC MATEN 5.8G 5W VTX PRO Specifications

Size	60mm × 33.2mm × 19.1mm
Mounting hole	20x20mm / 25.5x25.5mm (M2)
Output power	300mW / 600mW / 1600mW / 3000mW / 5000mW / Pit
Frequency rate	4.9–5.8GHz
Channels	80CH
Input voltage	7–36V DC (2–8S LiPo)
Output voltage	5V@600mA
Protocol	IRC Tramp
Antenna Connector	SMA
Cable interface	SH1.25 6-Pin
Microphone	Built-in microphone
Weight	49.5g (VTX only)

GEPRC MATEN 5.8G 5W VTX PRO Package Includes

1x MATEN 5.8G 2.5W VTX PRO
1x MMCX Copper tube antenna
1x MMCX to RP-SMA (Internal needle) connector
1x SH1.0 6P Connecting cable
6x M2*5 screw
4x M2*12 screw
