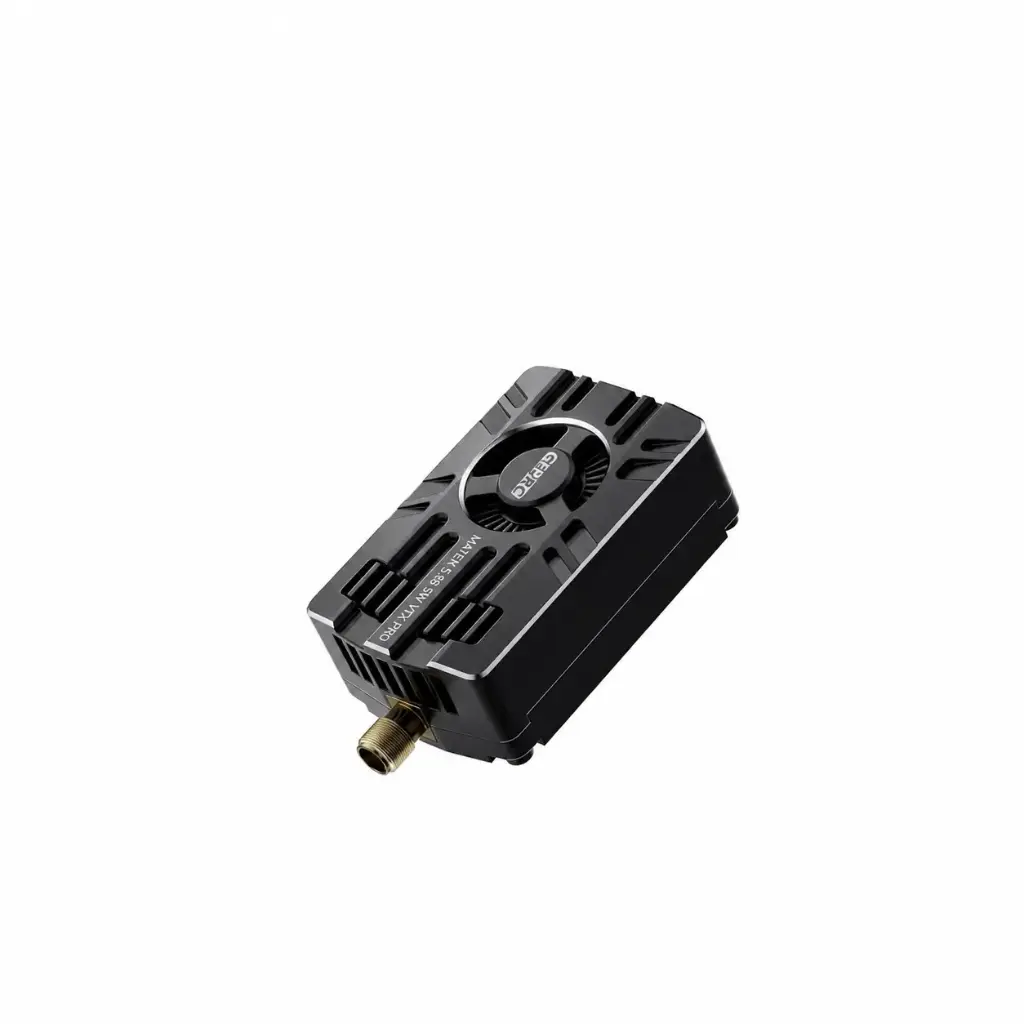

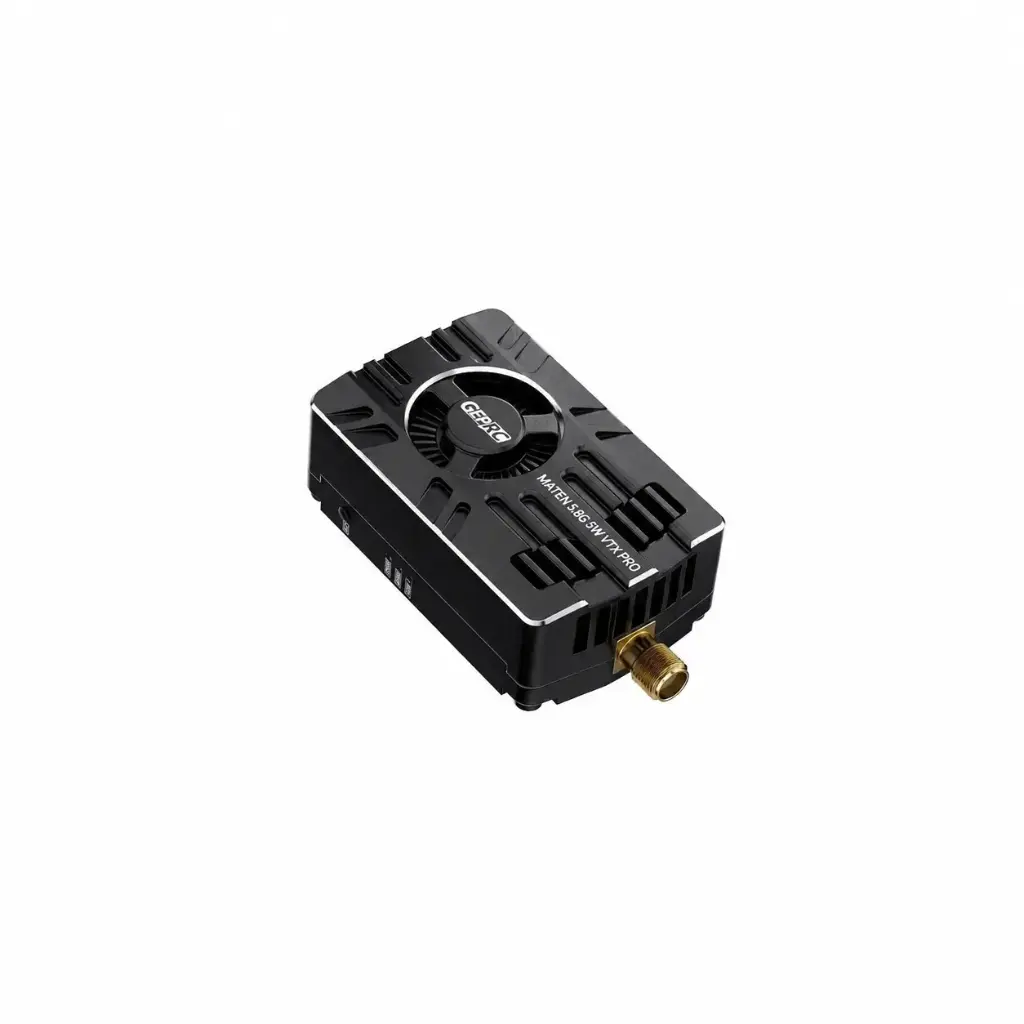

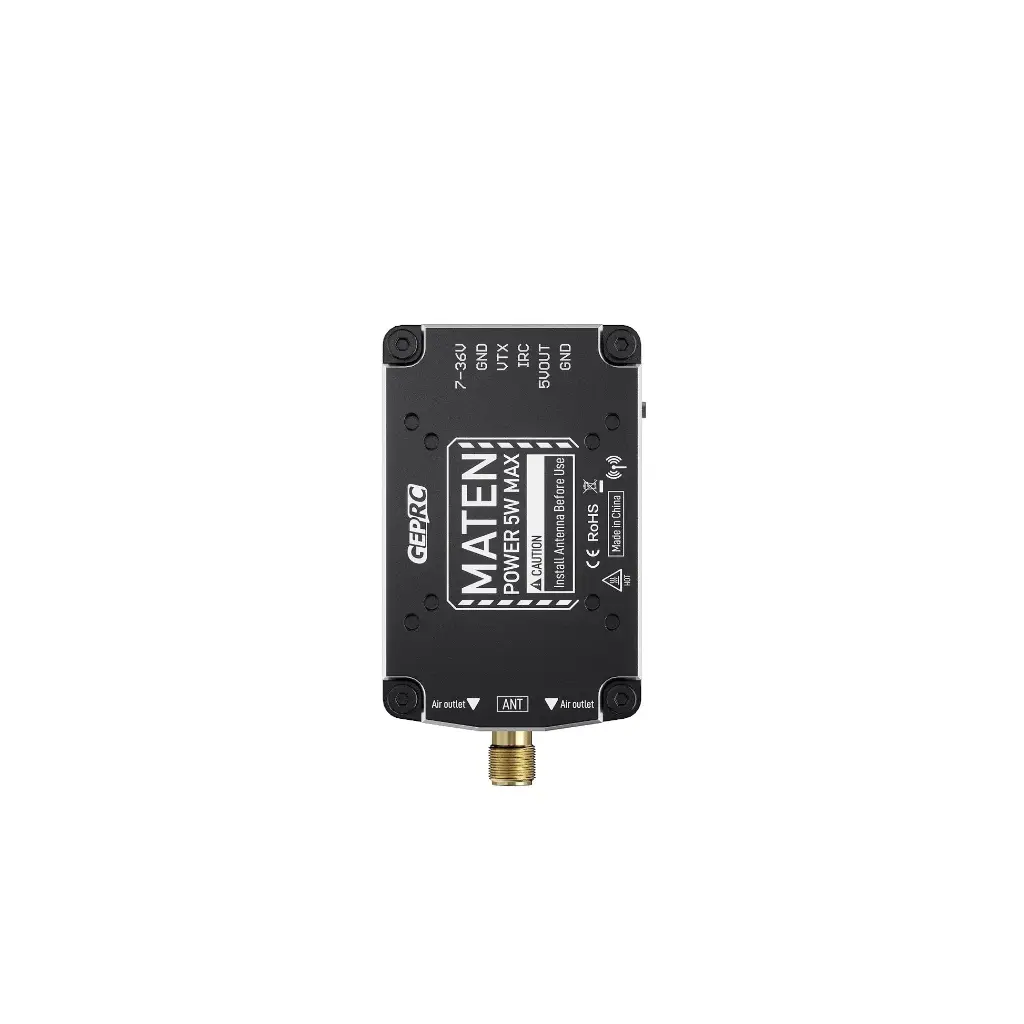

GEPRC MATEN 5.8G 5W VTX PRO

The MATEN 5.8G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 5000mW of power, ensuring stable signal transmission and excellent penetration. Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD. It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 25.5×25.5mm (M2), it’s the perfect VTX for any build.

304.88 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

GEPRC MATEN 5.8G 5W VTX PRO - Built for Maximum FPV Control

Power up to 5000mW

Provides stable video transmission even during longer-distance flights. High output power increases range and connection reliability in demanding FPV conditions.

80 channels 4.9–5.8GHz

Support for 80 channels ensures broad compatibility with various FPV goggles and receivers. The 4.9–5.8GHz range makes it easier to choose a stable band for different flight environments.

CNC aluminum housing

The solid CNC aluminum housing effectively dissipates heat during high-power operation. Its durable construction improves shock resistance and reliability during intensive use.

IRC Tramp control via OSD

IRC Tramp protocol allows convenient VTX setting changes without direct access to the module. Parameters can be controlled through the flight controller OSD, making pre-flight setup faster and easier.

GEPRC MATEN 5.8G 5W VTX PRO Frequency table

	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
BAND A	5865	5845	5825	5805	5785	5765	5745	5725
BAND B	5733	5752	5771	5790	5809	5828	5847	5866
BAND E	5705	5685	5665	5645	5885	5905	5925	5945
BAND F	5740	5760	5780	5800	5820	5840	5860	5880
BAND R	5658	5695	5732	5769	5806	5843	5880	5917
BAND L	5362	5399	5436	5473	5510	5547	5584	5621
BAND U	5325	5348	5366	5384	5402	5420	5438	5456
BAND O	5474	5492	5510	5528	5546	5564	5582	5600
BAND H	5653	5693	5733	5773	5813	5853	5893	5933
BAND X	4990	5020	5050	5080	5110	5140	5170	5200

GEPRC MATEN 5.8G 5W VTX PRO Specifications

Size	60mm × 33.2mm × 19.1mm
Mounting hole	20x20mm / 25.5x25.5mm (M2)
Output power	300mW / 600mW / 1600mW / 3000mW / 5000mW / Pit
Frequency rate	4.9–5.8GHz
Channels	80CH
Input voltage	7–36V DC (2–8S LiPo)
Output voltage	5V@600mA
Protocol	IRC Tramp
Antenna Connector	SMA
Cable interface	SH1.25 6-Pin
Microphone	Built-in microphone
Weight	49.5g (VTX only)

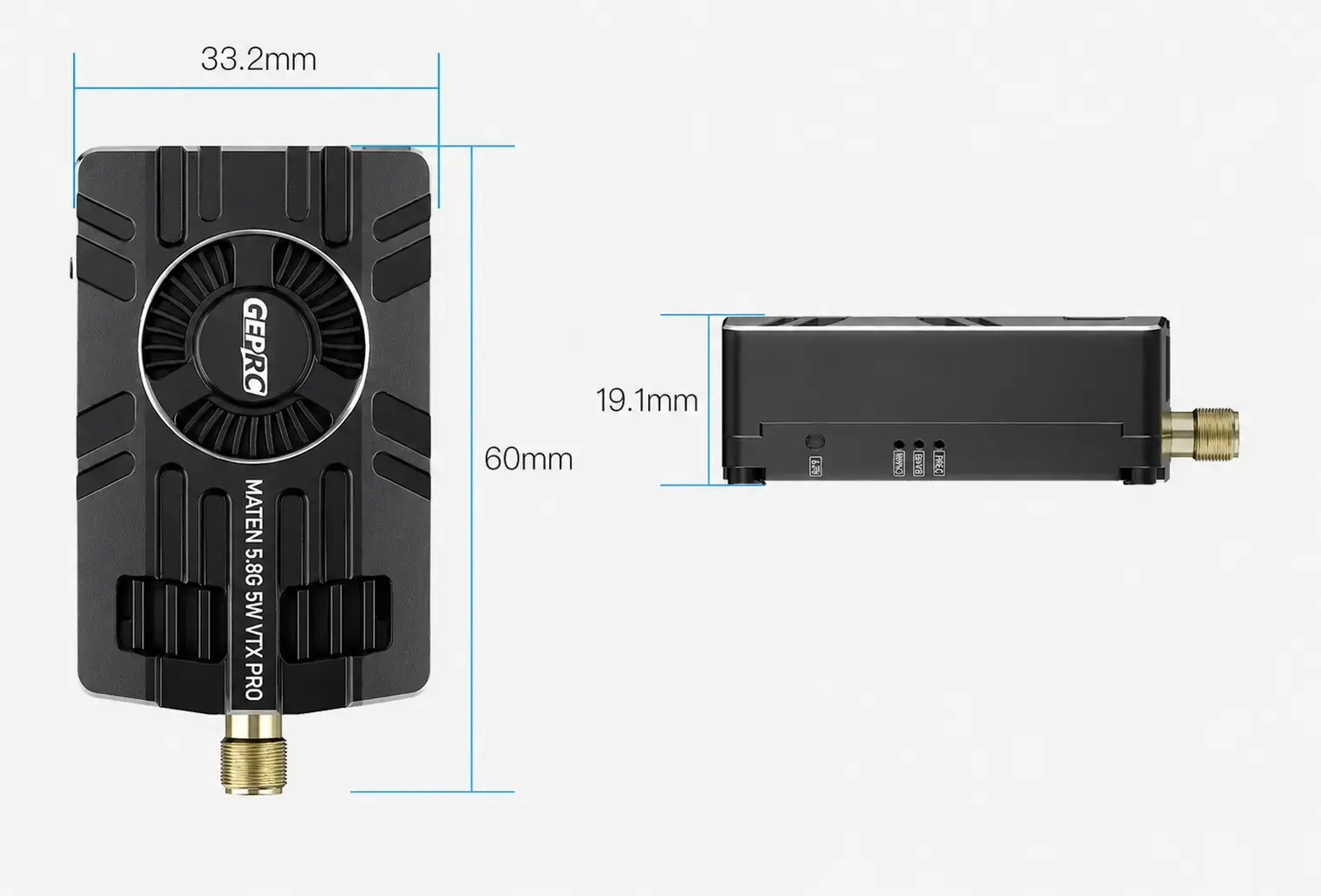

GEPRC MATEN 5.8G 5W VTX PRO Dimension

GEPRC MATEN 5.8G 5W VTX PRO Package Includes

1x MATEN 5.8G 2.5W VTX PRO
1x MMCX Copper tube antenna
1x MMCX to RP-SMA (Internal needle) connector
1x sh1.0 6P Connecting cable
6x M2*5 screw
4x M2*12 screw
