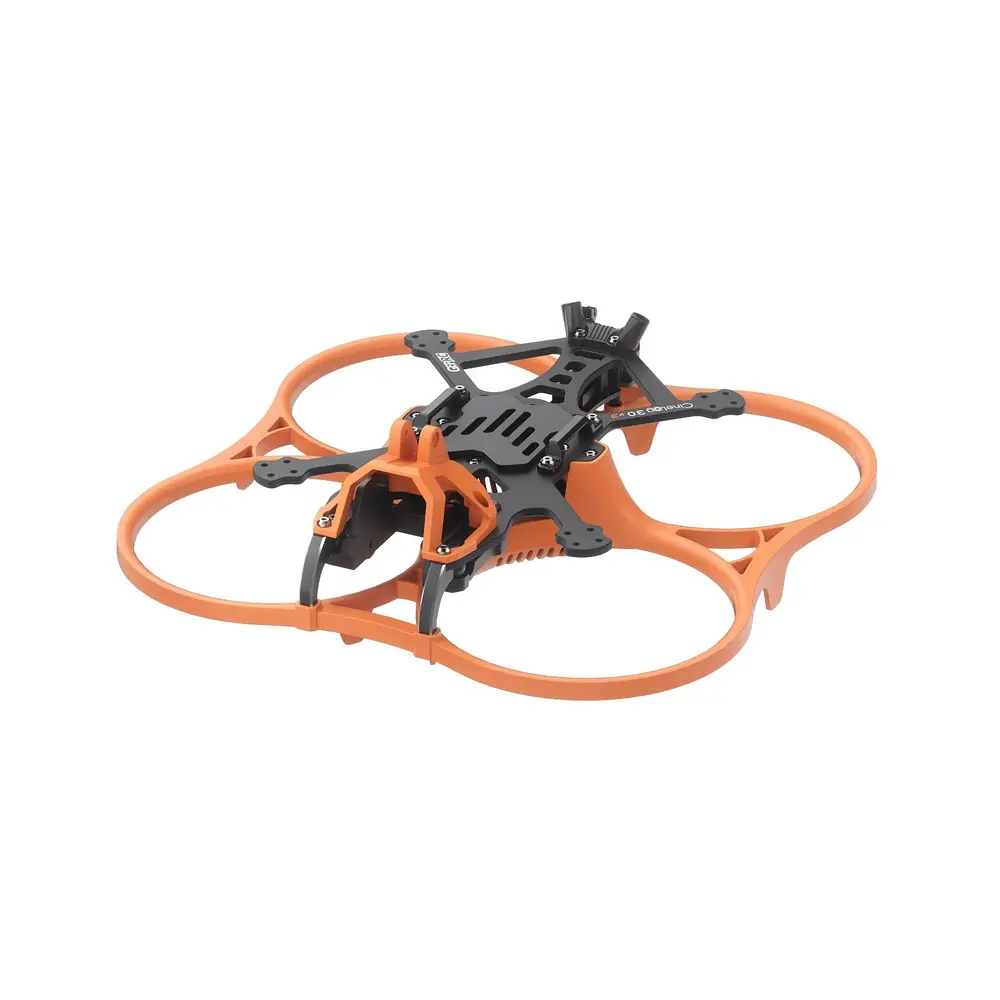

GEPRC GEP-CL30 V3 Frame Kit

Build your dream drone with the innovative GEPRC GEP-CL30 V3 Frame Kit! Optimized specifically for the DJI O4 Air Unit Pro system, it offers unmatched protection with an integrated guard and aluminum reinforcements. Perfect for smooth aerial footage, it ensures excellent heat dissipation and easy assembly with just 6 screws. Choose reliability and customize your gear with this new version of the iconic Cinelog30 frame!

195.12 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Discover a new dimension of aerial filming with GEPRC GEP-CL30 V3 Frame Kit

The GEPRC GEP-CL30 V3 Frame Kit is an upgraded version of the popular design, built for maximum performance and safety. Designed for seamless integration with the DJI O4 Air Unit Pro system, it features an innovative camera damping system that effectively eliminates vibrations to guarantee incredibly smooth footage. Solid aluminum reinforcements and an integrated guard protect your electronics from impacts, while clever cutouts provide optimal cooling during flights. Whether you are a professional videographer or an amateur, this frame will help you capture breathtaking HD footage effortlessly.

Full integration with DJI O4 Unit Pro - GEPRC GEP-CL30 V3 Frame Kit

The GEPRC GEP-CL30 V3 Frame Kit is fully optimized for the latest DJI O4 Unit Pro VTX transmission system. Thanks to its well-thought-out design, the frame allows for the stable mounting of an advanced camera with a 1/1.3-inch sensor, which records spectacular footage in 4K at 120 frames per second and in D-log M color mode. The ultra-wide 155° FOV enables the capture of amazing, cinematic HD shots without the need to mount an additional, heavy action camera. Choose the GEPRC GEP-CL30 V3 Frame Kit and enjoy a lightweight, efficient drone ready for professional video challenges.

GEPRC GEP-CL30 V3 Frame Kit Specifications

Model	GEP-CL30 V3 Frame
Frame size	3 inches
Wheelbase	128mm
Carbon Plate Thickness	2.5mm
FC Mounting Holes	25.5mm x 25.5mm
VTX Mounting Holes	20mm x 20mm / 25.5mm x 25.5mm
Motor Mounting Holes	9mm x 9mm
Camera Mounting Holes	20mm
Power Connector	XT30
Compatible Propellers	3-inch
Frame Weight	78g ± 2g

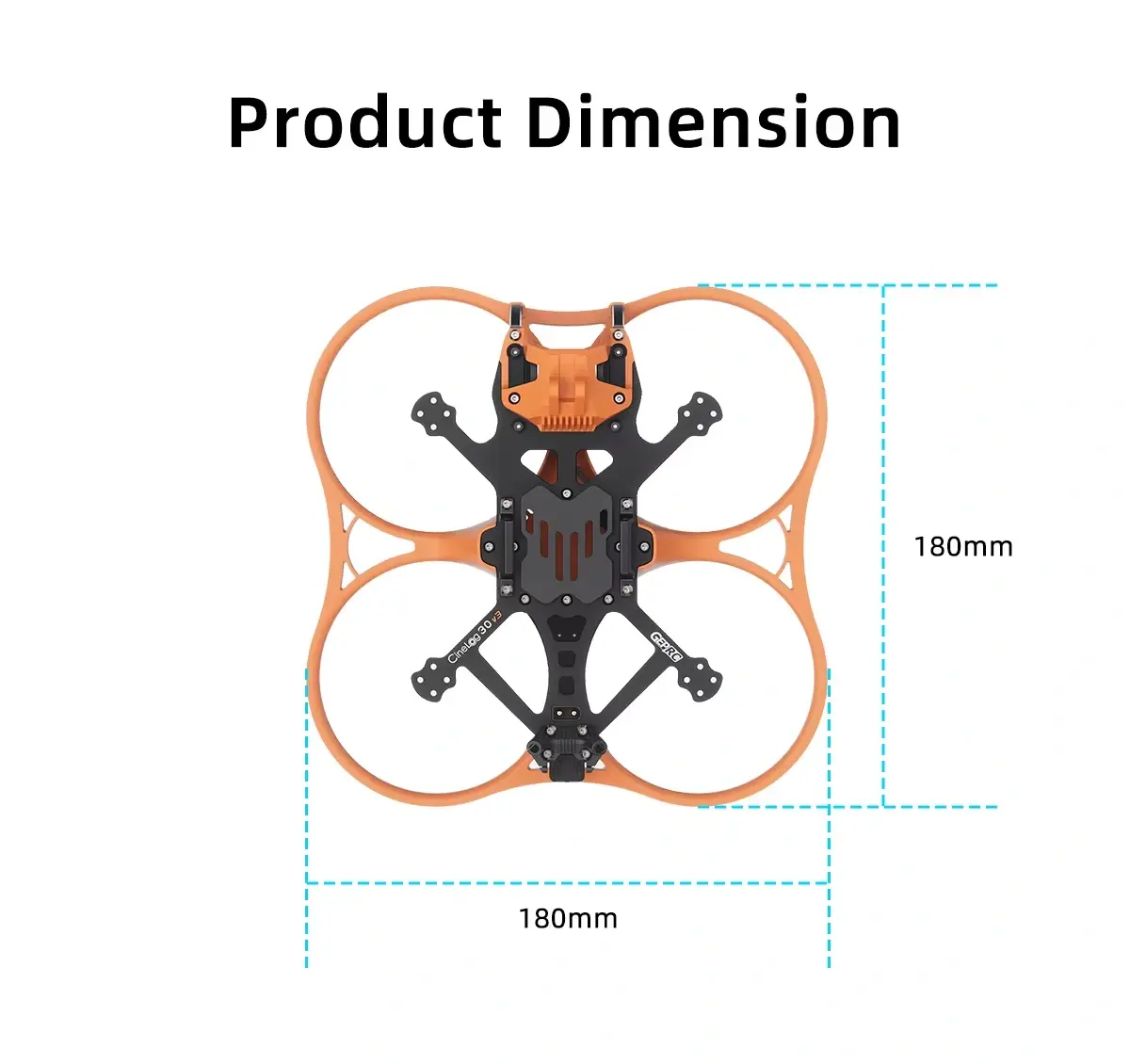

GEPRC GEP-CL30 V3 Frame Kit Dimension

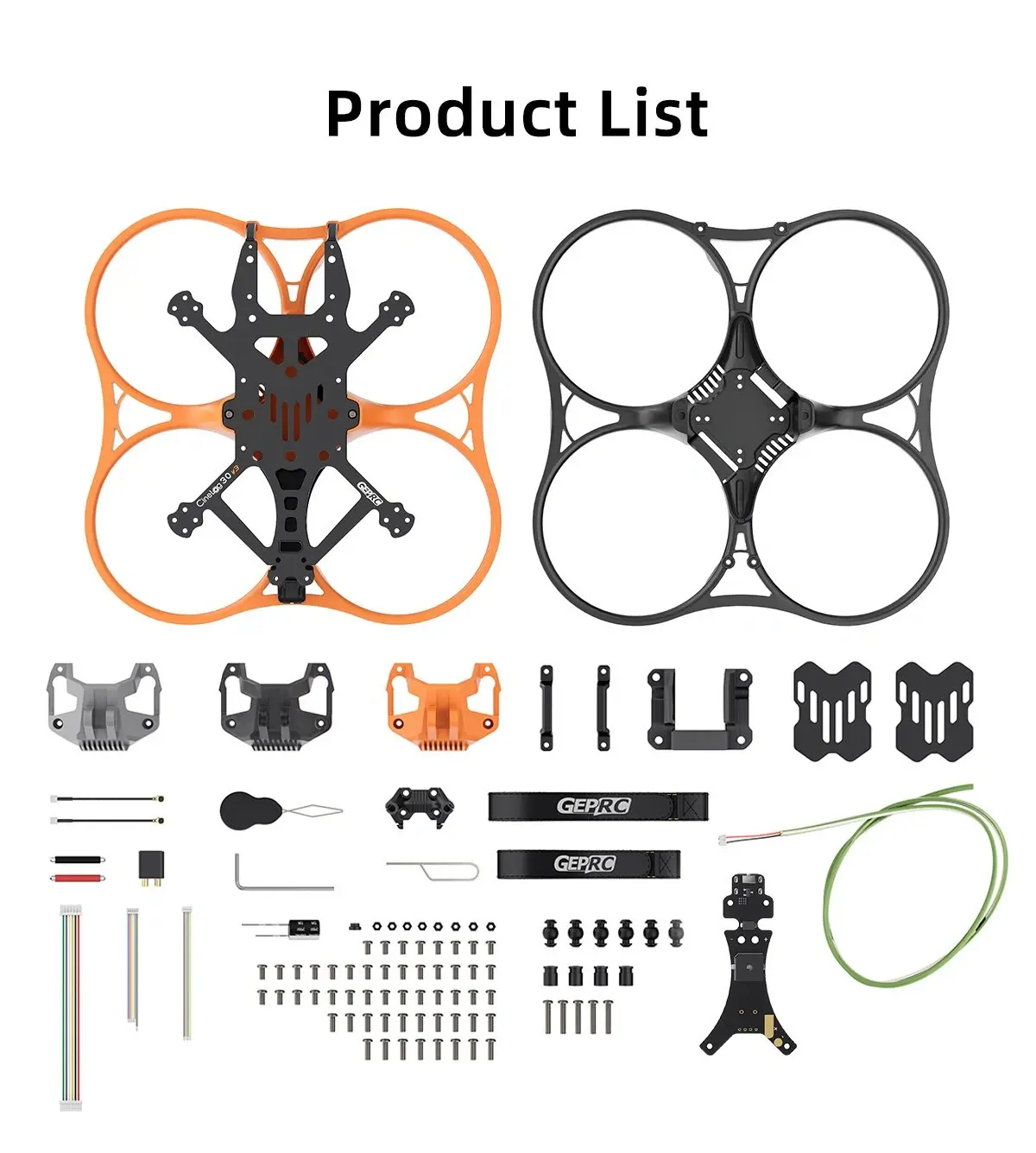

GEPRC GEP-CL30 V3 Frame Kit Package Includes

1x Protective frame (Black)
1x Protective frame (Orange)
1x Guard (Black)
1x Guard (Orange)
1x Guard (Grey)
1x Aluminum battery strap mount
1x Aluminum lens mount
1x LED strip
2x Anti-slip battery pads
1x Cinelog30 V3 FCB function board
1x Battery strap 15x150 mm
1x Battery strap 15x130 mm
1x L-shaped screwdriver (1.5 mm)
1x Damping ball puncher
1x Frequency pairing needle
1x Spare screw set
