GEPRC SPEEDX2 1404 Motor 3850KV
Lightness and powerful performance in every maneuver - GEPRC SPEEDX2 1404 Motor 3850KV
The GEPRC SPEEDX2 1404 Motor 3850KV is a modern, high-quality power unit designed for demanding FPV pilots seeking uncompromising efficiency in the air. Thanks to its unique magnetic circuit design, this motor operates with complete reliability. Weighing just 10.5g, the GEPRC SPEEDX2 1404 Motor 3850KV excellently reduces the drone's weight while offering aggressive thrust and incredible control smoothness. It is the original factory drive used in models like the Cinelog 30 V3, guaranteeing ultimate durability.
Key Features of GEPRC SPEEDX2 1404 Motor 3850KV
High magnetic efficiency
The use of N52H-class magnets in the GEPRC SPEEDX2 1404 Motor 3850KV guarantees instantaneous throttle response and a massive power reserve across the entire RPM range.
Premium NSK/NMB bearings
They ensure perfectly smooth operation, which means the GEPRC SPEEDX2 1404 Motor 3850KV minimizes vibrations and exhibits a significantly longer mechanical lifespan.
Single-strand copper winding
It increases electrical conductivity and radically reduces heat generation, ensuring the GEPRC SPEEDX2 1404 Motor 3850KV does not overheat under heavy loads.
Ultralight design
The minimal mass ensures that the GEPRC SPEEDX2 1404 Motor 3850KV allows you to maintain ideal flight characteristics in drones with propeller sizes ranging from 2.5 to 3 inches.
GEPRC SPEEDX2 1404 Motor 3850KV Specifications
Max. Power | 160W |
Peak current | 10A (with 3-inch propellers) |
Internal resistance | 0.33Ω |
Magnet | N52H |
Bearing | NSK/NMB |
Configuration | 9N12P |
Dimensions | 18.2mm × 13.8mm |
Shank diameter | 1.5mm |
Shaft length | 4mm |
Mounting holes | 9mm × 9mm (M2) |
Cable length | 160mm / 26AWG |
Recommended ESC | 2S - 4S (7.4V - 14.8V) |
Operating voltage | 14.8V (4S LiPo) |
Winding | Single strand copper winding |

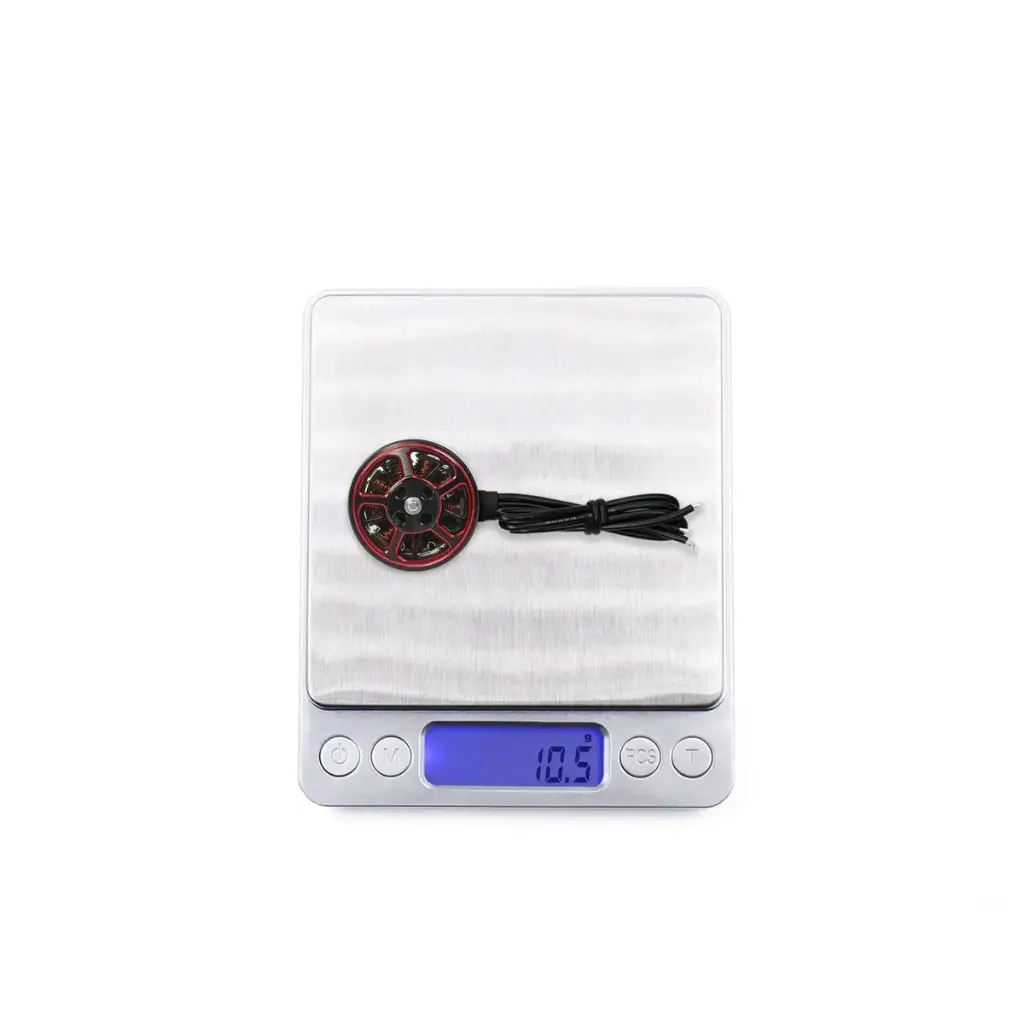

Weight | 10.5g (incl. cable) |
Suitable for | 3-inch to 4-inch FPV drones |

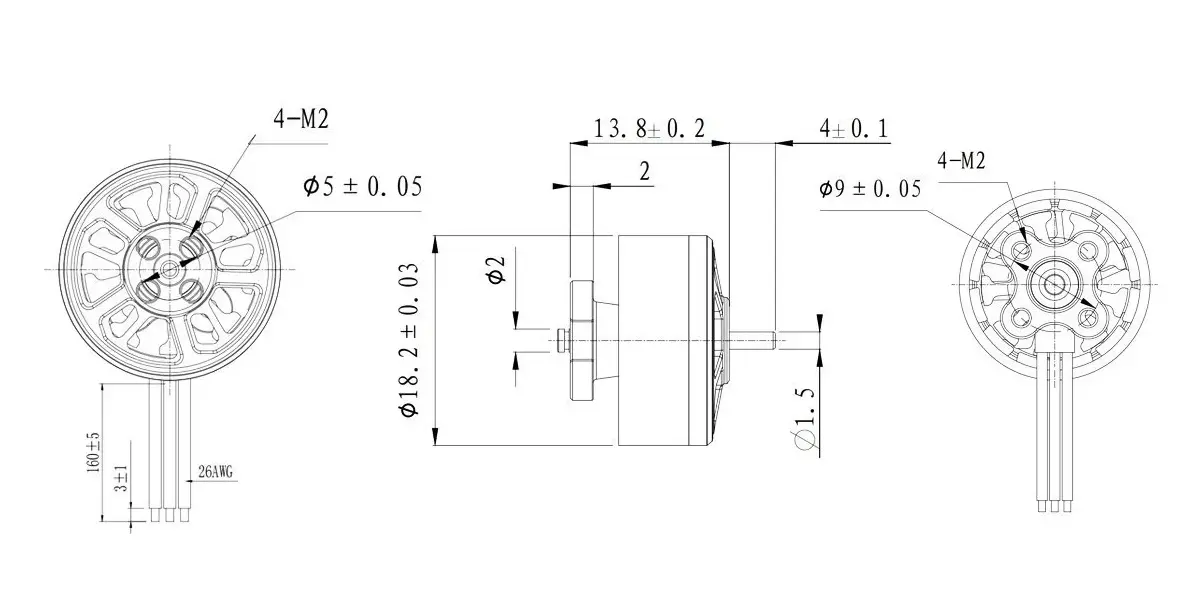

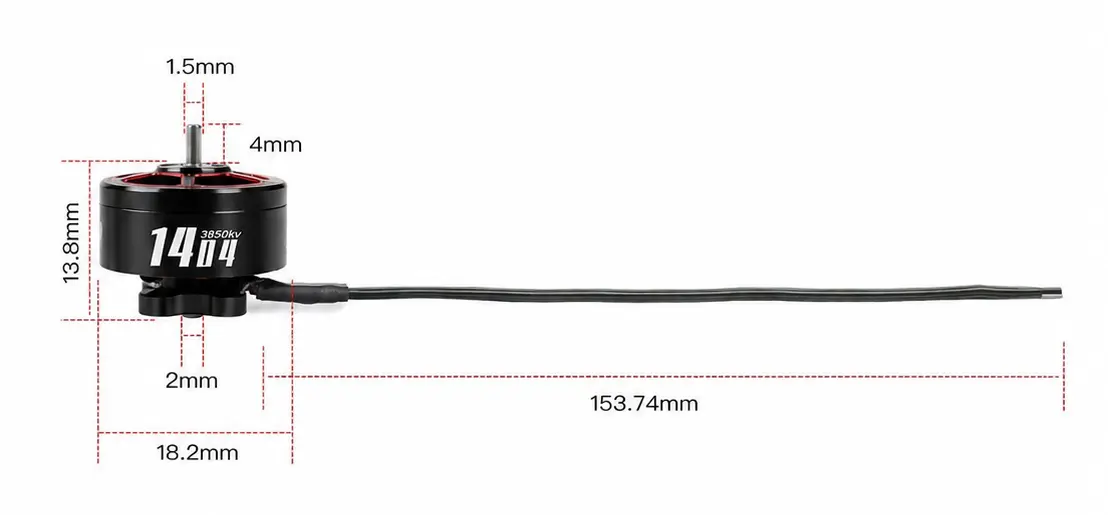

GEPRC SPEEDX2 1404 Motor 3850KV Diameters

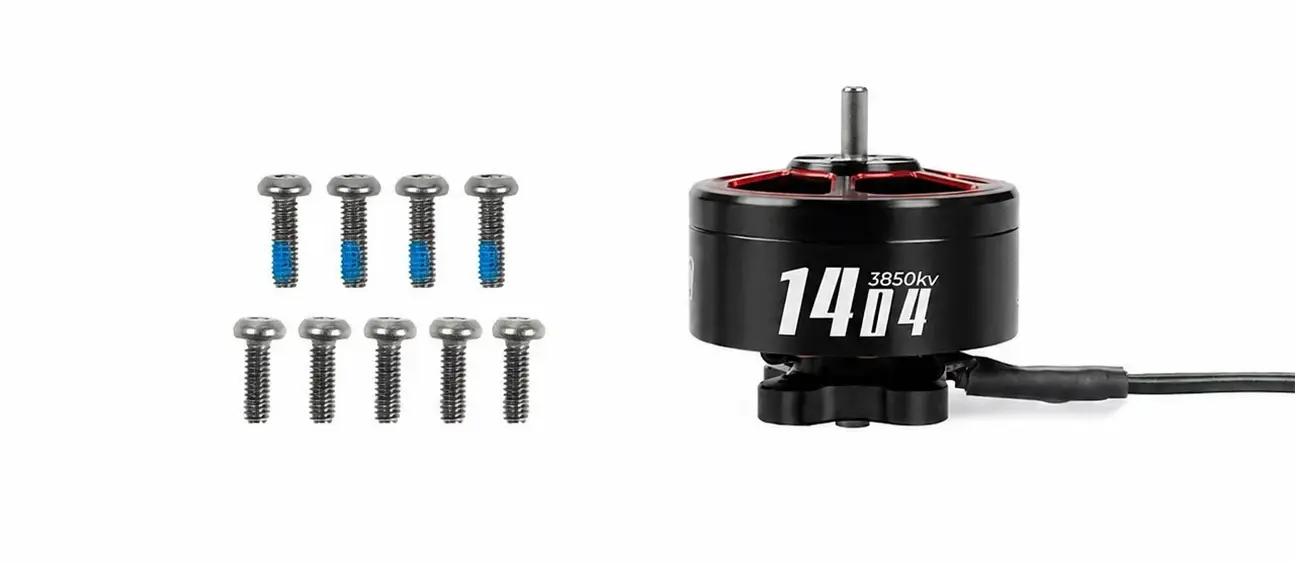

GEPRC SPEEDX2 1404 Motor 3850KV Package Includes
- 1x GEPRC SPEEDX2 1404 Motor 3850KV
- 4x M2 x 7 mm mounting screw with pre-applied threadlocker (Loctite)
- 5x M2 x 7 mm mounting screw
