HDZero Eco Camera

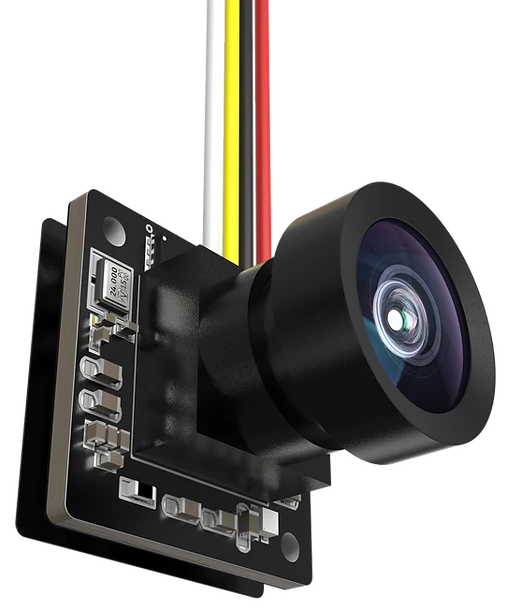

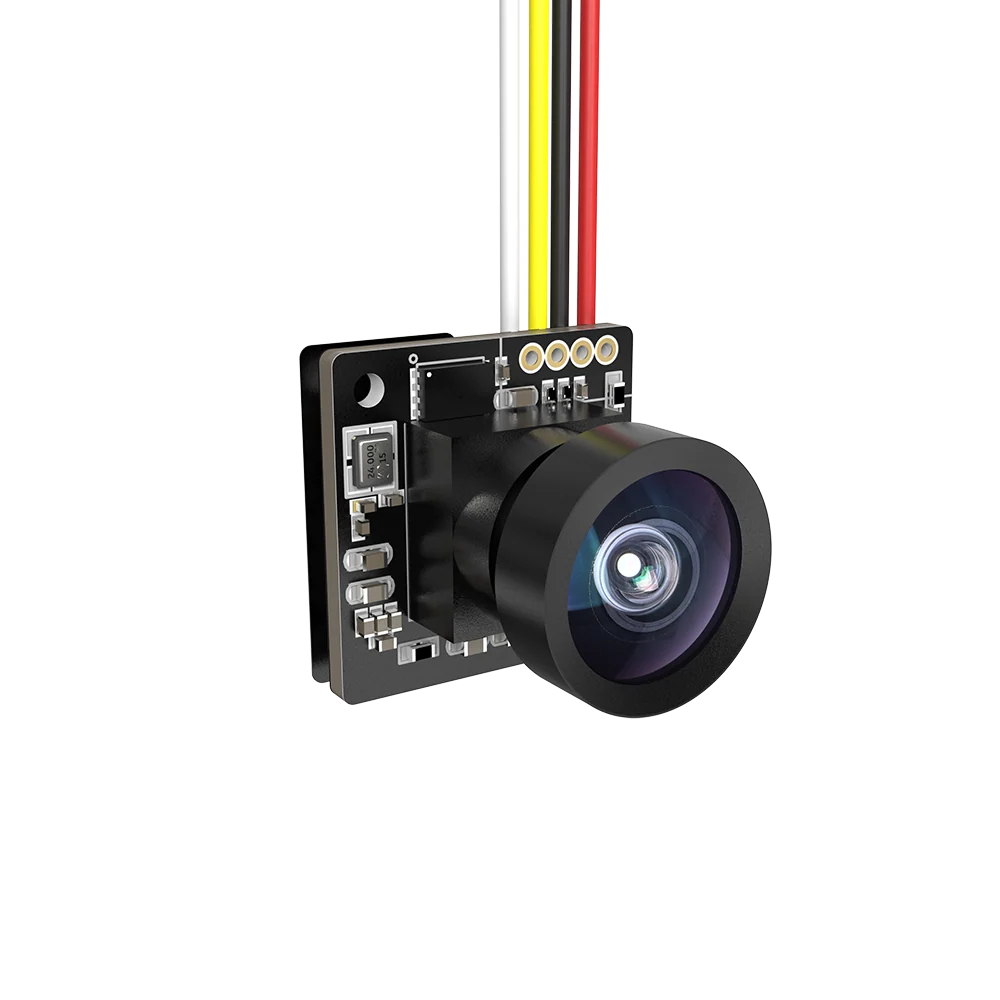

HDZero Eco Camera — Digital FPV in 1.8g
The HDZero Eco Camera is designed to bring digital FPV to more pilots as a low-cost, lightweight and durable alternative to analog video. It uses a 1/3-inch sensor to deliver 1280x720 progressive-scan video at 60fps in 4:3, with stable color reproduction and the low latency HDZero is known for. It weighs 1.8g with its cable and measures 14x14x13mm, so it was designed for ultra-light drones such as tiny whoops, where every fraction of a gram counts, and its wide field of view (150° diagonal, 120° horizontal, 98° vertical) suits fast indoor proximity flying. The camera sends HD composite video over a single wire instead of a MIPI cable and works with the HDZero AIO5, AIO15 and Eco VTX. It runs on 3.3-5V and draws 0.5W.
Key Features of the HDZero Eco Camera
720p at 60fps
1280x720 progressive-scan video in 4:3 from a 1/3-inch sensor, with stable color reproduction.
Low HDZero Latency
Digital video with the low latency HDZero is known for.
98° Vertical FOV
150° diagonal, 120° horizontal and 98° vertical, made for fast indoor proximity flying.
1.8g with Cable
A 14x14x13mm camera for tiny whoops, where every fraction of a gram counts.
One-Wire Connection
HD composite video over a single wire instead of a MIPI cable, for the HDZero AIO5, AIO15 and Eco VTX.
Affordable Way into Digital
A low-cost, lightweight and durable alternative to analog video.
Applications of the HDZero Eco Camera
The manufacturer designed the Eco camera for:
- Tiny whoops and other ultra-light drones where every fraction of a gram counts
- Fast indoor proximity flying
- Pilots moving from analog to digital FPV at a low cost
Frequently Asked Questions About the HDZero Eco Camera
The camera outputs HD composite video over a single wire instead of a MIPI cable and, according to the manufacturer, is compatible with the HDZero AIO5, AIO15 and Eco VTX. It can't be connected to HDZero video transmitters that take the camera over a MIPI cable.

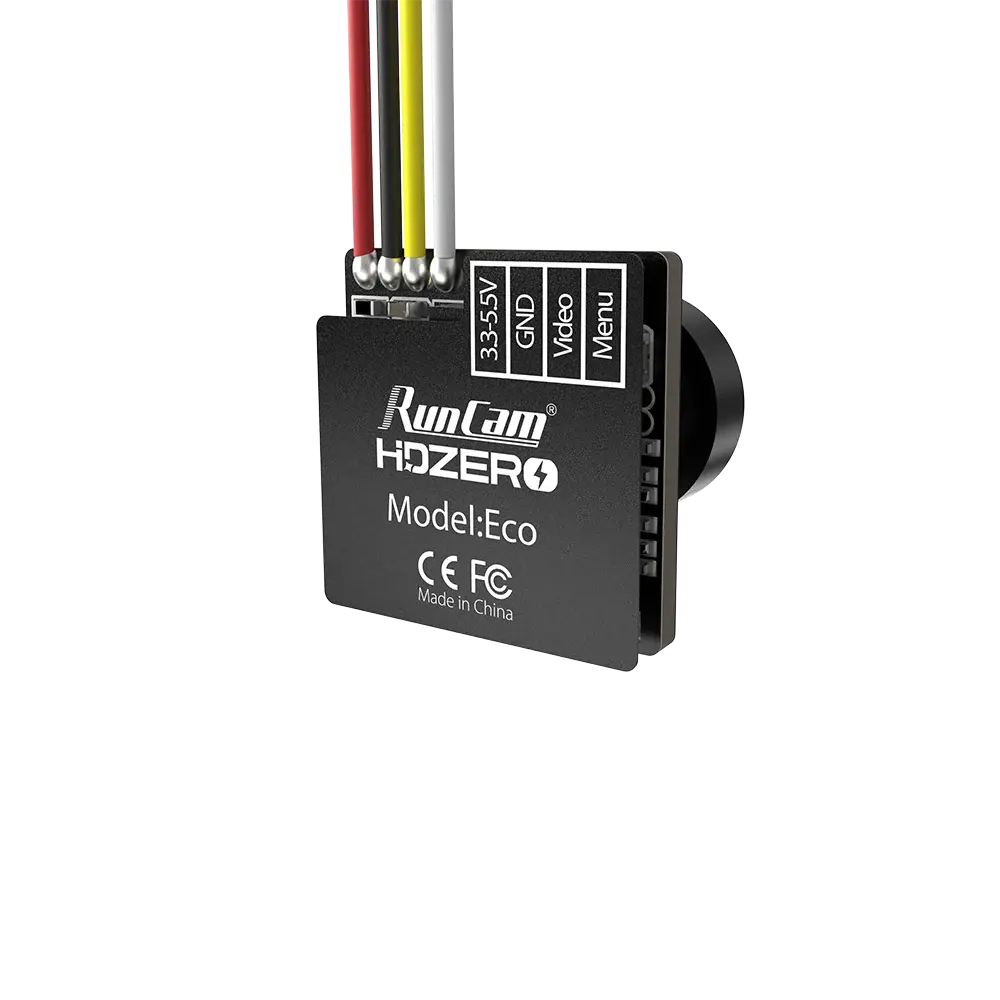

Solder the camera's four wires to the camera pads on the board: yellow (video) to C, white (menu control) to P, black to G (ground) and red to 5V.
3.3V to 5V. The camera draws 0.5W.
1280x720 at 60fps with progressive scan in 4:3. The maximum field of view is 150° diagonal, 120° horizontal and 98° vertical.
Specification of the HDZero Eco Camera
Model | Eco |
Image Sensor | 1/3 inch |
Interface | HD composite video, single wire |
Resolution | 1280x720@60fps, 4:3, progressive scan |
Shutter | Rolling shutter |
Max FOV | D: 150°, H: 120°, V: 98° (4:3) |
Input Voltage | 3.3-5V |
Power Consumption | 0.5W |
Weight | 1.8g (with cable) |
Dimensions | 14x14x13mm |
Compatible With | HDZero AIO5, AIO15, Eco VTX |
Set HDZero Eco Camera Includes
- 1x HDZero Eco Camera
