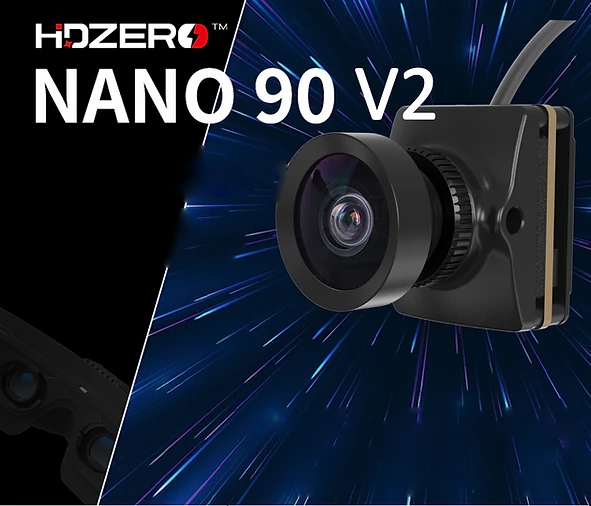

HDZero Nano 90 V2 Camera
HDZero Nano 90 V2 Camera — Video Faster Than Analog

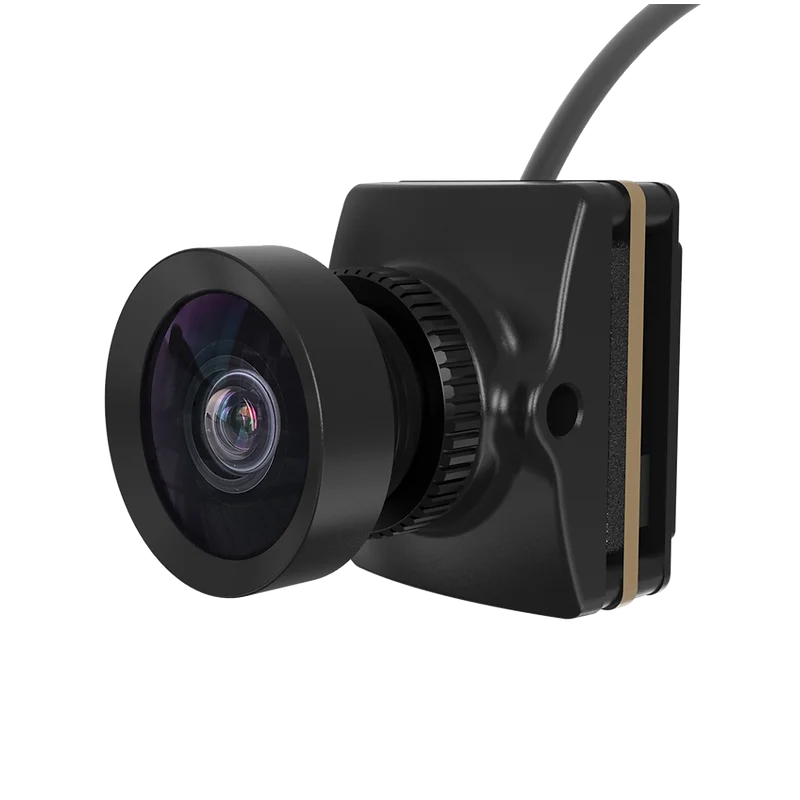

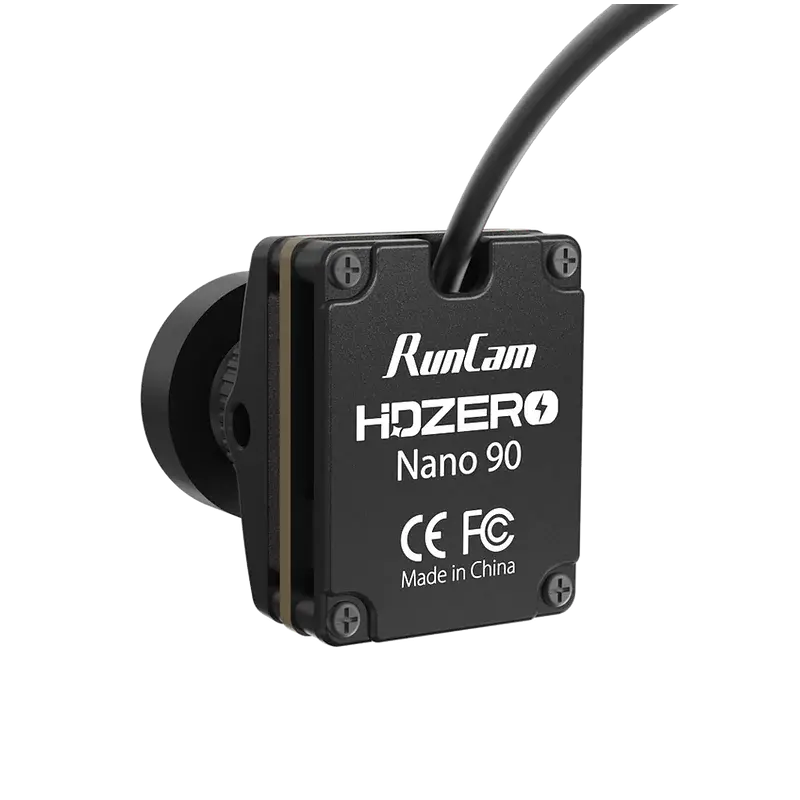

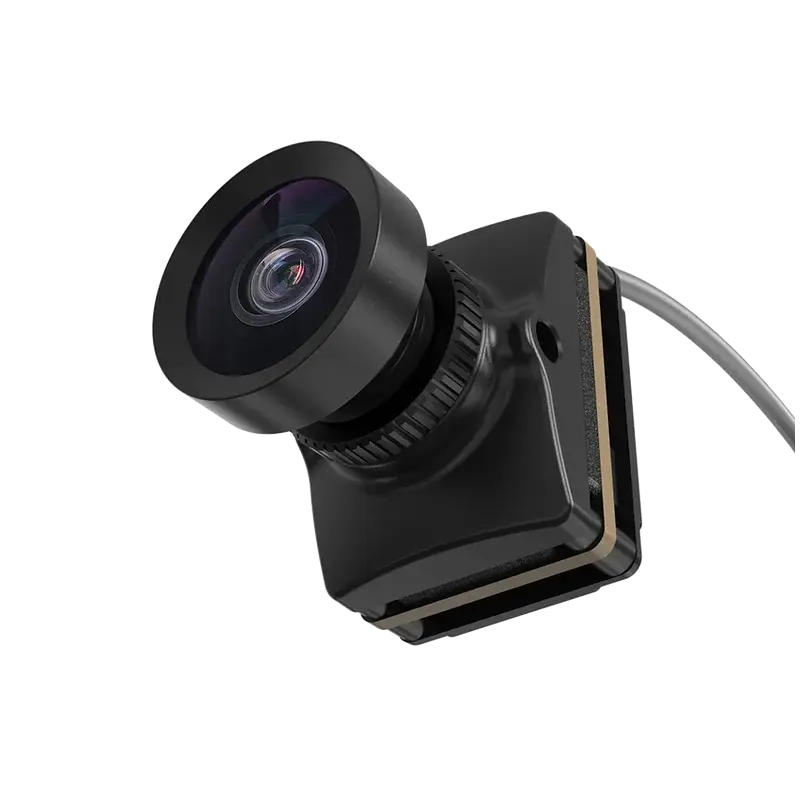

The HDZero Nano 90 V2 Camera builds on the Nano 90, the first 90fps camera for HDZero video transmitters. At 90fps HDZero shows a full frame 5ms faster than analog 60i video, and the manufacturer declares 3ms pixel latency and 14ms frame latency glass to glass with HDZero goggles. Combined with HDZero's extremely low latency, this gives racers and freestyle pilots an unmatched connected flying feel and a competitive edge on the race track. There are three video modes to choose from, 720x540 at 90fps (requires HDZero goggles), 720x540 at 60fps for better signal penetration and range, and 960x720 at 60fps. The camera uses a 1/3-inch sensor, and the V2 gets the new RC18D lens with a wider field of view than the original Nano 90 (162° diagonal, 132° horizontal and 101° vertical in 4:3, compared with 160°, 127° and 92°). It connects to HDZero video transmitters with a MIPI connector, such as the Whoop V2, Race V3 and Freestyle V2, and an 80mm MIPI cable is included. It weighs 5.2g without the cable and measures 18x14x18mm.
Key Features of the HDZero Nano 90 V2 Camera
90fps Video
720x540 at 90fps shows a full frame 5ms faster than analog 60i video (requires HDZero goggles).
3ms Pixel Latency
3ms pixel latency and 14ms frame latency glass to glass with HDZero goggles, as declared by the manufacturer.
Built for Racing
Sharper snap rolls and tighter lines around the gates at 90fps.
540p60 for Range
Reduces HDZero's video bandwidth for better signal penetration and range.
101° Vertical FOV
The RC18D lens gives 162° diagonal, 132° horizontal and 101° vertical in 4:3.
MIPI Connection
Connects to HDZero video transmitters with a MIPI connector, and an 80mm MIPI cable is included.
Video Modes of the HDZero Nano 90 V2 Camera
The camera supports three resolutions for different flying environments:
- 720x540 at 90fps (540p90), the fastest mode, requires HDZero goggles
- 720x540 at 60fps (540p60), a lower resolution for better signal penetration and range
- 960x720 at 60fps (720p60), the standard 720p resolution
Applications of the HDZero Nano 90 V2 Camera
The manufacturer designed the Nano 90 V2 for:
- FPV racing, where 90fps gives a competitive edge on the track
- Freestyle flying, including the 540p60 mode for better signal penetration and range
Frequently Asked Questions About the HDZero Nano 90 V2 Camera
The camera connects with a MIPI cable and works with HDZero video transmitters that have a MIPI connector, such as the Whoop V2, Race V3 and Freestyle V2. It can't be connected to the HDZero AIO5, AIO15 or Eco VTX, which take HD composite cameras over a single wire, such as the HDZero Eco and Lux.
Yes. According to the manufacturer, the 720x540 at 90fps mode requires HDZero goggles.
The manufacturer declares 3ms pixel latency and 14ms frame latency glass to glass with HDZero goggles. At 90fps HDZero shows a full frame 5ms faster than analog 60i video.
The RC18D lens gives a maximum field of view of 162° diagonal, 132° horizontal and 101° vertical in 4:3.
Specification of the HDZero Nano 90 V2 Camera
Model | HDZero Nano 90 V2 |
Image Sensor | 1/3 inch |
Interface | MIPI |
Lens | RC18D |
Resolution | 720x540@90fps 4:3, 720x540@60fps 4:3, 960x720@60fps 4:3 |
Latency | 3ms pixel, 14ms frame (glass to glass with HDZero goggles, manufacturer's declaration) |
Shutter | Rolling shutter |
Max FOV | D: 162°, H: 132°, V: 101° (4:3) |
Weight | 5.2g (without cable) |
Dimensions | 18x14x18mm |
Compatible With | HDZero VTX with a MIPI connector (Whoop V2, Race V3, Freestyle V2) |
Set HDZero Nano 90 V2 Camera Includes
- 1x HDZero Nano 90 V2 Camera
- 1x 80mm MIPI Cable
