HDZero BoxPro/BoxPro+ Goggle
HDZero BoxPro/BoxPro+ Goggle – Flagship Speed at a Box Goggle Price

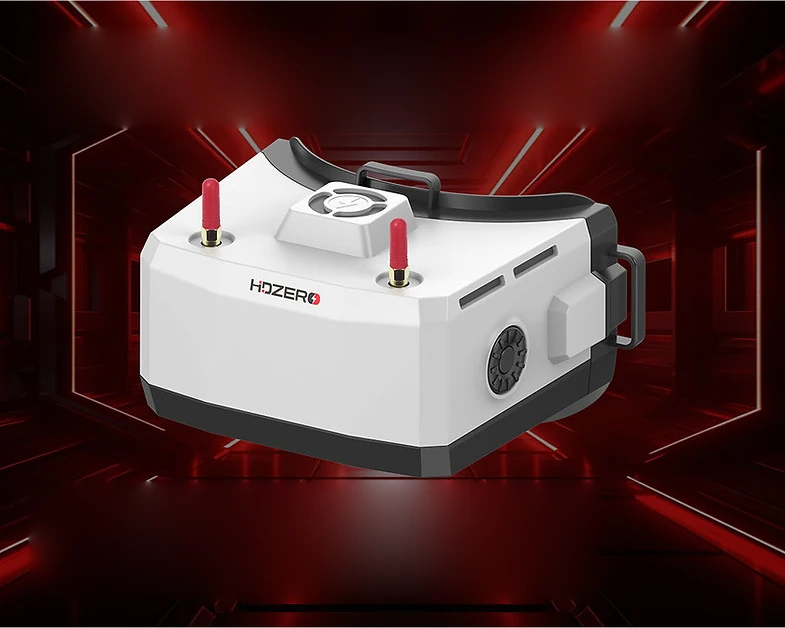

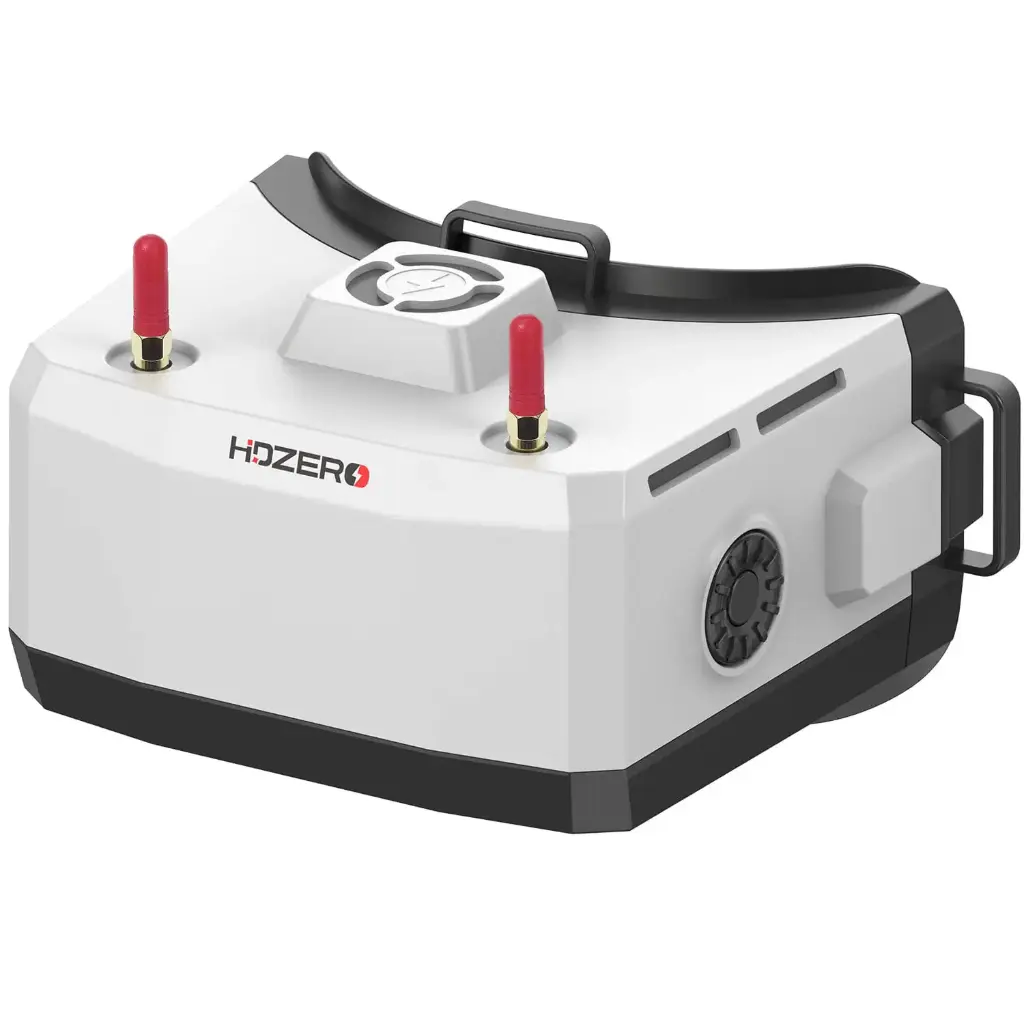

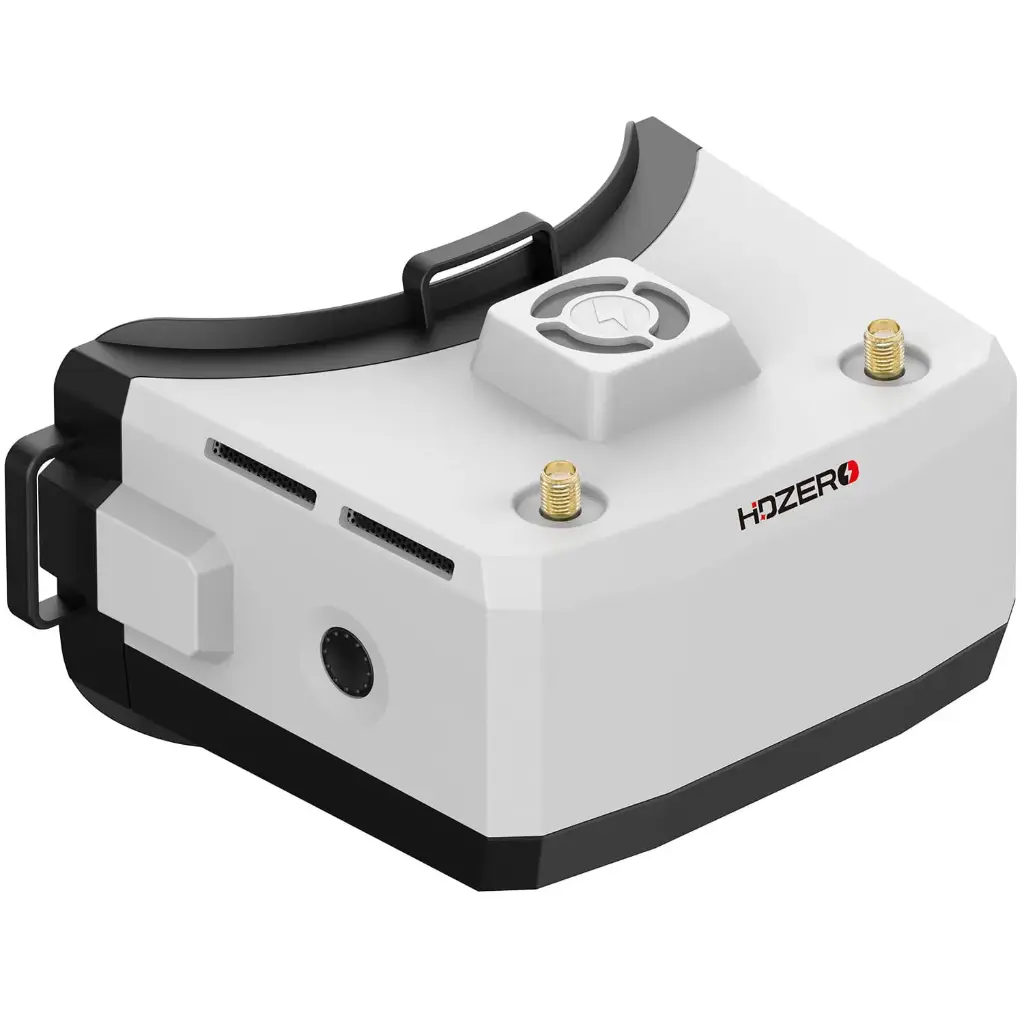

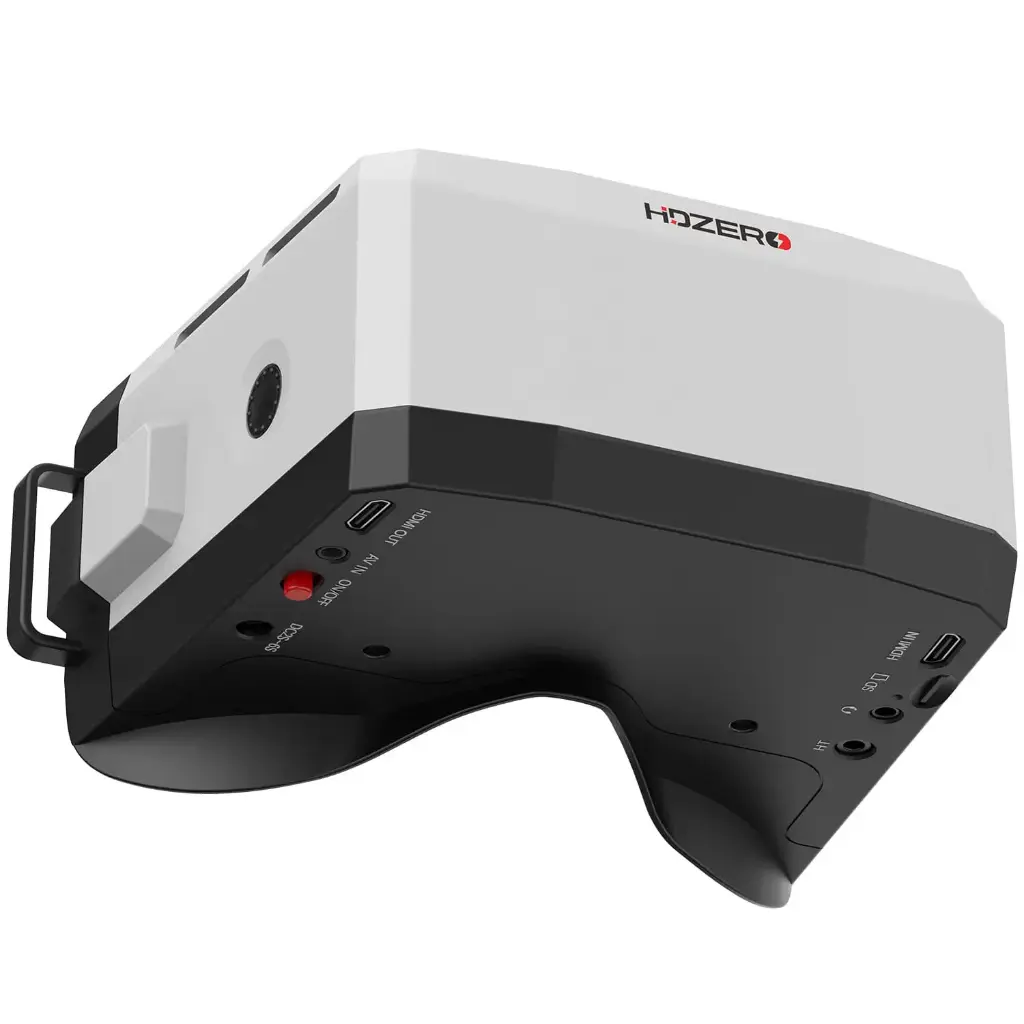

The HDZero BoxPro/BoxPro+ Goggle is a box-style FPV goggle for HDZero digital, analog and HDMI video, with the same input and output options as HDZero's flagship OLED goggle. Its 100Hz, 1800-nit LCD gives a 56° field of view, and according to the manufacturer the BoxPro is the only box goggle with both a 100Hz screen and a 100Hz HDMI input. The manufacturer declares latency of 1ms on the HDMI input, 3ms with an analog camera and 4ms with an HDZero camera. Inside you get an HDZero receiver supporting all HDZero modes, a high-sensitivity analog receiver with a real-time deinterlacer, four antennas (two built-in high-gain patch antennas and two included linear 5.8GHz SMA antennas), mini HDMI in and out, a 3.5mm AV input, a head tracker output and an H.265 DVR. The goggle is eyeglasses-friendly, runs on any 2S-6S pack through an XT60 connector and uses open-source, Linux-based software. It comes in two variants: BoxPro and BoxPro+(WIFI/ELRS), which adds WiFi video streaming and a built-in ESP32 ExpressLRS backpack.
Key Features of the HDZero BoxPro/BoxPro+ Goggle
100Hz, 1800-Nit LCD
A bright, fluid 100Hz screen that stays clear even in direct sunlight.
56° Field of View
A wide 56° view for a sharp, immersive picture.

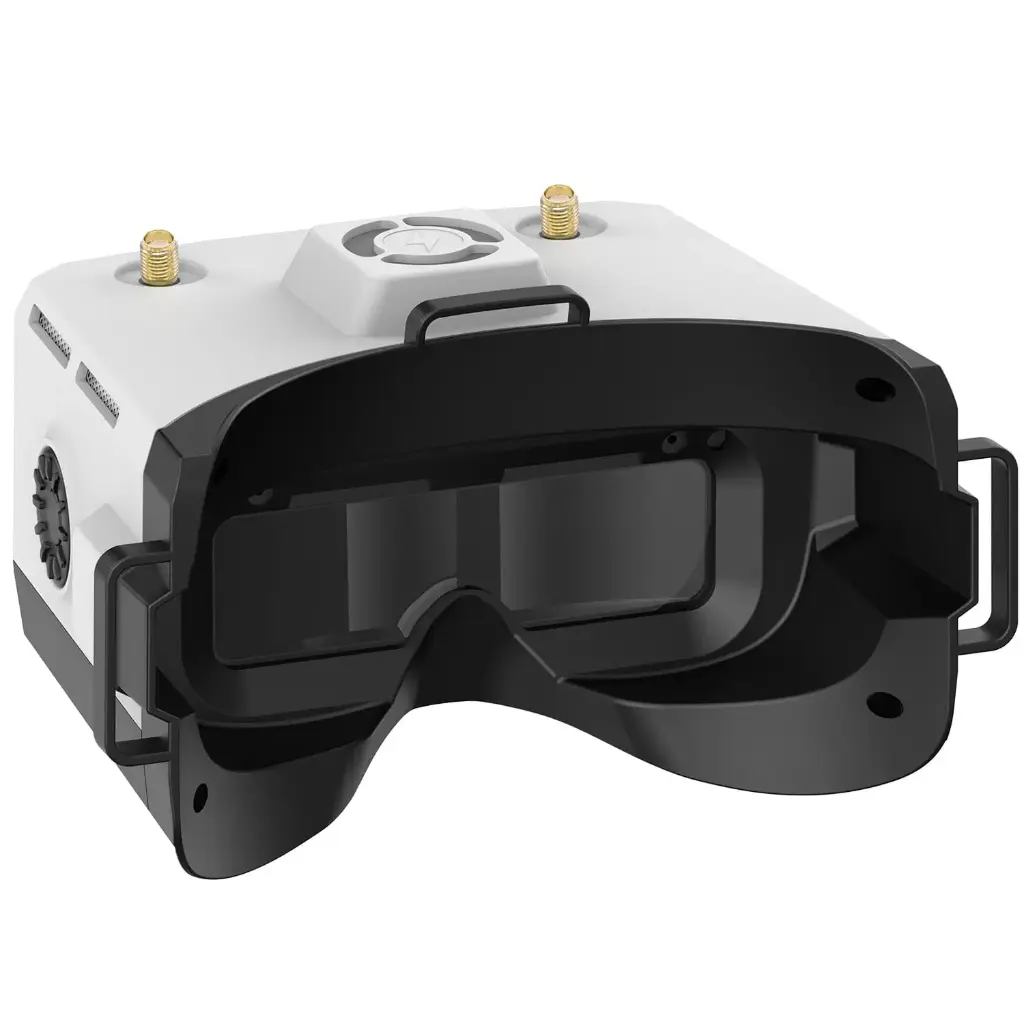

Room for Your Glasses
Prescription glasses fit inside the goggle, and an optional diopter insert can be made to order by the manufacturer and screwed into the faceplate.
Four Antennas
Two built-in high-gain patch antennas plus two included linear SMA antennas on recessed SMA connectors.
H.265 DVR
Record HDZero, analog and HDMI video in automatic or manual mode, with sound from the built-in mic, line-in or AV-in.
Smooth Menu Navigation
A smooth side control makes moving through the menus quick.
Adjustable Cooling Fan
An adjustable-speed fan cools the internals and helps prevent fogging.
2S-6S Power
Runs on any 2S-6S pack through the included 1200mm XT60 cable, and the head strap has a battery pocket.
Why Choose HDZero
HDZero was designed with the FPV community, for the FPV community. Its digital link gives the smoothest, most connected flying feel with clear video that is immune to warping, color shifting and image rolling. HDZero's one-way broadcast doesn't interfere with nearby pilots, so you can fly with friends, and the goggle software and CAD files are open source, so the community can keep improving them. With analog and HDMI support on top, the BoxPro grows with you, from a small analog tiny whoop to 90Hz HDZero racing.
Built for Speed

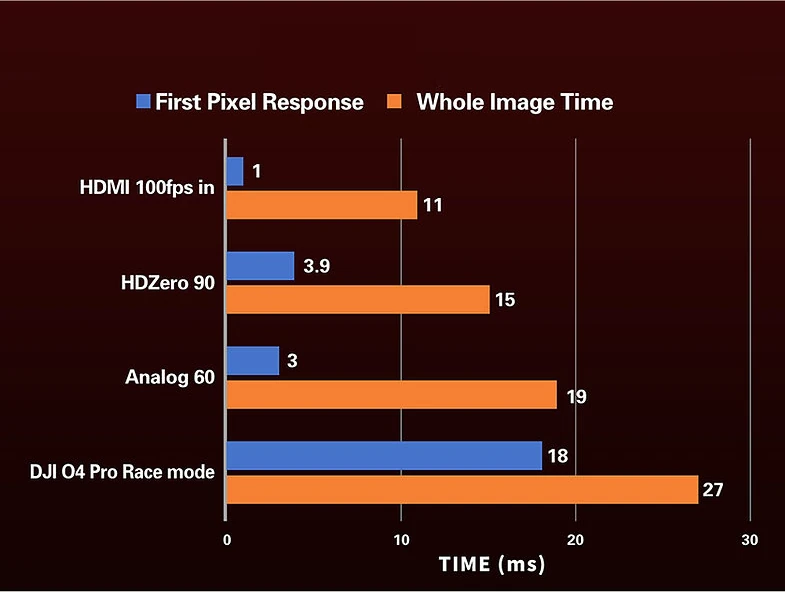

For racing, the time between the camera and your eyes matters more than anything else. The manufacturer declares latency of just 1ms on the HDMI input, 3ms with an analog camera and 4ms with an HDZero camera, and its latency chart compares the HDZero 90fps link (3.9ms to first pixel, 15ms to the whole image) with DJI O4 Pro in Race mode (18ms and 27ms). All figures are as declared by the manufacturer.
Analog Built Right In

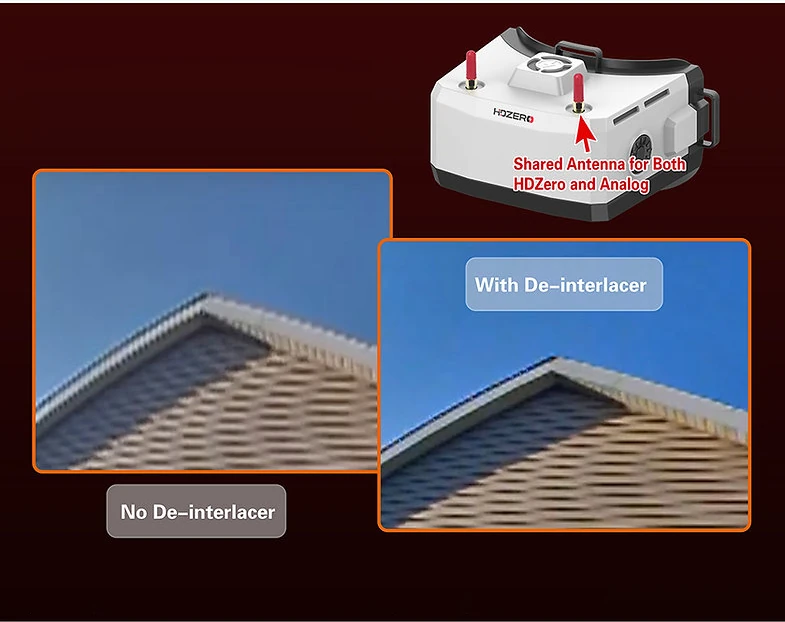

A high-sensitivity analog receiver is built in and shares its antennas with the HDZero receiver, so your analog quads keep flying without an extra module. A real-time deinterlacer improves the analog picture's resolution.
One Goggle for Every Signal

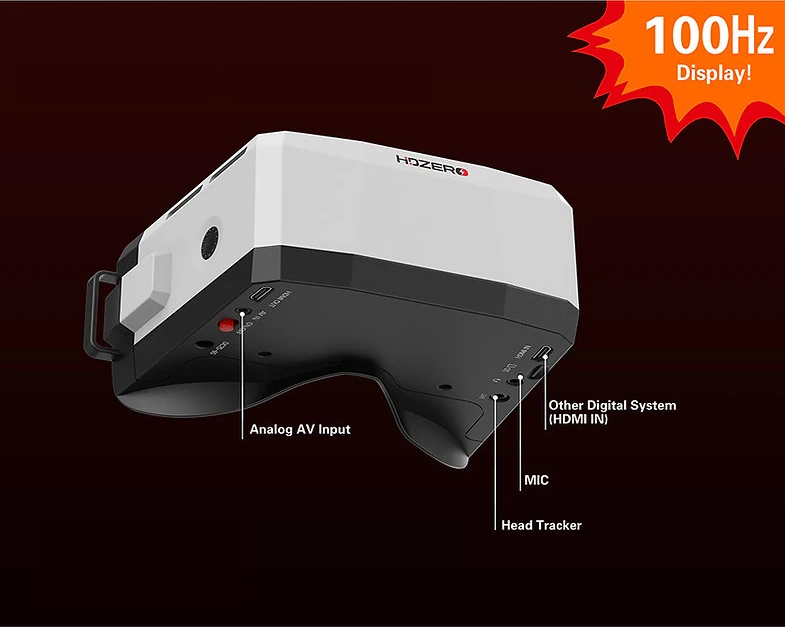

HDZero digital, analog and HDMI video all run through one goggle. The mini HDMI input takes video from another digital system, the 3.5mm AV input accepts an analog source, and there's a mini HDMI output, a head tracker output, a built-in microphone and line in/out as well.
BoxPro or BoxPro+
Both variants share the same screen, receivers, connections and DVR. BoxPro+(WIFI/ELRS) adds two upgrades: WiFi video streaming to a smartphone, tablet or computer (VLC or the FPV Mate app on iPhone, VLC on Android, PC and Mac), and a built-in ESP32 ExpressLRS backpack that links the goggle with your ELRS radio to sync the video channel, start and stop the DVR and use wireless head tracking. Choose BoxPro if you want the core HDZero experience, and BoxPro+ if you fly an ELRS radio or want to share your flights live.
Feature | BoxPro | BoxPro+(WIFI/ELRS) |
HDZero digital receiver | Yes | Yes |
Built-in analog receiver | Yes | Yes |
100Hz, 1800-nit LCD, 56° FOV | Yes | Yes |
HDMI in/out, AV in, H.265 DVR | Yes | Yes |
Head tracker output | Yes | Yes |
WiFi video streaming | No | Yes |
ESP32 ExpressLRS backpack | No | Yes |
ELRS backpack and WiFi streaming are available on BoxPro+(WIFI/ELRS) only.
Applications of the HDZero BoxPro/BoxPro+ Goggle
Low latency, a bright 100Hz screen and support for digital, analog and HDMI video make this goggle a strong choice for:
- FPV racing, where every millisecond of latency counts
- Pilots moving from analog to HDZero digital without giving up their analog drones
- Flying in bright sunlight, thanks to the 1800-nit screen
- Pilots who wear prescription glasses
- Group flying, where HDZero's one-way broadcast doesn't interfere with other pilots
Frequently Asked Questions About the HDZero BoxPro/BoxPro+ Goggle
Yes. A high-sensitivity analog receiver is built in and shares its antennas with the HDZero receiver, with a real-time deinterlacer for a better analog picture. You can also connect an analog source to the 3.5mm AV input.
The only digital receiver built in is HDZero. Walksnail can be used through the mini HDMI input, by feeding in the video from Walksnail's own receiver. DJI is a closed ecosystem and doesn't work with other systems, so DJI video can't be used with this goggle.
Yes. The goggle is eyeglasses-friendly, so prescription glasses fit inside. If you prefer, the manufacturer can also make an optional diopter lens insert to order, matched to your prescription and screwed into the faceplate.
No. It runs on an external 2S-6S pack through the XT60 connector, using the 1200mm XT60 cable included in the set, and the head strap has a battery pocket. The battery itself is not included.
Yes. The built-in H.265 DVR records HDZero, analog and HDMI video at 1280x720p60, 1280x720p90, 1280x720p100 or 1920x1080p60, in automatic or manual mode, with sound from the built-in mic, line-in or AV-in.
Yes. The 1800-nit LCD is designed for crystal-clear visuals even in direct sunlight.
Yes. The goggle runs on an open-source, Linux-based platform with full access to the user-interface code, and its design documents are published on GitHub. Community-driven development keeps improvements and support coming.
Specification of the HDZero BoxPro/BoxPro+ Goggle
Display | LCD, 100Hz, 1800 nits |
Field of View | 56° |
Latency | HDMI input 1ms, analog camera 3ms, HDZero camera 4ms |
Receivers | HDZero digital (all HDZero modes), built-in high-sensitivity analog |
Antennas | 2x built-in high-gain patch, 2x linear 5.8GHz SMA (included) |
Video Inputs | Mini HDMI in, 3.5mm AV in |
Video Output | Mini HDMI out |
Head Tracker | Head tracker output |
DVR | H.265 (HDZero, analog, HDMI), automatic and manual modes |
Recording Resolutions | 1280x720p60, 1280x720p90, 1280x720p100, 1920x1080p60 |
Recording Audio | Built-in mic, line-in, AV-in |
WiFi Video Streaming | BoxPro+(WIFI/ELRS) only (VLC, FPV Mate on iPhone) |
ELRS Backpack | BoxPro+(WIFI/ELRS) only (ESP32) |
Input Voltage | 2S-6S via XT60 |
Cooling | Adjustable-speed fan |
Software | Linux-based, open source |
Shell Color | White |
Set HDZero BoxPro/BoxPro+ Goggle Includes
- 1x HDZero BoxPro or BoxPro+(WIFI/ELRS) Goggle, depending on the selected variant
- 2x Linear 5.8GHz SMA Antenna
- 1x Foam Face Pad
- 1x Adjustable Head Strap with Battery Pocket
- 1x 1200mm XT60 Power Cable
- 1x Canvas Goggle Bag
- 1x Lens Cleaning Cloth
