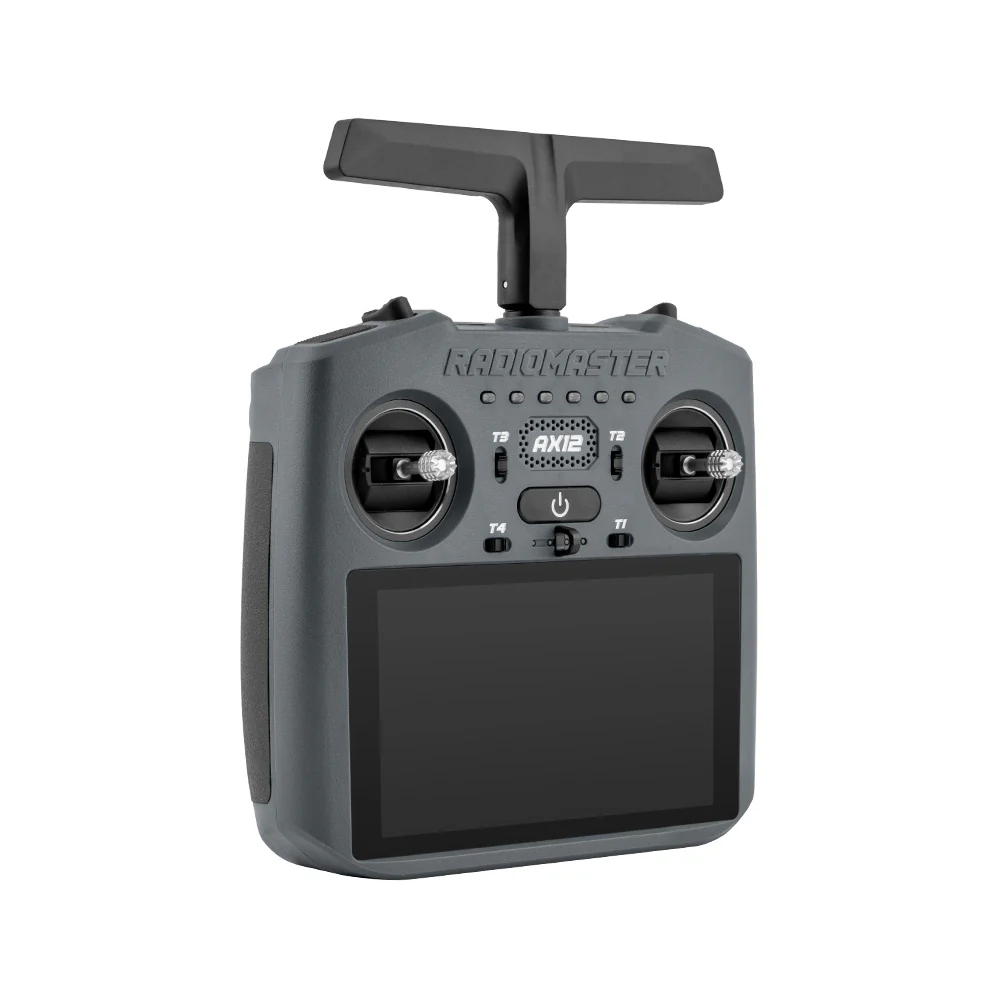

RadioMaster AX12 Android Radio Controller ELRS
Control, Telemetry and Apps in One Platform – RadioMaster AX12 Android Radio Controller ELRS
RadioMaster AX12 Android Radio Controller ELRS expands the capabilities of a conventional transmitter with RadioMasterOS based on Android 9.0. It lets users control models, monitor telemetry, configure supported systems, and run compatible mission-planning or utility applications without relying on a separate phone or tablet. Integrated ExpressLRS, HDMI input and output, advanced model programming, and open app support make it suitable for FPV flying, professional imaging, autonomous platforms, and complex custom RC projects.
5.5-Inch Touchscreen
The 1280 × 720 HD IPS display provides a sharp view of settings, telemetry, compatible apps, and supported video feeds. Its 1000-nit brightness improves visibility outdoors, while the responsive touchscreen makes navigation and field adjustments faster and more intuitive.

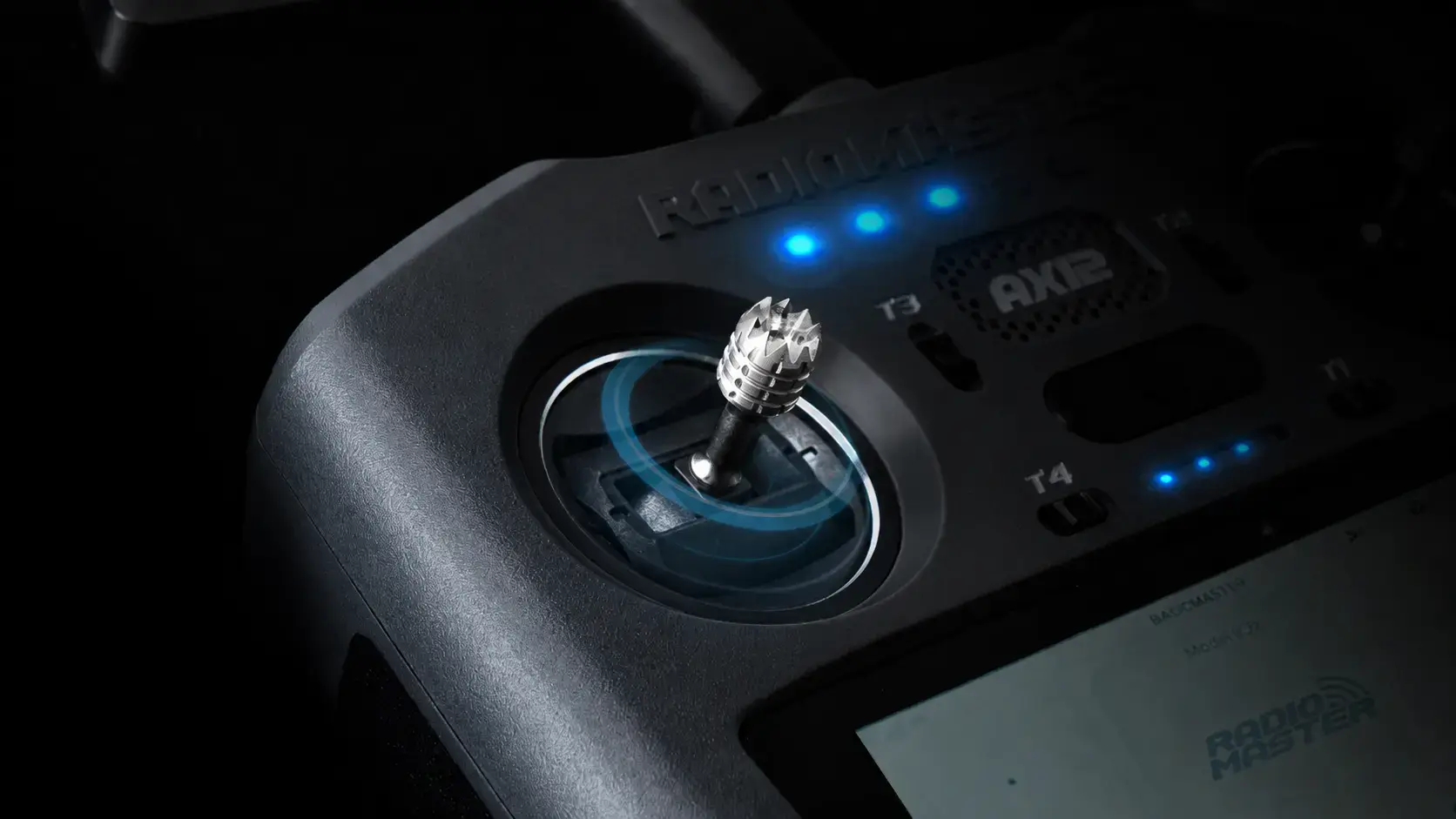

X5 Hall Gimbals
X5 gimbals use contactless Hall sensors to deliver smooth and stable stick input. They support precise flying, filming, and control of complex models, while the removable stick ends can be stored directly inside the transmitter when required.

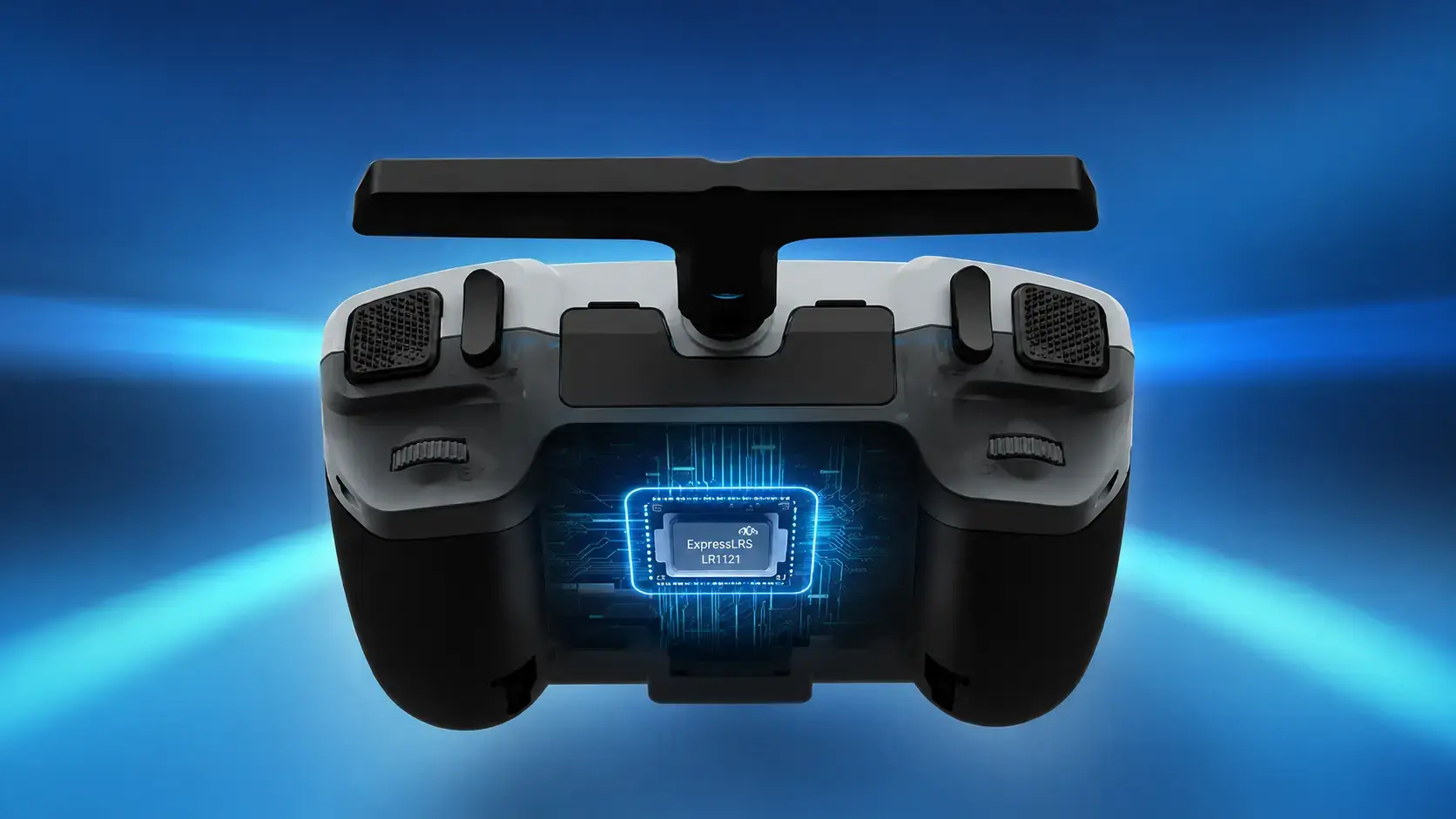

Integrated ExpressLRS
The built-in LR1121-based module supports operation on 2.4 GHz or Sub-G 900 MHz, depending on the selected configuration and compatible receiver. It provides up to 16 control channels and supports Wi-Fi OTA firmware updates for convenient system maintenance.

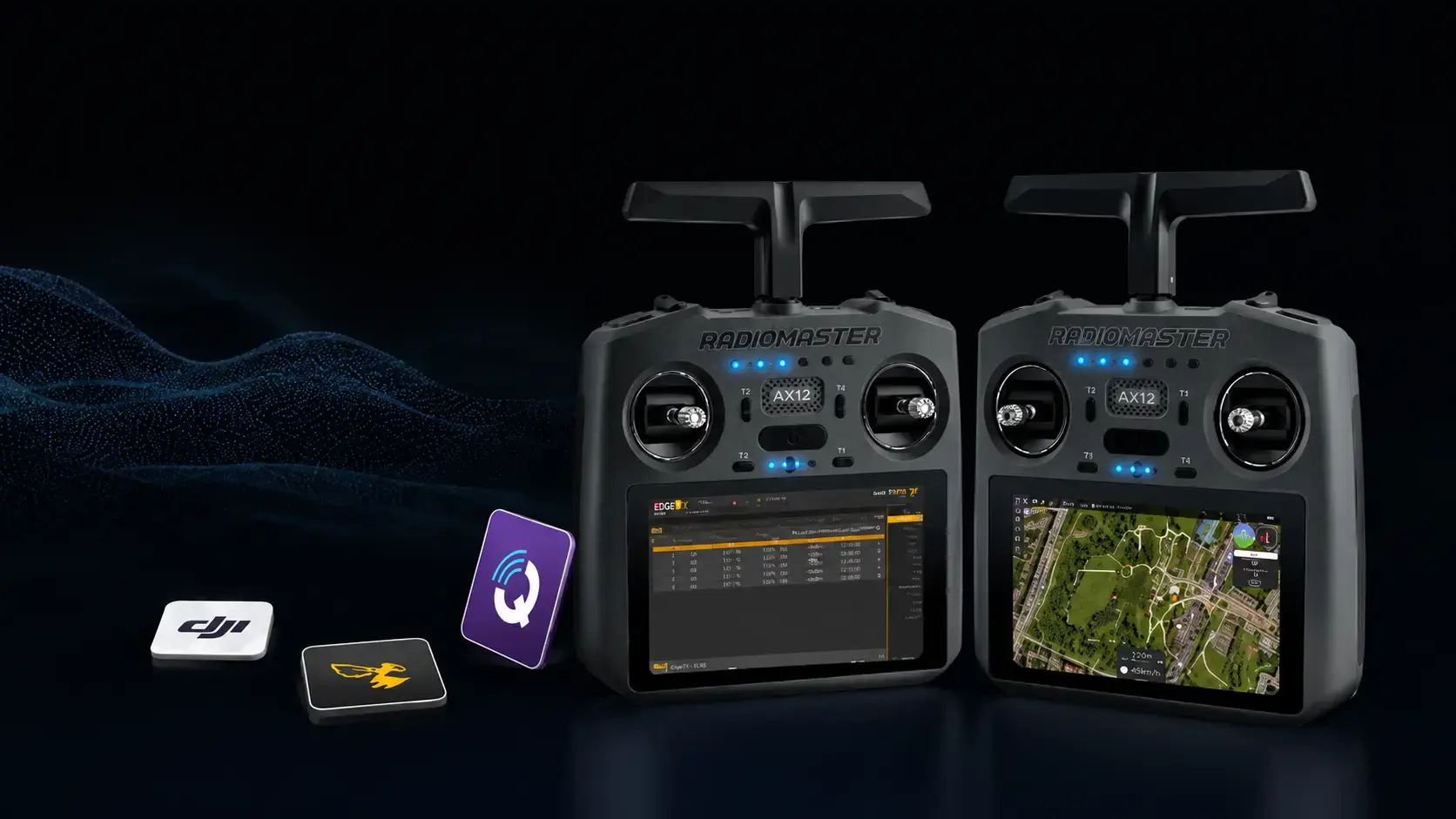

Integration with Tuning and Mission Apps
RadioMasterOS can run compatible configuration, telemetry, and mission-planning applications directly on the transmitter display. Wi-Fi MAVLink passthrough supports workflows with applications such as QGroundControl and Betaflight Configurator, reducing the need to carry a separate phone or laptop.
Other RadioMaster Radios
RadioMaster Zorro ELRS MKII
RadioMaster TX12 MKII ELRS
RadioMaster TX16S MKII ELRS
RadioMaster AX12 Android Radio Controller ELRS Diameter
RadioMaster AX12 Android Radio Controller ELRS Specifications
Model | AX12 Remote Controller |
Working Current | 1.10A |
Frequency | 2.400GHz |
Internal RF | ExpressLRS 2.4GHz |
Supported Protocols | Express-LRS |
Channels | Up to 16 |
Display | 5.5" HD Touchscreen (1280 x 720) |
Device Firmware | RadioMaster OS |
Charging | USB Power Delivery |
Gimbals | High-Precision X5 Hall Effect Gimbal |
Gimbal Sticks | Removable and Storable |
Internal Storage | Integrated 64GB of Onboard Flash Memory |
External Module Support | Nano Module Bay |
Battery | Dual 3.7V 21700 Lithium Batteries (built-in) |
Firmware Upgrade | Online Automatic Updates via Wi-Fi |
Dimensions | 171mm x 168mm x 73mm |
Weight | 640g |

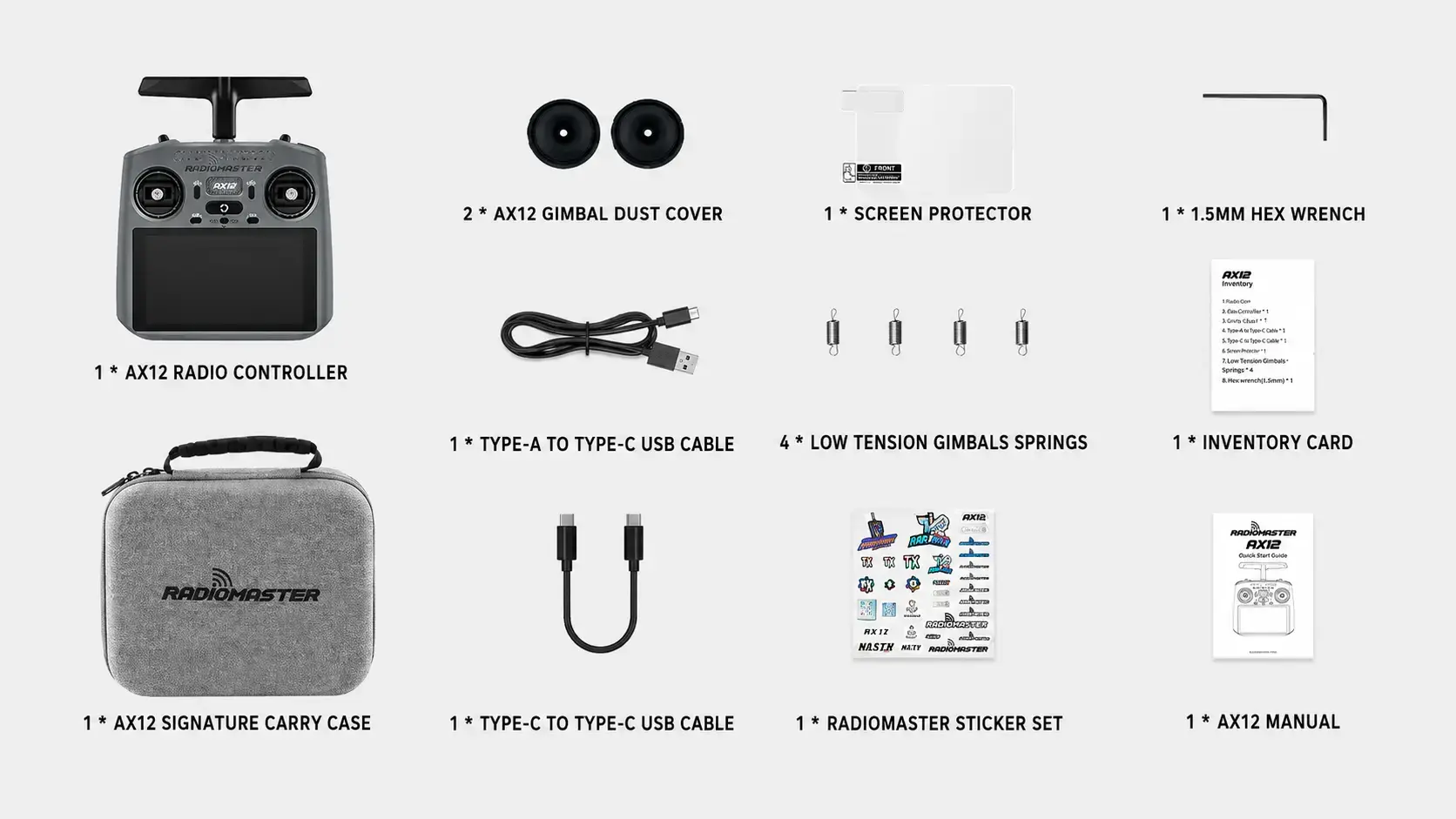

RadioMaster AX12 Android Radio Controller ELRS Package Includes
- 1x RadioMaster AX12 Android Radio Controller ELRS
- 2x AX12 Gimbal Dust Cover
- 1x Screen Protector
- 1x 1.5 mm Hex Wrench
- 1x Type-A to Type-C USB Cable
- 4x Low Tension Gimbal Springs
- 1x Inventory Card
- 1x AX12 Signature Carry Case
- 1x Type-C to Type-C USB Cable
- 1x RadioMaster Sticker Set
- 1x AX12 Manual
