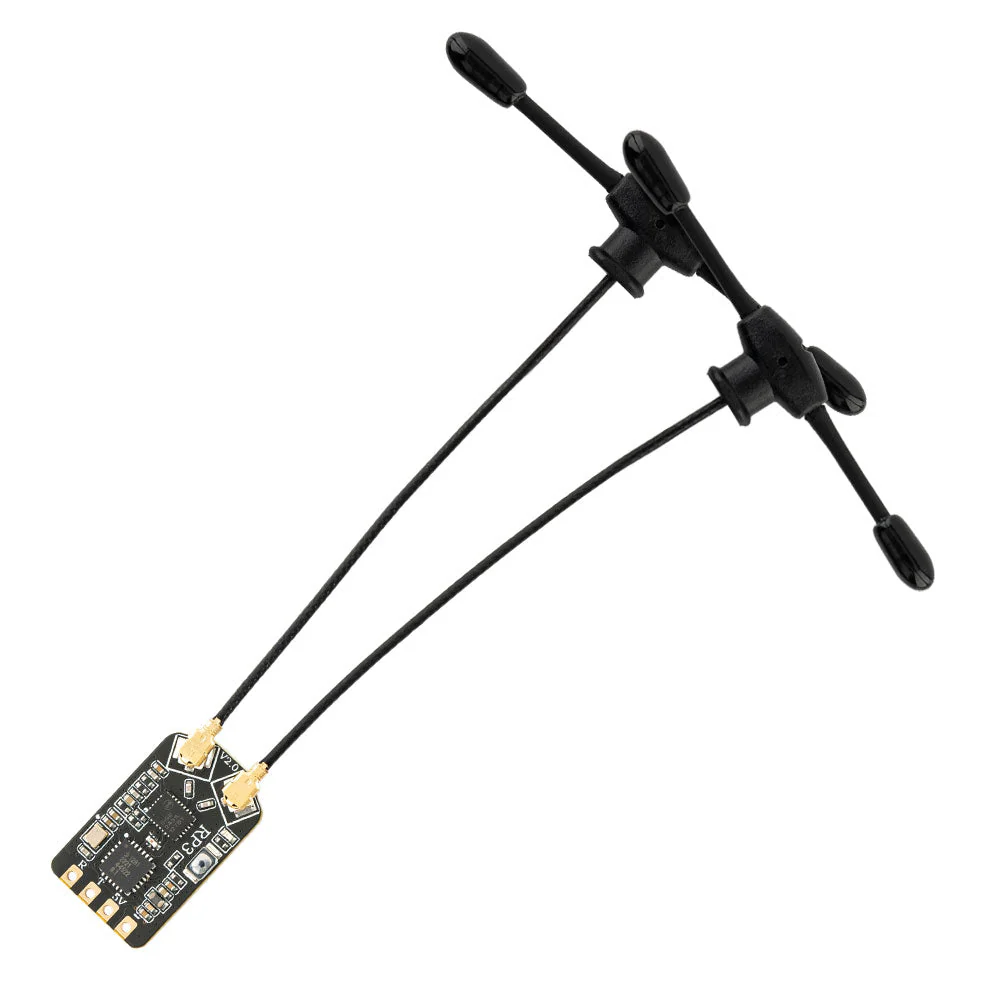

RP3 V2 ExpressLRS 2.4GHz Nano Receiver equips with TCXO
RadioMaster RP Series receivers now feature TCXO (temperature-compensated quartz oscillator) for reliable, stable and accurate signal reception, enabling excellent performance in demanding environments and enhancing the flight experience.
Easy to use and long range!
The RadioMaster RP receiver series is designed for small size, ease of use and long range. Using ExpressLRS 2.4ghz open-source software, the RP nano receiver series provides the features and range that today's pilots expect.
Developed RP3 V2 based on ESP8285 MCU and SX1280IMLTRT RF Chip offers Lora and FLRC 2.4 GHz RF links that give amazing range and low latency. With built-in Wifi, updates can be performed on the unit without removing the receiver. Pairing can be done with a bind phrase, which means no more bind plugs or awkward button presses when trying to connect batteries.
The RP3 receiver is equipped with Skyworks SE2431L chip providing LNA for better receiver performance, PA providing up to 100 mW of telemetry performance and antenna switching for antenna diversity.
TCXO (temperature-compensated quartz oscillator)
TCXO provides high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even under extreme temperature conditions. It also reduces frequency drift over time, ensuring long-term frequency stability and preventing signal degradation.
RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver Features
- Optimized PCB design for better heat dissipation.
- LNA for better receiver range.
- PA for better telemetry range.
- Antenna Diversity for improved signal stability and range.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver Specification
- Model: RP3 Diversity Receiver
- Type: ISM
- MCU: ESP8285
- RF Chip: SX1281
- Telemetry RF Power: Max 100mW
- Antenna: 65mm 2.4ghz T Antenna x 2
- Frequency Range: 2.404 – 2.479 GHz
- Maximum Receiver Refresh Rate: 500Hz / F1000Hz
- Minimum Receiver Refresh Rate: 25Hz
- Working Voltage: 5v
- Weight: 4.6g (Including two antennas)
- Dimension: 22mm*13mm*4mm
- Firmware Version: ExpressLRS v3.0 pre-installed
- FW Target: RadioMaster RP3 Diversity 2400 RX
- Bus interface: CRSF

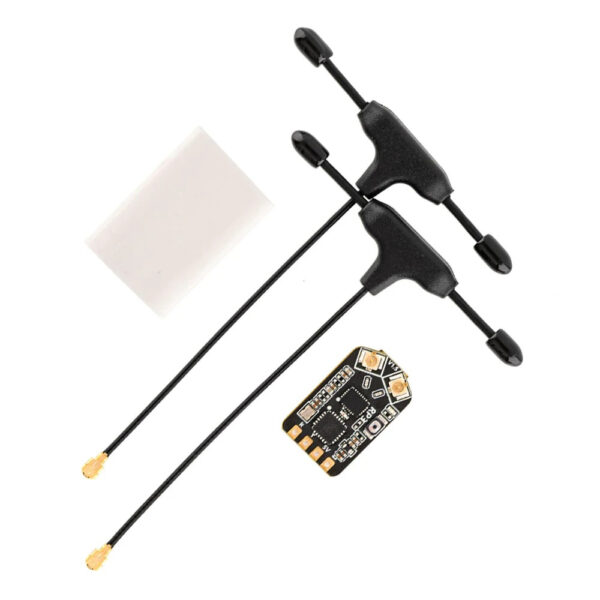

RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver Package Include
- 1x RadioMaster RP3 V2 ExpressLRS 2.4GHz Nano Receiver
- 2x 65mm UFL 2.4Ghz T Antenna
- 1x User Manual
- 1x CRSF wire
