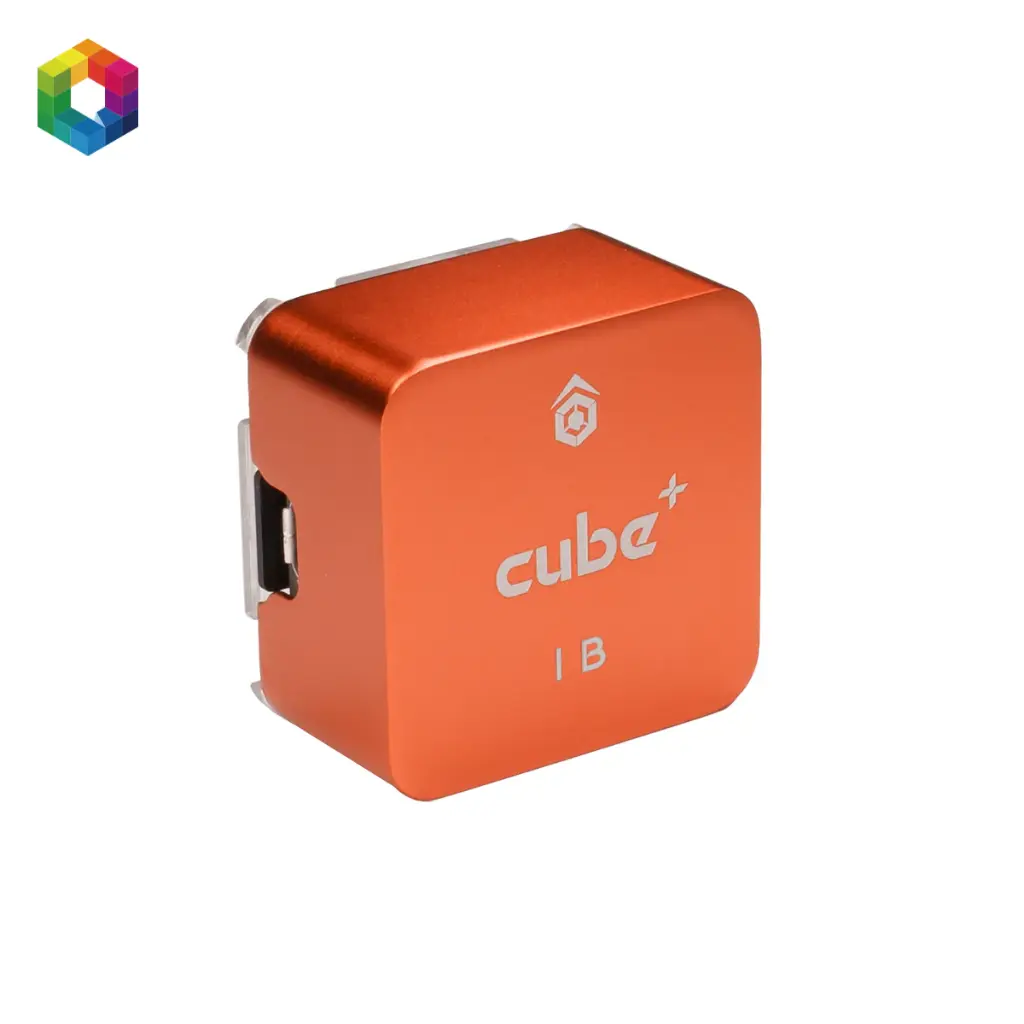

The Cube Orange+ IB

The Cube Orange+ IB runs the exact same STM32H757 flight management unit and triple-redundant IMU sensor set as the standard Cube Orange+, but adds firmer internal vibration-damping foam and removes the counterweight. This gives it better isolation from the stronger vibration produced by combustion (gas) engines, making it the right choice for combustion-powered platforms rather than the electric-motor setups the standard module is tuned for. It connects through the same 80-pin DF17 connector, so it works with any CubePilot-compliant carrier board, and shares the same rich I/O set as the rest of The Cube family.

1,178.86 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

The Cube Orange+ IB Adds Extra Vibration Isolation for Combustion-Engine Platforms

The Cube Orange+ IB runs the exact same electronics as the standard Cube Orange+ — the same STM32H757 flight management unit, the same triple-redundant IMU sensor set — but adds firmer internal vibration-damping foam and removes the counterweight used on the standard module. This gives it better isolation from the stronger, lower-frequency vibration produced by combustion (gas) engines, making it the right choice for combustion-powered platforms rather than the electric-motor setups the standard Cube Orange+ is tuned for.

Key Features of The Cube Orange+ IB

Powerful STM32H757 processor
2MB flash, 1MB RAM — identical to the standard Cube Orange+ FMU.

Triple redundant IMUs
Three IMUs, two barometers, and a magnetometer for reliable state estimation.

Enhanced vibration isolation
Firmer damping foam, no counterweight — built for combustion-engine platforms with a stronger vibration profile.

Standard DF17 connector
Plug-and-play with any CubePilot-compliant carrier board.

Frequently Asked Questions About The Cube Orange+ IB

The electronics are identical. The Cube Orange+ IB has firmer internal vibration-damping foam and no counterweight, giving it better isolation from the stronger vibration produced by combustion engines. The standard Cube Orange+ is tuned for electric-motor platforms.

Choose the Cube Orange+ IB if your platform is powered by a combustion (gas) engine — its vibration isolation is built for that stronger vibration profile. For electric-motor platforms, the standard Cube Orange+ remains the right choice.

No. As of 27 August 2026, The Cube Orange+ IB is sold without a microSD (uSD) card. If your configuration needs one, order it separately.

The Cube Orange+ IB uses the same 80-pin DF17 connector as the rest of The Cube family, so it works with any CubePilot reference-design carrier board, including the Mini Carrier Board.

I/O and Connectivity on The Cube Orange+ IB

The Cube Orange+ IB shares the same I/O layout as the rest of The Cube family:

14 PWM servo outputs (8 from the I/O chip, 6 from the FMU)
R/C input for CPPM, Spektrum/DSM, and S.Bus
S.Bus servo output and an analog/PWM RSSI input
5 general-purpose serial ports, two with full flow control
2 I2C ports and 1 SPI port
2 CAN Bus interfaces
3 analog inputs
Redundant power supply with automatic failover
Safety switch/LED and a high-power RGB LED driver

The Cube Orange+ IB Specification

Microcontroller	STM32H757
Flash memory	2MB
RAM	1MB
Built-in memory	16KB SPI FRAM
Failsafe processor	32-bit failsafe co-processor
IMUs	3x redundant (MPU9250 or ICM 20xxx), temperature-controlled and vibration-isolated
Barometers	2x MS5611
Magnetometer	1x
Sensor connection	via SPI
microSD interface	via SDIO
Dimensions	38.25 x 38.25 x 22.3mm
Vibration damping	Firmer foam, no counterweight — tuned for combustion-engine vibration (vs. the standard Cube Orange+, tuned for electric motors)
Connector	80-pin DF17

The Cube Orange+ IB Package Includes

1x The Cube Orange+ IB (Pixhawk 2.1)

NOTICE

Important notice – package contents update

As of 27 August 2026, The Cube Orange+ IB is sold without a microSD (uSD) card. If a microSD card is required for your configuration, please purchase it separately.
