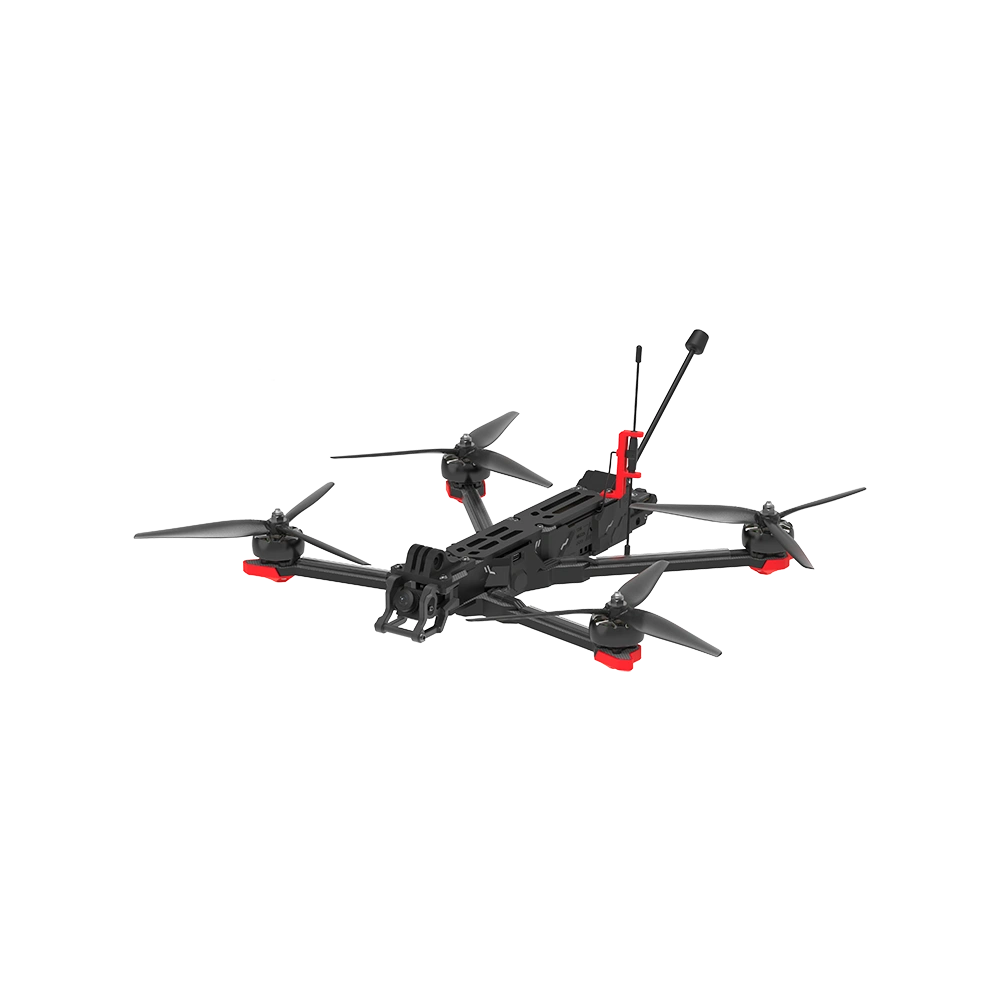

iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter
The KING of Long Range FPV! A super-efficient iFlight 7.5 inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the Swiss Alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5 inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a LiPo or Li-ion pack will just do the job.
iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter: The Ultimate Long-Range FPV Drone
The iFlight Chimera 7 Pro V2 is designed for enthusiasts seeking unparalleled performance in long-range FPV flying. This advanced drone features a robust 7-inch frame, optimized for stability and agility, making it perfect for both racing and cinematic captures. With a powerful 6S battery compatibility, it delivers extended flight times and impressive speed. The drone is equipped with high-quality analog video transmission, ensuring crystal-clear signal during your flights. Its lightweight design and durable construction allow for easy maneuverability, while the customizable settings cater to both beginners and experienced pilots. Elevate your FPV experience with the iFlight Chimera 7 Pro V2, where innovation meets reliability.

Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets, and our XING O-ring bushing gap protection.
Latest Chimera7 Pro Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.
iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter Specifications
Geometry | DC (DeadCat) |
FC | BLITZ F722 Flight Controller |
ESC | BLITZ E55 4-IN-1 2-6S 55A ESC |
Video Transmission | BLITZ Whoop 1.6W VTX |
Receiver | No receiver version: No receiver included. Add your own supporting SBUS or Serial connection e.g Crossfire, FrSky, ELRS TBS receiver version: TBS Crossfire Nano RX 915/868MHz with Immortal T antenna
|
Frame | 327mm wheelbase |
Motor | XING2 2809 1250KV motors |
Prop | 7.5X3.7X3 propellers / HQ 7.5x3x3 propellers |
Weight | 705g (Without Battery) |
Dimensions (L×W×H) | 270x199x34±2mm |
Maximum Takeoff Altitude | 7000 m |
Max Hover Time | Approx. 30 mins (With 21700 6S 8000mAh Battery no load) |
Max Wind Speed Resistance | 130 km/h |
Operating Temperature Range | -10° to 40° C (14° to 104° F) |
Transmission Power (EIRP) | FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm |
Antennas | Single Antennas |
GNSS | GPS+SBAS+Galileo+QZSS+Glonass |
Video Transmission System
Product Name | BLITZ Whoop 5.8G 1.6W VTX |
Output Power | PIT/25mW/400mW/800mW/1600mW |
Input Volts | 12V |
Working Current | ≤PIT @40mA,≤25mw@150mA,≤400mw@330mA,≤800mw@460mA,≤1600mw@660mA |
Transmission fre | 40CH (A-B-E-F-R) |
Antenna Interface | IPEX |
Mounting Hole | 25*25/φ1.6mm |
Weight | 16.5g (Antenna not included) |
Dimensions | 37mm*31.5mm*10mm |
Package iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter Includes
