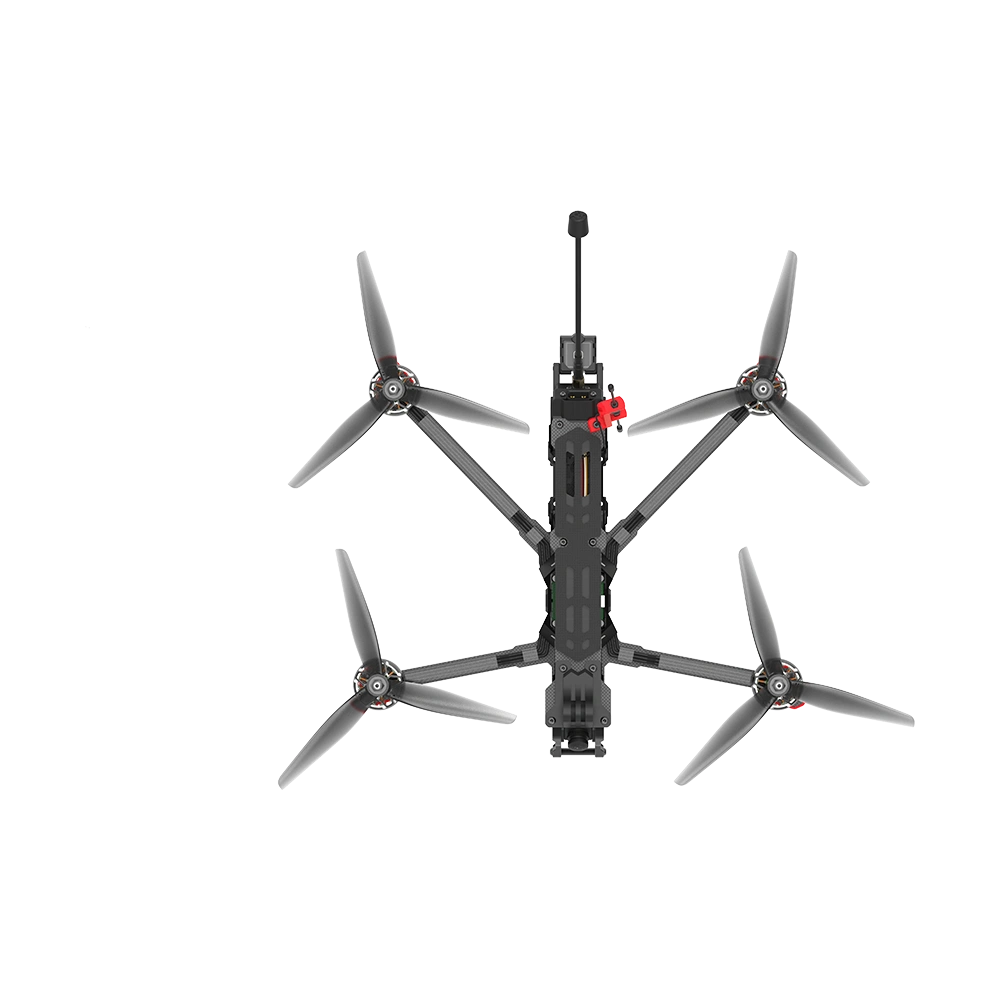

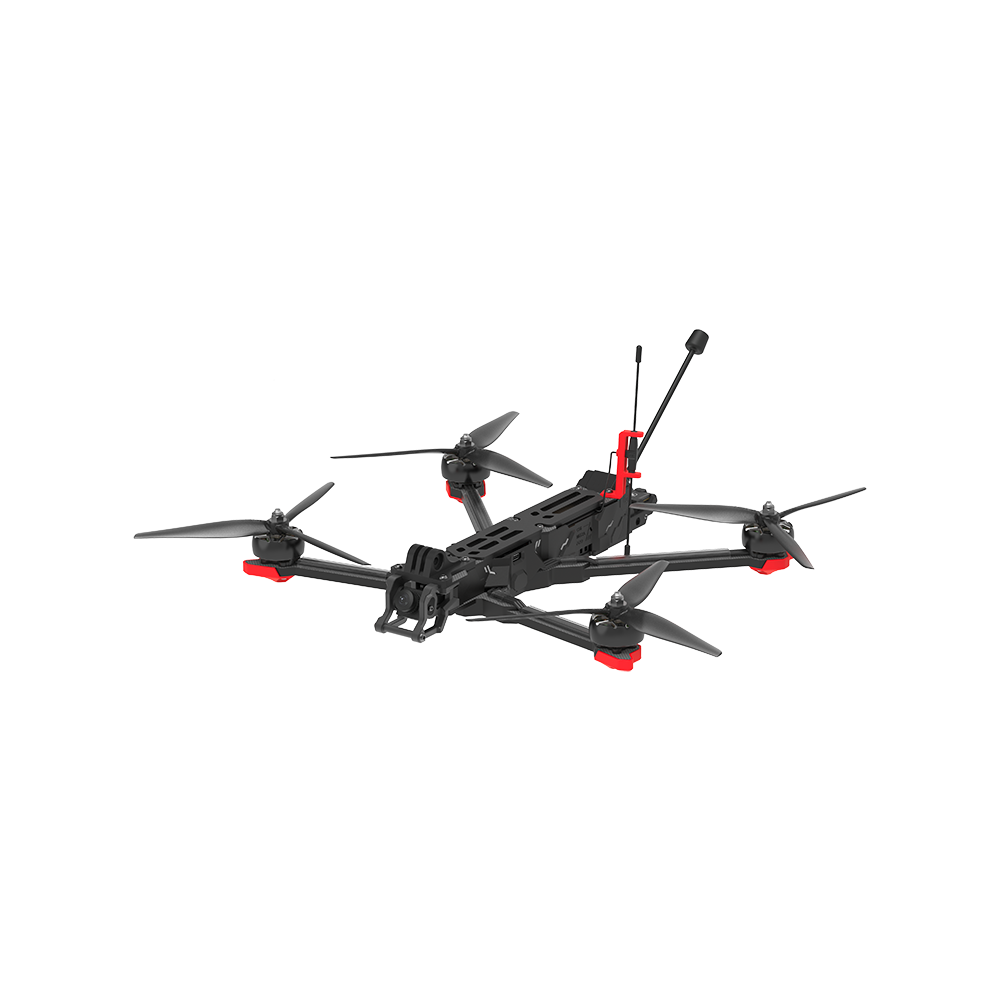

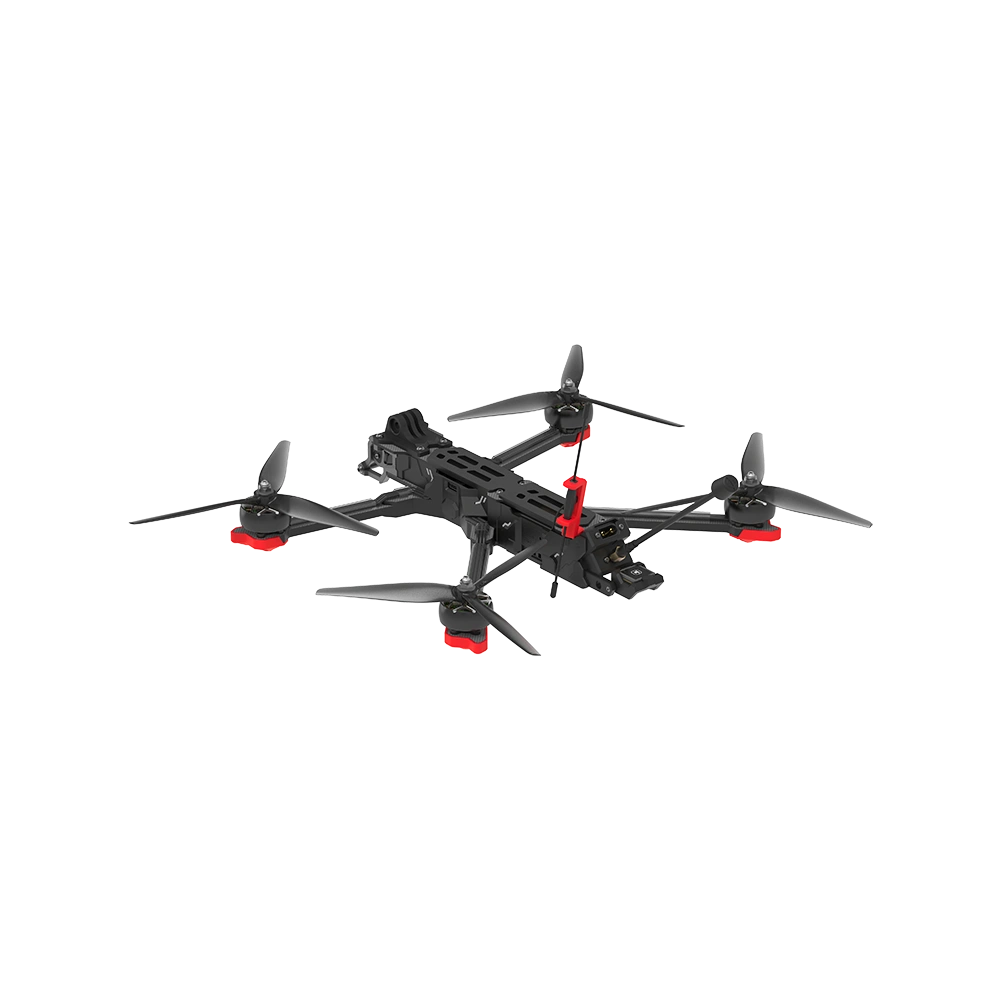

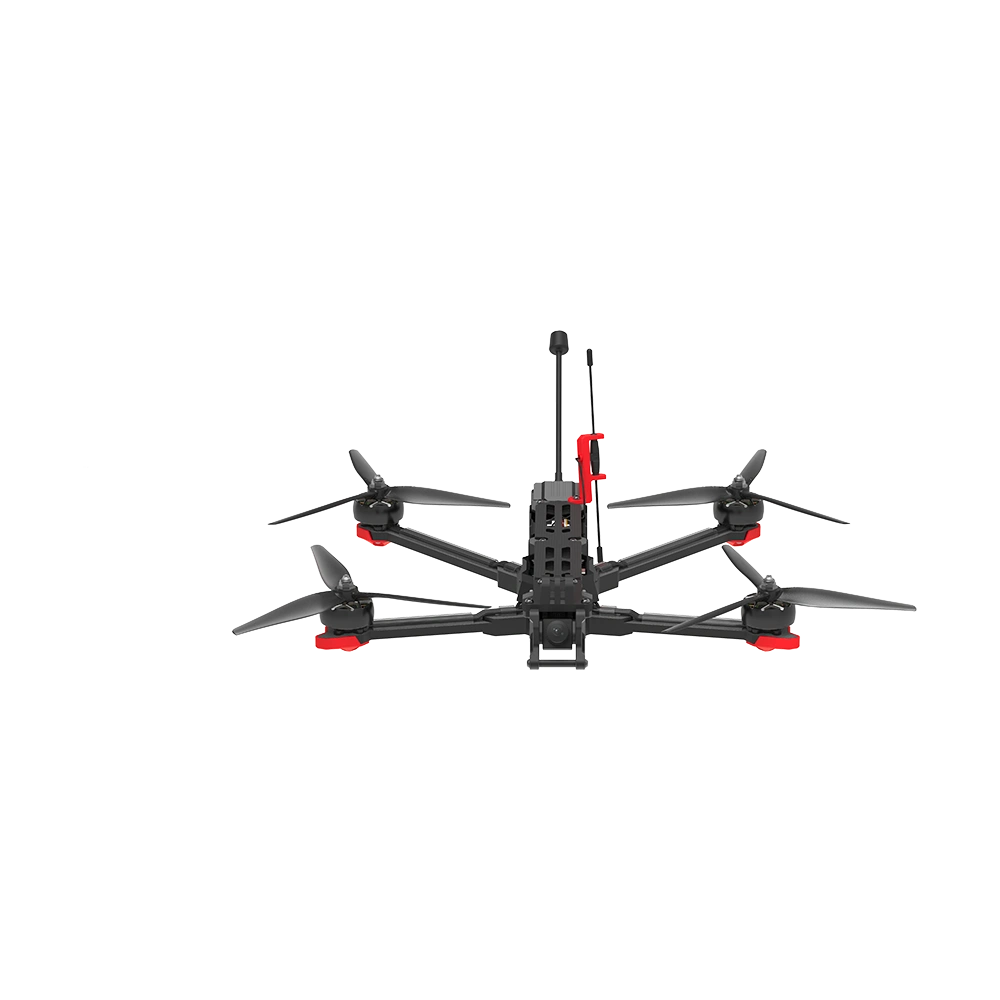

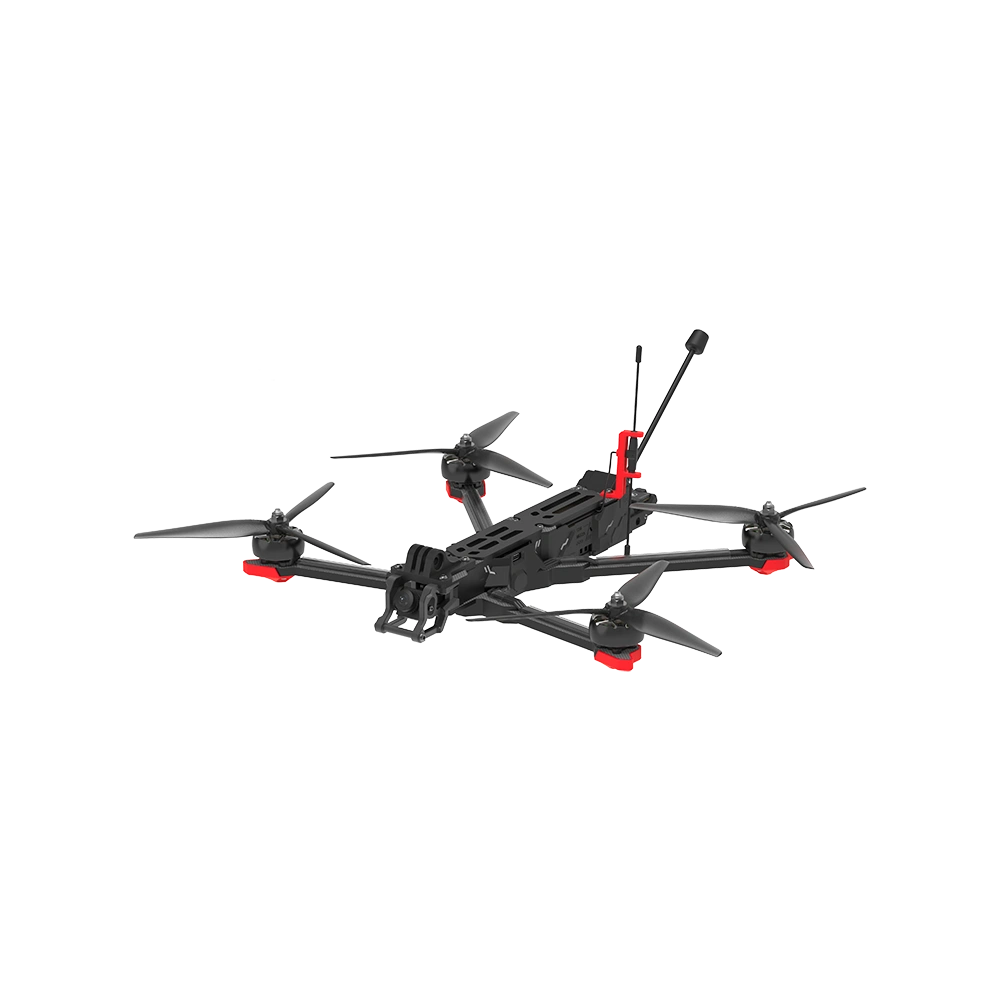

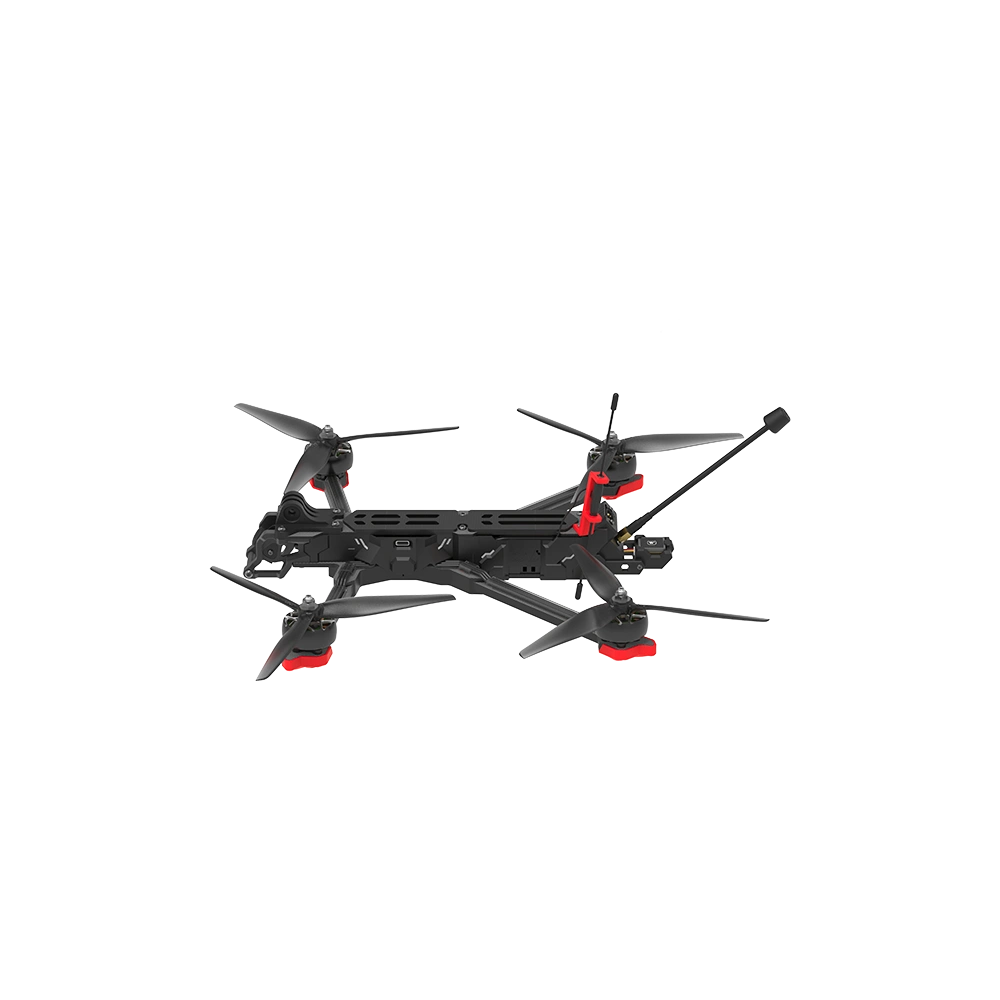

iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter

https://www.bzbuas.com/web/image/product.template/1188/image_1920?unique=e168e57

The KING of Long Range FPV! A super-efficient iFlight 7.5 inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the Swiss Alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5 inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a LiPo or Li-ion pack will just do the job.

1,869.10 zł 1869.1 PLN VAT Excluded
1,869.10 zł VAT Excluded
Contact to order
  • Version

This combination does not exist.

iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter: The Ultimate Long-Range FPV Drone

The iFlight Chimera 7 Pro V2 is designed for enthusiasts seeking unparalleled performance in long-range FPV flying. This advanced drone features a robust 7-inch frame, optimized for stability and agility, making it perfect for both racing and cinematic captures. With a powerful 6S battery compatibility, it delivers extended flight times and impressive speed. The drone is equipped with high-quality analog video transmission, ensuring crystal-clear signal during your flights. Its lightweight design and durable construction allow for easy maneuverability, while the customizable settings cater to both beginners and experienced pilots. Elevate your FPV experience with the iFlight Chimera 7 Pro V2, where innovation meets reliability.

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets, and our XING O-ring bushing gap protection.

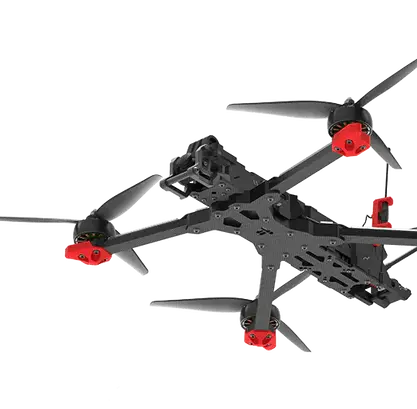

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter Specifications

Geometry

DC (DeadCat)

FC

BLITZ F722 Flight Controller

ESC

BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission

BLITZ Whoop 1.6W VTX

Receiver

No receiver version:

No receiver included. Add your own supporting SBUS or Serial connection e.g Crossfire, FrSky, ELRS

TBS receiver version:

TBS Crossfire Nano RX 915/868MHz with Immortal T antenna

Frame

327mm wheelbase

Motor

XING2 2809 1250KV motors

Prop

7.5X3.7X3 propellers / HQ 7.5x3x3 propellers

Weight

705g (Without Battery)

Dimensions (L×W×H)

270x199x34±2mm

Maximum Takeoff Altitude

7000 m

Max Hover Time

Approx. 30 mins (With 21700 6S 8000mAh Battery no load)

Max Wind Speed Resistance

130 km/h

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Transmission Power (EIRP)

FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas

Single Antennas

GNSS

GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission System

Product Name

BLITZ Whoop 5.8G 1.6W VTX

Output Power

PIT/25mW/400mW/800mW/1600mW

Input Volts

12V

Working Current

≤PIT @40mA,≤25mw@150mA,≤400mw@330mA,≤800mw@460mA,≤1600mw@660mA

Transmission fre

40CH (A-B-E-F-R)

Antenna Interface

IPEX

Mounting Hole

25*25/φ1.6mm

Weight

16.5g (Antenna not included)

Dimensions

37mm*31.5mm*10mm

Package iFlight Chimera 7 Pro V2 6S LR Analog Quadcopter Incl​udes


iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter1x Chimera7 Pro V2  (no receiver or TBS receiver)

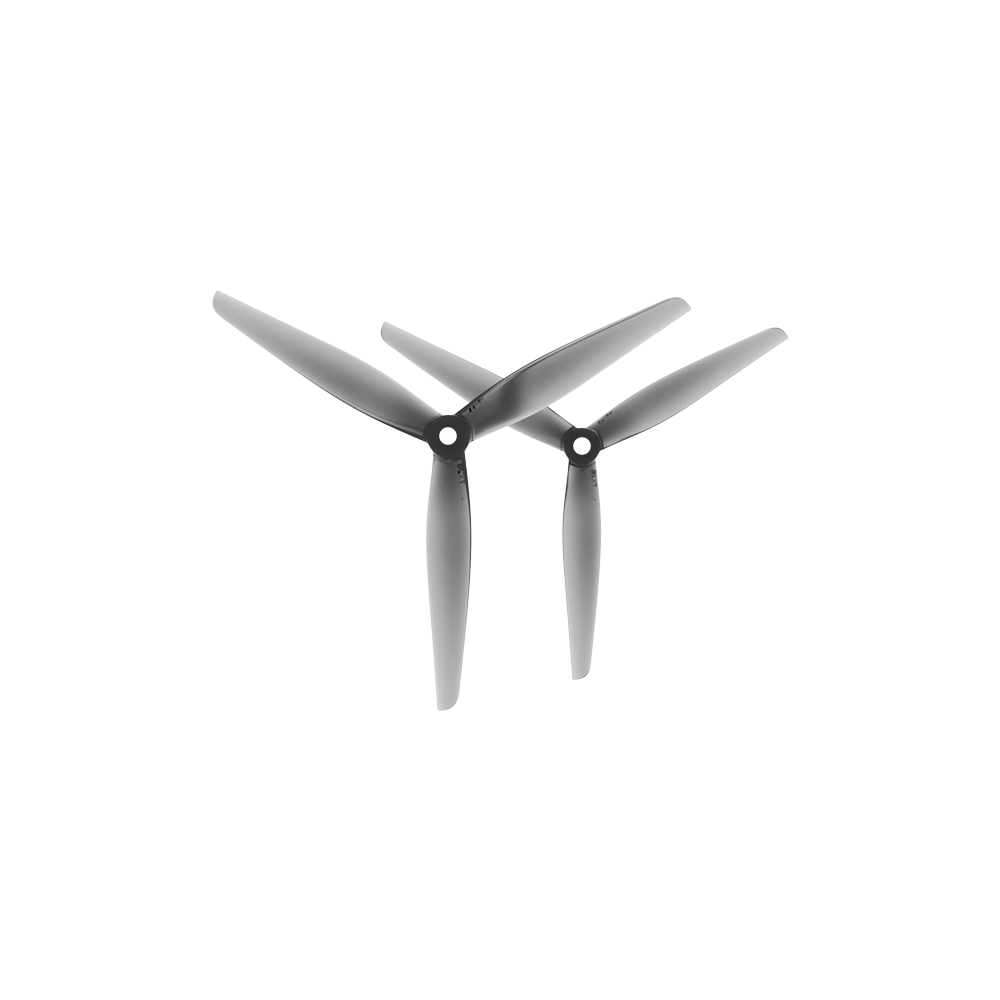

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter2x Set of HQ 7.5X3.7X3 Propellers

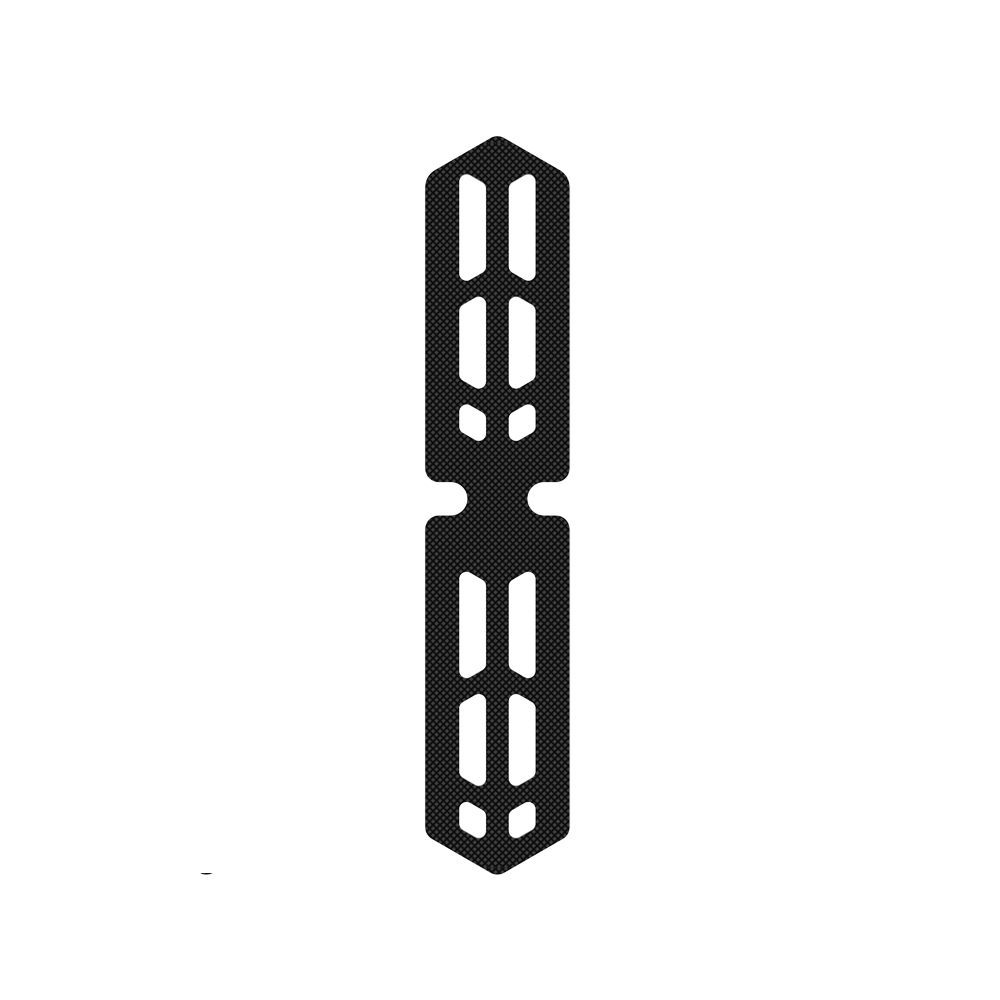

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter1x Anti-slip Battery Pads

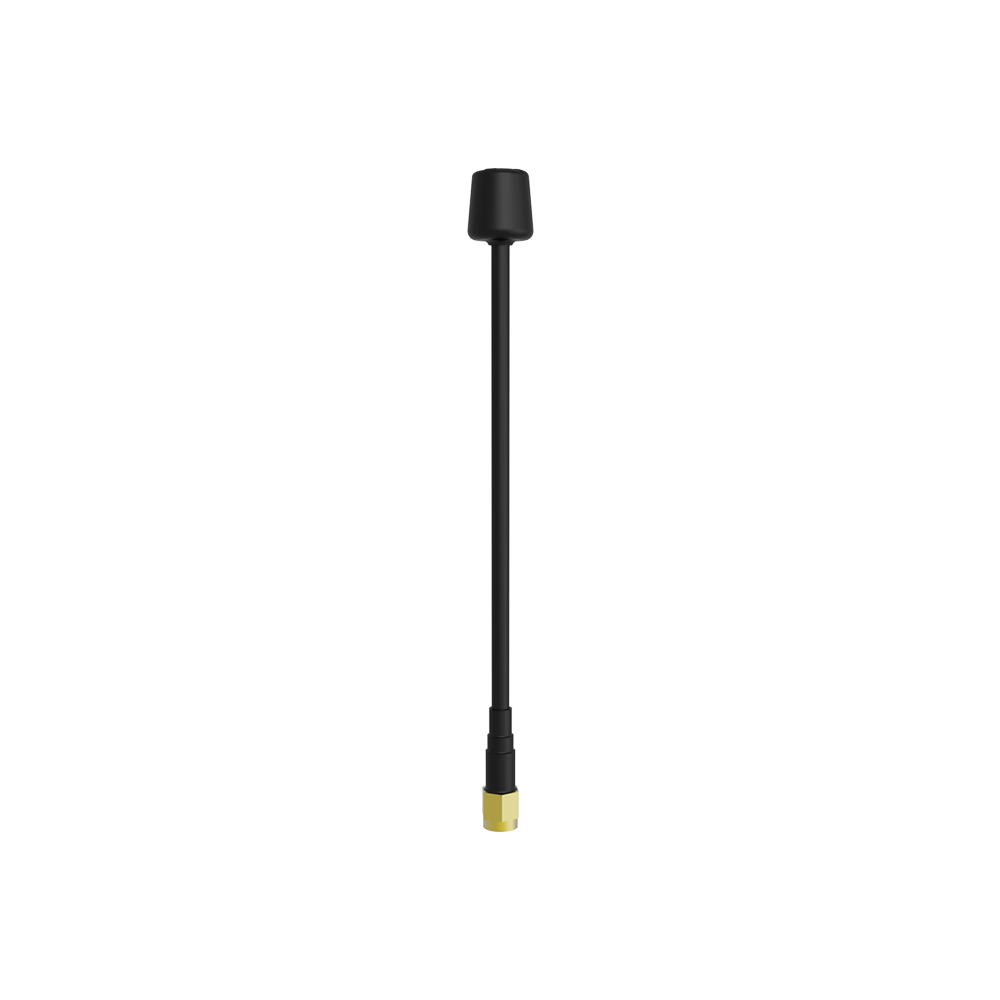

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter1x 5.8G Antenna

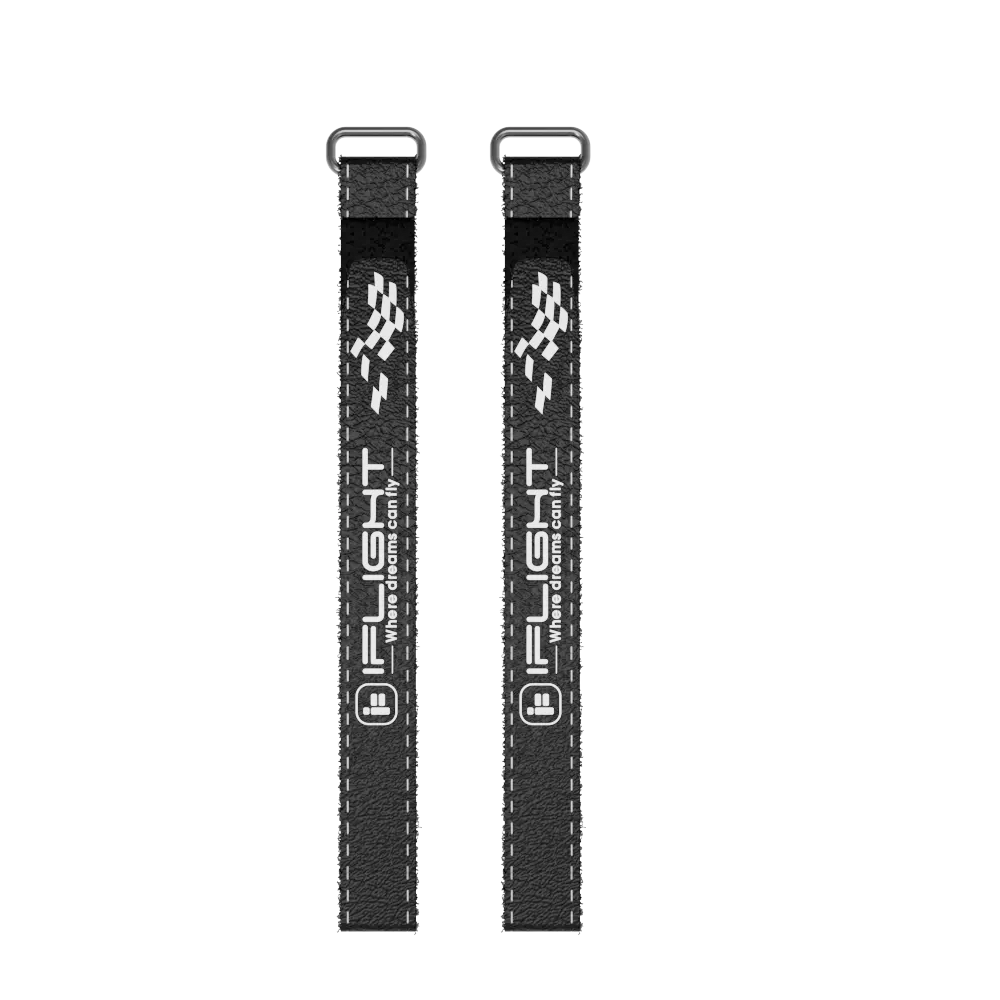

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter2x Battery Strap

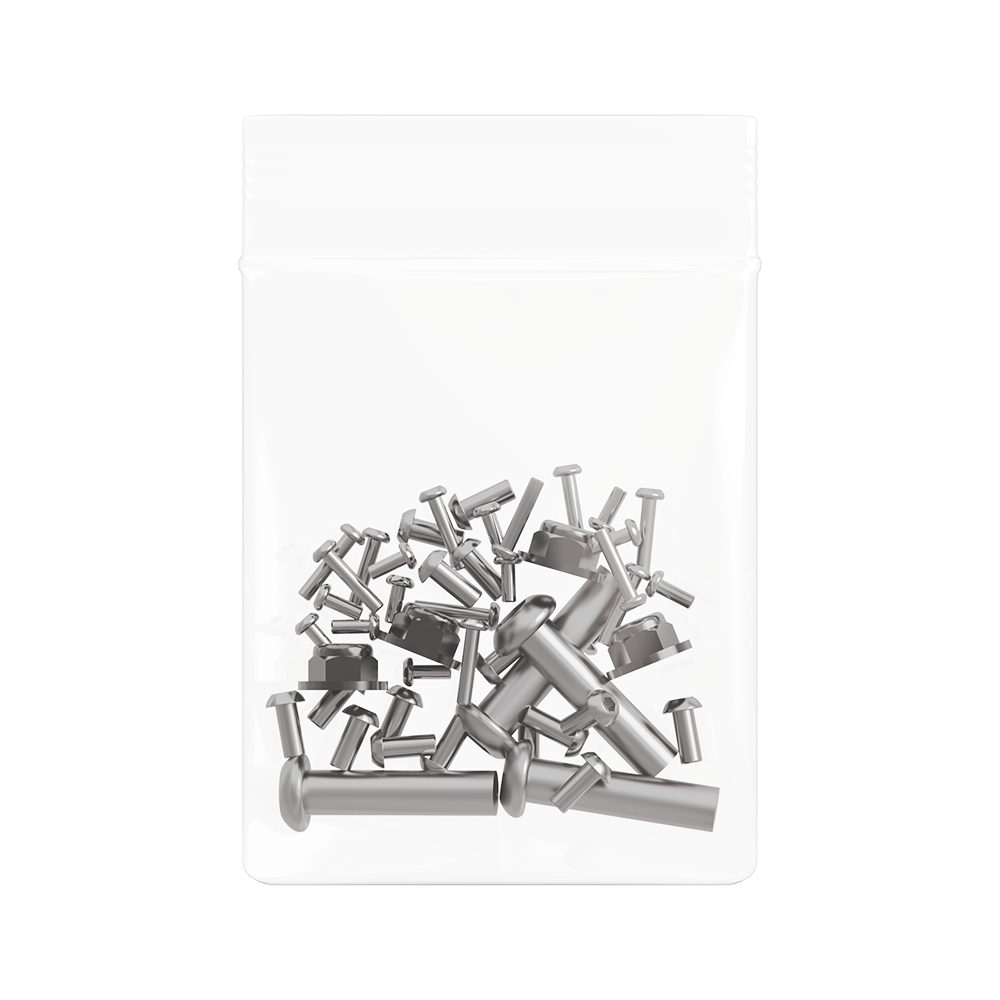

iFlight_Chimera_7_Pro_V2_6S_LR_Analog_Quadcopter1x Screws Bag
