Digital Airspeed Sensor I2C ASPD-4525

https://www.bzbuas.com/web/image/product.template/445/image_1920?unique=99e3ce5

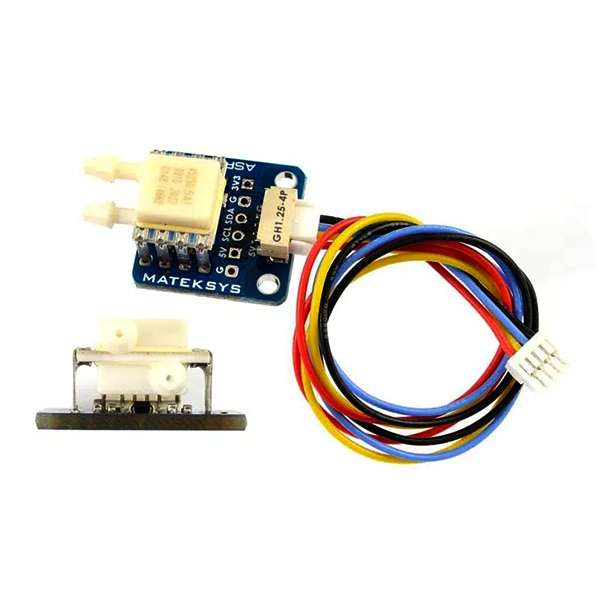

Matek ASPD-4525 digital airflow velocity sensor for Pixhawk flight controllers.
243.09 zł 243.09 PLN VAT Excluded
243.09 zł VAT Excluded
Price on request

    This combination does not exist.

    Precise speed measurement with Digital Airspeed Sensor I2C ASPD-4525

    The Matek Digital Airspeed Sensor I2C ASPD-4525 is a solution that will show the true speed of your aircraft relative to the air instead of the speed relative to the ground obtained by GPS.


    Wiring diagram of the Digital Airspeed Sensor I2C ASPD-4525

    • 5V do FC 4~5.5V
    • SCL do FC I2C_SCL
    • SDA do FC I2C_SDA
    • G do FC GND

    Specification of the Digital Airspeed Sensor I2C ASPD-4525

    Input voltage range

    4~5.5V DC

    Sensor

    MS4525D0

    Operationg current

    5mA

    Outputs

    I2C (SCL & SDA)

    Pressure range

    1 PSI (6.89kPa)

    Maximum pressure

    20 PSI (137.9kPa)

    Operating temperature

    -40°C ~ 125°C

    Accuracy

    ±0.25% SPAN

    Red LED

    dioda zasilania

    JST-GH connector pinout

    5V, SCL, SDA, GND

    Weight

    3.5g (płytka sensora)


    What's included in the Digital Airspeed Sensor I2C ASPD-4525

    • ASPD-4525 sensor board.
    • Silicone cable JST-GH-4P on JST-GH-4P - 20cm
    • Pitot tube
    • Transparent silicone tube 40cm
