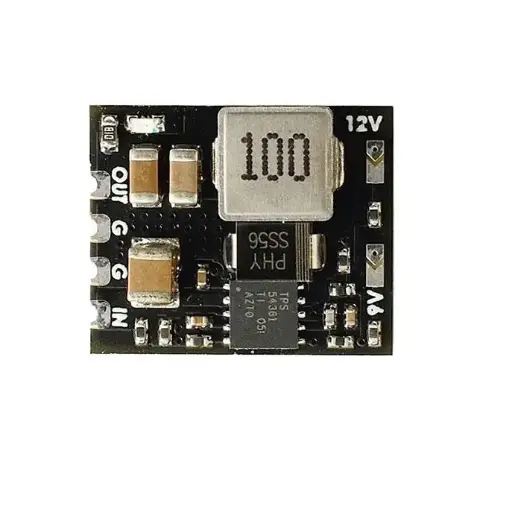

Matek Micro BEC12S 6-60V to 5V/9V/12V - Provides Reliable Power
Wide input range from 6V to 30V and adjustable output (5V, 9V or 12V). This compact regulator, with 100% duty cycle, offers safety features such as overcurrent protection, thermal shutdown and short-circuit tolerance. Suitable for a variety of configurations, its compact design (18x15x4,5 mm) and low weight (2 g) make it an efficient energy management solution.
Matek Micro BEC12S 6-60V to 5V/9V/12V Specifications
PCB Width | 1 mm wider |
Performance | Identical to the previous version |
Operating input voltage range | 6V–60V |
Start-up voltage | ≥ 6.7V |
Output voltage | 5V, 9V or 12V |
Default output voltage | 5V |
Maximum duty cycle | 100% |
Low input voltage behavior | When the input voltage is lower than the set value, regulator output voltage = input voltage |
Continuous load current | Depends on input voltage and heat dissipation |
Standby current | < 5mA |
OCP protection | Yes (Hiccup Mode) |
Thermal protection | Thermal shutdown |
Output short-circuit tolerance | 3 seconds / minute |
Reverse input polarity protection | No |
Pin spacing | 2.54mm |
Size | 18mm x 15(16)mm x 4.5mm |
Weight | 2g |
Matek Micro BEC12S 6-60V to 5V/9V/12V Work Characteristics
INPUT: 6-60V, Room Temperature. 22C, without additional heat sink
5V OUT [3.5A Max 2s/min] | 9V OUT [3A Max 2s/min] | 12V OUT [3A Max 2s/min] | |
50V DC IN | 1.8A cont. | 1.5A cont. | 1.3A cont. |
24V DC IN | 2.3A cont. | 2.1A cont. | 2.0A cont. |
16V DC IN | 2.8A cont. | 2.6A cont. | 2.5A cont. |
Output Ripple | 20mV | 30mV | 30mV |
Micro BEC12S 6-60V to 5V/9V/12V Package Includes
- 1x Matek MICRO BEC 12S 6-60V to 12V
