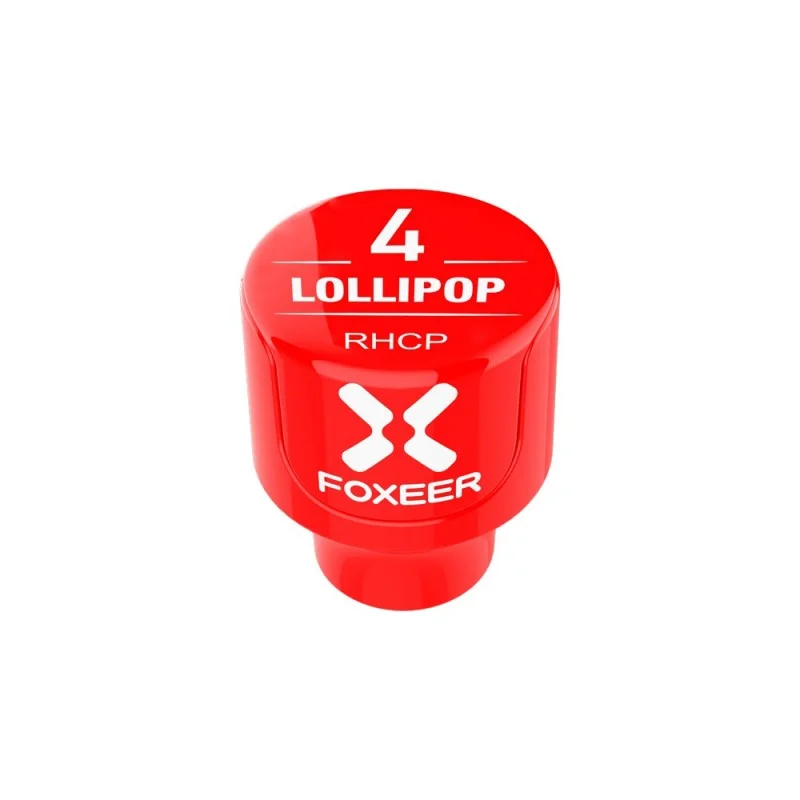

Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs)

https://www.bzbuas.com/web/image/product.template/3445/image_1920?unique=bd0654a
Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs) is a compact, durable FPV antenna designed for 5.8GHz systems. Its stubby, crash-resistant build reduces damage risk while delivering stable signal performance with 2.6dBi gain. Lightweight PC+ABS construction makes it suitable for racing and freestyle flying.
65.04 zł 65.04 PLN VAT Excluded
65.04 zł VAT Excluded
  • VERSION

This combination does not exist.

VERSION: RHCP SMA Red

Reliable Signal and Exceptional Durability Thanks to Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs)

A solution that will improve image quality and survive the hardest landings. the Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs) has been designed specifically for the most demanding FPV pilots. The use of advanced materials and a gold-plated printed circuit board design ensures that the signal penetrates obstacles with minimal losses. Thanks to a durable housing made of a PC and ABS blend, the Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs) is highly impact-resistant, making it an ideal choice for the race track and aggressive freestyle.

Key features of Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs)

  • Compact "Stubby" size: The short, solid construction minimizes the risk of antenna damage during collisions with obstacles.
  • High radiation efficiency: The Foxeer Lollipop 4 5.8G 2.6dBi Stubby Antenna 2 pcs. offers an efficiency of 98%, which directly translates into a crystal-clear image in the goggles.
  • High-quality components: Gold-plated printed circuits provide excellent signal conductivity.

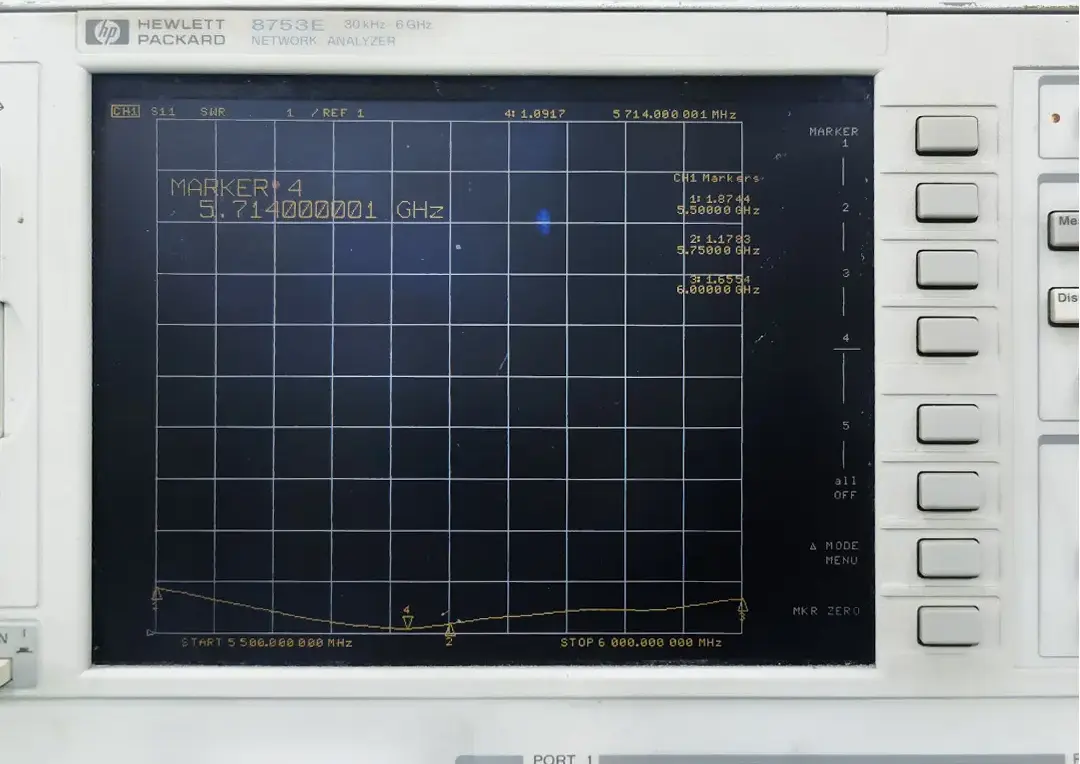

  • Ideal SWR ratio: A value below 1.07 at the center frequency guarantees optimal matching and stable flight range.

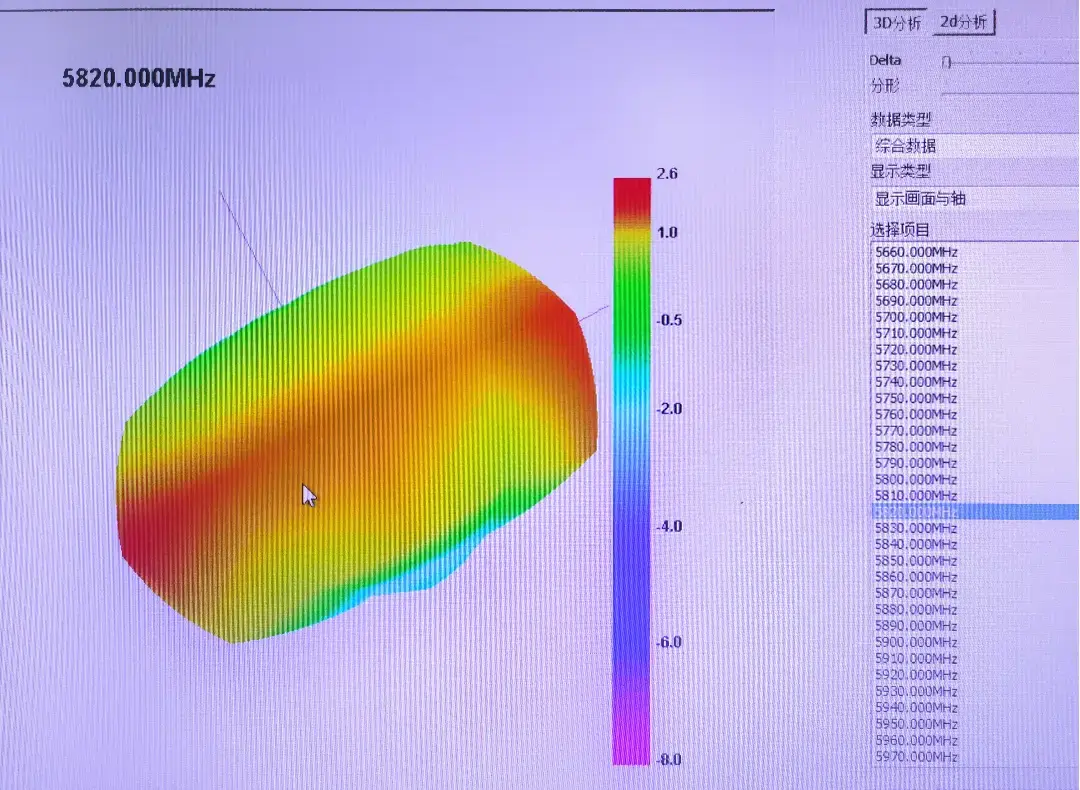

Diagram of Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs)

antena-foxeer-lollipop-4-5-8g-2-6dbi-stubby-2-szt.
antena-foxeer-lollipop-4-5-8g-2-6dbi-stubby-2-szt.
antena-foxeer-lollipop-4-5-8g-2-6dbi-stubby-2-szt.

Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs) Specifications

Center Frequency

5.75GHz

Gain

2.6dBi

Axial Ratio

Close to 1

Band Width

5.5G~6GHz

Radiation Efficiency

98%

​ SWR

<1.07 at Center Frequency

Connector

SMA

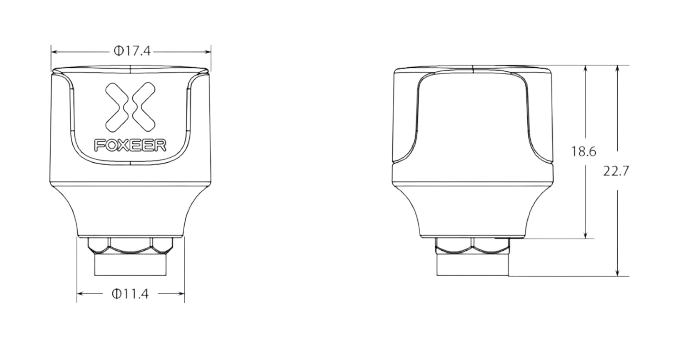

Dimension

17.4x22.7mm

Polarization

 Omnidireccional RHCP

Case Material

PC+ABS

Color

Red

Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna (2pcs) Package Includes

  • 2x RHCP SMA Foxeer Lollipop 4 2.6dBi 5.8G Omni FPV Stubby Antenna
antena-foxeer-lollipop-4-5-8g-2-6dbi-stubby-2-szt
