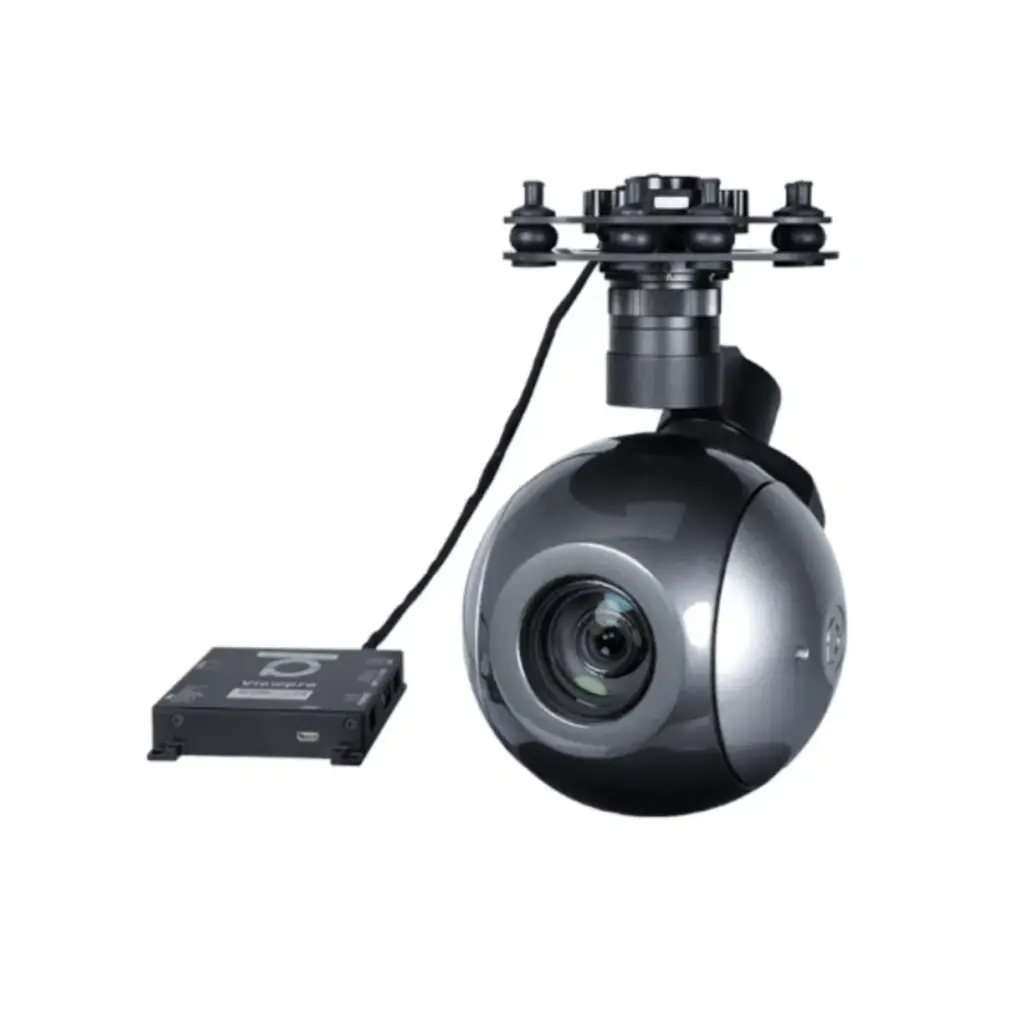

Viewpro Q40T Object Tracking Gimbal Camera

https://www.bzbuas.com/web/image/product.template/1290/image_1920?unique=915d0fb

Q40T gimbal camera features an 40x optical zoom lens. It powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6, 2.13 million effective pixels, HD 1080p video, fast auto-focus speed, designed for UAV aerial photography. At the same time, Q40T can achieve target tracking. Factory, all the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly. The gimbal can be controlled in three directions: YAW, ROLL and PITCH, we use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at forty optical zoom times. Q40T have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.

12,195.12 zł 12195.12 PLN VAT Excluded
12,195.12 zł VAT Excluded
Price on request

    This combination does not exist.

    Viewpro Q40T Object Tracking Gimbal Camera – Precision Tracking with 40× Optical Zoom

    The Viewpro Q40T is a professional-grade gimbal camera equipped with advanced object tracking and a powerful 40× optical zoom lens. Designed for aerial and ground-based platforms, it combines a high-sensitivity Sony Starlight sensor with intelligent tracking algorithms to ensure accurate target following and clear imaging, even in low-light conditions. Its 3-axis stabilized gimbal minimizes vibration and maintains smooth, steady footage — making it an ideal choice for surveillance, inspection, and tactical UAV operations.Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalemKamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    SONY 40x Zoom Starlight Camera

    Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q40T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 40x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    Single Sensor Visible Light Camera Object Tracking

    Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 48pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    Multi Control Methods

    Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.

    Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem


    Control Box Printing (Viewport Version)

    Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    Applications

    Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualtiesKamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    Viewpro Q40T Object Tracking Gimbal Camera Specification

    Working voltage

    12V

    Input voltage

    4S ~ 6S

    Output voltage

    5V (connect with PWM)

    Dynamic current

    500mA @ 12V

    Idle current

    400mA @ 12V

    Power consumption

    ≤ 6W

    Working environment temp.

    -20℃ ~ +60℃

    Output

    micro HDMI(HD output 1080P 60fps)/IP/SDI

    Local-storage

    SD card (Up to 128G, class 10, FAT32 or ex FAT format)

    Control method

    PWM  / TTL / S.BUS/TCP(IP Version)

    Netto Weight

    732g (Viewport Version)

    Product Measurement

    118.2*133.6*196.1mm

    Package (Plastic Box) Measurement

    275*230*165mm


    Gimbal Specification

    Pitch/Tilt

    ±90°

    Roll

    ±85°

    Yaw/Pan

    ±150°

    Vibration angle

    Pitch/Roll: ±0.02°

    Yaw: ±0.03°

    One-key to center

    √


    Camera Specification

    Imager Sensor

    SONY 1/2.8″ “Exmor R” CMOS

    Picture quality

    Full HD 1080 (1920*1080)

    Effective pixel

    2.13MP

    Lens optical zoom

    40x

    F=4.25~170mm

    Digital zoom

    x2 ~ x32

    Min object distance

    0.1 / 1.5 / 3.0 / 5.0 / 10.0 m

    Horizontal viewing angle

    1080p mode: 73.8° (wide end) ~ 2.16° (tele end)

    720p mode: 66.35° (wide end) ~ 1.9° (tele end)

    SD: 39.98° (wide end) ~ 1.11° (tele end)

    Sync system

    Internal

    S/N ratio

    more than 50dB

    Min illumination

    Color 0.01lux@F1.6

    Exposure control

    Auto, Manual, Priority mode(shutter priority & iris priority),

    Bright, EV compensation, Slow AE

    Gain

    Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)

    Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)

    White balance

    Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Onepush, Manual

    Shutter speed

    1/1s to 1/10,000s, 22 steps

    Backlight compensation

    Yes

    Aperture control

    16 steps

    Defog

    Yes

    OSD

    Yes


    Camera Object Tracking Specification

    Update rate of deviation pixel

    50Hz

    Output delay of deviation pixel

    <10ms

    Minimum object contrast

    5%

    SNR

    4

    Minimum object size

    32*32 pixel

    Maximum object size

    128*128 pixel

    Tracking speed

    ±48 ~ ±192 pixel/frame

    Object memory time

    100 frames (4s)

    The mean square root values of pulse noise in the object position

    < 0.5 pixel


    Kamera-do-śledzenia-obiektów-Viewpro-Q40T-z-gimbalem

    Viewpro Q40T Object Tracking Gimbal Camera Package Includes

    • 1x Viewpro Q40T Object Tracking Gimbal Camera
    • 1x Viewport
    • 8x M3 Screw
    • 4x Copper Cylinder
    • 2x Damping Ball
    • 1x Micro-SD Card
    • 1x TTL Connector Cable
    • 1x PWM Control Cable
    • 1x USB-TTL Cable
    • 1x Ethernet Cable
    • 1x Power Cable
    • 3x TTL/SBUS Control Cable
    • 1x Pelican Case
