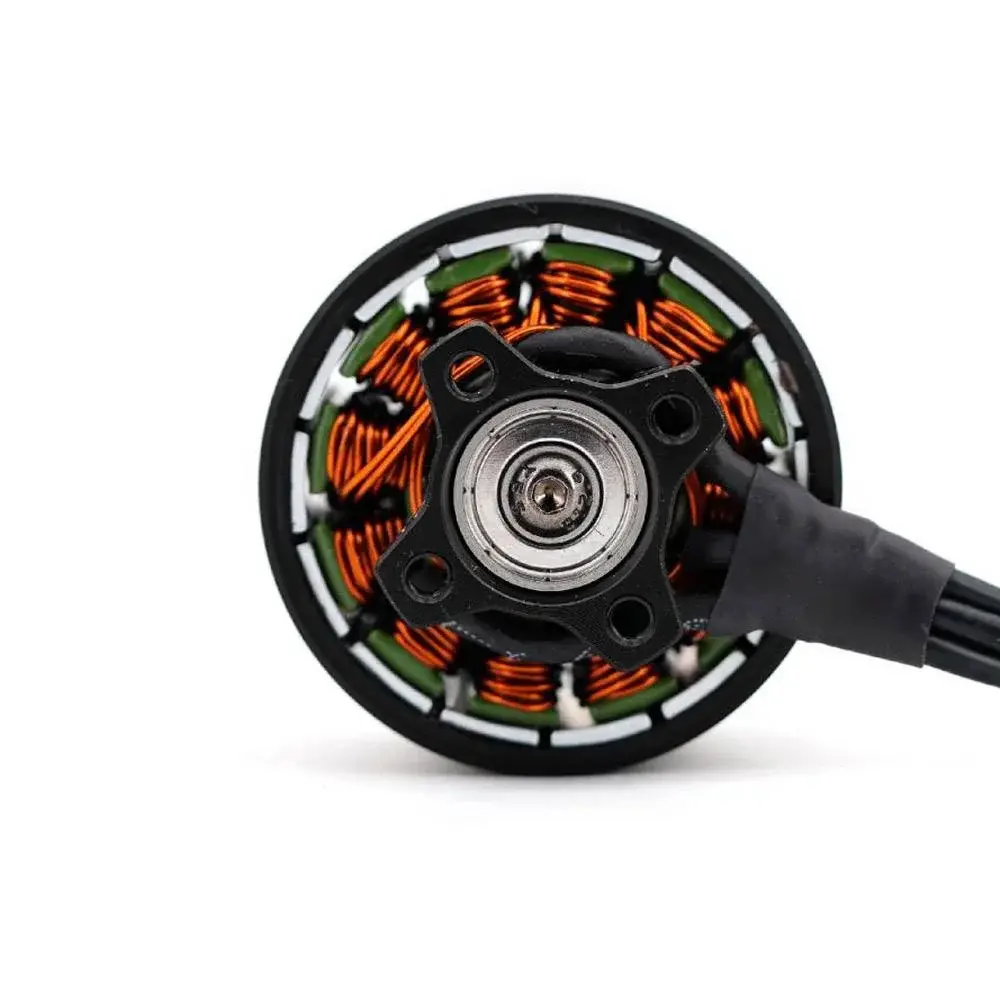

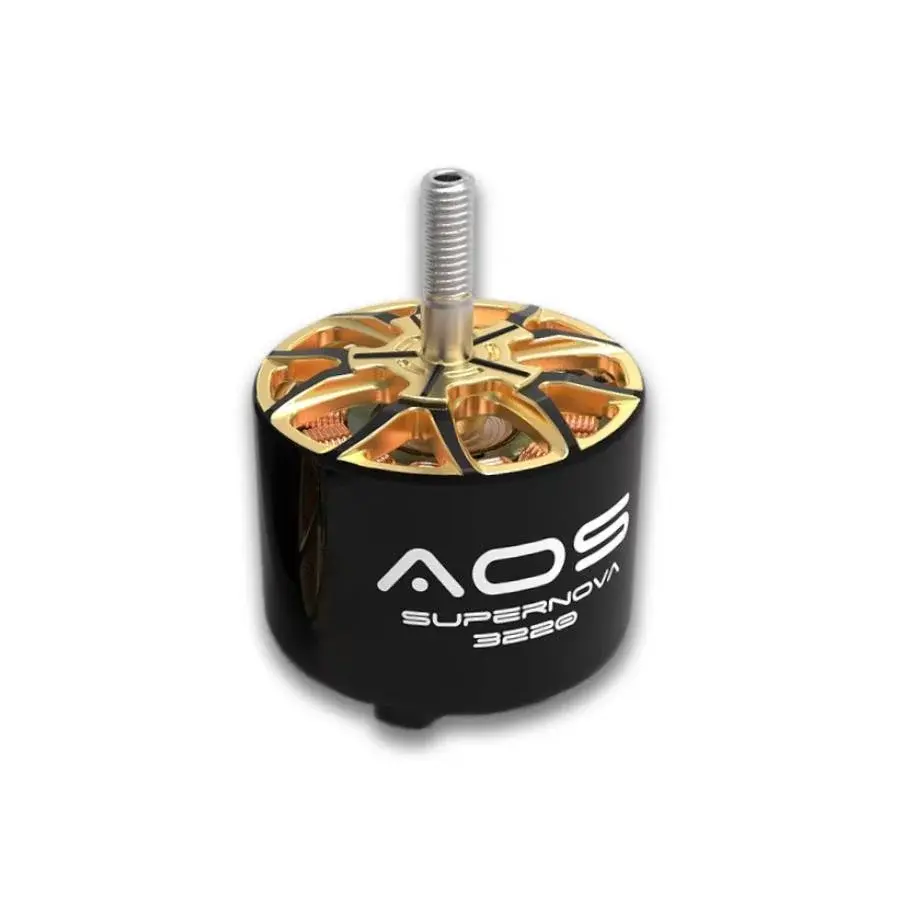

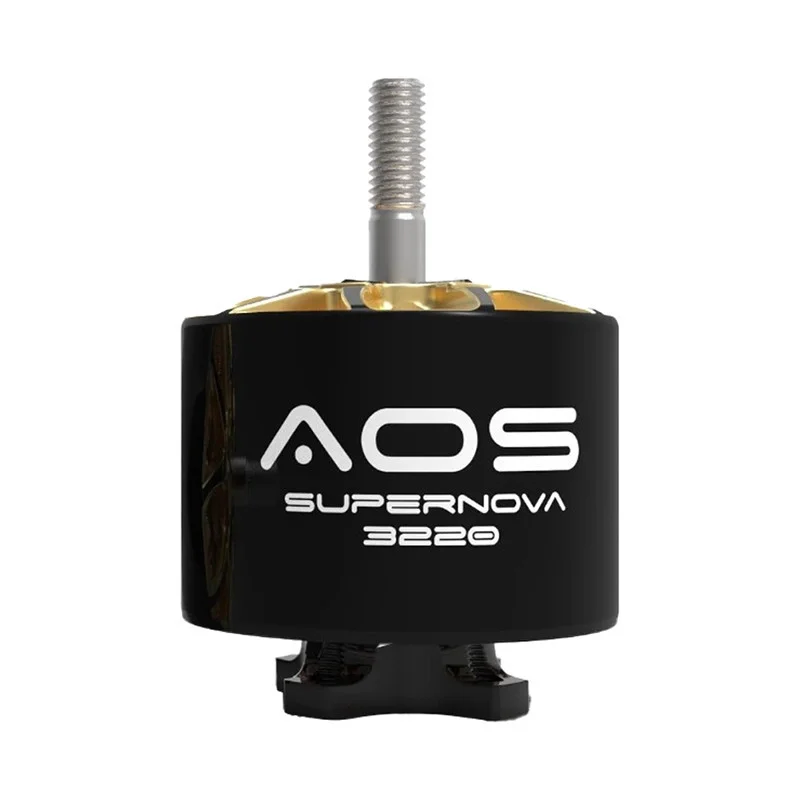

RCinpower AOS Supernova 3220 Brushless Motor – High-Power Drive for 10-Inch FPV Platforms

RCinpower AOS Supernova 3220 Brushless Motor is designed for builds requiring strong thrust, rapid response, and high efficiency with large propellers. The 925KV version is optimized for 6S systems, while the 700KV option is developed for 8S power. This allows builders to select the right motor for a dynamic cinelifter, an efficient long-range platform, a VTOL aircraft, or a large FPV wing.

RCinpower AOS Supernova 3220 Brushless Motor Key Features

• 925KV Version for 5–6S Batteries: Provides a powerful and responsive operating profile for 10-inch builds running on 6S.
• 700KV Version for 6–8S Batteries: Supports efficient high-voltage power systems optimized around 8S operation.
• Optimized for 10-Inch Propellers: The large 3220 stator provides the torque required to drive tri-blade propellers confidently.
• Up to 14% More Thrust: The optimized magnetic design provides additional power and improved control of heavier aircraft.
• 5% Higher Efficiency: More effective energy conversion supports longer flight times and reduces electrical losses.
• Up to 23% Faster Response: Strong torque allows thrust to change more rapidly, improving stabilization of large platforms.
• 12N14P Configuration: Provides smooth operation and precise motor response.
• 5 mm Hollow Shaft: Offers the mechanical strength required by large propellers and high-load builds.
• Approximately 170 g: A robust construction provides the durability required by large cinelifters and lifting platforms.

• 19 × 19 mm Mounting Pattern: Four M3 holes support installation in frames designed for 3220-size motors.
