Matek SAM-M10Q GNSS Module

https://www.bzbuas.com/web/image/product.template/1346/image_1920?unique=297d215

The SAM‑M10Q is a multi‑constellation GNSS module for drones and UAVs, supporting GPS, GLONASS, Galileo, and BeiDou on the u‑blox M10 platform. It replaces the SAM‑M8Q with lower power consumption (~10 mA vs ~40 mA), faster satellite acquisition, and improved sensitivity. A high‑gain 15×15 mm patch antenna ensures reliable navigation even in challenging environments.

121.95 zł 121.95 PLN VAT Excluded
121.95 zł VAT Excluded
Price on request

    This combination does not exist.

    Matek SAM-M10Q GNSS Module High Precision in Demanding Conditions

    The SAM‑M10Q is a compact multi‑constellation GNSS module designed for precise navigation in drones, UAVs, and other embedded systems. It integrates a high‑performance GNSS receiver with a built‑in high‑gain patch antenna for reliable positioning even in challenging environments.

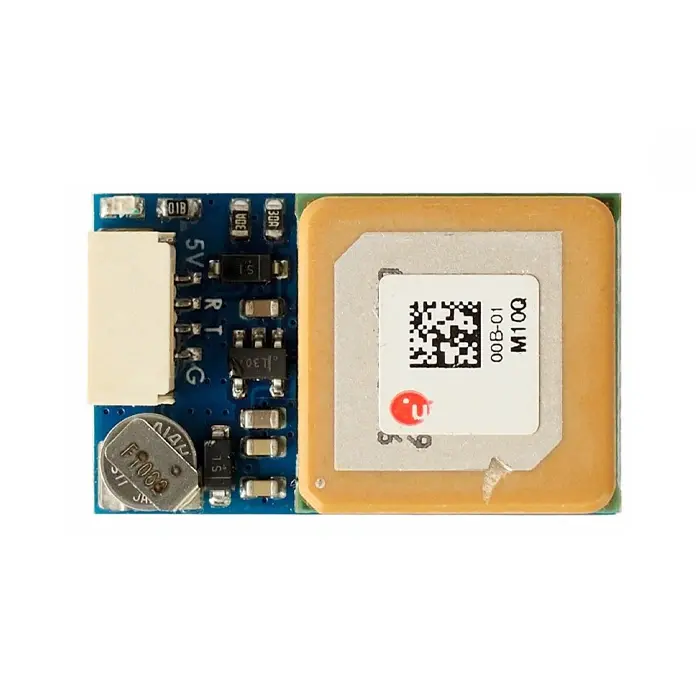

    Mateksys GNSS SAM-M10Q

    • GNSS u-blox M10Q
    • Patch Antenna 15*15*4mm


    • UART(T,R), for GNSS
    • JST-GH-4P connector (SM04B-GHS-TB)
    • GNSS PPS LED, Green


    • Input voltage range: 4~9V (5V pad/pin)
    • 26*16*8mm, 7.5g

    GNSS Performance

    • GNSS core: u‑blox M10 series (GPS, GLONASS, Galileo, BeiDou) concurrent reception
    • Supports UBX and NMEA protocols (e.g., UBX 5 Hz GPS+GAL+BDS B1C+GLO; NMEA 1 Hz)
    • Green PPS LED indicator (solid when powered; blinks 1 Hz with 3D fix)
    • Exceptional RF sensitivity and fast satellite acquisition
    • Suitable for operation under partial sky visibility or urban canyons


    SAM-M10Q — Successor to the SAM-M8Q

    Odbiornik-GNSS-Matek-SAM-M10Q

    Odbiornik-GNSS-Matek-SAM-M10Q

    Matek SAM-M10Q GNSS Module Specification

    Input voltage

    4–9 V (5 V pad/pin)

    Power consumption

    ~10 mA

    Supported Protocol

    UBX 5 Hz GPS+GAL+BDS B1C+GLO

    NMEA 1 Hz

    Default UART baud rate

    9600

    Operating temperature range

    –20 °C to +80 °C

    Magnetic Compass Built‑in

    No

    Dimensions

    26 mm x 16 mm x 8 mm

    Weight

    ~7.5 g


    Matek SAM-M10Q GNSS Module Package Includes

    • 1× SAM‑M10Q GNSS Module
    • 1× JST‑GH‑4P to JST‑GH‑4P Silicone Cable (~20 cm)
