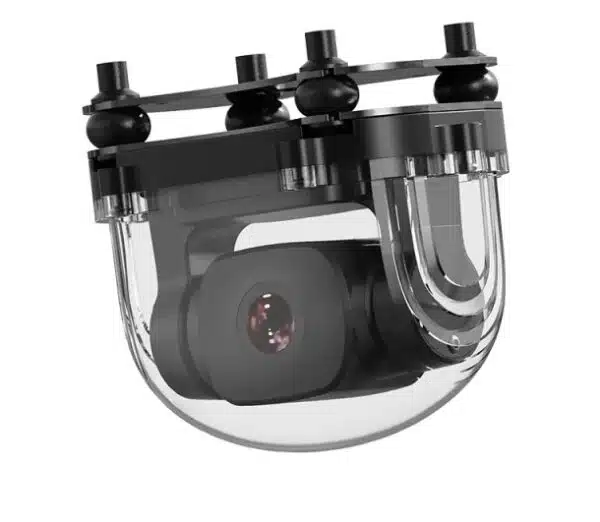

SIYI A2 mini Ultra Wide Angle FPV Gimbal

https://www.bzbuas.com/web/image/product.template/522/image_1920?unique=e7feede
A2 mini is a lightweight and ultra-wide-angle FPV gimbal, built with industrial protection class, the 160-degree horizontal FOV makes camera view wide and broad. Pitch angle control can be widely used for agriculture spraying drones. Ethernet output can be used with some third-party links. Upside-down mode makes it also a great option for UGV, USV, robotics, RC hobby planes.
486.99 zł 486.99 PLN VAT Excluded
486.99 zł VAT Excluded

This combination does not exist.

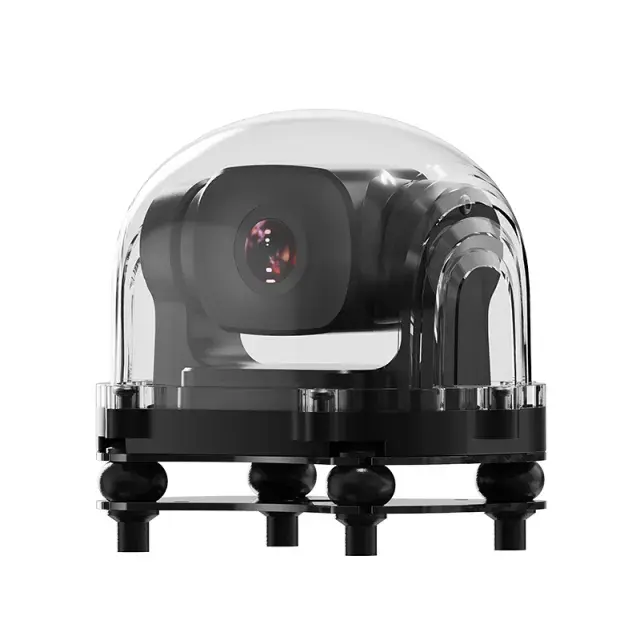

SIYI A2 mini Ultra Wide Angle FPV Gimbal, the smaller brother of the A8 mini!

The SIYI A2 mini Ultra Wide Angle FPV Gimbal, the smaller brother of the A8 mini, impresses with a 1/2.7-inch matrix and high IP65 protection class. This compact camera is the perfect solution for capturing beautiful landscapes in more difficult conditions while providing reliable protection from the elements.


Ultra-Wide Angle FOV Distortion Correction

A2 mini comes with a horizontal 160-degree ultra-wide-angel leans, providing an extensive view of the operation field that operator has clear sight during flight without adjusting drone attitude too much. Quick decisions can be made to ensure security to drone operation.

Powerful distortion correction algorithm makes A2 mini's image smooth and natural.

*SIYI FPV app is suggested for checking FPV image and SDK is available for developers and manufacturers.

SIYI-A2-mini-szerokokątna-kamera

IP65 protection class ideal for industry

Drone operations in agriculture and mines may often be associated with moisture, sprays, dust, or floating dust. Therefore, the outdoor FPV camera should have excellent water resistance. The SIYI A2 mini Ultra Wide Angle FPV Gimbal is designed with IP65 protection, providing effective protection against water, pesticides, dust, and dust, which makes it easy to clean and reliably keep the device in perfect condition.

The A2 mini automatically operates in reverse mode, which allows the camera to be activated when it is mounted upside down, without the need for software changes. This is useful when mounting the camera on UGVs, USVs, or walking robots.

SIYI-A2-mini-wodoodporność


Specification of the SIYI A2 mini Ultra Wide Angle FPV Gimbal

Image Sensor

1/2.7 Inch, 2 MP effective resoultion

FOV

Horizontal 160°

Video Output Port

Ethernet

Control Signal Input Port

S.Bus; PWM
Ethernet UDP

Controllable Pitch Angle of the Gimbal

-90° ~ 25°

Working Voltage

12 V

Power Consumption

Average: 2W
Summit: 12W

Working Temperature

-10° ~ 50°C

Dimension

65x43x50 mm

Weight

85 g


What's included in the SIYI A2 mini Ultra Wide Angle FPV Gimbal

  • 1x A2 mini FPV Gimbal
  • 1x A2 mini Screw Pack
  • 1x A2 mini Mounting Board & Damper Pack
