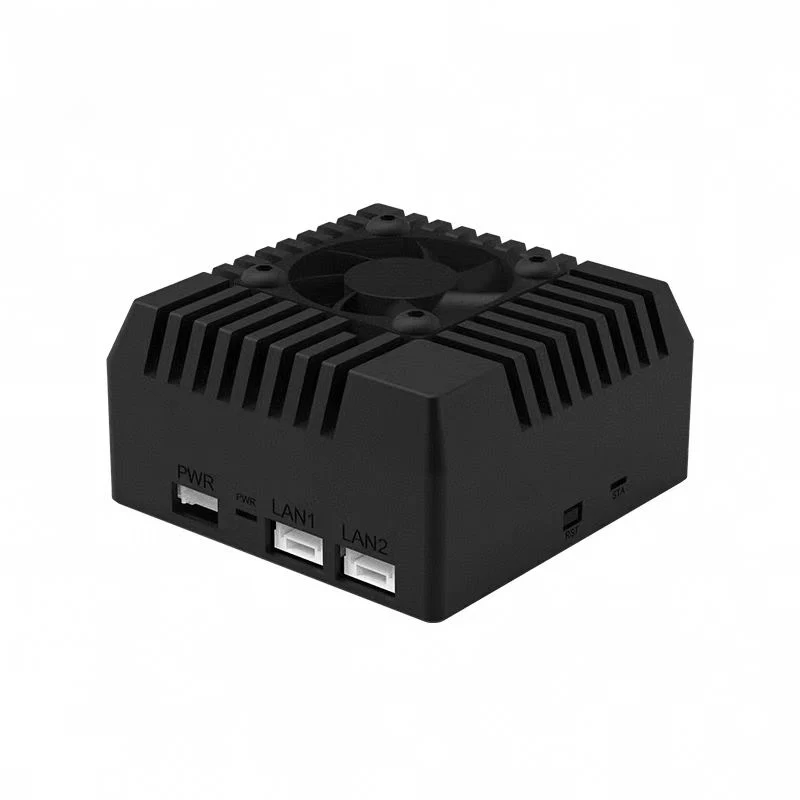

SIYI AI Tracking Module II 10T
Intelligent Tracking and SIYI Gimbal Collaboration – SIYI AI Tracking Module II 10T
SIYI AI Tracking Module II 10T adds real-time target recognition and tracking to compatible SIYI gimbal cameras and optical pods. It provides 10 TOPS of INT8 computing power, supports arbitrary and predefined object recognition, works with thermal imagery, and enables automatic target centering and zoom control. Compatible devices include the ZT30, ZT6, ZR30, ZR10, and A8 mini.

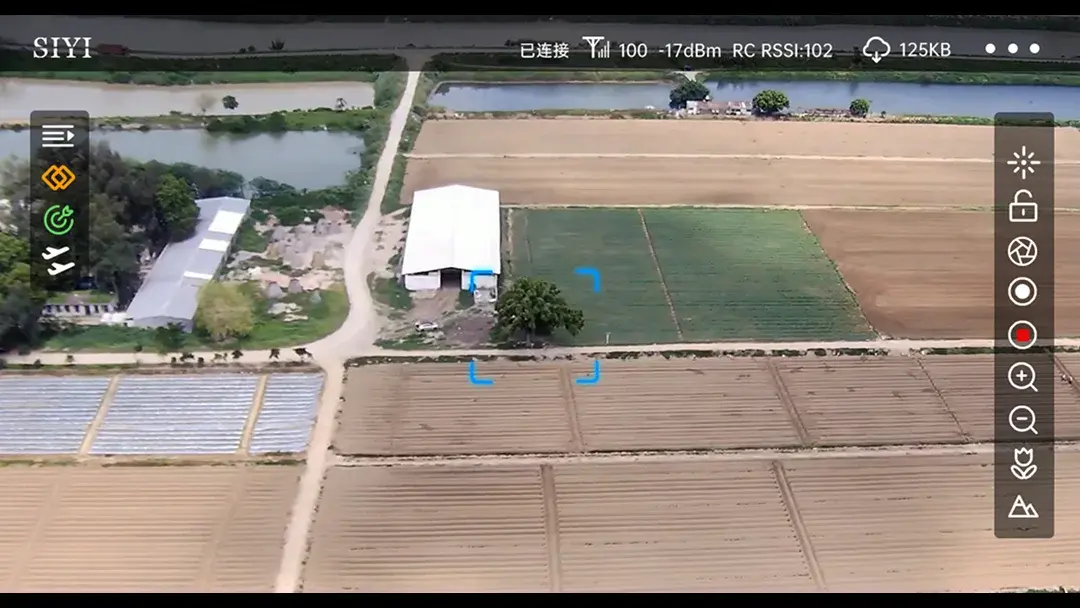

Select a target directly in the video feed
The module allows an operator to select any visible object and begin tracking it in real time. Collaboration with a compatible gimbal keeps the target in the frame, supporting the observation of areas, buildings, infrastructure, and other manually selected subjects.

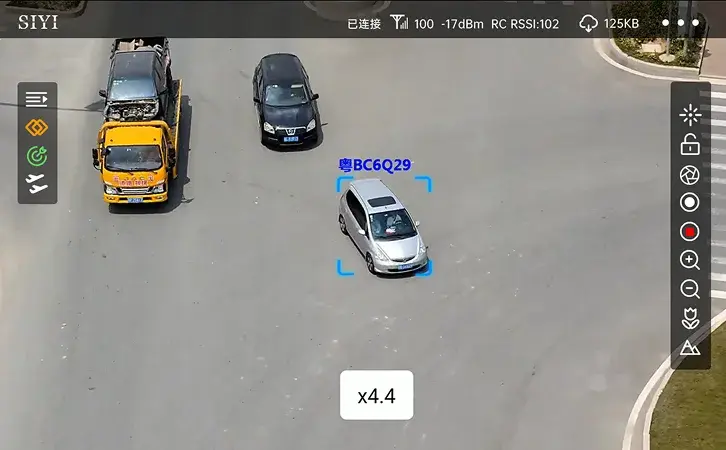

Automated identification during aerial observation
Enhanced AI functions support vehicle detection and license-plate recognition. Once a target is locked, the module can work with the gimbal zoom to keep the vehicle centered and improve target visibility. Actual performance depends on camera resolution, distance, viewing angle, and lighting conditions.

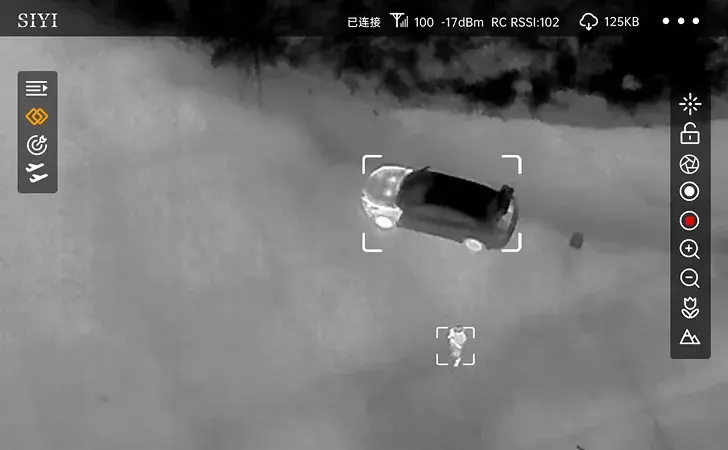

Target detection beyond visible-light conditions
The module supports object recognition and tracking in thermal imagery supplied by a compatible SIYI optical pod. This can assist with observing people, vehicles, and other heat sources in low light, at night, or where a conventional visible-light image provides limited information.

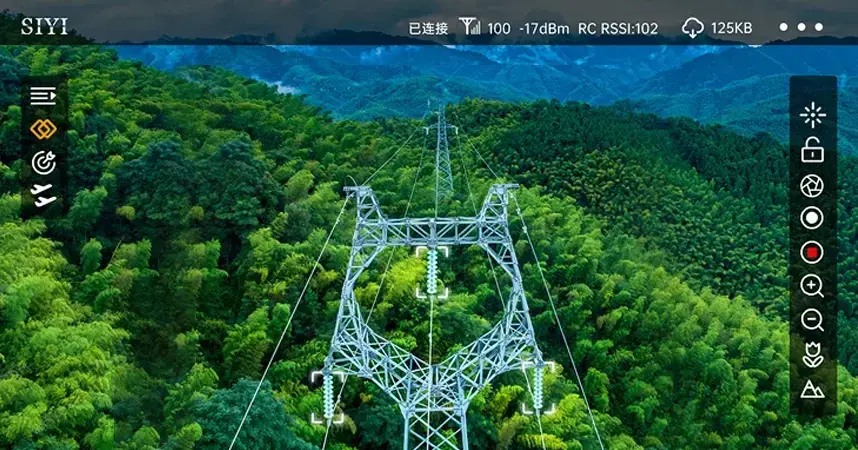

Support for power-infrastructure inspection
Insulator recognition is intended for infrastructure-inspection tasks. The module can identify and track a selected component while the compatible gimbal keeps it in view during flight along power lines. The function supports the operator’s observation process but does not replace a specialist technical assessment.
Optical Pod Collaborative Enhanced AI Follow
SIYI AI tracking module supports collaborative control with SIYI optical pods (gimbal cameras) to achieve real-time tracking and capture of
targets and can highlight the subject in the picture through real-time focus and zoom.
During the tracking process, if the target is blocked or briefly leaves the monitoring screen, AI tracking module can automatically recognize and
continue tracking when it re-enters the monitoring screen. Integrate attitude data between SIYI optical pod (gimbal camera) and flight controller,
and switch the flight mode to guided mode to turn on the target follow function.

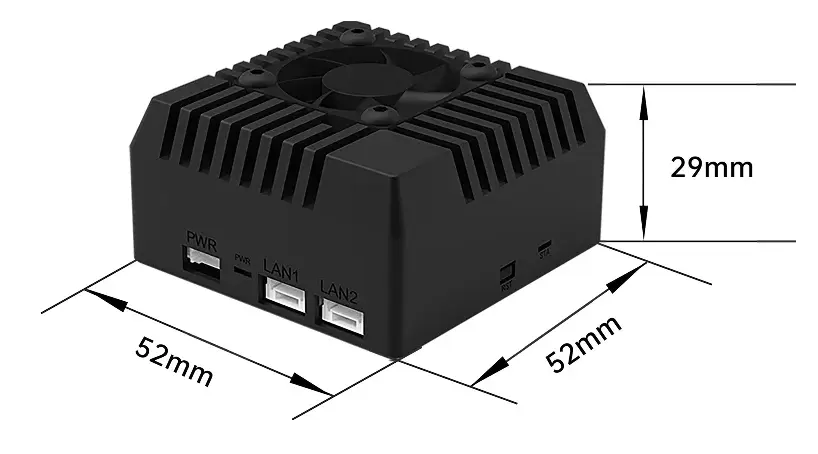

SIYI AI Tracking Module II 10T Dimensions

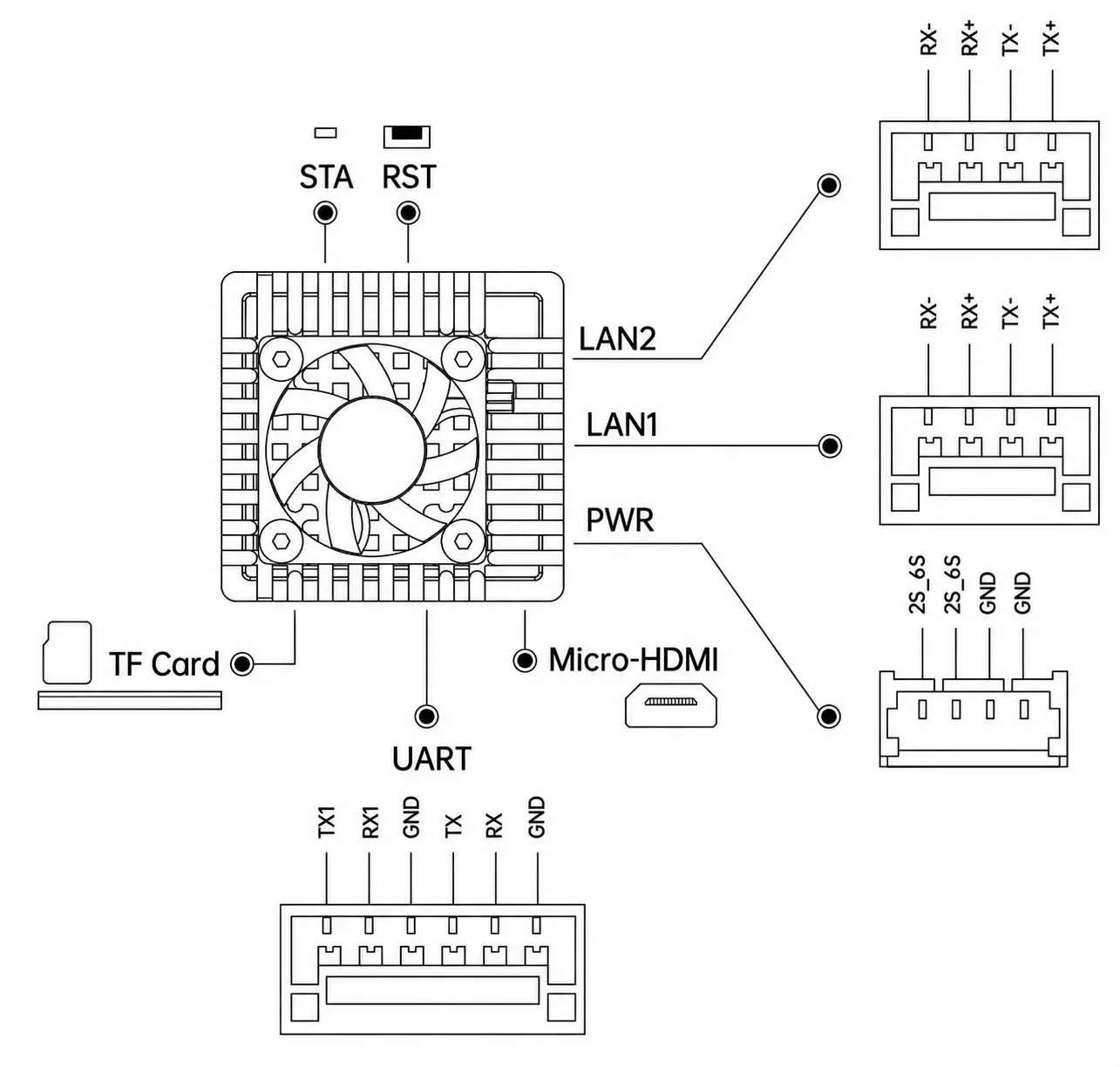

SIYI AI Tracking Module II 10T Pinout
SIYI AI Tracking Module II 10T Specifications
Model | SIYI AI TRACKING MODULE II |
Computing Power | 10Tops @ INT8 |
Power Consumption | 8W |
Working Voltage | 11V ~ 25.2V (3S ~ 6S) |
Video Stream Codec Format | H.264 / H.265 |
Dynamic Target Gimbal Collaboration | Lock Target, Auto Zoom, Center Target, AI Follow |
Target Recognition / Locking Accuracy | 95% |
Recognizable Object Types | Any Object Specific Object: Insulator, Human, Auto Mobile (Car, Truck, Bus), Vessel, Fire / Smoke, Aircraft, Custom Object |
Working Temperature | -10℃ ~ +50℃ |
Dimension | 52mm x 52mm x 29mm |
Weight | 88g |
Compatible Optical Pods & Gimbal Cameras | ZT30 / ZT6 / ZR30 / ZR10 / A8 mini |
SIYI AI Tracking Module II 10T Package Includes
- 1x SIYI AI Tracking Module II 10T
- 1x SIYI Gimbal Power Cable
- 1x SIYI AI Tracking Module to SIYI Gimbal Ethernet Cable
- 1x SIYI AI Tracking Module to SIYI Link Cable
- 1x SIYI AI Tracking Module to SIYI Link Y Cable
