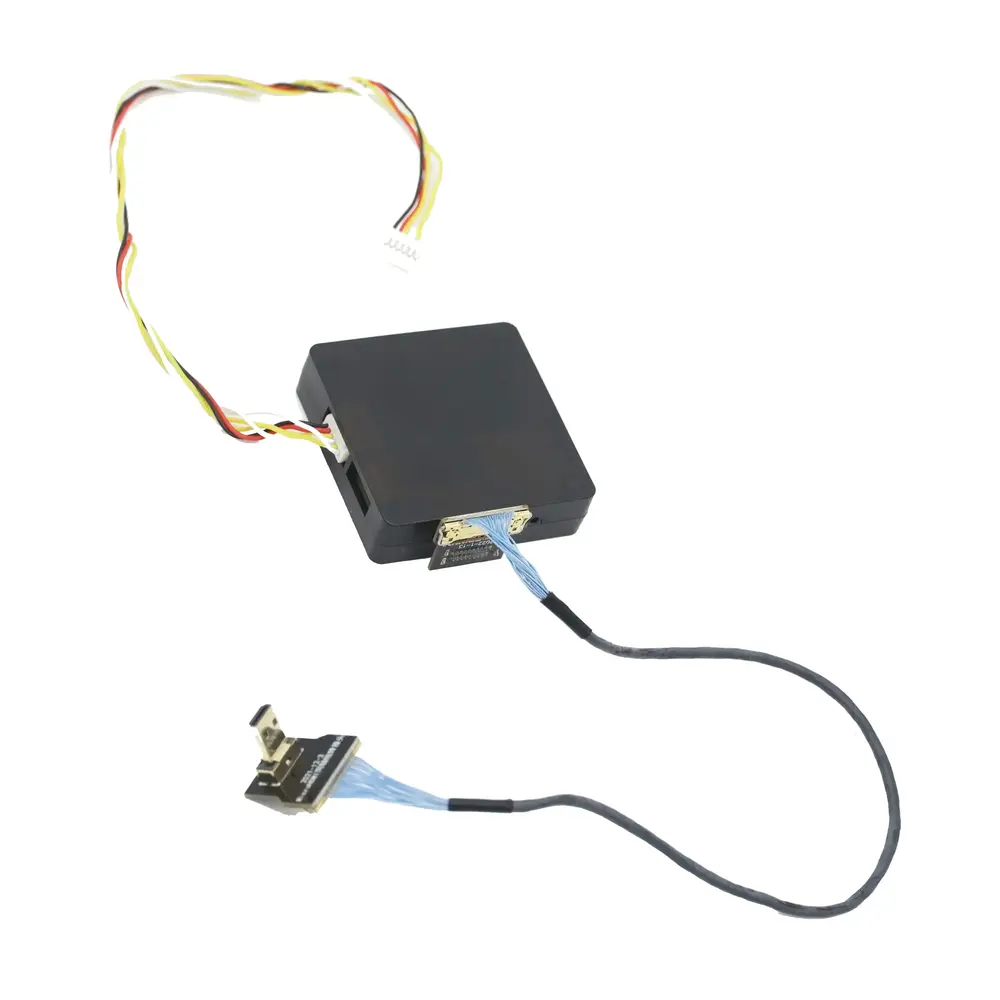

SIYI Air Unit Recording HDMI Input Converter
SIYI Air Unit Recording HDMI Input Converter is a device designed for seamless integration with FPV (First Person View) systems. The converter enables HDMI signal transmission to the transmitting unit, ensuring a clear and smooth image on FPV goggles. This feature is especially useful in applications requiring high-quality video, such as live streaming, field testing, and professional drone racing.
SIYI Air Unit Recording HDMI Input Converter – Compact HDMI Video Recording Solution
3W Ultra-Low Power Consumption
Designed with energy efficiency in mind, consuming only 3W during operation. Suitable for extended use while reducing power demand.
Mini Interface
Equipped with a Mini HDMI video input interface for convenient and stable connection. Its compact and elegant design makes it easy to install in limited spaces.
Compatible with Third-Party Links
Supports RTSP video stream protocol, allowing easy integration with Ethernet-based image transmission devices. This makes it compatible with various third-party systems and streaming platforms.
High-Definition Video Recording
Supports 1080P high-resolution video recording for clear and detailed image capture. Perfect for applications that require reliable, high-quality video monitoring.
SIYI Air Unit Recording HDMI Input Converter Key features
- MicroSD Card Support
The converter supports Class 10 MicroSD cards up to 32 GB in FAT32 format. This allows convenient local recording without the need for additional external recorders.
- Modern H.265 Video Format
The device records video in the efficient H.265 format, helping reduce file size while maintaining good image quality. This is especially useful for longer recordings and limited storage capacity.
- Ethernet Video Transmission
Video signal is transmitted via an Ethernet interface, ensuring stable and efficient image transmission. This solution works well for professional FPV systems, monitoring setups, and drone-based video applications.
- Adjustable IP Address
The device IP address is not fixed, allowing users to adapt it to their own network configuration. This provides greater flexibility when integrating the converter with different systems and devices.
- Easy Installation and Configuration
Its compact design and intuitive operation make it easy to quickly integrate into an existing setup. It is a practical solution for both professional users and hobbyists.
SIYI Air Unit Recording HDMI Input Converter
SIYI Air Unit Recording HDMI Input Converter Specification
| Video Input Port | Mini HDMI |
| Video Output Port | Ethernet |
| Working Voltage | 12V |
| Power Consumption | 3W |
| TF Card Recording Resolution | 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Video Storage Bitrate | 12 Mbps |
| Supported File System | FAT32 |
| Video File Format | H.265 |
| Supported TF Card Type | MicroSD Class10, max 32 GB |
| Working Temperature | -10 ~ 50℃ |
| Dimension | 42x41x11mm |
| Weight | 26g |
Downloads
Documents
Air Unit HDMI Input Converter User Manual
Firmware
Air Unit HDMI Input Converter Firmware
Android App
Windows Software
SIYI Air Unit Recording HDMI Input Converter Package Include
- 1 x SIYI Air Unit Recording HDMI Input Converter
- 1 x Connection & Power Cable
- 1 x Micro-HDMI to Standard HDMI Cable
