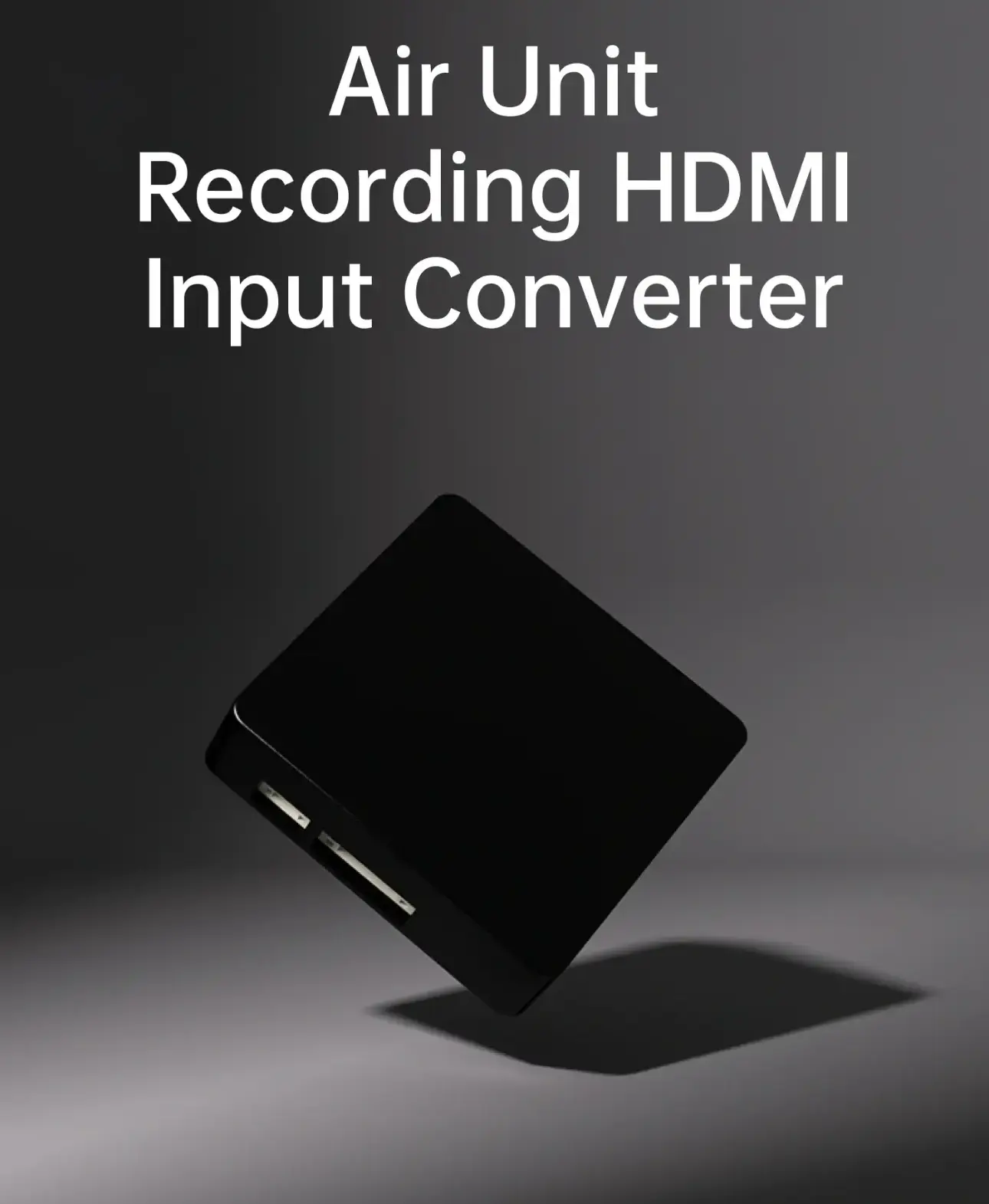

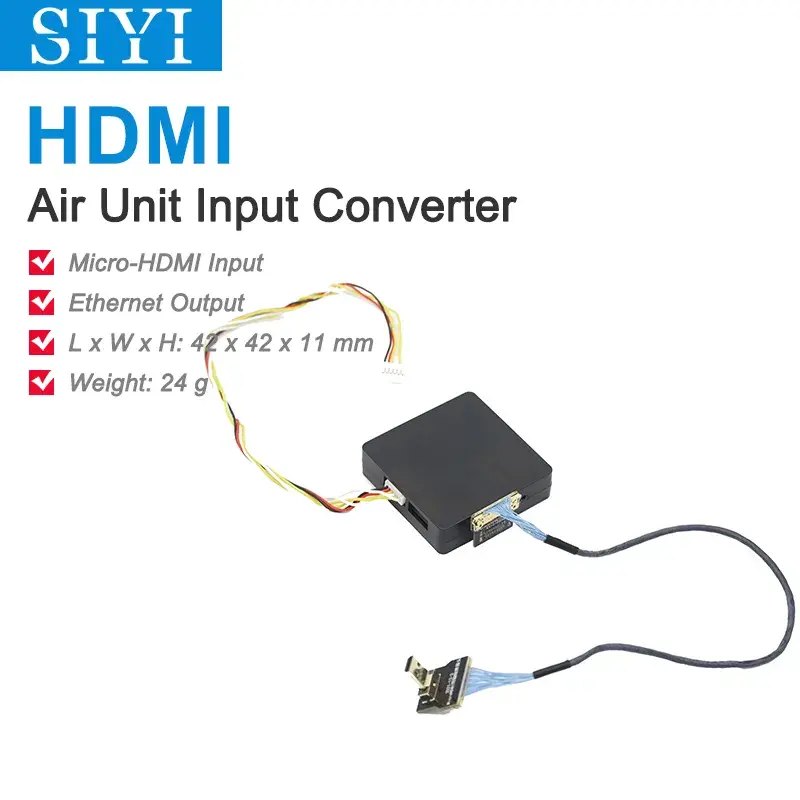

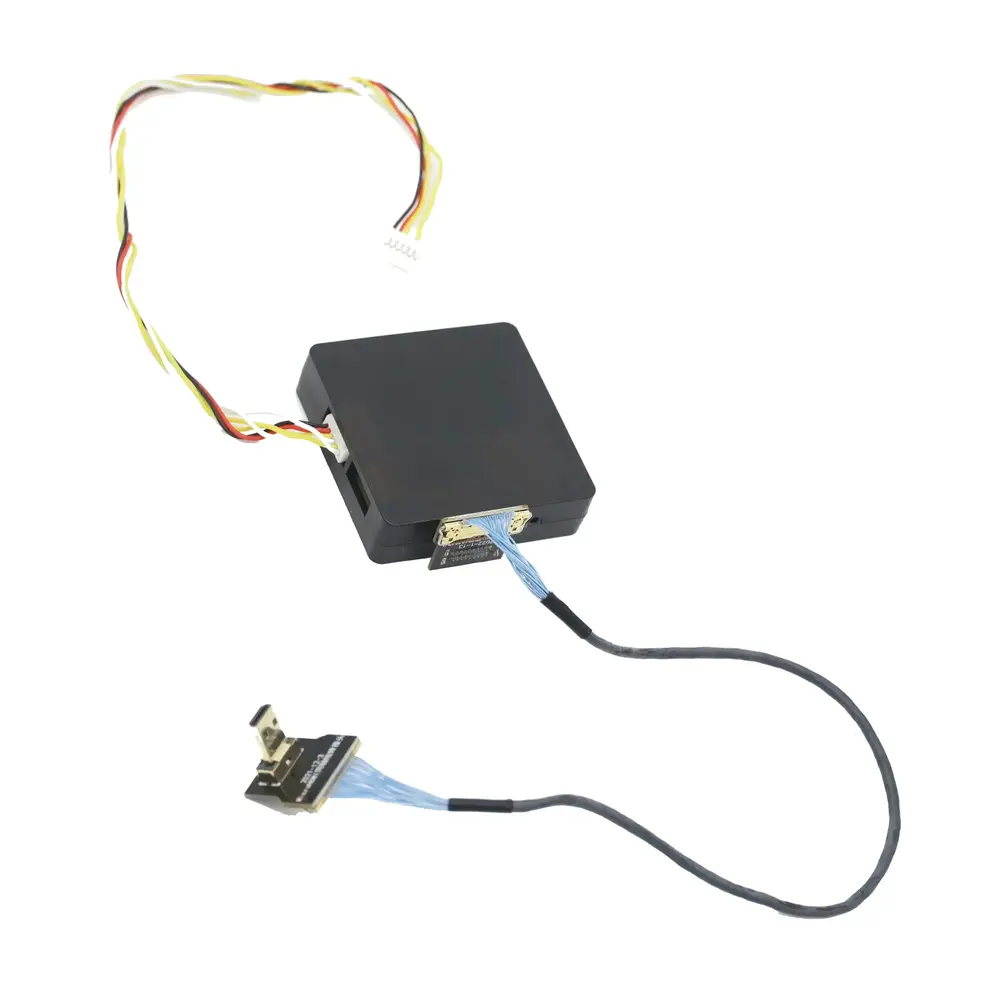

SIYI Air Unit Recording HDMI Input Converter
SIYI Air Unit Recording HDMI Input Converter is a device designed for seamless integration with FPV (First Person View) systems. The converter enables HDMI signal transmission to the transmitting unit, ensuring a clear and smooth image on FPV goggles. This feature is especially useful in applications requiring high-quality video, such as live streaming, field testing, and professional drone racing.
SIYI Air Unit Recording HDMI Input Converter Specification
| Video Input Port | Mini HDMI |
| Video Output Port | Ethernet |
| Working Voltage | 12V |
| Power Consumption | 3W |
| TF Card Recording Resolution | 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Video Storage Bitrate | 12 Mbps |
| Supported File System | FAT32 |
| Video File Format | H.265 |
| Supported TF Card Type | MicroSD Class10, max 32 GB |
| Working Temperature | -10 ~ 50℃ |
| Dimension | 42x41x11mm |
| Weight | 26g |
Downloads
Documents
Air Unit HDMI Input Converter User Manual
Firmware
Air Unit HDMI Input Converter Firmware
Android App
Windows Software

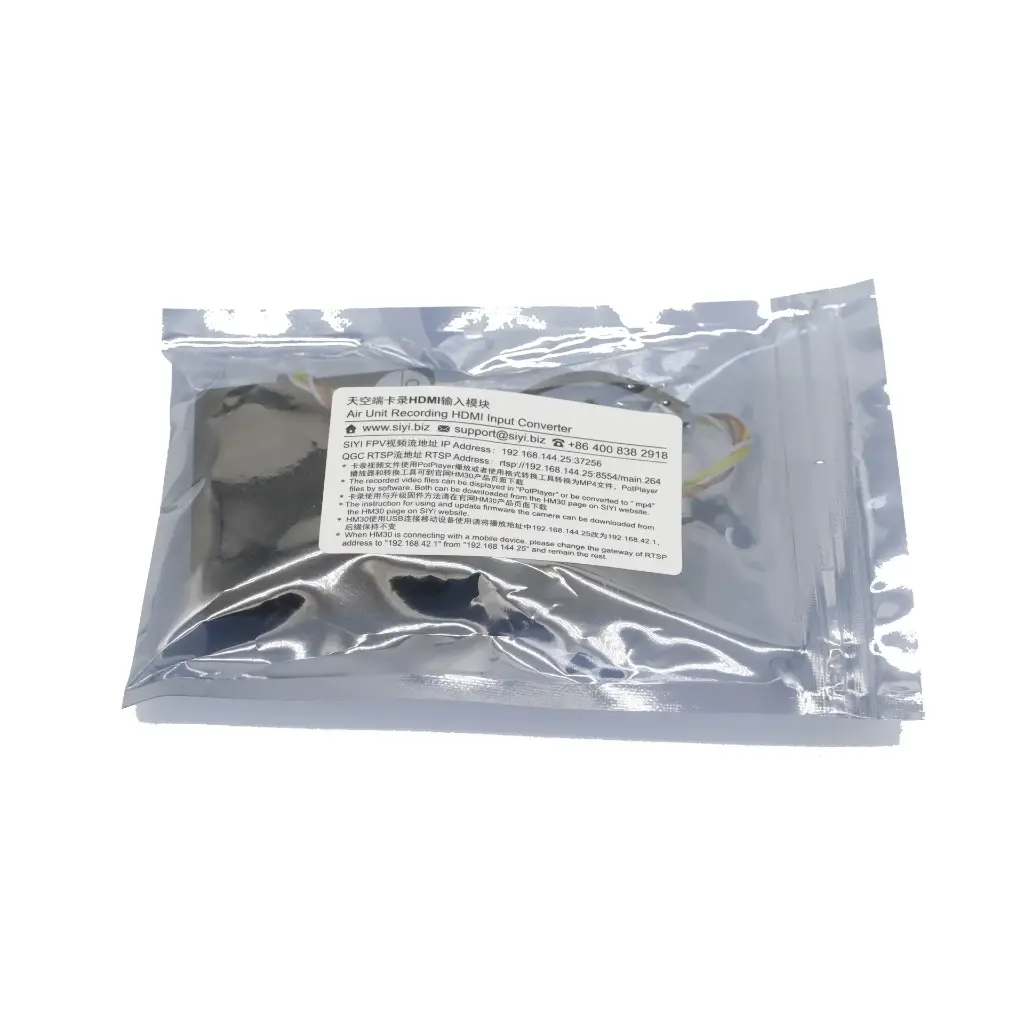

SIYI Air Unit Recording HDMI Input Converter Package Include
- 1 x SIYI Air Unit Recording HDMI Input Converter
- 1 x Connection & Power Cable

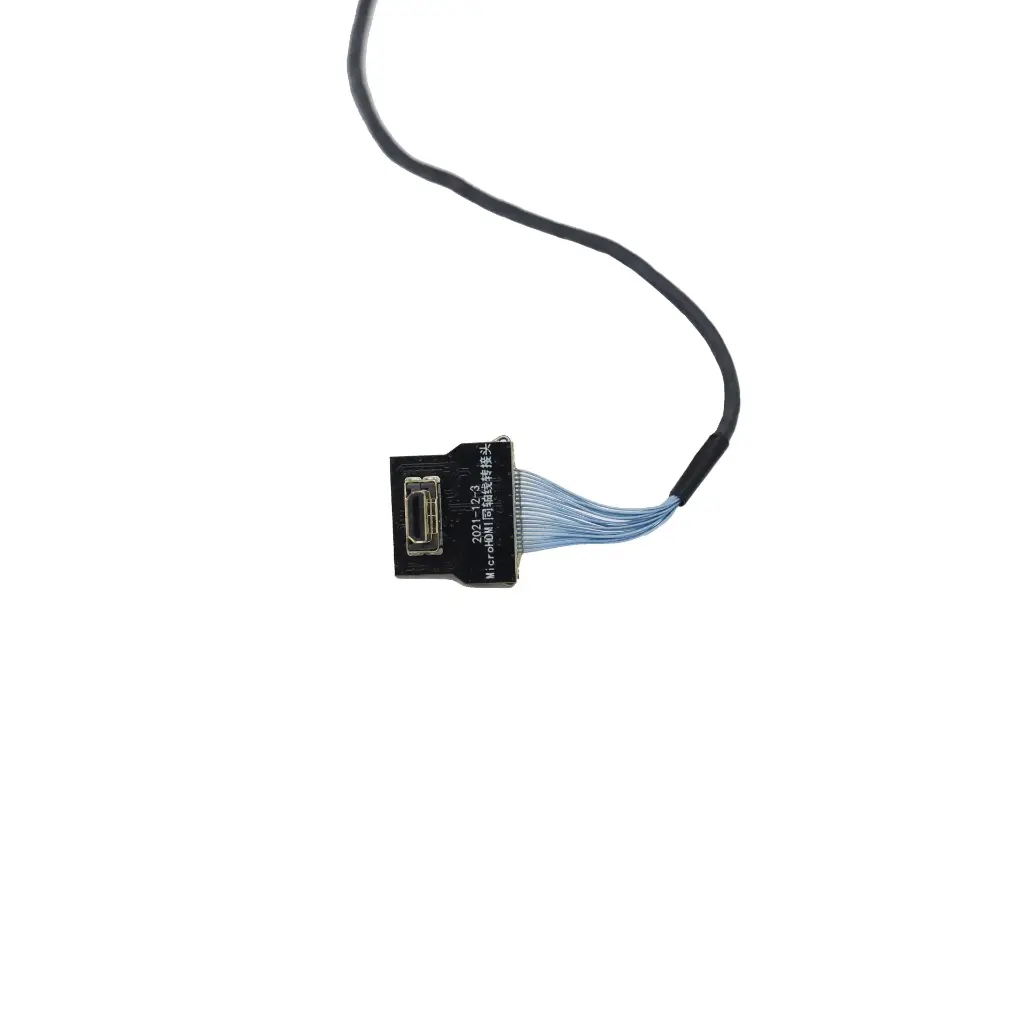

- 1 x Micro-HDMI to Standard HDMI Cable
