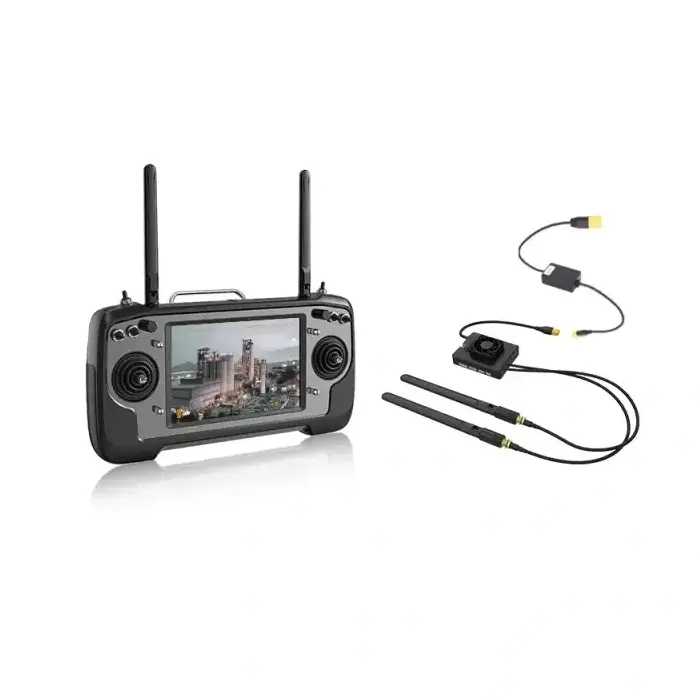

SIYI MK32E Enterprise Handheld Ground Station
The SIYI MK32 Enterprise Handheld Ground Station Smart Controller is a rugged, high‑performance remote controller built for drones (UAVs), unmanned ground vehicles (UGVs), and marine systems (USVs). It features a bright 7‑inch HD touchscreen display, dual full‑HD digital image transmission running on Android OS. With its long battery life (up to ~10 hours), fast charging, and support for long‑range communication (up to ~15 km), the MK32 delivers reliable control and real‑time video feedback in demanding field conditions.
Unparalleled Range and Video Transmission Stability with SIYI MK32E Enterprise Portable Ground Station
The SIYI MK32E Enterprise portable ground station is based on SIYI's independent wireless HD image transmission technology. It is a universal, integrated (all-in-one) link that seamlessly combines remote control, a datalink, and real-time video streaming in Dual Full HD quality. The system features an intelligent function that automatically adjusts the frequency band to areas with the least interference, which guarantees maximum connection stability. When using standard omnidirectional antennas, the transmission range is up to 15 kilometers, while the use of directional antennas allows this distance to be extended up to 30 kilometers.
SIYI MK32E Enterprise Handheld Ground Station
7-Inch HD High Brightness Monitor
Qualcomm 8-core CPU 4GB RAM 64GB ROM
15KM Dual 1080p Digital Image Transmission
Dual Operator RC Relay

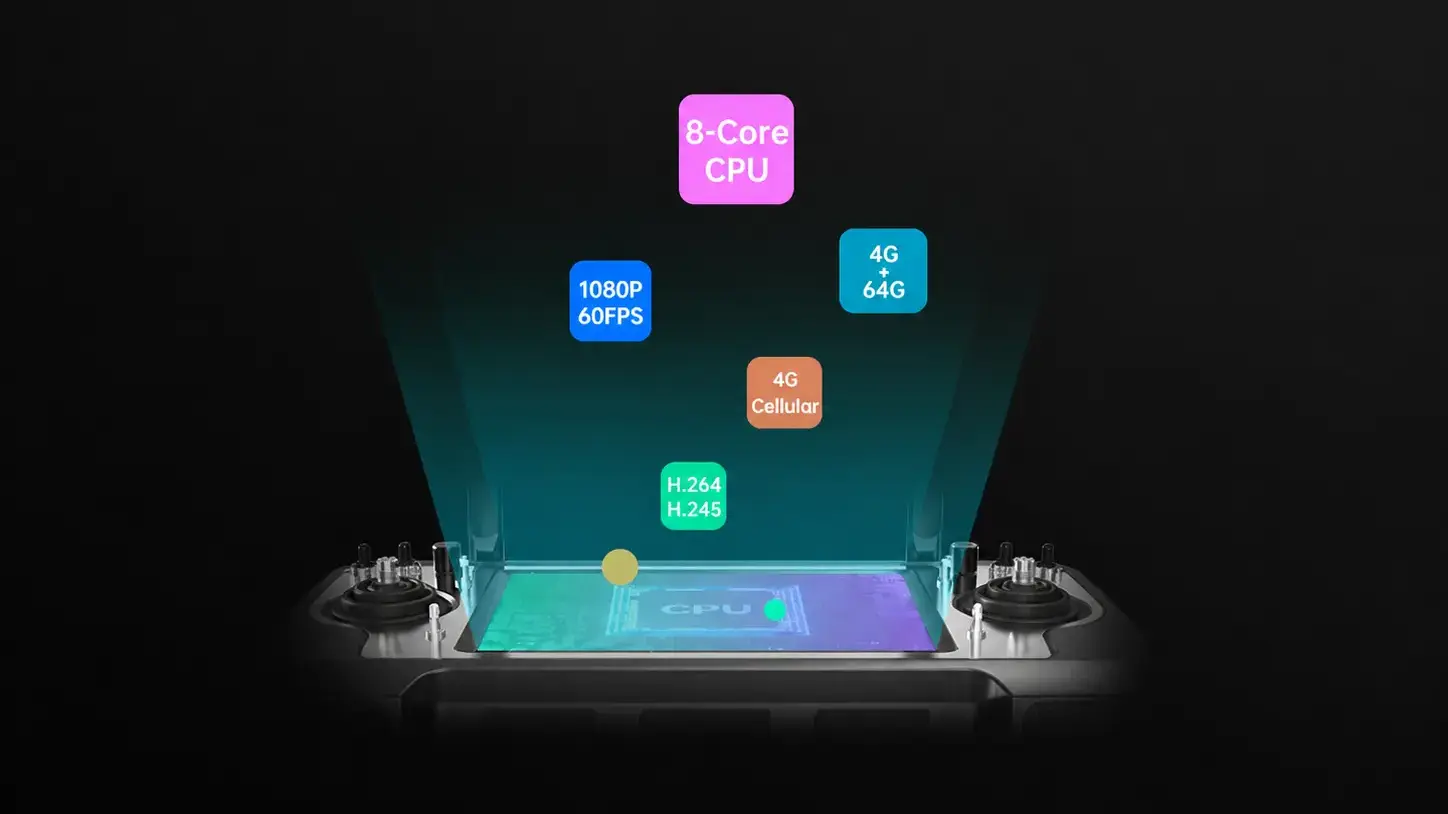

Android OS, Superior Performance
MK32 ground station carries Qualcomm 8-core CPU, which can smoothly decode 1080p 60 fps video stream by hardware in either H.264 or H.265 format. MK32's Android system is upgraded to impressive 4G RAM and 64G ROM which can efficiently run various ground control software.
*MK32 Android platform also comes with full band 4G network and supports streaming HD video to cloud server by SDK development.

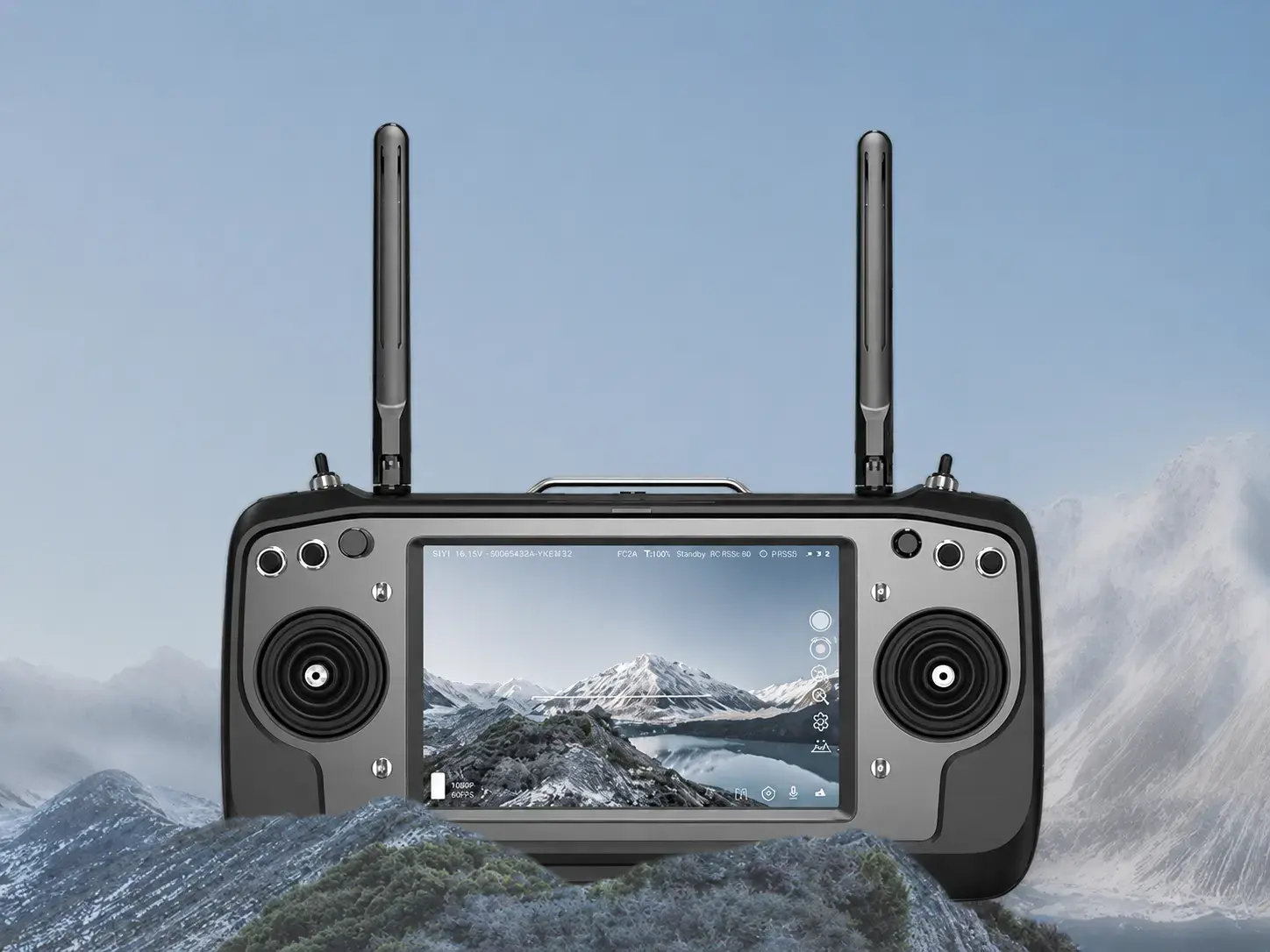

7-Inch High-Definition Monitor 1000-Nit High Brightness Display
MK32 enterprise ground station comes with a built-in 7-inch high-definition and high brightness monitor. Max 1000 nit (cd/m²) of brightness presents high clear screen display information from ground control software and high-quality images.
15 KM Wireless Digital Image Transmission
The link of MK32 is based on SIYI's independent wireless HD image transmission technology, which is an all-in-one link integrated with remote control, datalink, and video streaming. The technology has a smart feature that the transmission can automatically adapt to the frequency band with least interference.
*With standard omni antennas, the transmission range is up to 15 kilometers.
*With directional antennas, the transmission range is up to 30 kilometers.
Dual Operator, Remote Control Relay
The SIYI MK32E Enterprise portable ground station supports advanced, multiple radio links. Dual Operator Mode allows two stations to control a single drone simultaneously – one person pilots the platform, while the other independently manages the camera or gimbal. Both operators can receive live video feeds from the same or different sensors. In turn, the Remote Control Relay function enables seamless transfer of control over the machine between controllers during flight. This solution doubles the operational range, making it ideal for patrol missions, cargo inspections, and long-distance commercial UAV flights.

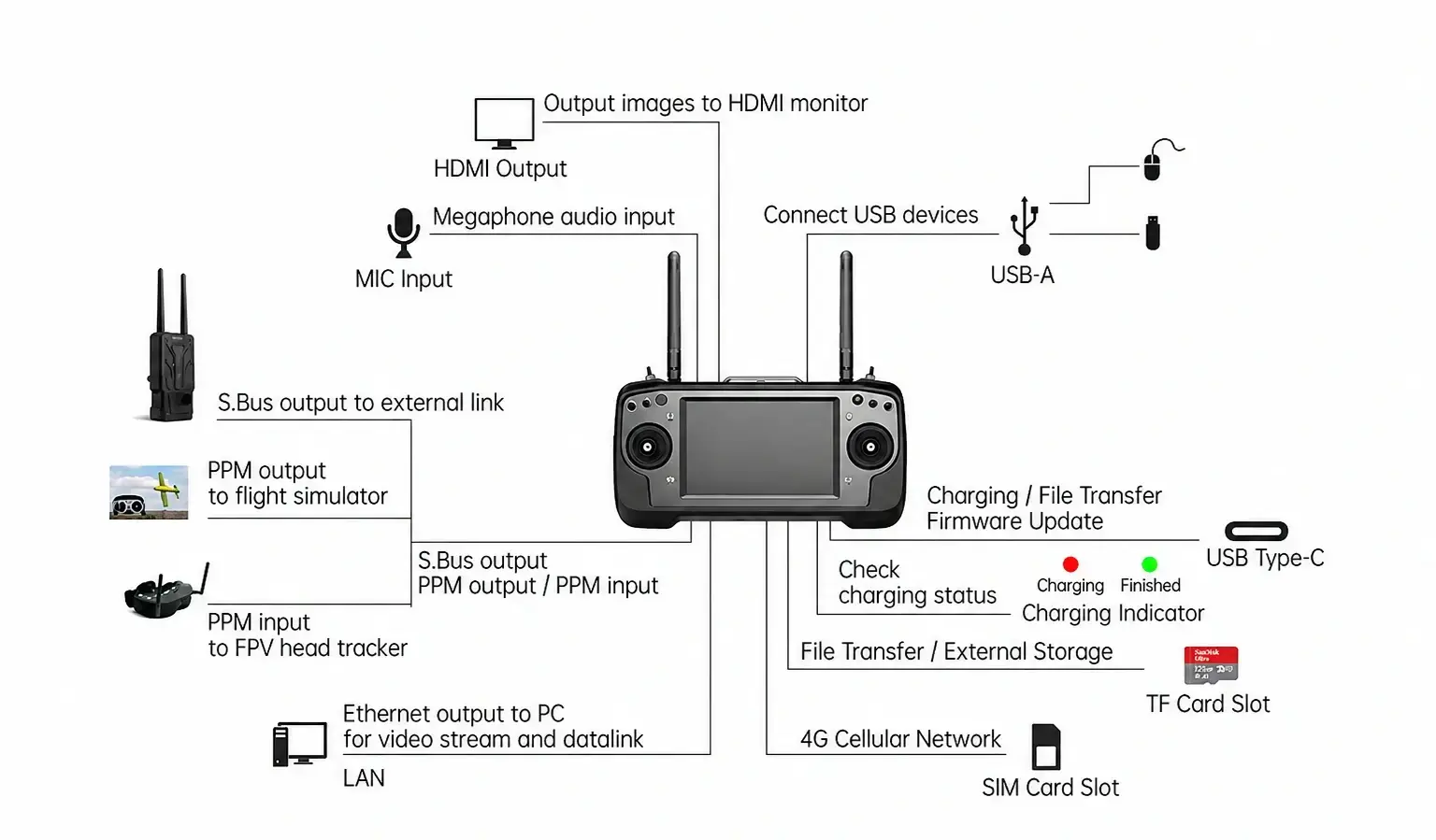

Abundant Interface of SIYI MK32E Enterprise Handheld Ground Station

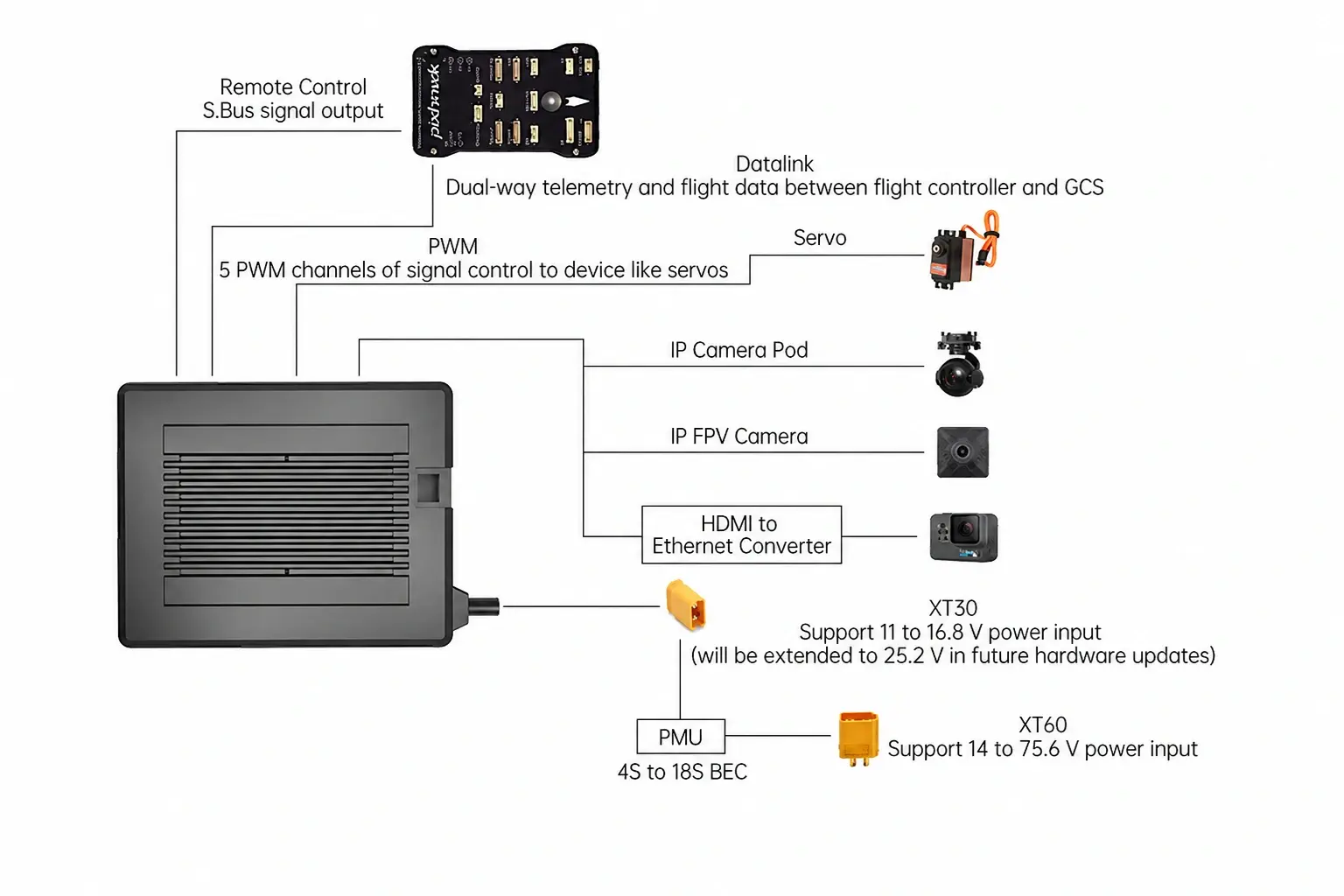

Data Stream Connection Diagram
SIYI MK32E Enterprise Handheld Ground Station Specifications
Ground Station
Monitor | 7-Inch High Definition and High Brightness LCD Touchscreen |
System | Android 9.0 OS, 4G RAM & 64G ROM |
Dimension | 308 x 148 x 72 mm (antenna overlapped) |
Weight | 1440 g |
Battery Capacity & Type | 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh |
Fast Charging Protocol | PD 30W |
Charging Time | 3.5 Hours (30W PD Charging) |
Battery Life | 10 hours |
Waterproof Level | IP4X |
Working Temperature | -10 to 50℃ |
Interface & Ports | |
| Video Output | Standard HDMI |
External Device | USB-A |
MIC Input | Top Audio Port |
Charging | Type-C |
Firmware Upgrade | Type-C |
File Transfer | Type-C / USB-A |
4G Cellular Network | SIM Card Slot |
External Storage | TF Card Slot / USB-A |
Communication | LAN (Ethernet) |
RC Input / Output | Bottom Audio Port |
Air Unit
Signal Output | 16 channels of S.BUS, 5 channels of PWM |
Dimensions | 70 x 55 x 16 mm (antenna excluded, fan included) |
Weight | 74 g (antenna excluded) |
Antenna Gain | 5 dBi (standard omni) |
Power Input | 11 to 16.8 V (expandable to 4S to 18S with BEC) |
Working Temperature | -10 to 50℃ |
Interface & Ports | |
SBUS | 3-Pin |
Datalink (to FC) | UART 4-Pin |
PWM Channel 1 to 5 | 6-Pin |
Video Input | Ethernet 8-Pin |
Firmware Upgrade | Type-C |
SIYI MK32E Enterprise Handheld Ground Station Package Includes
- 1x SIYI MK32E Enterprise Handheld Ground Station
- 1x Air Unit
