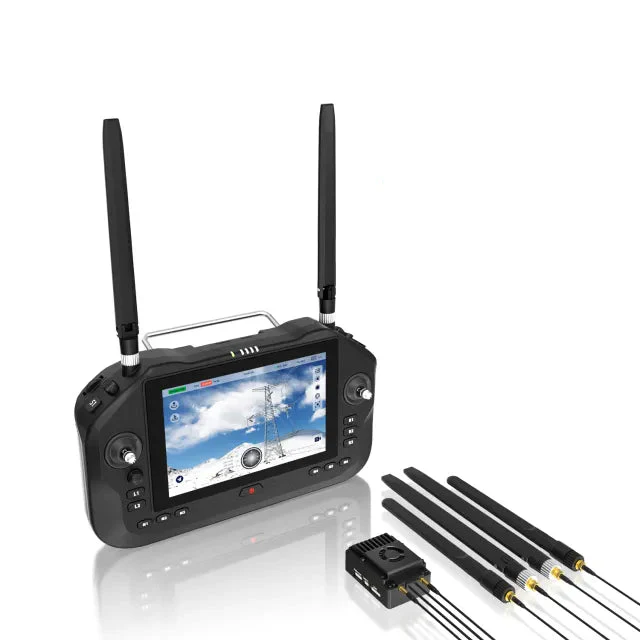

SIYI UniRC 7 Pro Handheld Ground Station
The SIYI UniRC 7 Pro is a high-performance handheld ground station designed for professional UAV, UGV, and USV applications. It features a bright 7-inch 1080p touchscreen, dual-band transmission (2.4 GHz and 5.8 GHz), and supports ultra-long-range digital video and data communication up to 40 km. Powered by Android 13 with 4 GB RAM and 64 GB of internal storage, it offers smooth operation and wide compatibility with various systems. The controller also includes AES encrypted communication, dual internal antennas, sub joystick control, and a quick-release battery system providing up to 11 hours of field use. Fast 30W PD charging ensures minimal downtime between missions.
Take Absolute Control Over Every Mission and Increase Operational Efficiency in The Field With SIYI UniRC 7 Pro Handheld Ground Station.
A New Era of Handheld Ground Stations
The SIYI UniRC 7 Pro Handheld Ground Station combines a display, radio controller, and communication system in one ergonomic unit. It is a practical command center built for field operations where fast setup, stable handling, and full mission control matter most.

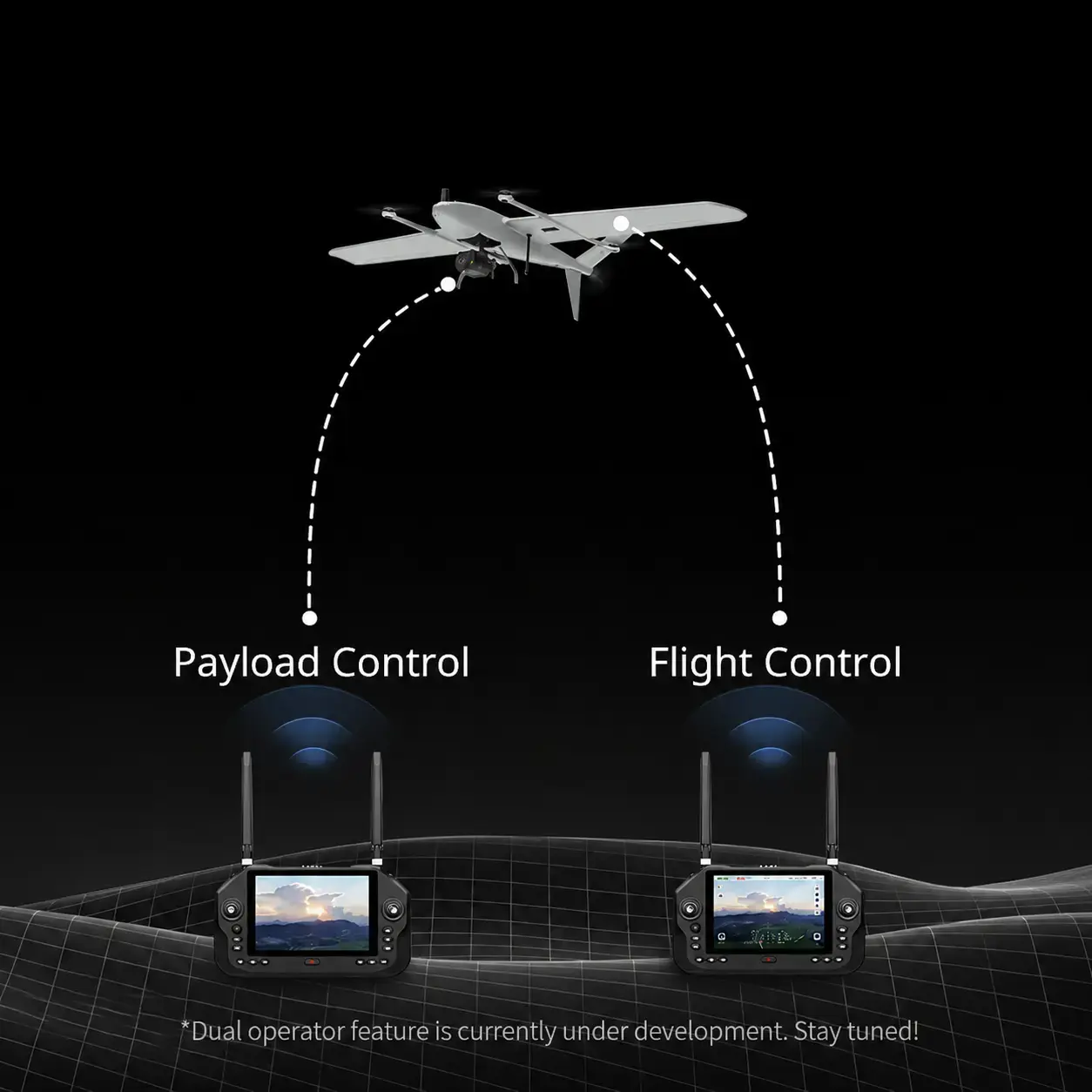

Dual-Operator Control for Complex Missions
The SIYI UniRC 7 Pro Handheld Ground Station is designed to support advanced mission workflows where flight control and payload operation can be managed separately. This setup is especially useful for professional tasks such as inspections, surveillance, mapping, and operations with cameras, gimbals, or other mission equipment.

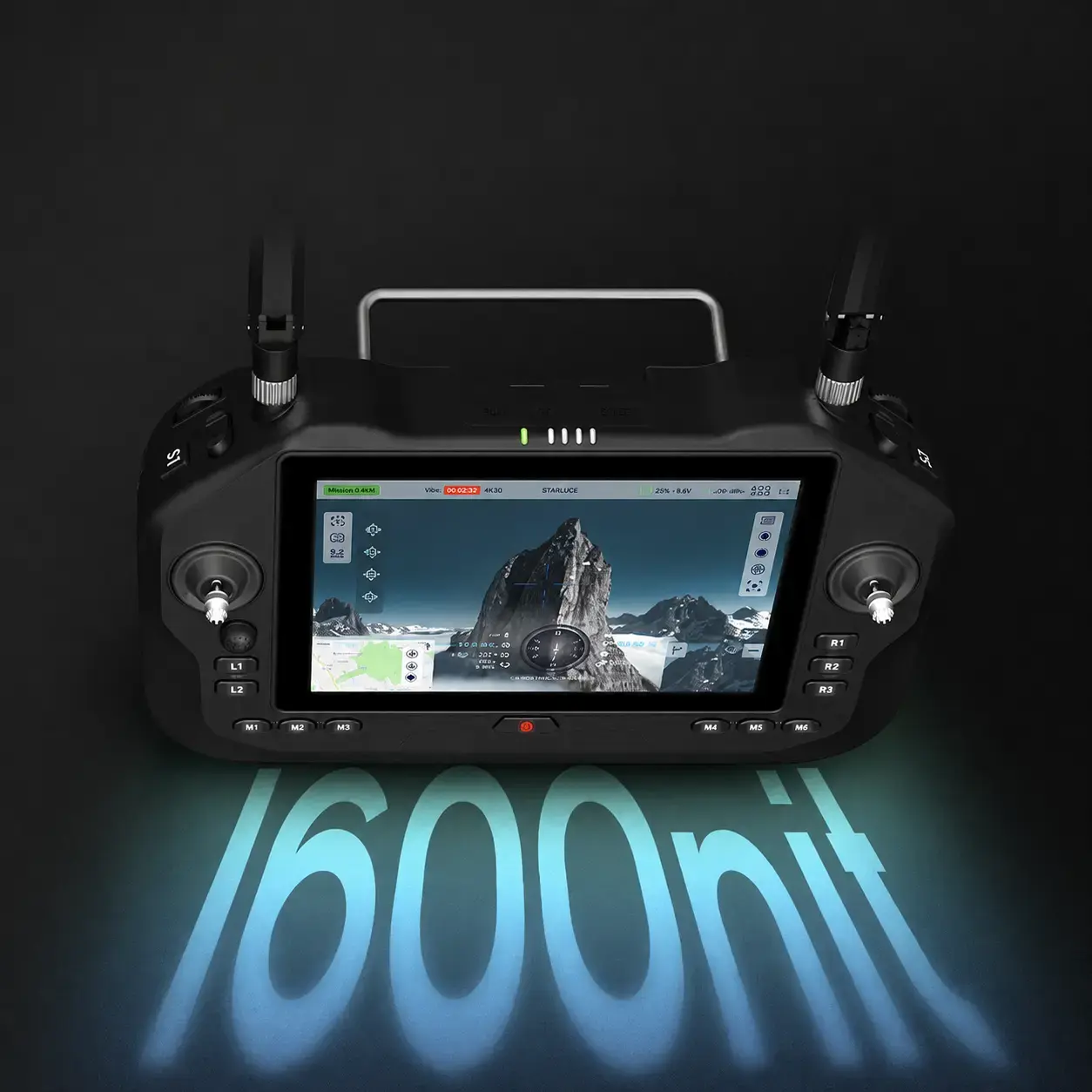

7-inch HD Display with High Brightness
The large 7-inch HD touchscreen provides a clear view of live video, maps, and flight parameters during outdoor missions. Its high brightness improves visibility in strong daylight, while touch control helps the operator react quickly to changing mission conditions.

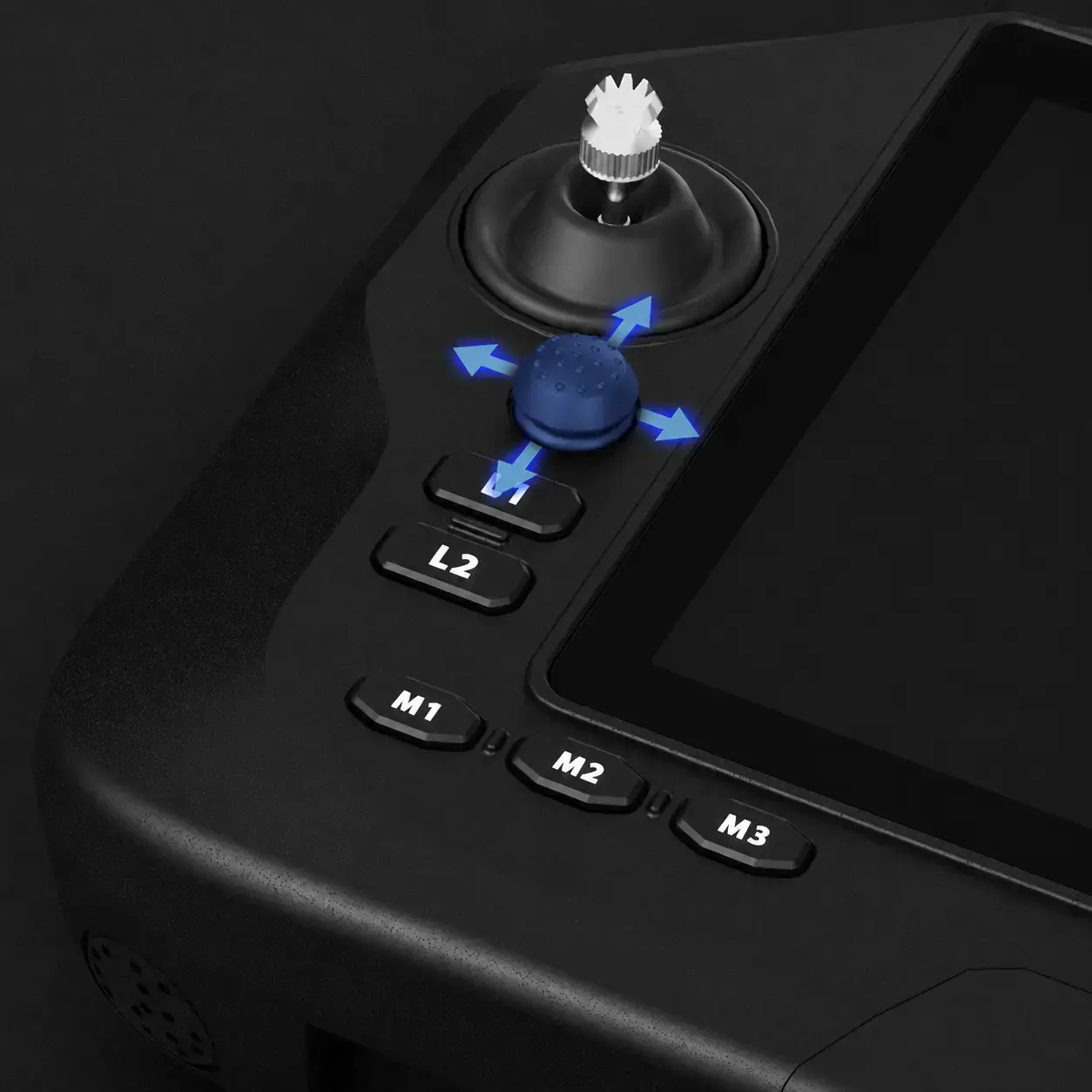

Precise Sub Joystick for Extra Control
The additional sub joystick expands control options for accessories such as gimbals, cameras, searchlights, and other mission payloads. It allows the operator to manage extra functions comfortably without interrupting primary drone control.

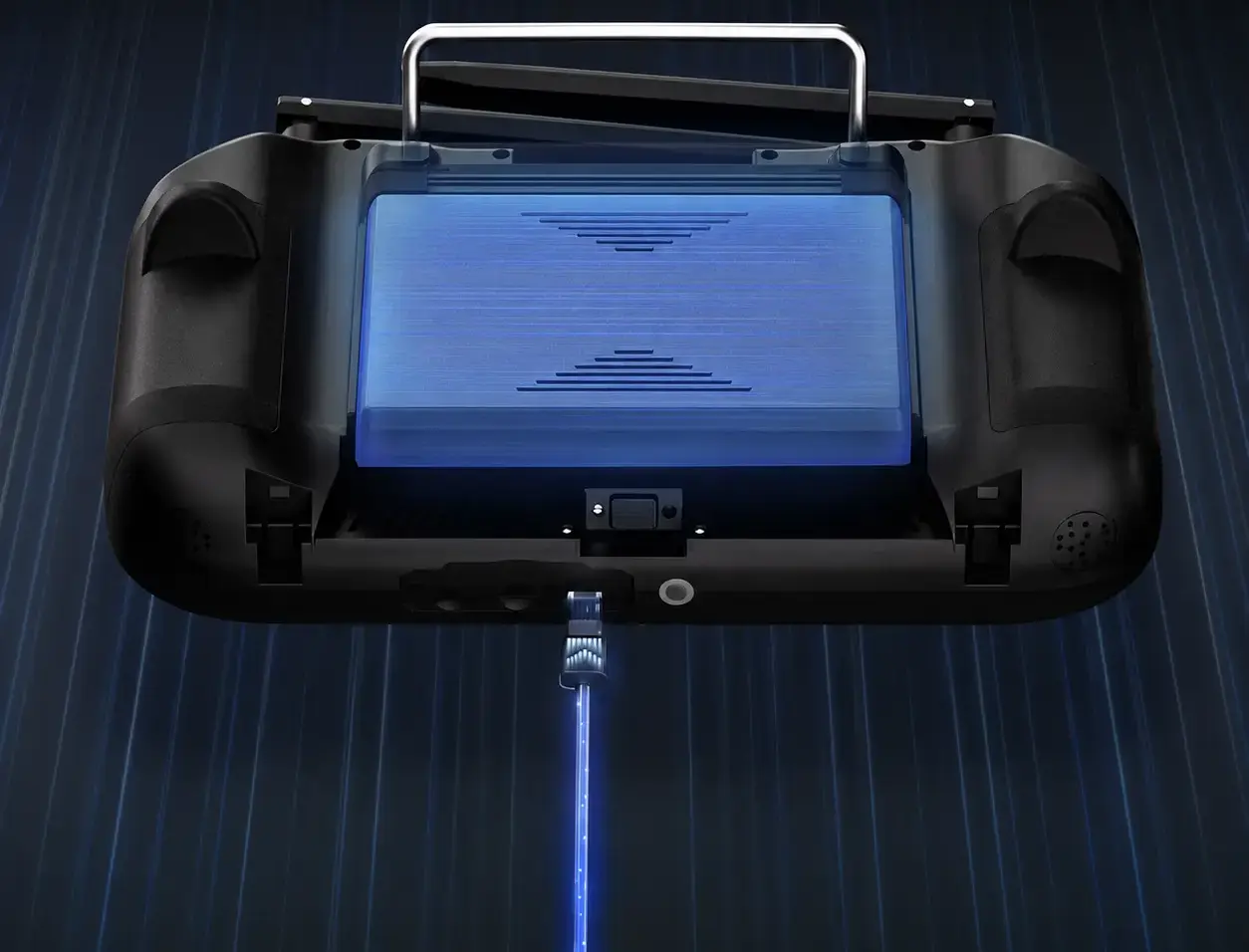

Long Battery Life for Demanding Missions
The efficient power system is designed for long field operations and heavy use. Fast charging, quick battery access, and charging protection help maintain continuous operation during extended professional missions.

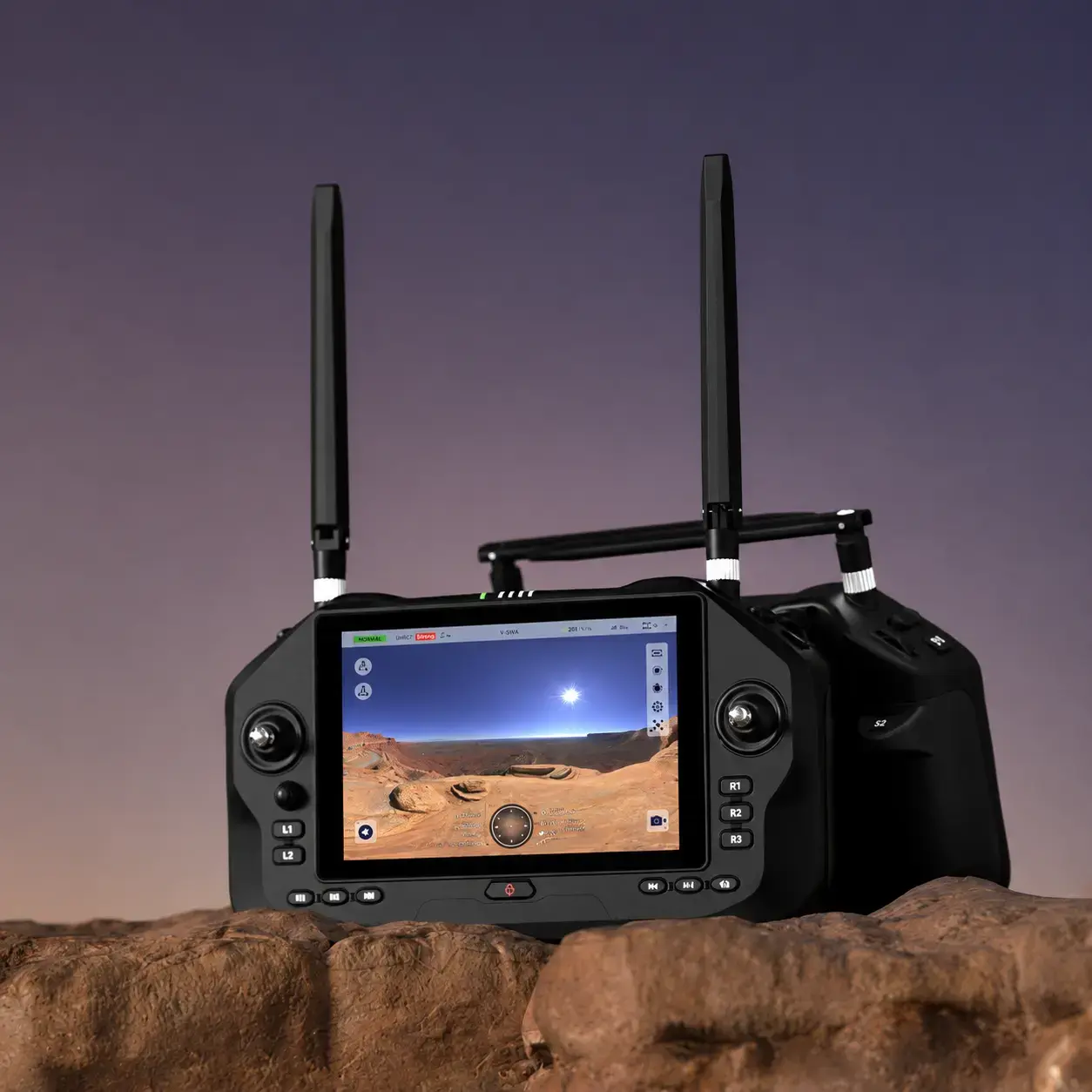

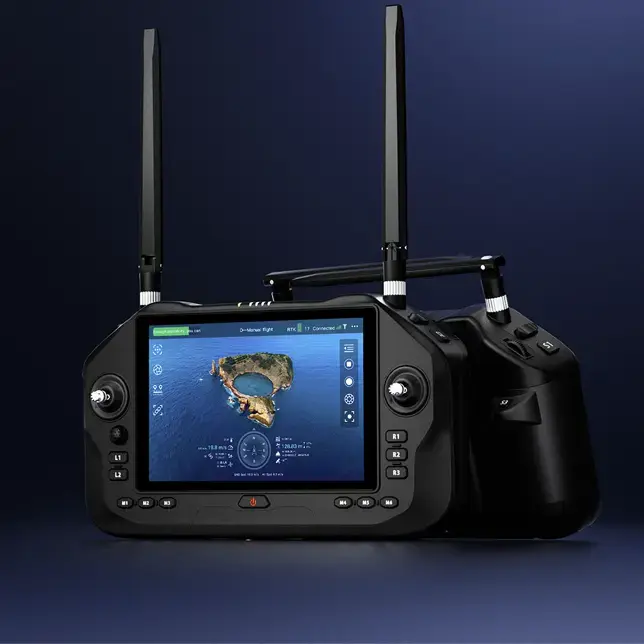

Ergonomic design for field work
The controller body is shaped for confident handling during long operating sessions. The layout of the sticks, screen, and function buttons helps the operator stay focused on the mission instead of fighting with the equipment.
SIYI UniRC 7 Pro Handheld Ground Station Specifications
Scrreen Resolution | 1920x1200 |
Transmission Frequency | 2.4 & 5 GHz |
LAN Port | Yes |
HDMI Port | Yes |
Ground Unit Antennas | 2x External & 2x Internal |
USB-A Port | Functions as UART (for RTK dotting) and as USB for USB Disks / Microphones |
Battery Life | 8 hours |
Quick-Release Belly Bracket | Shoulder Strap |
Air Unit Dimensions | 63mm x 40.5mm x 26.5mm |
Air Unit Antennas | 2x Quick-Release MMCX & 2x Detachable IPEX2 |
Air Unit Weight (Excl. Antennas) | Approx: 115g |
SIYI UniRC 7 Pro Handheld Ground Station Package Includes
- 1x SIYI UniRC 7 Pro Handheld Ground Station
- 1x Set of Transmission and Video Antennas
- 1x USB Cable
